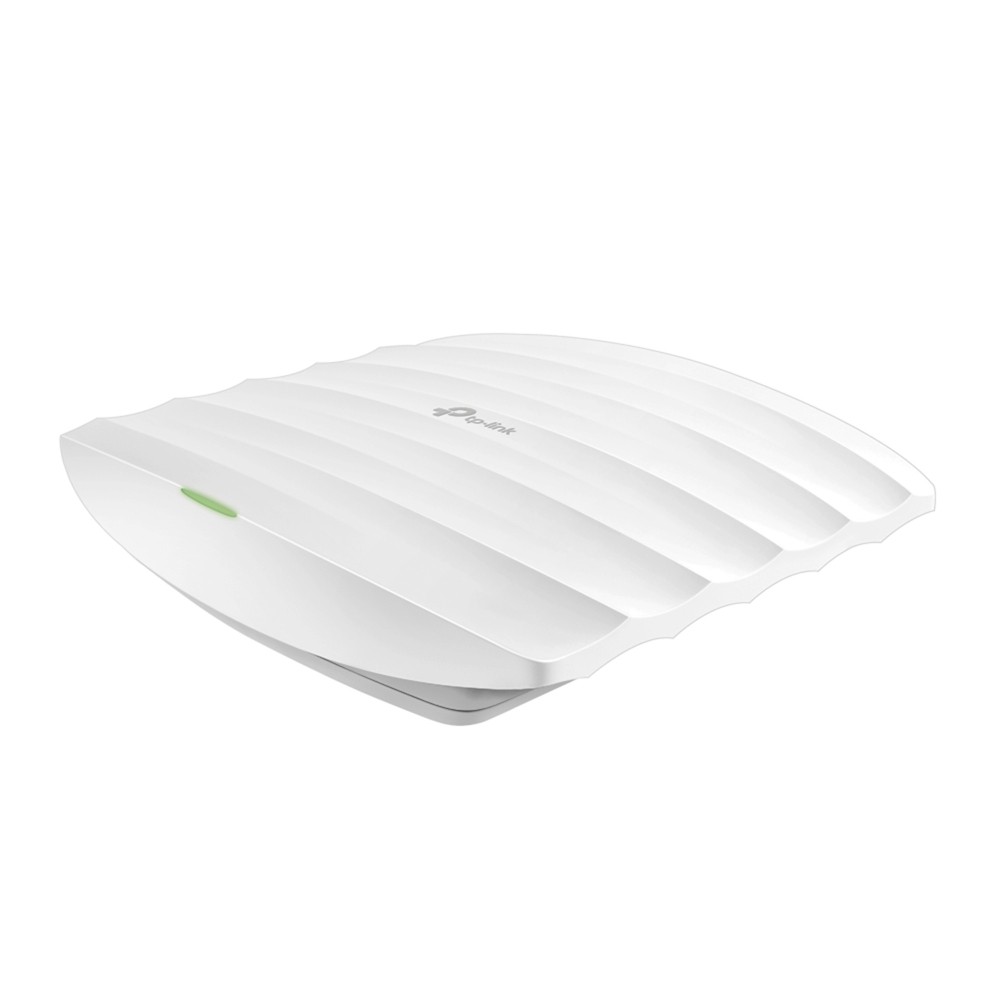

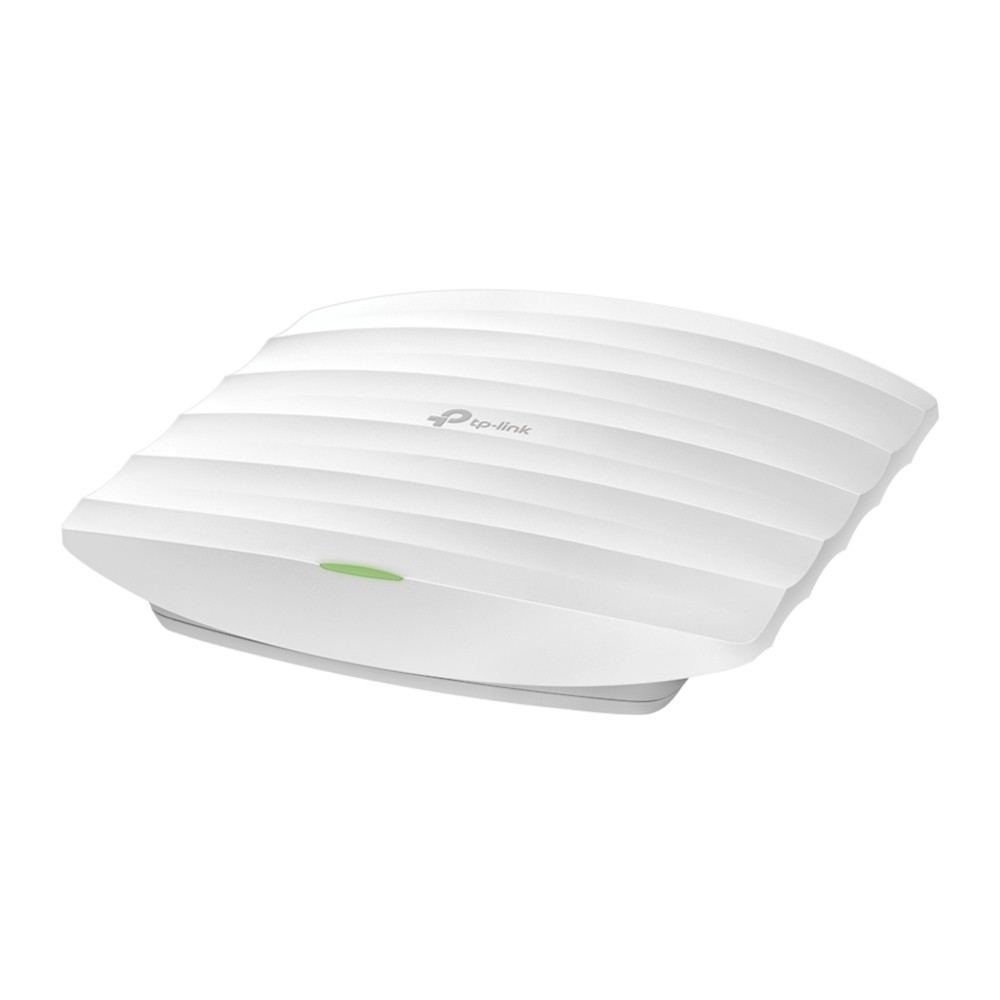

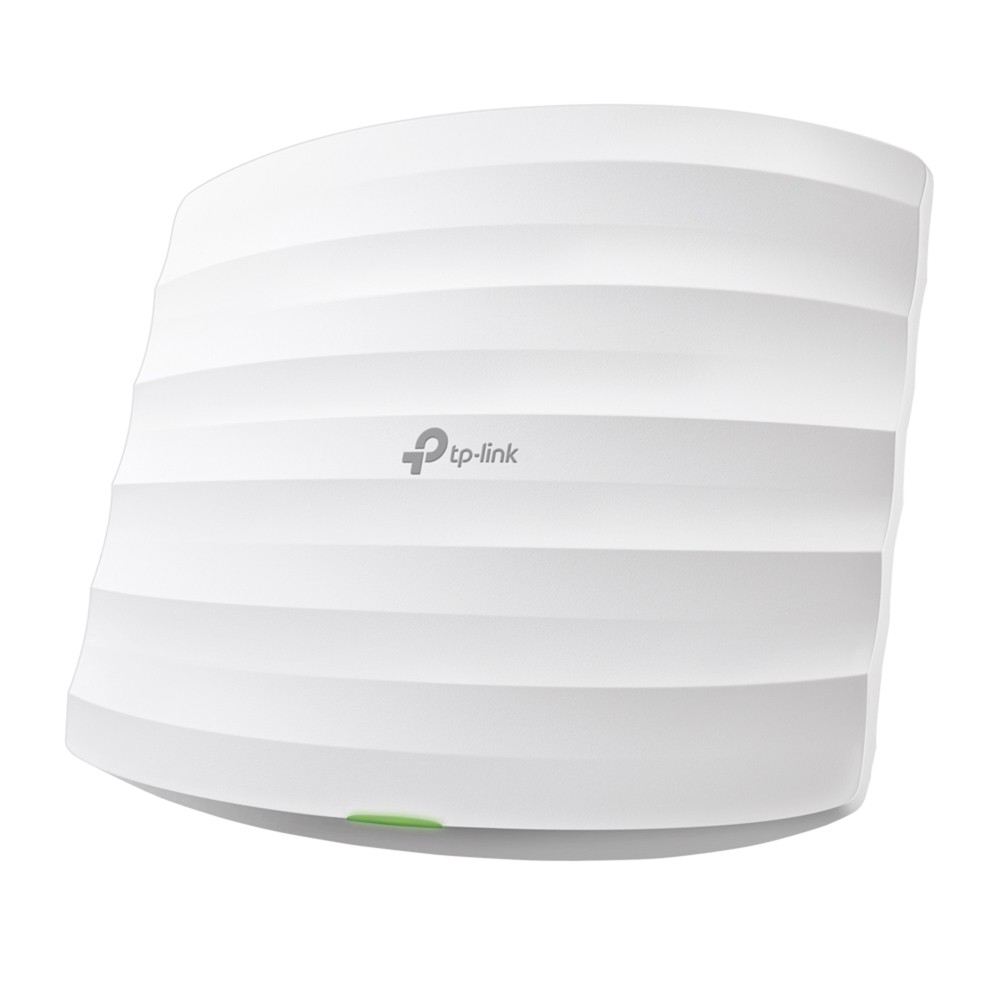

TP-Link EAP245 AC1750 Wireless MU-MIMO Gigabit Ceiling Mount Access Point

https://arcip.com.au/web/image/product.template/11364/image_1920?unique=0bbdb30

The TP-Link EAP245 is an AC1750 wireless MU-MIMO gigabit ceiling mount access point in the Omada range. It delivers up to 1300 Mbps on 5 GHz and 450 Mbps on 2.4 GHz with 802.11ac Wave 2 MU-MIMO, beamforming, band steering and airtime fairness. Two gigabit Ethernet ports include one that accepts 802.3af/at PoE or 48 V passive PoE, and a second for bridging. It supports guest networks with captive portal, and Omada SDN management with zero-touch provisioning via the Omada Cloud-Based Controller. Supplied by ARC IP Networks from Australian stock with the full manufacturer's warranty.

$ 188.74 188.74 AUD $ 188.74 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
EAP245
Barcode
6935364096663

The TP-Link EAP245 is an Omada AC1750 wireless MU-MIMO gigabit ceiling mount access point: up to 1300 Mbps on 5 GHz and 450 Mbps on 2.4 GHz, MU-MIMO, beamforming, band steering and airtime fairness, two gigabit Ethernet ports, 802.3af/at or 48 V passive PoE power, and centralised management through Omada controllers and the Omada app.

EAP245 overview

The EAP245 is TP-Link's AC1750 wireless MU-MIMO gigabit ceiling mount access point, which TP-Link calls an elite business-class AC1750 MU-MIMO Wi-Fi solution in its Omada range. It is dual band under IEEE 802.11ac/n/g/b/a, with simultaneous signal rates of up to 450 Mbps on 2.4 GHz and 1300 Mbps on 5 GHz, totalling 1750 Mbps. TP-Link says QCA enterprise-class chipsets, a dedicated high-power amplifier and a professional antenna, along with 802.11ac Wave 2 MU-MIMO technology, deliver these speeds and long-range coverage over both bands. TP-Link notes that maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications, and that actual throughput and coverage are not guaranteed and will vary with environmental factors such as building materials and obstacles, network conditions such as interference and traffic density, and client limitations.

The antennas are internal omni: 3 x 3.5 dBi on 2.4 GHz and 3 x 4 dBi on 5 GHz. Advanced wireless features include MU-MIMO, beamforming, band steering, load balance and airtime fairness, which TP-Link says optimise network performance, along with automatic channel assignment, transmit power control in dBm, QoS (WMM), rate limiting, reboot and wireless schedules, and wireless statistics by SSID, AP and client. Transmit power is listed as up to 20 dBm on 2.4 GHz and 23 dBm on 5 GHz under CE, and up to 24 dBm on each band under FCC. 802.11k/802.11v seamless roaming switches clients automatically to the access point with the optimal signal as users move, so voice calls and video streams keep running; TP-Link states that seamless roaming is only supported under the use of Omada controllers, requires clients that support 802.11k/v, may require additional set up, and that performance may vary with the client device.

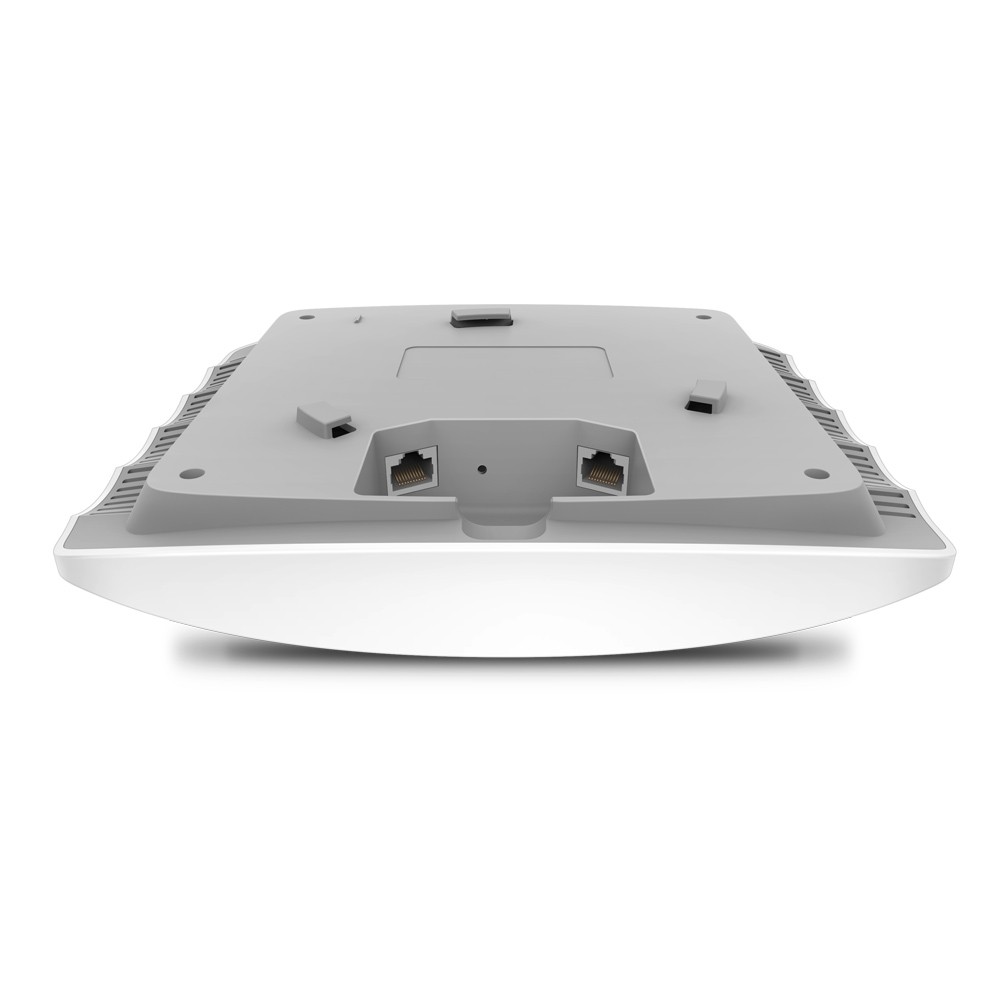

The EAP245 has two gigabit Ethernet (RJ45) ports. One port accepts power, and TP-Link lists 802.3af/at PoE and 48 V passive PoE (pins 4 and 5 positive, 7 and 8 negative), so it can be powered by a PoE switch or a passive PoE source over the same cable that carries data. The second gigabit port is for bridging. Maximum power consumption is 12.3 W. The housing measures 205.5 x 181.5 x 37.1 mm (8.1 x 7.1 x 1.5 in), with a physical security lock and a reset button, and TP-Link says its elegant appearance and simple mounting design make attachment to a wall or ceiling easy; ceiling and wall mounting kits are included. It operates from 0 to 40 degrees C at 10 to 90 per cent RH non-condensing and carries CE and FCC certification.

For guests, the EAP245 provides a secure guest network with a captive portal that helps ensure only approved guests use the network, and TP-Link lists SMS, Facebook Wi-Fi and voucher authentication options. Other security features include access control, wireless MAC address filtering, wireless isolation between clients, SSID-to-VLAN mapping, rogue AP detection, 802.1X and WEP, WPA/WPA2-Enterprise and WPA-PSK/WPA2-PSK. The EAP245 integrates into Omada SDN, with centralised management through the Omada Cloud-Based Controller, the OC300 or OC200 hardware controllers or the Omada Software Controller, cloud access through any of those, and multi-site management. Zero-Touch Provisioning requires the Omada Cloud-Based Controller. The free Omada app lets you configure settings, monitor network status and manage clients from a phone or tablet. Standalone management includes HTTP/HTTPS web management, SSH, SNMP v1/v2c, local and remote syslog, email alerts, LED on/off control and a management VLAN. ARC IP Networks supplies the EAP245 from Australian stock with the full manufacturer's warranty.

Key features

AC1750 dual-band Wi-Fi

Up to 1300 Mbps on 5 GHz and 450 Mbps on 2.4 GHz at the same time.

802.11ac Wave 2 MU-MIMO

MU-MIMO with beamforming, band steering, load balance and airtime fairness.

Two gigabit ports

Two gigabit RJ45 ports: one accepts PoE, the second is for bridging.

802.3af/at or passive PoE

Powered by 802.3af/at PoE or 48 V passive PoE over one cable; 12.3 W maximum.

Seamless roaming

802.11k/v roaming under Omada controllers, with clients that support 802.11k/v.

Secure guest network

Captive portal with SMS, Facebook Wi-Fi and voucher authentication options.

Business wireless security

SSID-to-VLAN mapping, client isolation, MAC filtering, 802.1X, WPA2-Enterprise and rogue AP detection.

Omada SDN management

Omada Cloud-Based Controller, OC300, OC200 or Software Controller, plus the Omada app.

Zero-Touch Provisioning

Available when using the Omada Cloud-Based Controller.

EAP245 specifications

At a glance

AC1750 dual-band
1300 Mbps (5 GHz)
450 Mbps (2.4 GHz)
MU-MIMO
2 x gigabit ports
802.3af/at / passive PoE
12.3 W max
Omada SDN
EAP245 full specifications
Hardware Features
Interface2 × Gigabit Ethernet (RJ-45) Port (One port supports IEEE802.3af PoE and Passive PoE)
Physical Security LockYes
ButtonReset
Power Supply802.3af/at PoE; 48V Passive PoE (+4,5pins; -7,8pins)
Max. Power Consumption12.3 W
Dimensions ( W x D x H )8.1 × 7.1 × 1.5 in (205.5 × 181.5 × 37.1 mm)
AntennaInternal Omni; 2.4 GHz: 3× 3.5 dBi; 5 GHz: 3× 4 dBi
MountingCeiling/Wall Mounting (Kits included)
Management Features
Omada AppYes
Centralised ManagementOmada Cloud-Based Controller; Omada Hardware Controller (OC300); Omada Hardware Controller (OC200); Omada Software Controller
Cloud AccessYes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
Email AlertsYes
LED ON/OFF ControlYes
Management MAC Access ControlYes
SNMPv1, v2c
System Logging Local/Remote SyslogLocal/Remote Syslog
SSHYes
Web-based ManagementHTTP/HTTPS
L3 ManagementYes
Multi-site ManagementYes
Management VLANYes
Zero-Touch ProvisioningYes. Requiring the use of Omada Cloud-Based Controller.
Wireless Features
Wireless StandardsIEEE 802.11ac/n/g/b/a
Frequency2.4GHz and 5GHz
Signal Rate5 GHz:Up to 1300 Mbps; 2.4 GHz:Up to 450 Mbps
Wireless FunctionsMultiple SSIDs (Up to 16 SSIDs, 8 for each band); Enable/Disable Wireless Radio; Automatic Channel Assignment; Transmit Power Control (Adjust Transmit Power on dBm); QoS(WMM); MU-MIMO; Seamless Roaming; Omada Mesh; Band Steering; Load Balance; Airtime Fairness; Beamforming; Rate Limit; Reboot Schedule; Wireless Schedule; Wireless Statistics based on SSID/AP/Client
Wireless SecurityCaptive Portal Authentication; Access Control; Wireless Mac Address Filtering; Wireless Isolation Between Clients; SSID to VLAN Mapping; Rogue AP Detection; 802.1X Support; 64/128/152-bit WEP / WPA / WPA2-Enterprise,; WPA-PSK / WPA2-PSK
Transmission PowerCE: ≤20 dBm (2.4GHz) ≤23 dBm (5GHz); FCC: ≤24 dBm (2.4 GHz) ≤24 dBm (5 GHz)
Others
CertificationCE, FCC
System RequirementsMicrosoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
EnvironmentOperating Temperature: 0–40 ℃ (32–104 ℉); Storage Temperature: -40–70 ℃ (-40–158 ℉); Operating Humidity: 10–90% RH non-condensing; Storage Humidity: 5–90% RH non-condensing

Source: TP-Link's published specifications for this model (TP-Link Australia product page and datasheet). Some features run only in Standalone Mode or only under an Omada Controller; throughput figures are TP-Link's lab results. TP-Link may change specifications without notice.

Who the EAP245 is for

Offices and venues

  • AC1750 dual-band coverage
  • MU-MIMO and band steering
  • Ceiling or wall mounting

Guest Wi-Fi

  • Captive portal with SMS or voucher login
  • Wireless isolation between clients
  • SSID-to-VLAN mapping

Omada SDN networks

  • Cloud, hardware or software controller
  • Zero-Touch Provisioning with the Cloud-Based Controller
  • Omada app management

Buy the EAP245 from ARC IP Networks

ARC IP Networks supplies genuine TP-Link Omada products from Australian stock at competitive prices, with the full manufacturer's warranty, Australia-wide delivery and trade pricing for installers and MSPs.

  • Genuine TP-Link: new TP-Link Omada product from Australian stock.
  • Manufacturer warranty: the full TP-Link manufacturer's warranty for this model.
  • Australia-wide delivery to every state and territory.
  • Trade and project pricing: call 1300 100 440 or email info@arcip.com.au.

Frequently asked questions

Straight answers about the EAP245 from the ARC IP Networks team.

Last reviewed October 2026.

It is an AC1750 dual-band access point: up to 1300 Mbps on 5 GHz and up to 450 Mbps on 2.4 GHz simultaneously. These are maximum physical rates; actual throughput varies.

Yes. This page is for one EAP245 access point. TP-Link also sells a 5-pack, which is listed separately.

By 802.3af/at PoE or 48 V passive PoE through its PoE-capable Ethernet port. Maximum power consumption is 12.3 W.

Two gigabit Ethernet ports. One accepts PoE input; the second gigabit port is for bridging.

The product page lists up to 16 SSIDs, eight on each band. TP-Link's range datasheet notes that hardware version V4 supports 15 SSIDs (8 on 2.4 GHz and 7 on 5 GHz).

Yes, 802.11k/v seamless roaming. TP-Link states it is only supported under Omada controllers, requires clients that support 802.11k/v and may require additional set up.

Centrally through the Omada Cloud-Based Controller, OC300, OC200 or Omada Software Controller, with the Omada app, or standalone through HTTP/HTTPS web-based management.

Yes. Zero-Touch Provisioning requires the use of the Omada Cloud-Based Controller.

Yes. The guest network uses a captive portal, and TP-Link lists SMS, Facebook Wi-Fi and voucher authentication options.

WEP, WPA/WPA2-Enterprise and WPA-PSK/WPA2-PSK, with 802.1X, MAC filtering, client isolation, SSID-to-VLAN mapping and rogue AP detection.

Yes. Ceiling/wall mounting kits are included, and TP-Link says the simple mounting design makes attachment to a wall or ceiling easy.

Need more than one EAP245 for a multi-access-point rollout?

Ask ARC IP Networks for volume and project pricing on genuine TP-Link Omada products.
