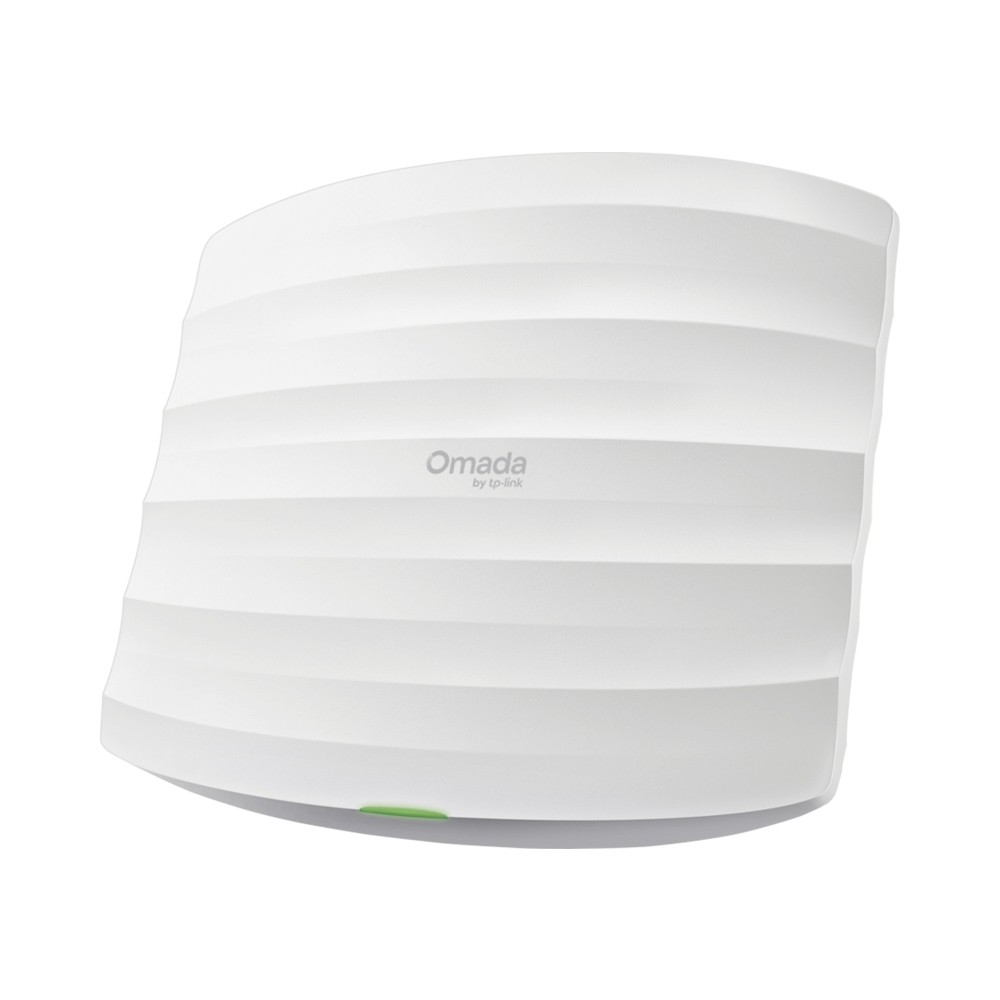

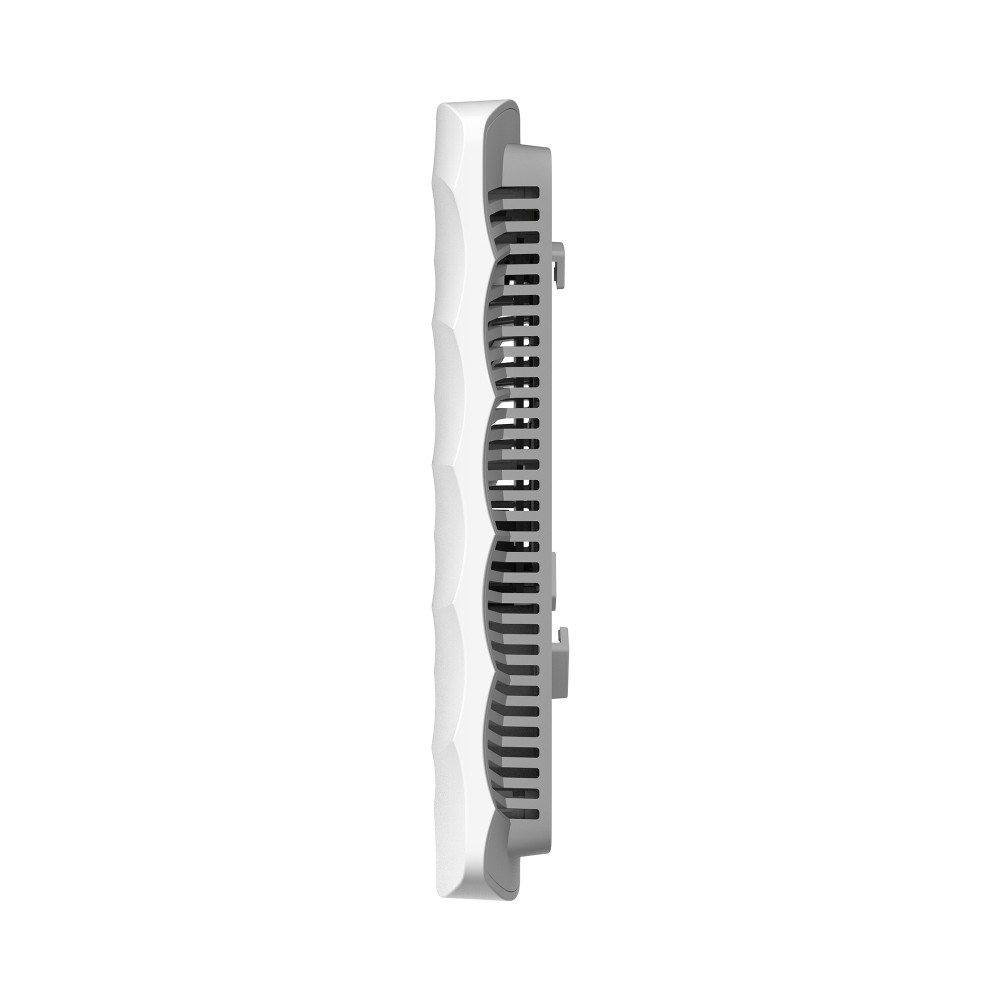

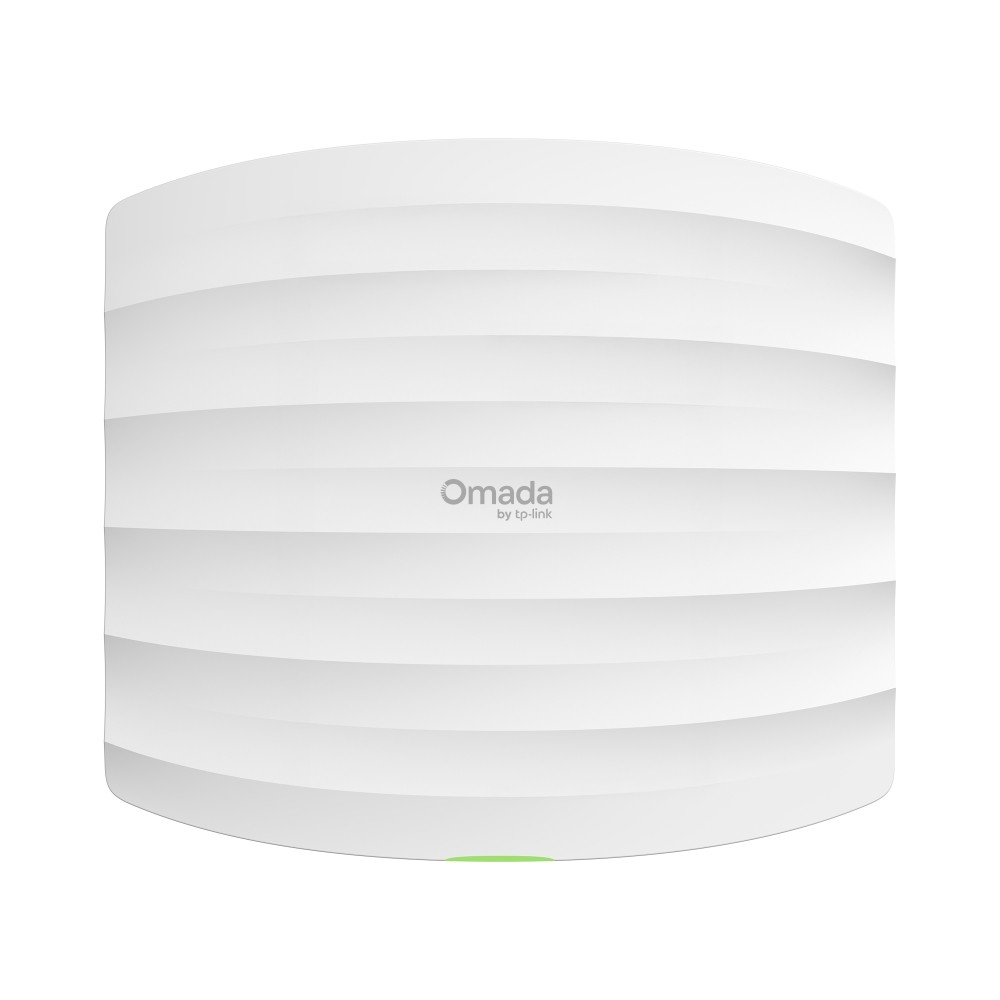

TP-Link EAP110 Omada 300Mbps Wireless N Ceiling Mount Access Point

https://arcip.com.au/web/image/product.template/11366/image_1920?unique=0bbdb30

The TP-Link EAP110 is a 300Mbps Wireless N ceiling mount access point in the Omada range. It delivers up to 300 Mbps Wi-Fi 4 on 2.4 GHz with 2x2 MIMO and two internal 4 dBi omni antennas, and has one 10/100 Mbps Ethernet port powered by 24 V passive PoE, with the PoE adapter included. It supports up to eight SSIDs, load balancing, WMM QoS, captive portal and rogue AP detection, with Omada SDN management through an Omada hardware or software controller. Supplied by ARC IP Networks from Australian stock with the full manufacturer's warranty.

$ 74.68 74.68 AUD $ 74.68 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
EAP110
Barcode
1210002618434

The TP-Link EAP110 is an Omada 300 Mbps Wireless N (Wi-Fi 4) ceiling mount access point. It has a 2.4 GHz 2x2 MIMO radio with two internal 4 dBi omni antennas, one Fast Ethernet port powered by 24 V passive PoE (adapter included), up to eight SSIDs, load balancing and WMM QoS, and integrates into Omada SDN for centralised management with an Omada controller.

EAP110 overview

The EAP110 is TP-Link's Omada 300 Mbps Wireless N ceiling mount access point, which TP-Link describes as an affordable, scalable business Wi-Fi solution. It is a single-band access point on 2.4 GHz (2.400 to 2.4835 GHz ISM) built to IEEE 802.11b/g/n, and it delivers smooth Wi-Fi 4 of up to 300 Mbps with 2x2 MIMO. Listed signal rates are up to 300 Mbps for 11n, 54 Mbps for 11g and 11 Mbps for 11b, all dynamic. TP-Link notes that maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications, and that actual wireless data throughput, coverage and connected devices are not guaranteed and will vary with internet service provider factors, network conditions, client limitations and environmental factors, including building materials, obstacles, volume and density of traffic and client location.

Two internal 4 dBi omni antennas sit inside the 189.5 x 170.5 x 29.7 mm (7.5 x 6.7 x 1.2 in) housing, and ceiling and wall mounting kits are included. TP-Link lists coverage of up to 60 square metres (650 sq ft); this value is calculated from laboratory testing, and actual coverage is not guaranteed and will vary with client limitations and environmental factors. It supports 100 concurrent clients; TP-Link notes that actual capacity depends on the wireless environment and client traffic and is generally less than the maximum number of client connections. Transmit power is listed as 10 to 19 dBm EIRP under CE and 6 to 21 dBm under FCC on 2.4 GHz, with transmit power control in dBm steps. For network performance, load balance, scheduling and QoS (WMM) work together to deliver a smooth and responsive experience.

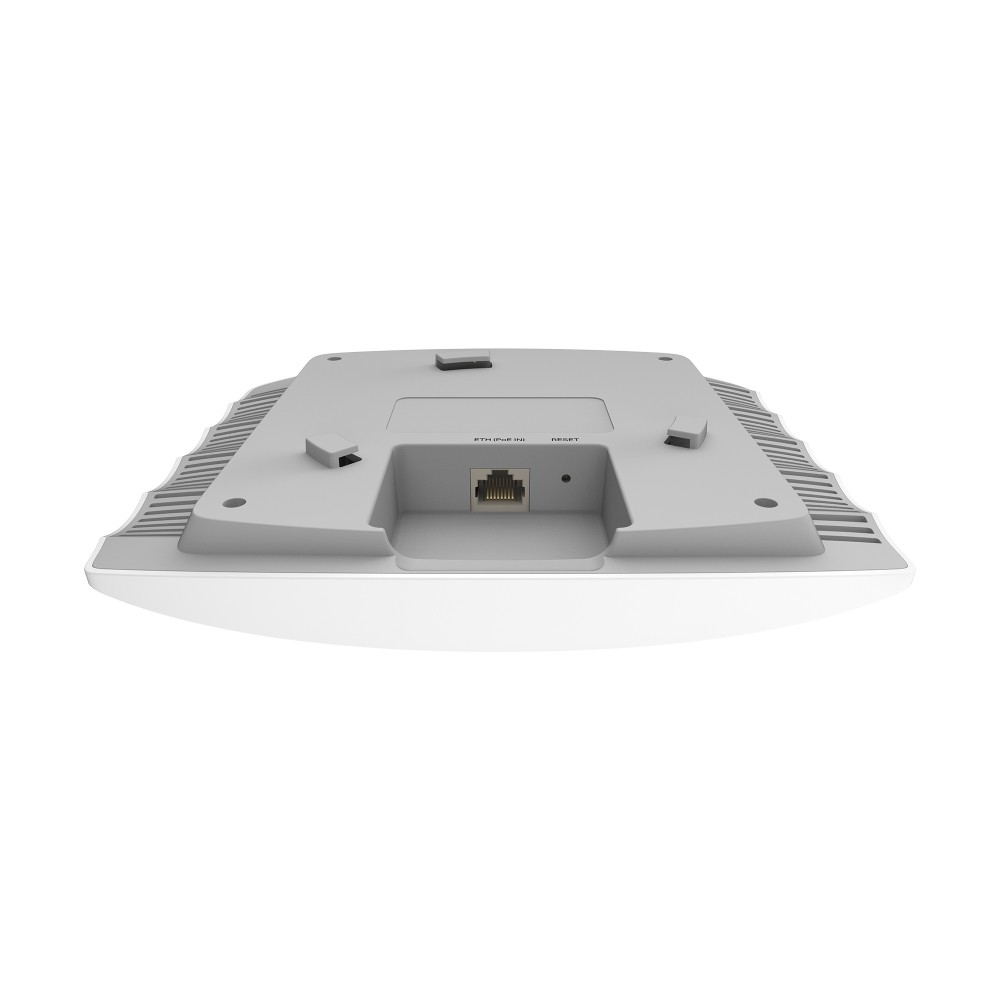

Wiring is simple. The EAP110 has one 10/100 Mbps Fast Ethernet port that TP-Link says provides a reliable wired connection for standard network access, and it is powered by 24 V / 0.5 A passive PoE (pins 4 and 5 positive, 7 and 8 negative). The passive PoE adapter and a power cord are in the box, so power and data reach the access point on one cable. Maximum power consumption is 2.8 W. Wireless functions include up to eight SSIDs for a secure guest network, enable and disable of the wireless radio, automatic channel assignment, rate limiting, reboot and wireless schedules, and wireless statistics by SSID, AP or client. TP-Link also lists 802.11r seamless roaming; it notes that this feature requires the use of an Omada on-premises controller.

Security covers captive portal authentication (TP-Link highlights SMS login), access control, wireless MAC address filtering, wireless isolation between clients, SSID-to-VLAN mapping, rogue AP detection, 802.1X and WEP, WPA/WPA2-Enterprise and WPA-PSK/WPA2-PSK encryption. For management, the EAP110 integrates into Omada SDN for one-click setup, with centralised management through an Omada hardware or software controller and the Omada app; cloud access requires an Omada on-premises controller. It also offers HTTP/HTTPS web management, SSH, SNMP v1/v2c/v3, local and remote syslog, L3 management, multi-site management, a management VLAN, management MAC access control and LED on/off control. It is rated for 0 to 40 degrees C operation and carries CE and FCC certification. In the box are the EAP110, a passive PoE adapter, a power cord, mounting kits and an installation guide. ARC IP Networks supplies the EAP110 from Australian stock with the full manufacturer's warranty.

Key features

300 Mbps Wi-Fi 4

IEEE 802.11b/g/n on 2.4 GHz with 2x2 MIMO, up to 300 Mbps.

24 V passive PoE

One cable for power and data; the passive PoE adapter is included.

Fast Ethernet port

One 10/100 Mbps port for a reliable wired connection.

Internal omni antennas

Two internal 4 dBi omni antennas in a slim ceiling mount housing.

Load balance and WMM QoS

Load balance, scheduling and QoS (WMM) work together for a smooth, responsive experience.

Up to 8 SSIDs

Separate guest and staff networks, with SSID-to-VLAN mapping.

Guest and security tools

Captive portal with SMS login, client isolation, MAC filtering, 802.1X and rogue AP detection.

Omada SDN management

Centralised management with an Omada hardware or software controller and the Omada app.

802.11r seamless roaming

Listed by TP-Link; requires the use of an Omada on-premises controller.

EAP110 specifications

At a glance

300 Mbps Wi-Fi 4
2.4 GHz 2x2 MIMO
1 x 10/100 Mbps port
24 V passive PoE
PoE adapter included
2 x 4 dBi internal antennas
Up to 8 SSIDs
Ceiling / wall mount
EAP110 full specifications
Hardware Features
Interface1× 10M/100M Ethernet Port
ButtonReset
Power Supply24V/0.5A Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included)
Max. Power Consumption2.8 W
Dimensions ( W x D x H )7.5 × 6.7 × 1.2 in (189.5 × 170.5 × 29.7mm)
AntennaInternal 2× 4 dBi Omni
MountingCeiling /Wall Mounting (Kits included)
Management Features
Omada AppYes
Centralised ManagementOmada Hardware Controller; Omada Software Controller
Cloud AccessYes. Require the use of an Omada on-premises controller.
LED ON/OFF ControlYes
Management MAC Access ControlYes
SNMPv1, v2c, v3
System Logging Local/Remote SyslogLocal/Remote Syslog
SSHYes
Web-based ManagementHTTP/HTTPS
L3 ManagementYes
Multi-site ManagementYes
Management VLANYes
Wireless Features
Coverage650 ft² (60 ㎡)
Concurrent Clients100+
Wireless Standards2.4 GHz: IEEE 802.11b/g/n
Frequency2.400 to 2.4835 GHz ISM
Signal Rate11n: Up to 300 Mbps (dynamic); 11g: Up to 54 Mbps (dynamic); 11b: Up to 11 Mbps (dynamic)
Wireless FunctionsMultiple SSIDs (Up to 8 SSIDs); Enable/Disable Wireless Radio; Automatic Channel Assignment; Transmit Power Control (Adjust Transmit Power on dBm); QoS(WMM); Seamless Roaming(802.11r); Rate Limit; Reboot Schedule; Wireless Schedule; Wireless Statistics based on SSID/AP/Client
Wireless SecurityCaptive Portal Authentication; Access Control; Wireless MAC Address Filtering; Wireless Isolation Between Clients; SSID to VLAN Mapping; Rogue AP Detection; 802.1X Support; 64/128/152-bit WEP / WPA / WPA2-Enterprise,WPA-PSK / WPA2-PSK
Transmission PowerCE: 10-19 dBm (2.4GHz, EIRP); FCC: 6-21 dBm (2.4GHz)
Others
CertificationCE, FCC
EnvironmentOperating Temperature: 0 ℃–40 ℃ (32 ℉–104 ℉); Storage Temperature: -40 ℃–70 ℃ (-40 ℉–158 ℉); Operating Humidity: 10%–90% RH non-condensing; Storage Humidity: 5%–90% RH non-condensing

Source: TP-Link's published specifications for this model (TP-Link Australia product page and datasheet). Some features run only in Standalone Mode or only under an Omada Controller; throughput figures are TP-Link's lab results. TP-Link may change specifications without notice.

What's in the box

  • EAP110
  • Passive PoE Adapter
  • Power Cord
  • Mounting Kits
  • Installation Guide

Source: TP-Link's published package contents.

Who the EAP110 is for

Basic 2.4 GHz coverage

  • Up to 300 Mbps Wi-Fi 4
  • Up to 60 square metres (lab tested)
  • Load balance and WMM QoS

Guest Wi-Fi

  • Up to eight SSIDs
  • Captive portal with SMS login
  • Wireless isolation between clients

Omada-managed networks

  • Omada hardware or software controller
  • Omada app management
  • Cloud access with an on-premises controller

EAP110 compared

The EAP110 and the EAP110-Outdoor share the same 300 Mbps 2.4 GHz Wi-Fi 4 platform and 24 V passive PoE. The EAP110 is the indoor ceiling mount model; the EAP110-Outdoor has an IP65 enclosure and detachable antennas.

SpecificationEAP110EAP110-Outdoor
Wi-Fi300 Mbps Wi-Fi 4, 2.4 GHz300 Mbps Wi-Fi 4, 2.4 GHz
MIMO2x22x2
Antennas2 x 4 dBi internal omni2 x 3 dBi external omni, detachable
Ethernet port1 x 10/100 Mbps1 x 10/100 Mbps
Power24 V passive PoE, adapter included24 V passive PoE, adapter included
EnclosureIndoor ceiling mountIP65 weatherproof
MountingCeiling / wall (kits included)Pole / wall (kits included)
SSIDsUp to 8Up to 8

Source: TP-Link Australia product pages for each model.

Buy the EAP110 from ARC IP Networks

ARC IP Networks supplies genuine TP-Link Omada products from Australian stock at competitive prices, with the full manufacturer's warranty, Australia-wide delivery and trade pricing for installers and MSPs.

  • Genuine TP-Link: new TP-Link Omada product from Australian stock.
  • Manufacturer warranty: the full TP-Link manufacturer's warranty for this model.
  • Australia-wide delivery to every state and territory.
  • Trade and project pricing: call 1300 100 440 or email info@arcip.com.au.

Frequently asked questions

Straight answers about the EAP110 from the ARC IP Networks team.

Last reviewed October 2026.

It is a 300 Mbps Wireless N (Wi-Fi 4) access point on 2.4 GHz with 2x2 MIMO. TP-Link notes these are maximum physical rates and actual throughput will vary.

No. It operates on 2.4 GHz only, to IEEE 802.11b/g/n.

By 24 V / 0.5 A passive PoE through its Ethernet port. The passive PoE adapter and a power cord are included in the box.

The listed power supply is 24 V passive PoE; 802.3af is not listed for the EAP110.

One 10/100 Mbps Fast Ethernet port.

TP-Link lists up to 60 square metres (650 sq ft). This is calculated from laboratory testing; actual coverage is not guaranteed and varies with client limitations and environmental factors.

TP-Link lists 100 concurrent clients, noting that actual capacity depends on the wireless environment and client traffic and is generally less than the maximum number of client connections.

Up to eight, with SSID-to-VLAN mapping, so you can run a secure guest network alongside your own.

Not for basic use: it has HTTP/HTTPS web management. Centralised management uses an Omada hardware or software controller, and cloud access and 802.11r seamless roaming require an Omada on-premises controller.

Yes. Ceiling and wall mounting kits are included.

The EAP110, a passive PoE adapter, a power cord, mounting kits and an installation guide.

Need more than one EAP110 for a small office or guest Wi-Fi rollout?

Ask ARC IP Networks for volume and project pricing on genuine TP-Link Omada products.
