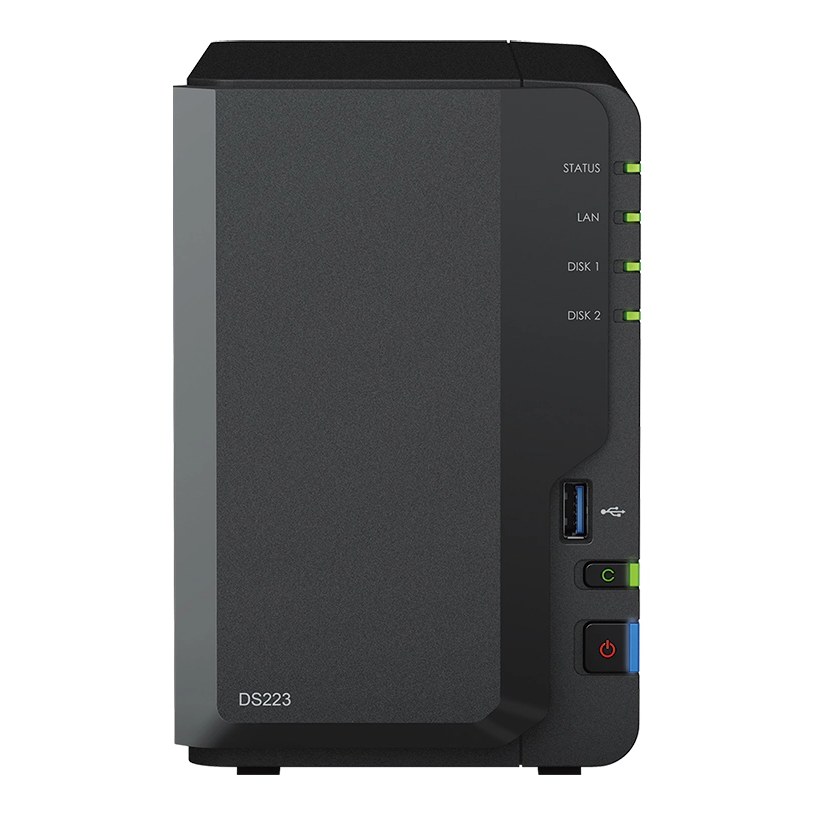

Synology DS223 2-Bay NAS Realtek RTD1619B Quad-Core 2GB DDR4 1GbE 3x USB 3.2 (Diskless)

Price:

$ 524.54


Synology HAT5320-4T 4TB Enterprise Series 3.5in SATA HDD 7200rpm 512MB Cache CMR for Synology NAS
Synology HAT5320-4T 4TB Enterprise Series 3.5in SATA HDD 7200rpm 512MB Cache CMR for Synology NAS
$ 697.32
$ 697.32
Synology RKS-02 Sliding Rail Kit for Synology RackStation and Rackmount Servers, 610-890 mm Rack Depth
Synology RKS-02 Sliding Rail Kit for Synology RackStation and Rackmount Servers, 610-890 mm Rack Depth
$ 234.50
$ 234.50

Synology DS223 2-Bay NAS Realtek RTD1619B Quad-Core 2GB DDR4 1GbE 3x USB 3.2 (Diskless)

https://arcip.com.au/web/image/product.template/15499/image_1920?unique=6bbe47d

Synology DiskStation DS223 2-bay desktop NAS (diskless) for home and small office. Quad-core Realtek RTD1619B 1.7 GHz CPU with hardware encryption and 2 GB DDR4 memory. Two hot-swappable bays for 3.5in SATA HDDs or 2.5in SATA SSDs, one 1GbE RJ-45 port and three USB 3.2 Gen 1 ports with USB Copy. Runs Synology DSM with Btrfs, Synology Hybrid RAID, Synology Drive, Cloud Sync, Synology Photos, Hyper Backup, Snapshot Replication and Surveillance Station (2 licences included, up to 20 x 1080p cameras). Quiet 14.6 dB(A) operation. 2-year hardware warranty. Genuine Synology from ARC IP Networks, authorised Synology reseller with Australian stock.

$ 524.54 524.54 AUD $ 524.54 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
DS223

Synology DS223 at a glance

The Synology DS223 is an entry-level 2-bay desktop NAS running DiskStation Manager (DSM), built for home and small office (SOHO) users who want to centralise, organise and share their data. It uses a quad-core Realtek RTD1619B with 2 GB DDR4 memory, has two hot-swappable SATA bays, one 1GbE port and three USB 3.2 Gen 1 ports with USB Copy.

ARC IP Networks is an authorised Synology reseller in Australia. We supply the genuine Synology DS223 from Australian stock.

Drive bays2 x 3.5"/2.5" SATA
CPURealtek RTD1619B, 4 cores
Networking1 x 1GbE RJ-45
Memory2 GB DDR4

Best for

  • Home users building a private cloud for files, photos and videos
  • Small and home offices sharing documents with clients and collaborators
  • Simple home video surveillance with Surveillance Station

Key features

Quad-core 64-bit Realtek RTD1619B at 1.7 GHz with a hardware encryption engine.

2 GB DDR4 non-ECC system memory.

Two hot-swappable bays for 3.5" SATA HDDs or 2.5" SATA SSDs.

One 1GbE RJ-45 port and three USB 3.2 Gen 1 ports, with USB Copy for quick transfers from external drives.

Btrfs or ext4 file system with Synology Hybrid RAID, Basic, JBOD, RAID 0 and RAID 1.

Synology Drive and Cloud Sync keep files in sync across devices, Synology systems and public cloud services.

Synology Photos organises photos and videos with smart sorting and privacy-focused sharing.

Hyper Backup and Snapshot Replication protect data against accidental deletion and ransomware.

Surveillance Station with 2 free camera licences and support for up to 20 x 1080p IP cameras.

Quiet 14.6 dB(A) operation with a 60 W power adapter.

Synology DS223 specifications

Synology DS223 technical specifications
SpecificationValue
Processor & Memory
CPURealtek RTD1619B, 4 cores / 4 threads, 64-bit
CPU frequency1.7 GHz
Hardware encryption engineYes
System memory2 GB DDR4 non-ECC
Storage
Drive bays2 x 3.5" SATA HDD or 2.5" SATA SSD
Hot-swappable drivesYes
RAID typesSynology Hybrid RAID, Basic, JBOD, RAID 0, RAID 1
Maximum single volume108 TB
Internal file systemBtrfs, ext4
Ports
RJ-45 1GbE LAN1 (MTU 1,500 bytes)
USB 3.2 Gen 13
USB CopyYes
Physical
Size (H x W x D)165 mm x 108 mm x 232.7 mm
Weight1.28 kg
System fan1 x 92 mm
Noise level14.6 dB(A)
Power
Power adapter60 W
AC input100 V to 240 V AC, 50/60 Hz, single phase
Power consumption (access)17.343 W
Power consumption (HDD hibernation)4.08 W
Power featuresPower recovery, scheduled power on/off, Wake on LAN/WAN
Environment
Operating temperature0°C to 40°C
Storage temperature-20°C to 60°C
Operating humidity8% to 80% RH
EnvironmentRoHS compliant
Surveillance & Applications
Surveillance Station licences2 included
Max IP cameras (H.264)1080p: 20 channels, 460 FPS
Max IP cameras (H.265)1080p: 20 channels, 500 FPS
Max local user accounts256
Max shared folders64
Warranty
Hardware warranty2 years

Figures from Synology's official product specifications.

What's in the box

  • Main unit x 1
  • Accessory pack x 1
  • AC power adapter x 1
  • AC power cord x 1
  • RJ-45 LAN cable x 1
  • Quick installation guide x 1

The Synology DS223 in depth

A storage hub with anytime access

The DS223 brings scattered files from phones, PCs and cameras into one place, with two hot-swappable bays for HDDs or SSDs. QuickConnect gives secure access from a web browser without complex port forwarding, and Windows AD and LDAP integration let it slot into an existing network as edge storage.

Share, sync and protect

Synology Drive creates a private cloud for file sharing and PC folder backup, Cloud Sync connects to popular public clouds, and Synology Photos keeps photo libraries organised. Hyper Backup and Snapshot Replication, included at no extra cost, provide versioned backups and point-in-time copies that can be restored quickly.

Home surveillance included

Surveillance Station turns the DS223 into a network video recorder with ONVIF support, event-based rules and notifications. Two camera licences are included, and Synology quotes support for up to 20 x 1080p cameras.

Frequently asked questions

Straight answers about the Synology DS223 from the ARC IP Networks team. Last reviewed October 2026.

No. The DS223 is diskless; it has two hot-swappable bays for 3.5" SATA HDDs or 2.5" SATA SSDs. Synology lists its HAT3300 Plus and HAT5300 Enterprise series drives as optional accessories.

Per Synology's specs, the DS223 has 2 GB of memory versus 1 GB in the DS223j, hot-swappable drive bays, three USB 3.2 Gen 1 ports instead of two, and USB Copy.

Synology's spec lists 2 GB DDR4 non-ECC system memory and no memory slots or optional memory modules, so plan on 2 GB.

Synology Hybrid RAID, Basic, JBOD, RAID 0 and RAID 1, with single volumes up to 108 TB.

Synology provides a 2-year hardware warranty from the purchase date.

ARC IP Networks is an authorised Synology reseller and supplies the DS223 from Australian stock.

Explore the full Synology range: Shop all Synology · NAS and storage guides

Buy the Synology DS223 in Australia

ARC IP Networks is an authorised Synology reseller, supplying Synology NAS, rackmount storage, drives, surveillance and backup appliances to homes, businesses and integrators across Australia.

  • Genuine Synology with the full manufacturer's warranty, supplied from Australian stock.
  • Australian stock, shipped Australia-wide.
  • Local pre-sales help sizing drives, RAID and backup for your NAS.
  • Trade and project pricing available.

Planning a Synology storage project?

Ask ARC IP Networks for project pricing or a NAS and drive bundle quote, or call us to check the right Synology model for your data.

Brand Synology
