Synology RKS-02 Sliding Rail Kit for Synology RackStation and Rackmount Servers, 610-890 mm Rack Depth

Price:

$ 234.50


Synology DS223 2-Bay NAS Realtek RTD1619B Quad-Core 2GB DDR4 1GbE 3x USB 3.2 (Diskless)
Synology DS223 2-Bay NAS Realtek RTD1619B Quad-Core 2GB DDR4 1GbE 3x USB 3.2 (Diskless)
$ 524.54
$ 524.54
Synology DS1825+ 8-Bay NAS AMD Ryzen V1500B 8GB DDR4 ECC Dual 2.5GbE PCIe Slot 2x M.2 NVMe (Diskless)
Synology DS1825+ 8-Bay NAS AMD Ryzen V1500B 8GB DDR4 ECC Dual 2.5GbE PCIe Slot 2x M.2 NVMe (Diskless)
$ 2,196.88
$ 2,196.88

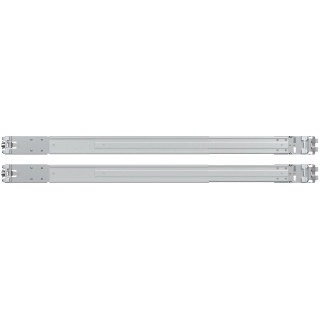

Synology RKS-02 Sliding Rail Kit for Synology RackStation and Rackmount Servers, 610-890 mm Rack Depth

https://arcip.com.au/web/image/product.template/15500/image_1920?unique=6bbe47d

Synology RKS-02 sliding rail kit for Synology rackmount servers and expansion units. Sliding design gives easy maintenance access to the installed system. Fits rack mounting depths of 610 mm to 890 mm, with square mounting holes of at least 9.5 x 9.5 mm or round holes of at least 7.1 mm. Requires mount post width of 450 mm or more and panel width of 480 mm or more. Listed by Synology for models including RS1226+, RS1226RP+, RS826+, RS826RP+, RS2423+, RS2825RP+, RS422+, RS3621RPxs, RS3626xs, RS6426xs+ and RX418. Compatible with the CMA-01 cable management arm. 1-year limited warranty. Genuine Synology from ARC IP Networks, authorised Synology reseller with Australian stock.

$ 234.50 234.5 AUD $ 234.50 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
RKS-02

Synology RKS-02 at a glance

The Synology RKS-02 is a sliding rail kit that gives easy maintenance access to Synology rackmount servers and expansion units. It suits racks with a mounting depth of 610 mm to 890 mm and square (at least 9.5 x 9.5 mm) or round (at least 7.1 mm) mounting holes, and Synology lists it for models including the RS1226+, RS826+, RS2423+, RS2825RP+ and RS3621RPxs.

ARC IP Networks is an authorised Synology reseller in Australia. We supply the genuine Synology RKS-02 from Australian stock.

TypeSliding rack rails
Rack depth610 to 890 mm
HolesSquare or round
Warranty1 year

Best for

  • Mounting Synology RackStation and RX expansion units in a standard rack
  • Racks where the server must slide out for drive or component servicing
  • Pairing with the CMA-01 cable management arm for tidy rear cabling

Key features

Sliding rail design lets you pull the system forward for easy maintenance access.

Fits rack mounting depths from 610 mm to 890 mm.

Supports square mounting holes of at least 9.5 mm x 9.5 mm and round holes of at least 7.1 mm.

Requires a mount post width of 450 mm or more and a panel width of 480 mm or more.

Listed by Synology for current RackStation models including the RS6426xs+, RS3626xs, RS1226RP+, RS1226+, RS826RP+, RS826+, RS2825RP+, RS2423+, RS422+ and RS3621RPxs, plus the RX418 expansion unit.

Compatible with the Synology CMA-01 cable management arm, which attaches to RKS-02 rails.

Synology RKS-02 specifications

Synology RKS-02 technical specifications
SpecificationValue
Rail kit
TypeSliding rail kit
Rack mounting depth610 mm to 890 mm
Square mounting holesAt least 9.5 mm x 9.5 mm
Round mounting holesAt least 7.1 mm
Mount post width450 mm or more
Panel width480 mm or more
Warranty1-year limited warranty
Compatibility (selected)
26 seriesRS6426xs+, RS4826xs+, RS3626xs, RS1226RP+, RS1226+, RS826RP+, RS826+, RX426
25 seriesRS2825RP+, RX1225RP
23 seriesRS2423RP+II, RS2423RP+, RS2423+, RX1223RP
22 seriesRS822RP+, RS822+, RS422+, RX1222sas
21 seriesRS4021xs+, RS3621xs+, RS3621RPxs, RS2821RP+, RS2421RP+, RS2421+, RS1221RP+, RS1221+
18 seriesRS3618xs, RS2818RP+, RS2418RP+, RS2418+, RS818RP+, RS818+, RX418

Figures from Synology's official product specifications.

The Synology RKS-02 in depth

Sliding rails for Synology rackmount systems

RKS-02 is Synology's sliding rail kit for its rackmount servers. Once installed, the system can slide out of the rack so drives and components can be serviced without unmounting it. It suits racks from 610 mm to 890 mm deep with square or round mounting holes.

Broad model coverage

Synology lists RKS-02 for a long run of RackStation, RX expansion, FS, SA, UC and DP series models, from the current 26 series back to the 9 series. Check the Synology list for your exact model before ordering.

Frequently asked questions

Straight answers about the Synology RKS-02 from the ARC IP Networks team. Last reviewed October 2026.

Synology lists it for models including the RS6426xs+, RS3626xs, RS1226RP+, RS1226+, RS826RP+, RS826+, RS2825RP+, RS2423+, RS422+, RS3621RPxs and RX418, along with many older RackStation, FS and SA models.

A rack mounting depth of 610 mm to 890 mm, a mount post width of at least 450 mm and a panel width of at least 480 mm.

Yes. Synology lists the CMA-01 cable management arm as compatible with the RKS-02 rail kit.

Synology backs the RKS-02 with a 1-year limited warranty.

ARC IP Networks is an authorised Synology reseller and supplies the RKS-02 from Australian stock.

Explore the full Synology range: Shop all Synology · NAS and storage guides

Buy the Synology RKS-02 in Australia

ARC IP Networks is an authorised Synology reseller, supplying Synology NAS, rackmount storage, drives, surveillance and backup appliances to homes, businesses and integrators across Australia.

  • Genuine Synology with the full manufacturer's warranty, supplied from Australian stock.
  • Australian stock, shipped Australia-wide.
  • Local pre-sales help sizing drives, RAID and backup for your NAS.
  • Trade and project pricing available.

Planning a Synology storage project?

Ask ARC IP Networks for project pricing or a NAS and drive bundle quote, or call us to check the right Synology model for your data.
