TP-Link DS105G Omada 5-Port Gigabit Unmanaged Desktop Switch

Price:

$ 36.76


TP-Link DS1024G Omada 24-Port Gigabit Unmanaged Rackmount Switch
TP-Link DS1024G Omada 24-Port Gigabit Unmanaged Rackmount Switch
$ 239.36
$ 239.36

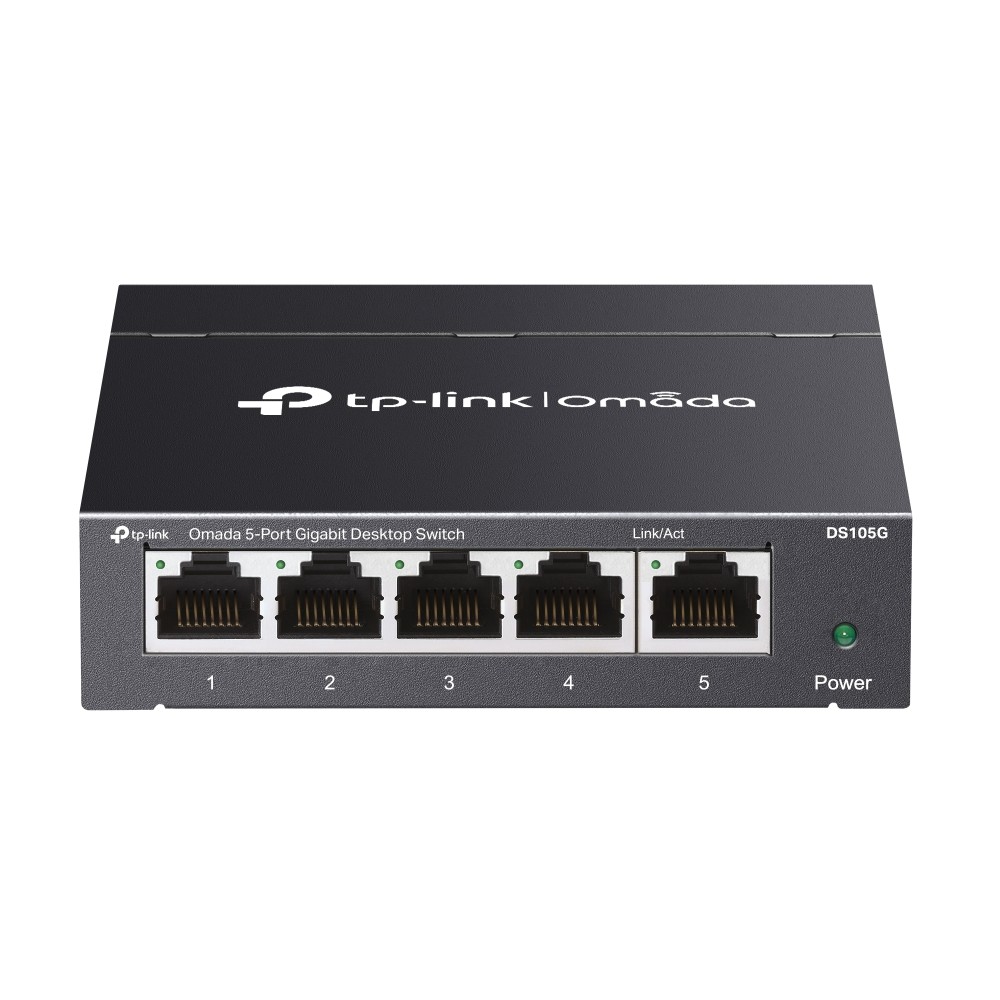

TP-Link DS105G Omada 5-Port Gigabit Unmanaged Desktop Switch

https://arcip.com.au/web/image/product.template/11442/image_1920?unique=0359c03

The TP-Link DS105G is an Omada 5-port gigabit unmanaged desktop switch. It has five 10/100/1000 Mbps auto-negotiation RJ45 ports with Auto-MDI/MDIX, 10 Gbps switching capacity and a 7.4 Mpps forwarding rate, and supports 802.1p/DSCP QoS, IGMP Snooping, 802.3x flow control and loop prevention. It is plug and play with no configuration needed, and comes in a durable fanless metal casing for desktop or wall mounting. Supplied by ARC IP Networks from Australian stock with the full manufacturer's warranty.

$ 36.76 36.76 AUD $ 36.76 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
DS105G
Barcode
4895252506785

The TP-Link DS105G is an Omada 5-port gigabit unmanaged desktop switch: five 10/100/1000 Mbps RJ45 ports, 10 Gbps switching capacity, 802.1p/DSCP QoS, IGMP Snooping and loop prevention in a durable, fanless metal casing for desktop or wall mounting. It is plug and play, with no configuration and no management required.

DS105G overview

The DS105G is TP-Link's Omada 5-port gigabit unmanaged desktop switch. It has five 10/100/1000 Mbps RJ45 ports with auto-negotiation and Auto-MDI/MDIX on every port, so each port works out its own speed and cable type. TP-Link describes it as plug and play, with no configuration needed and no management required: connect your devices and the switch is ready. Supported standards are IEEE 802.3i, 802.3u, 802.3ab, 802.3x and IEEE 802.1p, which cover 10 Mbps, 100 Mbps and gigabit Ethernet over copper, flow control and traffic priority tagging.

Performance figures come from TP-Link's datasheet. Switching capacity is 10 Gbps and the packet forwarding rate is 7.4 Mpps, with store-and-forward transmission, a 2K MAC address table, 1 Mbit of packet buffer memory and 16 KB jumbo frames. IEEE 802.3x flow control provides reliable data transfer. Although it is unmanaged, the DS105G supports 802.1p/DSCP QoS and IGMP Snooping functions, which TP-Link lists among its advanced features. Loop prevention monitors and addresses loop-related issues within your network structure to prevent disruptions caused by looping, and the datasheet's product pictures show a switch on the unit for loop prevention.

Physically the DS105G has a durable metal casing with desktop or wall-mounting options and a fanless design. TP-Link's product page lists the dimensions as 100 x 98 x 25 mm (3.9 x 3.9 x 1.0 in), while the datasheet gives 99.8 x 97.8 x 25 mm. There is a power indicator, and each RJ45 port has a built-in Link/Act indicator. Power comes from an external power adapter with a 5 V DC / 0.6 A output, and Green Ethernet technology reduces power consumption. TP-Link lists maximum power consumption of 3.1 W at 220 V / 50 Hz and maximum heat dissipation of 10.57 BTU/h on the product page (10.54 BTU/h in the datasheet).

The switch is rated for operation from 0 to 40 degrees C at 10 to 90 per cent RH non-condensing, and for storage from -40 to 70 degrees C at 5 to 90 per cent RH non-condensing. The product page lists CE and FCC certification, and the datasheet lists FCC, CE and RoHS. One point to note when planning an Omada network: TP-Link's datasheet states that Omada unmanaged switches do not support Omada SDN central management, so the DS105G is not managed from the Omada controller. In the box are the DS105G switch, a power adapter and an installation guide. ARC IP Networks supplies the DS105G from Australian stock with the full manufacturer's warranty.

Key features

Five gigabit ports

Five 10/100/1000 Mbps RJ45 ports with auto-negotiation and Auto-MDI/MDIX.

10 Gbps switching capacity

7.4 Mpps forwarding, store-and-forward, 2K MAC table and 16 KB jumbo frames.

Plug and play

No configuration needed and no management required: connect devices and go.

802.1p/DSCP QoS

802.1p/DSCP QoS support, listed among the advanced functions of this unmanaged switch.

IGMP Snooping

Supports IGMP Snooping for multicast traffic.

Loop prevention

Monitors and addresses loop-related issues to prevent disruptions caused by looping.

Fanless metal casing

Durable metal casing with desktop or wall-mounting options and a fanless design.

Green Ethernet

Reduces power consumption, with a maximum of 3.1 W at 220 V / 50 Hz.

DS105G specifications

At a glance

5 x gigabit RJ45
10 Gbps switching
7.4 Mpps
2K MAC table
16 KB jumbo frames
802.1p/DSCP QoS
Fanless
Desktop / wall mount
DS105G full specifications
Hardware Features
Standards and ProtocolsIEEE 802.3i/802.3u/ 802.3ab/802.3x, IEEE 802.1p
Interface5× 10/100/1000 Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports
Fan QuantityFanless
External Power SupplyExternal Power Adapter (Output: 5 V DC / 0.6A)
LEDPower; Link/Act indicators per port built into each RJ-45 port
Dimensions ( W x D x H )3.9 x 3.9 x 1.0 in (100 x 98 x 25 mm)
Max. Power Consumption3.1 W (220 V/ 50 Hz)
Max. Heat Dissipation10.57 BTU/h
Performance
Packet Buffer Memory1 Mb
Jumbo Frame16 KB
Packet Forwarding Rate7.4 Mpps
MAC Address Table2K
Software Features
Advanced FeaturesGreen Ethernet technology; 802.3X Flow Control; 802.1P/DSCP QoS; IGMP Snooping; Loop Prevention
Transmission MethodStore and Forward
Others
CertificationCE, FCC
EnvironmentOperating Temperature: 0–40 °C (32–104 °F); Storage Temperature: -40–70 °C (-40–158 °F); Operating Humidity: 10–90% RH non-condensing; Storage Humidity: 5–90% RH non-condensing

Source: TP-Link's published specifications for this model (TP-Link Australia product page and datasheet). Some features run only in Standalone Mode or only under an Omada Controller; throughput figures are TP-Link's lab results. TP-Link may change specifications without notice.

What's in the box

  • DS105G
  • Power Adapter
  • Installation Guide

Source: TP-Link's published package contents.

Who the DS105G is for

Adding a few wired ports

  • Five gigabit RJ45 ports
  • Plug and play with no setup
  • Loop prevention built in

Desktop or wall installs

  • Fanless design
  • Metal casing for desk or wall
  • 3.1 W maximum power consumption

DS105G compared

The DS105G and the DS108G are both Omada gigabit unmanaged desktop switches with the same feature set. The main differences are the port count and the performance figures that follow from it.

SpecificationDS105GDS108G
Gigabit RJ45 ports58
Switching capacity10 Gbps16 Gbps
Packet forwarding rate7.4 Mpps11.9 Mpps
MAC address table2K4K
Packet buffer memory1 Mbit1.5 Mbit
Jumbo frame16 KB16 KB
Max. power consumption3.1 W (220 V / 50 Hz)3.92 W (220 V / 50 Hz)
Dimensions (W x D x H)100 x 98 x 25 mm158 x 101 x 25 mm
Power adapter output5 V DC / 0.6 A5 V DC / 0.6 A
QoS / IGMP Snooping / loop preventionYes / Yes / YesYes / Yes / Yes

Source: TP-Link Australia product pages for each model.

Buy the DS105G from ARC IP Networks

ARC IP Networks supplies genuine TP-Link Omada products from Australian stock at competitive prices, with the full manufacturer's warranty, Australia-wide delivery and trade pricing for installers and MSPs.

  • Genuine TP-Link: new TP-Link Omada product from Australian stock.
  • Manufacturer warranty: the full TP-Link manufacturer's warranty for this model.
  • Australia-wide delivery to every state and territory.
  • Trade and project pricing: call 1300 100 440 or email info@arcip.com.au.

Frequently asked questions

Straight answers about the DS105G from the ARC IP Networks team.

Last reviewed October 2026.

No. It is an unmanaged, plug-and-play switch with no configuration needed and no management required.

No. TP-Link's datasheet states that Omada unmanaged switches do not support Omada SDN central management.

Five 10/100/1000 Mbps RJ45 ports with auto-negotiation and Auto-MDI/MDIX.

10 Gbps, with a packet forwarding rate of 7.4 Mpps, according to TP-Link's datasheet.

No PoE is listed for the DS105G. It is powered by an external 5 V DC / 0.6 A adapter.

Yes. TP-Link lists the DS105G as fanless.

Yes. Its durable metal casing has desktop and wall-mounting options.

TP-Link says it monitors and addresses loop-related issues within your network structure to prevent disruptions caused by looping. The datasheet pictures show a switch on the unit for loop prevention.

Operating temperature 0 to 40 degrees C and operating humidity 10 to 90 per cent RH non-condensing; storage from -40 to 70 degrees C and 5 to 90 per cent RH non-condensing.

TP-Link lists a maximum power consumption of 3.1 W at 220 V / 50 Hz, and Green Ethernet technology reduces power consumption.

The DS105G switch, a power adapter and an installation guide.

Need more than one DS105G for an office or shop network?

Ask ARC IP Networks for volume and project pricing on genuine TP-Link Omada products.
