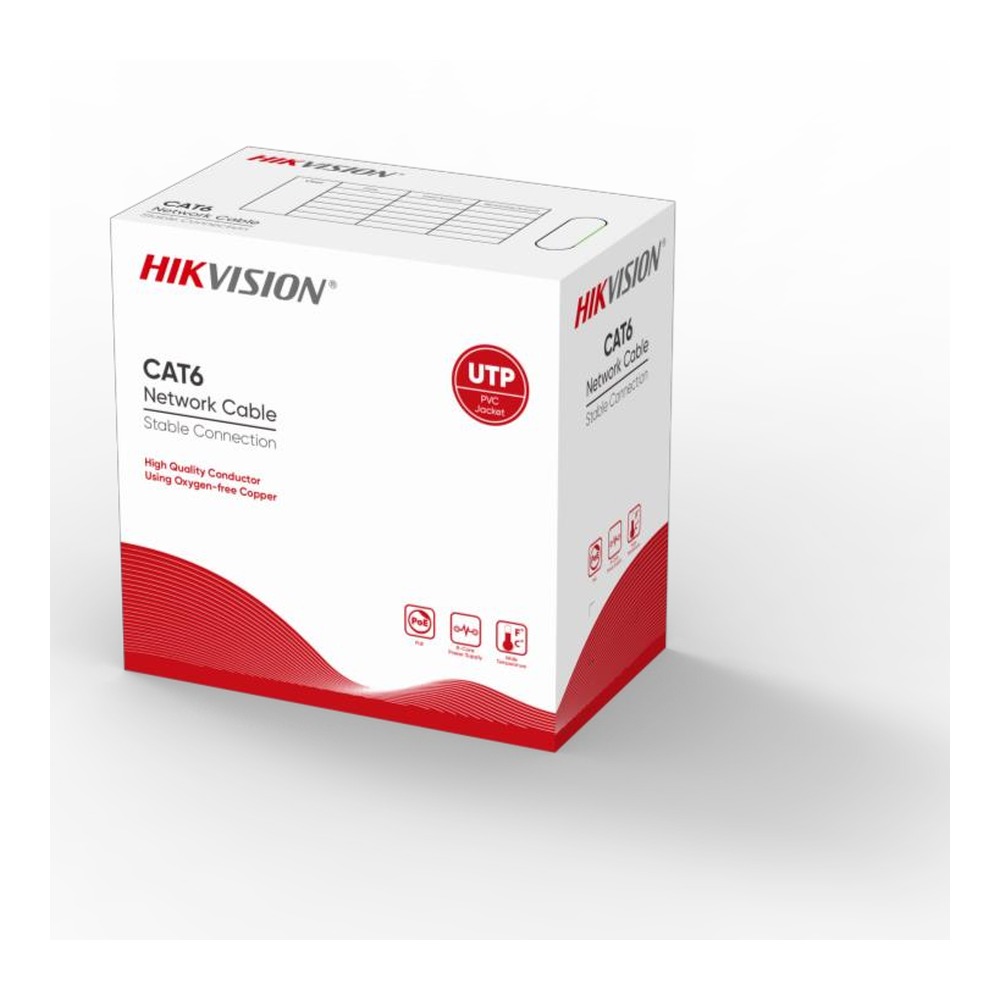

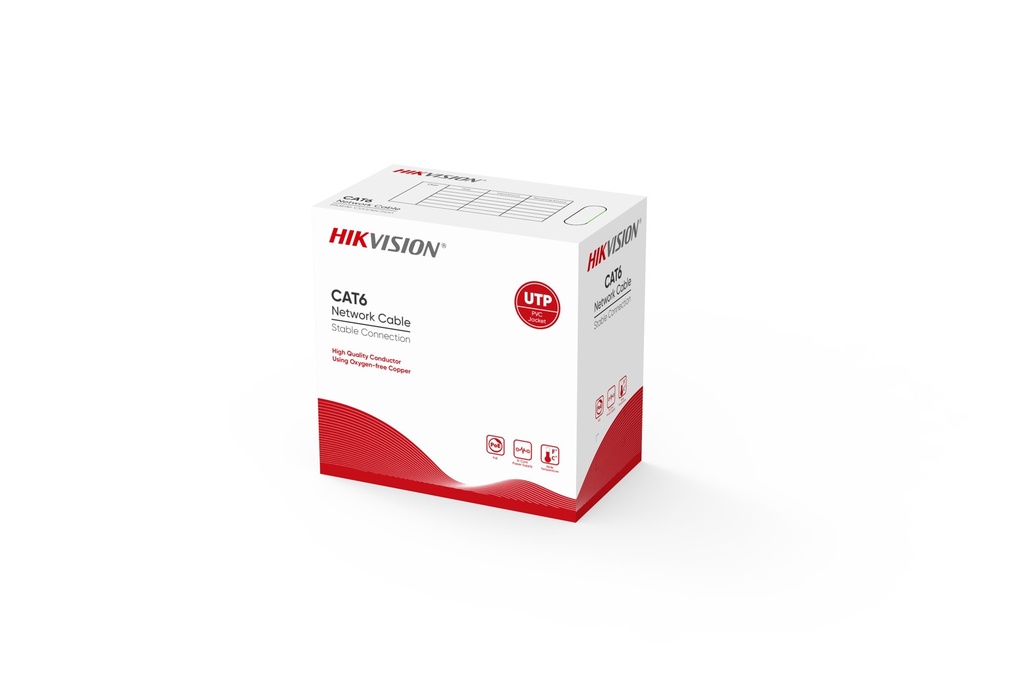

Hikvision DS-1LN6UZC0 Cat6 U/UTP Network Cable, 305 m, 24 AWG Solid Bare Copper, Yellow

https://arcip.com.au/web/image/product.template/11167/image_1920?unique=d95db27
  • Cat6 U/UTP, 4 pairs, 305 m box
  • Solid bare copper, 0.50 mm (24 AWG) — not CCA
  • ANSI/TIA-568.2-D, IEC 61156, ISO/IEC 11801
  • Fluke tested under 57 V / 1 A PoE load
  • Yellow PVC jacket, rip cord, separator, indoor

$ 193.55 193.55 AUD $ 193.55 incl. GST

Not Available For Sale


  • Brand
  • Length
  • Colour
  • Cable Category
  • Shielding
  • Operating Environment
  • Conductor

This combination does not exist.

In stock online
Hikvision Cable Cat6
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
DS-1LN6UZC0-YELLOW
Tags
At a glance

The Hikvision DS-1LN6UZC0-YELLOW is a 305 m box of Cat6 U/UTP network cable with a yellow PVC jacket. It uses solid bare-copper 24 AWG conductors (not copper-clad aluminium), complies with ANSI/TIA-568.2-D, IEC 61156 and ISO/IEC 11801, and is tested by Hikvision for PoE use. Indoor rated.

Category
Cat6
Structure
U/UTP (unshielded), 4 pairs
Conductor
Solid bare copper
Conductor size
0.50 ± 0.01 mm (24 AWG)
Insulation diameter
0.88 ± 0.05 mm
Sheath
PVC, yellow
Length
305 ± 1.5 m box
Rip cord / separator
Yes / Yes
Standards
ANSI/TIA-568.2-D, IEC 61156, ISO/IEC 11801
Use
Indoor
PoE tested
100 m channel test under 57 V / 1 A DC load
Environmental
RoHS 2.0

Key Features

Cat6 U/UTP
Solid Bare Copper
24 AWG, 4 Pair
305 m Box
PoE Tested
TIA / ISO Compliant

Why choose the DS-1LN6UZC0-YELLOW

The Hikvision DS-1LN6UZC0-YELLOW is the backbone of a reliable IP camera system. Cable is the one part of an installation that is hardest to replace later, and this Cat6 uses solid bare-copper conductors — not copper-clad aluminium (CCA) — for lower resistance, better transmission and dependable PoE power delivery to cameras, access points and intercoms.

Hikvision tests the cable where it matters for surveillance: an excellent result in the Fluke 90 m permanent-link test while running continuously at 50 °C, and in the Fluke 100 m channel test while continuously loaded with 57 V / 1 A DC (PoE). It is built to ANSI/TIA-568.2-D, IEC 61156 and ISO/IEC 11801 and is RoHS 2.0 compliant.

A tough PVC sheath with high tensile and compressive strength resists damage during the pull, a rip cord makes stripping quick and a cross separator keeps the four pairs in place. The 305 m box suits whole jobs. The yellow jacket makes camera runs easy to identify. Supplied by ARC IP Networks as genuine Australian stock.

Best for

  • PoE camera runs: solid copper for reliable power and data to cameras.
  • Whole installations: a 305 m box covers a typical multi-camera job.
  • Structured cabling: Cat6 to TIA-568.2-D and ISO/IEC 11801.
  • Hot ceiling spaces: tested at 50 °C over a 90 m permanent link.
  • Colour coding: yellow jacket to identify the CCTV or data runs.

Who it’s for

Installers

Solid-copper Cat6 from the same brand as the cameras.

Electricians & cablers

Rip cord, separator and a 305 m box for fast pulls.

Small business

Camera, Wi-Fi and data cabling for the office or shop.

Builders

Pre-wire new homes and fit-outs for cameras and data.

Integrators

Consistent cable spec across multi-site projects.

Homeowners

DIY camera runs to a PoE NVR or switch.

DS-1LN6UZC0-YELLOW
Cat6 U/UTP Network Cable, 305 m, Solid Copper 0.5 mm, Yellow

Features

  • Cat6 U/UTP 4-pair cable, 305 m box
  • Solid bare-copper conductors, 0.50 mm (24 AWG) — not CCA
  • Compliant with ANSI/TIA-568.2-D, IEC 61156 and ISO/IEC 11801
  • Fluke 90 m permanent-link test at a continuous 50 °C
  • Fluke 100 m channel test under a continuous 57 V / 1 A DC PoE load
  • PVC sheath with high tensile and compressive strength
  • Rip cord and cross separator
  • RoHS 2.0 compliant

Specifications

General
ModelDS-1LN6UZC0 (yellow jacket)
CategoryCat 6
StructureU/UTP
Usage scenarioIndoor
StandardsANSI/TIA-568.2-D, IEC 61156, ISO/IEC 11801
EnvironmentalRoHS 2.0
Conductor & insulation
Conductor materialSolid bare copper (99.95% per Hikvision global datasheet)
Conductor diameter0.50 ± 0.01 mm (24 AWG)
Insulation diameter0.88 ± 0.05 mm
Insulation materialHDPE (Hikvision global datasheet)

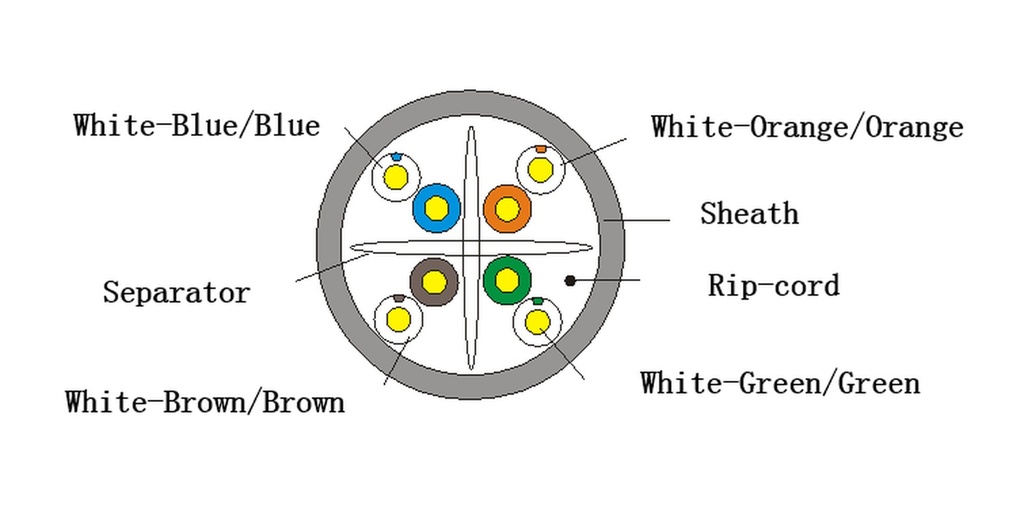

Sheath & structure
Sheath materialPVC
Sheath colourYellow
Sheath diameter5.30 ± 0.50 mm (Hikvision global datasheet)
Length305 ± 1.5 m
Rip cordYes
SeparatorYes
Electrical (20 °C, Hikvision global datasheet)
Impedance (1–250 MHz)100 ± 15 Ω
Delay skew (1–250 MHz)≤ 45 ns / 100 m
DC resistance≤ 9.38 Ω / 100 m
DC resistance unbalance≤ 4.0%
Operating voltage57 V
Ambient temperature−20 °C to 70 °C
Performance testing
Permanent linkFluke 90 m permanent-link test while working continuously at 50 °C
PoE channelFluke 100 m channel test while continuously loaded with 57 V / 1 A DC

Specifications from the official Hikvision datasheet. Weight and dimensions are shown for reference only.

Professional Overview

The Hikvision DS-1LN6UZC0-YELLOW is a Cat6 U/UTP four-pair network cable supplied in a 305 m box with a yellow PVC jacket. It is designed for the IP video and PoE installations that Hikvision cameras, recorders and switches are built around, and is equally at home carrying data to workstations, access points and intercoms.

Conductors are solid bare copper, 0.50 mm in diameter (24 AWG), which Hikvision specifies for lower resistance and better electrical and transmission performance. That matters for PoE: unlike copper-clad aluminium, solid copper keeps voltage drop and heating down across long runs, so cameras at the far end of a 90–100 m run receive the power they need.

The cable complies with ANSI/TIA-568.2-D, IEC 61156 and ISO/IEC 11801 and is RoHS 2.0 compliant. Hikvision reports excellent results in the Fluke 90 m permanent-link test while working continuously at 50 °C, and in the Fluke 100 m channel test while continuously loaded with 57 V / 1 A DC PoE power. The PVC sheath has high tensile and compressive strength to resist damage during installation, and a rip cord and separator speed up termination.

This cable is rated for indoor use; for underground, conduit-in-ground or exposed outdoor runs, use a cable specifically rated for outdoor installation. In Australia, fixed cabling must be installed by a registered cabler. Australian stock from ARC IP Networks.

Choose your colour

Both colours are the same Hikvision DS-1LN6UZC0 Cat6 U/UTP solid-copper cable in a 305 m box — only the jacket colour differs. Many installers use one colour for CCTV and another for data.

FeatureDS-1LN6UZC0-BLUEBlueDS-1LN6UZC0-YELLOWThis product
CategoryCat6 U/UTPCat6 U/UTP
ConductorSolid bare copper, 24 AWGSolid bare copper, 24 AWG
Length305 m305 m
JacketPVC, bluePVC, yellow
UseIndoorIndoor

Hikvision’s Australian datasheet for DS-1LN6UZC0 is published for the blue jacket; the yellow version carries the same model code.

Complete your system

Terminate with Cat6-rated RJ45 plugs or keystone jacks and connect your cameras to a Hikvision PoE switch or PoE NVR. Keep each run within 100 m for standard Ethernet; Hikvision smart-managed switches offer a long-range mode of up to 300 m (performance varies with camera model and cable condition).

Browse Hikvision NVRs →Browse cameras →

Works with your system

Solid copper, not CCA. Copper-clad aluminium (CCA) cable has higher resistance and runs hotter under PoE. This Hikvision cable uses solid bare-copper conductors throughout.

Hikvision IP cameras

Single-cable power and data over PoE.

PoE switches & NVRs

Hikvision smart-managed switches and PoE NVRs.

Wi-Fi access points

Gigabit Ethernet and PoE to ceiling APs.

Intercoms & access control

IP door stations and readers.

Workstations

Standard Cat6 data outlets.

Patch panels

Terminate to Cat6 panels and keystones.

Part of the Hikvision range

Genuine Australian stock from ARC IP Networks — explore the range and guides:

RecordersCamerasBullet camerasWhere to buy

Frequently asked questions

It uses solid bare-copper conductors (0.50 mm, 24 AWG). Hikvision’s global datasheet lists the copper as 99.95%. It is not copper-clad aluminium (CCA).

Each box holds 305 m (± 1.5 m) of cable.

Yes. Hikvision tests it in the Fluke 100 m channel test while continuously loaded with 57 V / 1 A DC PoE power, and solid copper keeps voltage drop low on long runs.

Hikvision rates this cable for indoor use. For underground conduit, direct burial or exposed outdoor runs, use a cable designed and rated for outdoor installation.

No — it is U/UTP (unshielded twisted pair), which is standard for most camera and office installations and does not need shielded connectors or earthing.

The conductors are 0.50 ± 0.01 mm (24 AWG) with 0.88 mm insulation.

In Australia, fixed telecommunications cabling must be installed by a registered cabler. Hikvision’s datasheet lists ANSI/TIA, IEC and ISO/IEC standards; check any local compliance requirements with your cabler.
Brand Hikvision
Length 305 m
Colour Yellow
Cable Category Cat 6
Shielding U/UTP (Unshielded)
Operating Environment Indoor
Conductor 24 AWG Solid Bare Copper
DS-1LN6UZC0_Datasheet.pdf
