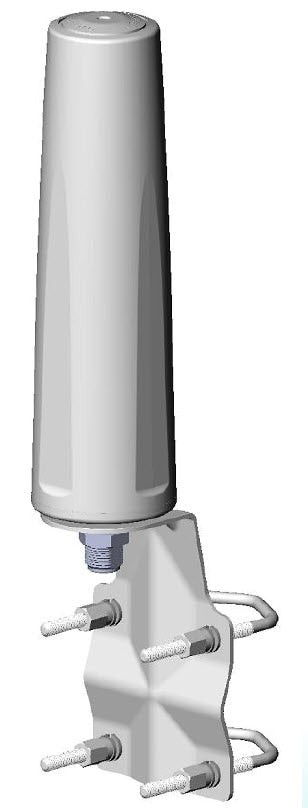

Cisco ANT-5G-OMNI-OUT-N= Outdoor Omnidirectional 4G LTE / 5G FR1 Antenna, 617-7125 MHz, N-Type, IP67

https://arcip.com.au/web/image/product.template/11712/image_1920?unique=bb4c154

Cisco ANT-5G-OMNI-OUT-N= outdoor omnidirectional 4G LTE / 5G FR1 dipole antenna. 617-960 MHz and 1450-7125 MHz including Band 71; average peak gain 2.5 dBi, 4.0 dBi and 4.3 dBi. 50 Ohm, VSWR 2:1, 10 W, DC grounded. N-Female connector, 62.2 x 219.4 mm, pole bracket for 25.4 to 54mm poles. IP66 and IP67, -40°C to +85°C. Designed for IoT devices, smart metering and utility boxes. Genuine Cisco from ARC IP Networks, a Cisco Registered Partner.

$ 316.78 316.78 AUD $ 316.78 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
ANT-5G-OMNI-OUT-N=

Cisco ANT-5G-OMNI-OUT-N= at a glance

The Cisco ANT-5G-OMNI-OUT-N= is an outdoor omnidirectional dipole antenna for 4G LTE and 5G FR1, covering 617-960 MHz and 1450-7125 MHz with average peak gains of 2.5 to 4.3 dBi. It has an N-female connector, a pole bracket for 25.4 to 54 mm poles, IP66/IP67 protection and a -40 to +85°C operating range.

ARC IP Networks is a Cisco Registered Partner in Australia. We supply the genuine Cisco ANT-5G-OMNI-OUT-N= through Cisco's authorised Australian distribution, with a GST tax invoice on every order.

Bands617-960, 1450-7125 MHz
Peak gain2.5 / 4.0 / 4.3 dBi
ConnectorN-female
RatingIP66 and IP67

Best for

  • IoT devices, smart metering and utility boxes
  • Outdoor 5G or LTE antennas for Cisco routers
  • Sites needing low-band Band 71 coverage

Key features

Dipole antenna covering 617-960 MHz and 1450-7125 MHz, including Band 71 (617-698 MHz).

Also supports LTE Japan bands (1400-1520 MHz) and dual-band Wi-Fi.

Average peak gain 2.5 dBi (617-960 MHz), 4.0 dBi (1450-4200 MHz) and 4.3 dBi (4400-7125 MHz).

Average efficiency up to 84%; VSWR 2:1.

N-Female connector and bracket with 720 hour salt spray rating.

Bracket mounts to 25.4 to 54mm poles, horizontal or vertical.

IP66 and IP67; operating and storage temperature -40°C to +85°C.

10 W average power rating; DC grounded for ESD protection.

Cisco ANT-5G-OMNI-OUT-N= specifications

Cisco ANT-5G-OMNI-OUT-N= technical specifications
SpecificationValue
RF
Frequency617-960 MHz; 1450-7125 MHz
Average peak gain2.5 dBi / 4.0 dBi / 4.3 dBi
Average efficiency81% / 84% / 66%
VSWR2:1
HPBW vertical96° / 48° / 46°
PolarisationVertical, omni
Electrical
Impedance50 Ohms
Power rating10 W average
ESD protectionDC grounded
Mechanical
ConnectorN-Female
Dimensions62.2 mm diameter x 219.4 mm height
Bracket25.4 to 54mm pole, horizontal or vertical
Environment
IngressIP66 and IP67
Operating temperature-40°C to +85°C
RoHSRoHS-6 compliant

Figures from Cisco's official data sheet.

The Cisco ANT-5G-OMNI-OUT-N= in depth

Wideband 4G and 5G

Cisco designed the ANT-5G-OMNI-OUT-N= for IoT devices, smart metering and utility boxes. A single dipole covers 617 MHz Band 71 through 7125 MHz, spanning LTE and 5G FR1 bands.

Built for outdoors

The N-female connector and bracket carry a 720 hour salt spray rating, the antenna is IP66 and IP67, and Cisco recommends sealing outdoor connections with coax seal.

Frequently asked questions

Straight answers about the Cisco ANT-5G-OMNI-OUT-N= from the ARC IP Networks team. Last reviewed October 2026.

617-960 MHz and 1450-7125 MHz, including Band 71 (617-698 MHz) and LTE Japan bands (1400-1520 MHz).

Average peak gain of 2.5 dBi (617-960 MHz), 4.0 dBi (1450-4200 MHz) and 4.3 dBi (4400-7125 MHz).

The included bracket mounts to poles of 25.4 to 54mm diameter, horizontally or vertically.

The connector and bracket have a 720 hour salt spray rating and the antenna is IP66 and IP67; Cisco recommends coax seal on outdoor connections.

ARC IP Networks is a Cisco Registered Partner and supplies the genuine Cisco ANT-5G-OMNI-OUT-N= through Cisco's authorised Australian distribution, with a GST tax invoice.
