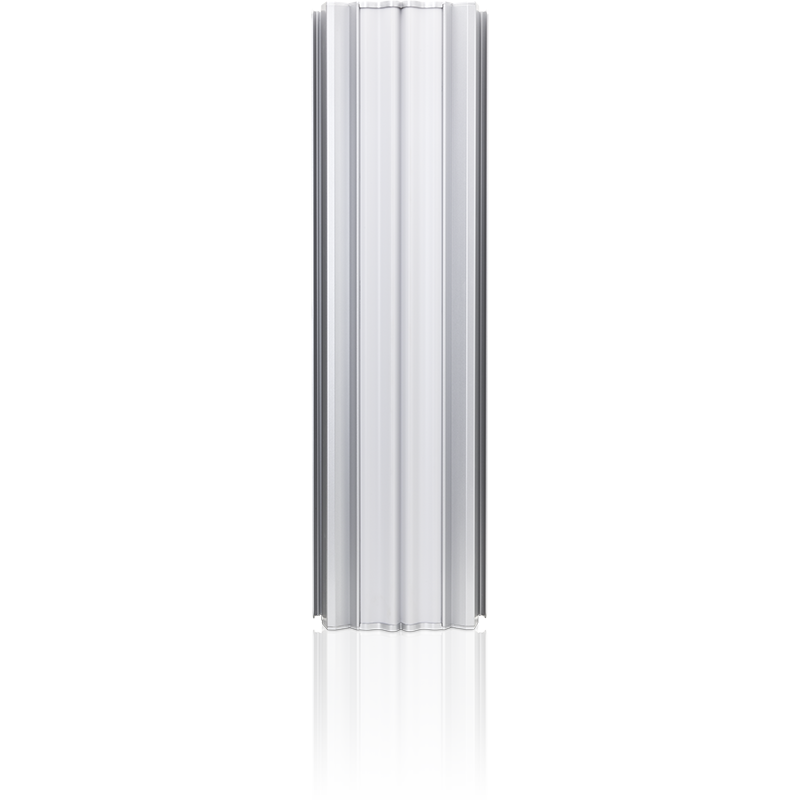

Ubiquiti AM-5AC22-45 5GHz AirMax AC Sector Antenna, 22dBi, 45 deg

https://arcip.com.au/web/image/product.template/2723/image_1920?unique=0405192
The AM-5AC22-45. 5 GHz, 45º, 22 dBi BaseStation sector antenna for Point‑to‑MultiPoint (PtMP) networks.

329.00 329.0 AUD 339.35 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

In stock online
UISP Ubiquiti
UBIQUITI
UBIQUITI

Ubiquiti Inc. offers a wide range of networking solutions for service providers and enterprises, including fixed wireless broadband, wireless backhaul, routing, LAN infrastructure, and video surveillance. The company stands out through its proprietary software, advanced firmware, and innovative hardware design.

  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
SKU
AM-5AC22-45
Barcode
810354021404
Tags
AM-5AC22-45
Ubiquiti airMAX AC 5 GHz, 22 dBi, 45º Sector Antenna

Features

  • 2x2 dual-polarity performance
  • Robust mechanical design for outdoor application use
  • Compatible with Rocket Prism 5AC

Specifications

Mechanical
Dimensions750 x 215 x 94 mm /
Weight6 kg
Wind Survivability200 km/h (125 mph)
Wind Loading347 N at 200 km/h (78 lbf at 125 mph)
MountingUniversal Pole Mount, RocketM Bracket, and Weatherproof RF Jumpers Included
HPOL Beamwidth45° (6 dBi)
Hardware
Frequency Range5.10—5.85 GHz
Antenna Gain22 dBi
Electrical Downtilt
Electrical Beamwidth
VPOL Beamwidth45° (6 dBi)
Max. VSWR1.5:1
PolarizationDual-Linear
Cross-Pol Isolation30 dB Min.
ETSI SpecificationEN 302 326 DN2

Professional Overview

The AM-5AC22-45 is a UISP networking device. 5 GHz, 45º, 22 dBi BaseStation sector antenna for Point‑to‑MultiPoint (PtMP) networks.

Australian stock, fast shipping from ARC IP Networks.

Ubiquiti AM-5AC22-45: PtMP sector antenna

The airMAX AC 5 GHz, 22 dBi, 45º Sector Antenna is a PtMP sector antenna with 22 dBi of gain, covering 5.10—5.85 GHz and a 45° beamwidth.

5 GHz, 45º, 22 dBi BaseStation sector antenna for Point‑to‑MultiPoint (PtMP) networks.

A sector antenna concentrates the pattern into one arc, so several of them around a tower cover a service area with far better gain and noise rejection than a single omni.

RF performance

SpecificationValue
Frequency range5.10—5.85 GHz
Gain22 dBi
VPOL beamwidth45° (6 dBi)
PolarisationDual-Linear
Cross-pol isolation30 dB Min.
Max. VSWR1.5:1
ETSI specificationEN 302 326 DN2

Cross-pol isolation is what lets the two polarities carry separate streams. The higher the figure, the better 2x2 MIMO holds up in a noisy environment.

Build and mounting

SpecificationValue
MountingUniversal Pole Mount, RocketM Bracket, and Weatherproof RF Jumpers Included
Wind survivability200 km/h (125 mph)
Wind loading347 N at 200 km/h (78 lbf at 125 mph)
Dimensions750 x 215 x 94 mm (29.5 x 8.5 x 3.7")
Weight6 kg (13.2 lb)

The mount hardware listed above ships with the AM-5AC22-45 — check it against your pole diameter before ordering a separate bracket.

Wind loading is the force the mast has to carry in a gale. On a tall or marginal mount it, not the antenna, is what fails first — size the structure for it.

Who the AM-5AC22-45 suits

  • Tower and rooftop sites serving subscribers across one arc rather than all directions
  • WISPs replacing an omni that is picking up noise from every direction
  • PtMP cells being built out sector by sector

What the AM-5AC22-45 works with

The AM-5AC22-45 is a passive antenna. It needs a radio to drive it, and the radio is a separate purchase — an airMAX Rocket or equivalent, mounted to the antenna and cabled back with the supplied RF jumpers.

Gain figures are only half a link budget. The other half is the radio, the path, and what the far end is running — an antenna cannot rescue a link with an obstructed Fresnel zone.

Browse PoE switches and cloud gateways for the wired side, or read the Australian Ubiquiti buying guide.

Frequently Asked Questions

What is the Ubiquiti AM-5AC22-45?

The airMAX AC 5 GHz, 22 dBi, 45º Sector Antenna is a PtMP sector antenna with 22 dBi of gain.

Does the AM-5AC22-45 include a radio?

No. It is a passive antenna and needs a radio — an airMAX Rocket or equivalent — which is ordered separately.

What is the gain of the AM-5AC22-45?

22 dBi.

What frequency range does the AM-5AC22-45 cover?

5.10—5.85 GHz. In Australia the radio driving it must be set to the local regulatory domain and operated within the ACMA class licence.

What polarisation does it use of the AM-5AC22-45?

Dual-Linear.

What is the cross-pol isolation of the AM-5AC22-45?

30 dB Min..

What is the maximum VSWR of the AM-5AC22-45?

1.5:1.

How is the AM-5AC22-45 mounted?

Universal Pole Mount, RocketM Bracket, and Weatherproof RF Jumpers Included.

What wind speed does the AM-5AC22-45 survive?

200 km/h (125 mph). Size the mast and its footing for the wind loading figure, not just the antenna's own rating.

Is the Ubiquiti AM-5AC22-45 available in Australia?

Yes. ARC IP Networks is an authorised Ubiquiti reseller holding Australian stock with full manufacturer warranty and fast domestic shipping.
