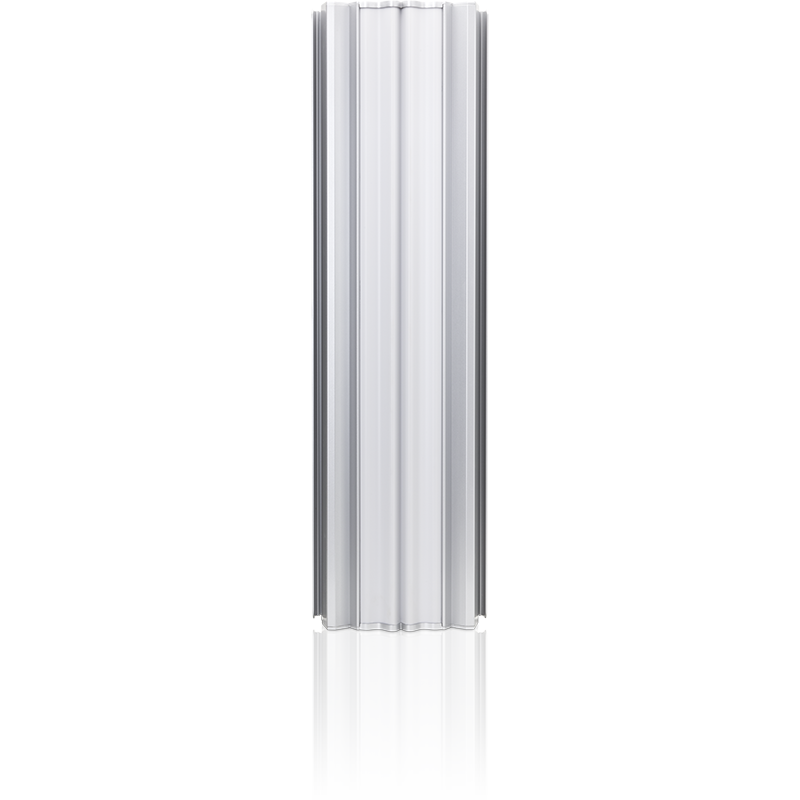

Ubiquiti AM-5AC22-45 5GHz AirMax AC Sector Antenna, 22dBi, 45 deg

https://arcip.com.au/web/image/product.template/2723/image_1920?unique=8867584
The Ubiquiti AM-5AC22-45 is a high-gain 5GHz AirMax AC Sector Antenna, delivering 22dBi gain and a focused 45-degree beamwidth. It's engineered for high-performance Point-to-MultiPoint (PtMP) deployments, providing excellent coverage and spectral efficiency for WISPs.

339.35 339.35 AUD 339.35 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

Ubiquiti airMAX
UBIQUITI
UBIQUITI

Ubiquiti Inc. offers a wide range of networking solutions for service providers and enterprises, including fixed wireless broadband, wireless backhaul, routing, LAN infrastructure, and video surveillance. The company stands out through its proprietary software, advanced firmware, and innovative hardware design.

  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
SKU
AM-5AC22-45
Barcode
810354021404
Tags
AM-5AC22-45
Ubiquiti AM-5AC22-45 5GHz AirMax AC Sector Antenna, 22dBi, 45 deg

Ubiquiti AM-5AC22-45 5GHz AirMax AC Sector Antenna, 22dBi, 45 deg

Features

  • High-Gain 22dBi: Provides powerful signal strength and extended reach for client connections.
  • 45-Degree Sector Coverage: Delivers a focused beam for optimal Point-to-MultiPoint (PtMP) deployments.
  • AirMax AC Technology: Optimized for seamless integration with Ubiquiti AirMax AC radios for superior performance.
  • Reduced Side Lobes: Minimizes interference with co-located sectors and other nearby transmitters, enhancing noise immunity.
  • Robust Outdoor Design: Built with durable materials to withstand harsh weather conditions and ensure long-term reliability.

Specifications

Antenna
Frequency Range5.15 - 5.85 GHz
Gain22 dBi
Beamwidth (HPOL)45°
Beamwidth (VPOL)45°
Electrical Beamwidth
F/B Ratio26 dB
VSWR1.5:1 (Max)
Cross-pol Isolation25 dB (Min)
PolarizationDual-Linear
Connector Type2x RP-SMA
Physical/Environmental
Dimensions (HxWxD)481 x 217 x 123 mm (18.94 x 8.54 x 4.84")
Weight2.7 kg (5.95 lb)
Wind Loading125 N @ 200 km/h (28.1 lbf @ 125 mph)
Wind Survivability200 km/h (125 mph)
MountingUniversal Pole Mount Kit (Included)
Operating Temperature-40 to 70° C (-40 to 158° F)
General
BrandUbiquiti Networks
ModelAM-5AC22-45

Professional Overview

The Ubiquiti AM-5AC22-45 5GHz AirMax AC Sector Antenna is a high-performance external antenna meticulously engineered for robust and scalable Point-to-MultiPoint (PtMP) wireless networks. With its potent 22dBi gain and precisely tailored 45-degree beamwidth, this sector antenna serves as a crucial component for Wireless Internet Service Providers (WISPs) and network operators aiming to deploy efficient, high-capacity base stations in the 5GHz frequency band.

The 22dBi gain ensures powerful signal propagation and reception, extending the reach and improving the link quality for a larger client base. The focused 45-degree beamwidth is strategically designed to provide concentrated coverage, minimizing unnecessary RF leakage and significantly reducing interference to adjacent sectors or co-located equipment. This precise control over the RF pattern, combined with advanced side-lobe suppression, optimizes spectral efficiency and allows for denser network deployments, even in challenging and congested RF environments.

Constructed with Ubiquiti's renowned durability, the AM-5AC22-45 features a rugged, all-weather design built to withstand severe outdoor conditions, guaranteeing long-term reliability and consistent performance across diverse climates. Its robust mechanical design and included pole-mount kit ensure straightforward installation and precise alignment, simplifying deployment and reducing maintenance efforts for network technicians.

When paired with Ubiquiti's AirMax AC Rocket radios, the AM-5AC22-45 unlocks superior throughput, lower latency, and enhanced scalability, making it an ideal solution for delivering high-speed broadband services, reliable surveillance backhauls, and robust enterprise connectivity. This sector antenna is a vital asset for modern wireless infrastructure, providing the performance and stability required for mission-critical communication links.
