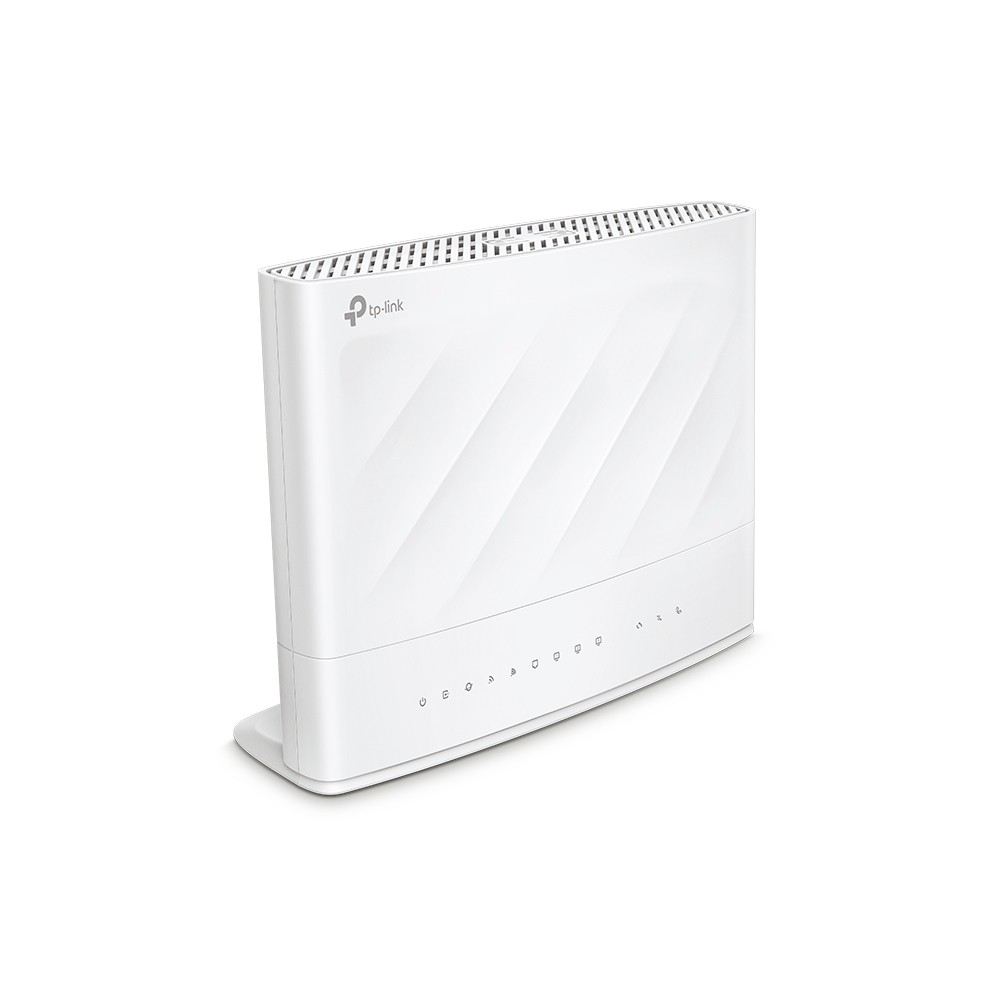

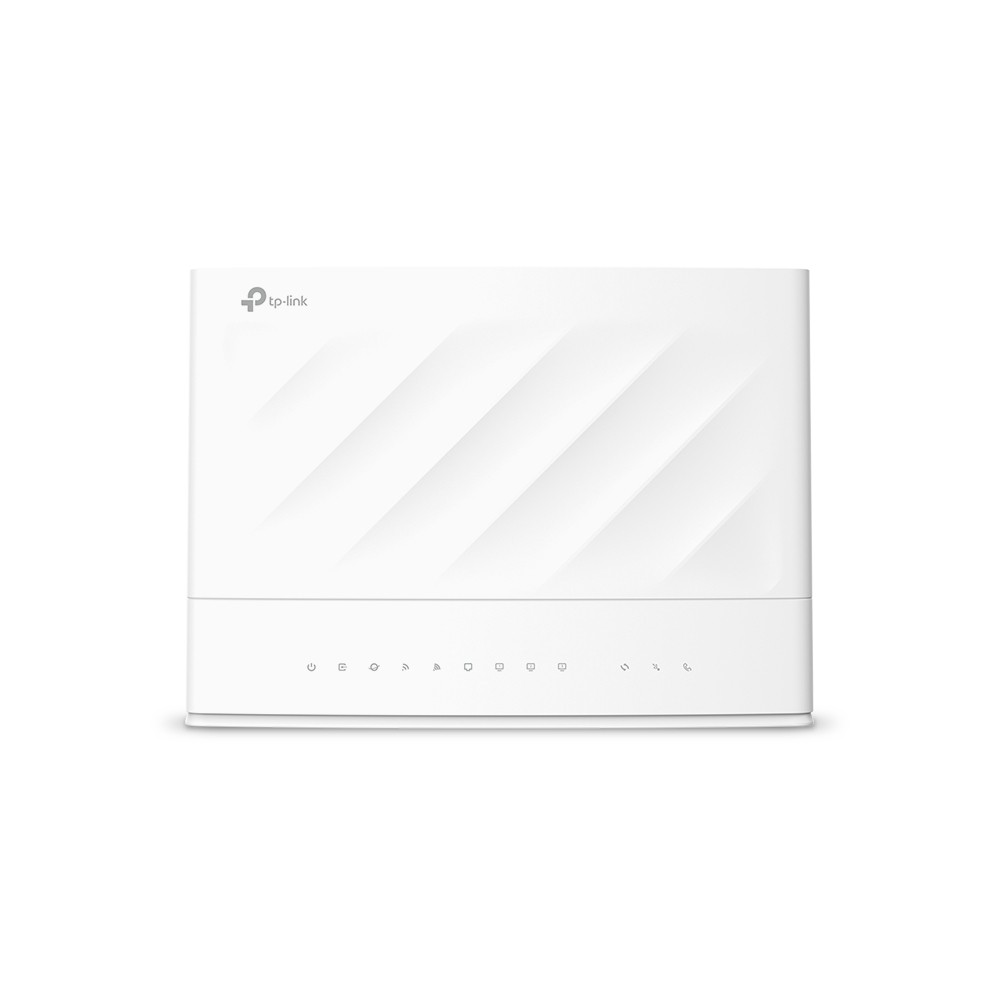

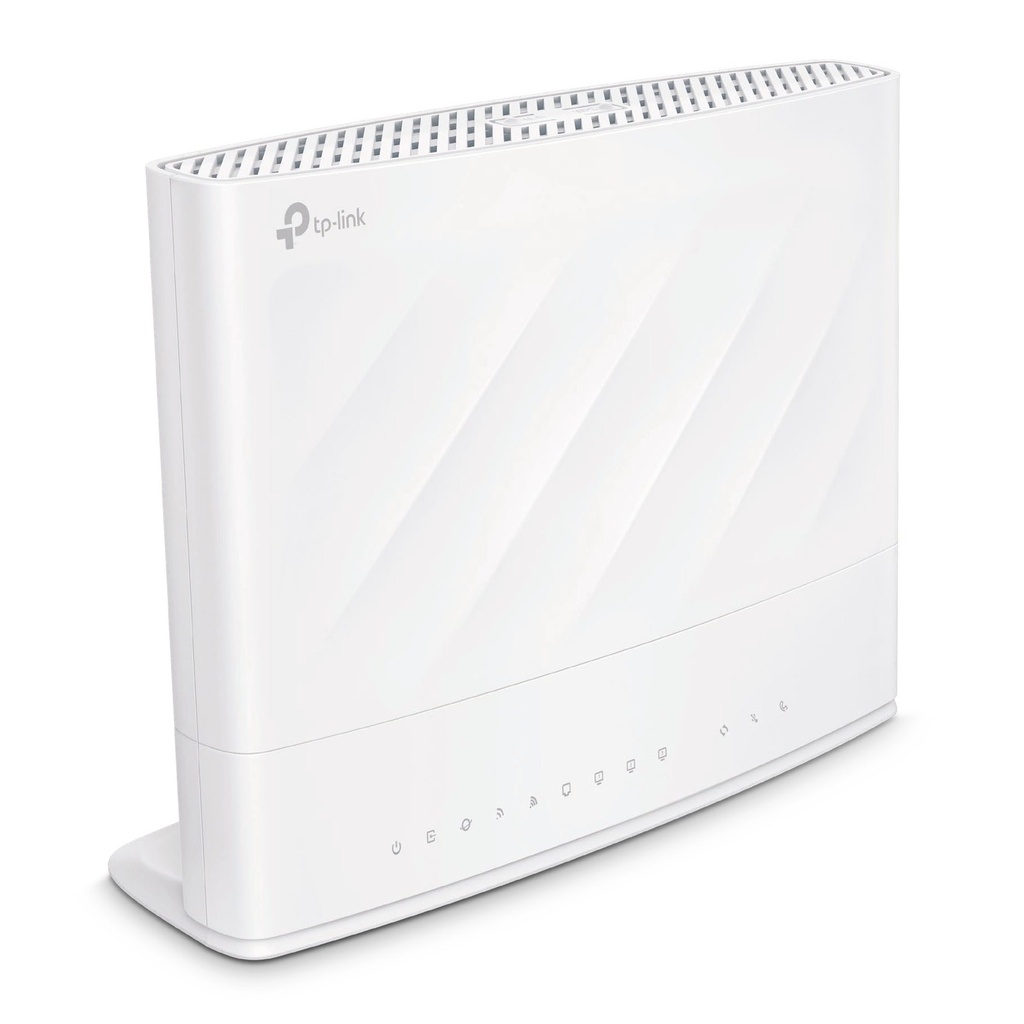

TP-Link VX230v AX1800 Dual-Band Wi-Fi 6 VDSL/ADSL Modem Router

https://arcip.com.au/web/image/product.template/11431/image_1920?unique=f8753a1

The TP-Link VX230v is an AX1800 dual-band Wi-Fi 6 VDSL/ADSL modem router. It supports VDSL2 up to profile 35b with G.vector, plus ADSL2+, ADSL2 and ADSL, and has a gigabit Ethernet WAN port for fibre or cable services, three gigabit LAN ports, a USB 2.0 port and an FXS port for VoIP calls with up to 8 SIP accounts. Wi-Fi signal rates are 1201 Mbps on 5 GHz and 574 Mbps on 2.4 GHz, with WPA3 encryption, guest networks and EasyMesh compatibility. Supplied by ARC IP Networks from Australian stock with the full manufacturer's warranty.

$ 145.78 145.78 AUD $ 145.78 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

In stock online
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
VX230V
Barcode
1210002605700

The TP-Link VX230v is an AX1800 dual-band Wi-Fi 6 VDSL/ADSL modem router. It supports VDSL2 up to profile 35b with G.vector, ADSL2+/ADSL2/ADSL, a gigabit Ethernet WAN port for fibre or cable connections, three gigabit LAN ports, a USB 2.0 port for storage sharing or a 3G/4G modem, an FXS port for VoIP telephony with up to 8 SIP accounts, WPA3 security and EasyMesh compatibility. Wi-Fi signal rates are 1201 Mbps on 5 GHz and 574 Mbps on 2.4 GHz.

VX230v overview

The VX230v is TP-Link's AX1800 dual-band Wi-Fi 6 VDSL/ADSL modem router: a single box that terminates a DSL line, routes the connection and provides Wi-Fi, wired ports and VoIP telephony. TP-Link describes it as a dual-band Wi-Fi 6 (802.11ax) DSL modem router with multiple connection options and VoIP telephony. On the DSL side it supports VDSL2 to ITU G.993.2 up to profile 35b, with G.vector (ITU-T G.993.5) for advanced data transmission stability and G.INP (ITU-T G.998.4). TP-Link states that super VDSL (VDSL2 profile 35b) delivers internet speeds of up to 350 Mbps; its footnote adds that 350 Mbps internet speeds require compatible service plans and equipment, and that actual speed may be limited by the Ethernet port rate, cabling, internet service provider factors and other conditions. The modem is also fully compatible with ADSL2+ (ITU-T G.992.5), ADSL2 (G.992.3 and G.992.4) and ADSL (full-rate ANSI T1.413 Issue 2, G.992.1, G.992.2, G.994.1 and G.995.1), and its ATM features cover PPP over ATM, PPP over Ethernet, IPoA, MER/IPoE and bridge modes with up to 8 PVCs.

Not every connection is DSL, so the VX230v also has a 10/100/1000 Mbps RJ45 WAN port. TP-Link says this supports fibre and cable connections through the Ethernet port, as well as 3G/4G internet services through the USB port, where the USB sharing features list a 3G/4G modem alongside Samba storage, FTP server and media server. Three 10/100/1000 Mbps RJ45 LAN ports provide wired connections for computers, consoles or a switch, and an FXS port connects a telephone for VoIP. VoIP support is SIP with up to 8 accounts, call logs, call rules, do-not-disturb and call blocking, call forwarding, voice mail and T.38, which TP-Link presents as support for multiple VoIP accounts and call features to surpass traditional landlines. Buttons include power on/off, reset, WPS on/off and Wi-Fi on/off, and power comes from a 12V/2.0A external supply. TP-Link's VX230v datasheet adds that the router uses internal antennas, and that with the FXS port users can make or receive phone calls over the internet simply by connecting the device to their existing telephone set.

Wireless is dual-band Wi-Fi 6: IEEE 802.11ax/ac/n/a on 5 GHz and 802.11ax/b/g/n on 2.4 GHz, with signal rates of 1201 Mbps on 5 GHz and 574 Mbps on 2.4 GHz. TP-Link notes these are maximum physical rates derived from the IEEE 802.11 specifications, and that actual throughput, coverage and number of connected devices vary with network conditions, client limitations and the environment. High-performance antennas and beamforming are used to extend Wi-Fi through the home, and OFDMA and MU-MIMO increase capacity for simultaneous transmission to more devices; Wi-Fi 6, OFDMA, MU-MIMO, 1024-QAM and WPA3 require clients that support the same features. Wireless functions include Air Time Fairness, WMM, wireless statistics, MAC filtering and schedules for both bands, plus 2.4 GHz and 5 GHz guest networks. The VX230v is EasyMesh compatible with 802.11k/v/r support; TP-Link states that a mesh network requires two or more devices, that the product is compatible with standardised EasyMesh technology but has not obtained Wi-Fi EasyMesh certification, that it can only work as a controller, and that seamless roaming is designed for devices supporting 802.11k/v.

Security covers WPA/WPA2/WPA3 encryption, an IPv4/IPv6 SPI firewall, DDoS protection, service filtering, access control and IP and MAC binding. VPN support lists OpenVPN, PPTP and IPSec, with up to 16 IPSec VPN tunnels, and routing features include NAT forwarding, QoS, address reservation, a DHCP server with client list, relay and condition pools, virtual servers, port triggering, DMZ, ALG and UPnP, and Dyn DNS, NO-IP and TP-Link DNS dynamic DNS. Local management is through the web interface and the Aginet app; the app needs a TP-Link ID with the device bound to it. For service providers, TP-Link lists TR-069, TR-098, TR-181, TR-369, TR-111 and TR-143 remote management and TP-Link Aginet Unified Cloud (TAUC). The router measures 199.7 x 148.6 x 67.5 mm, operates from 0 to 40 °C at 10 to 90% non-condensing humidity, and comes with an RJ45 Ethernet cable, power adapter, RJ11 cable and quick installation guide. The datasheet also lists four SSIDs per band (4 on 2.4 GHz and 4 on 5 GHz), IGMP proxy, static routing, RIP v1/v2, DNS relay, parental control and 802.1q VLAN and interface binding, along with a reboot schedule, configuration backup and restore, diagnostics tools and local and remote system logs. The datasheet's package list also includes an external splitter, which the AU product page does not list.

Key features

VDSL2 profile 35b

Up to 350 Mbps with a compatible service plan and equipment, with G.vector stability.

ADSL2+/ADSL2/ADSL

Full compatibility with older DSL standards and ATM modes with up to 8 PVCs.

Gigabit Ethernet WAN

Use fibre or cable connections through the 10/100/1000 Mbps WAN port.

Three gigabit LAN ports

10/100/1000 Mbps wired connections for computers, consoles or a switch.

AX1800 dual-band Wi-Fi 6

1201 Mbps on 5 GHz and 574 Mbps on 2.4 GHz signal rates.

VoIP with FXS port

SIP with up to 8 accounts, call forwarding, voice mail and call blocking.

USB 2.0 sharing

Samba storage, FTP and media server, or a 3G/4G modem.

EasyMesh compatible

Works as a mesh controller with 802.11k/v/r; not EasyMesh certified.

WPA3 and SPI firewall

WPA3 encryption, IPv4/IPv6 SPI firewall, DDoS and access control.

VX230v specifications

At a glance

AX1800 Wi-Fi 6
VDSL2 35b
Gigabit WAN
3x gigabit LAN
FXS VoIP port
USB 2.0
WPA3
EasyMesh compatible
VX230v full specifications
Hardware Features

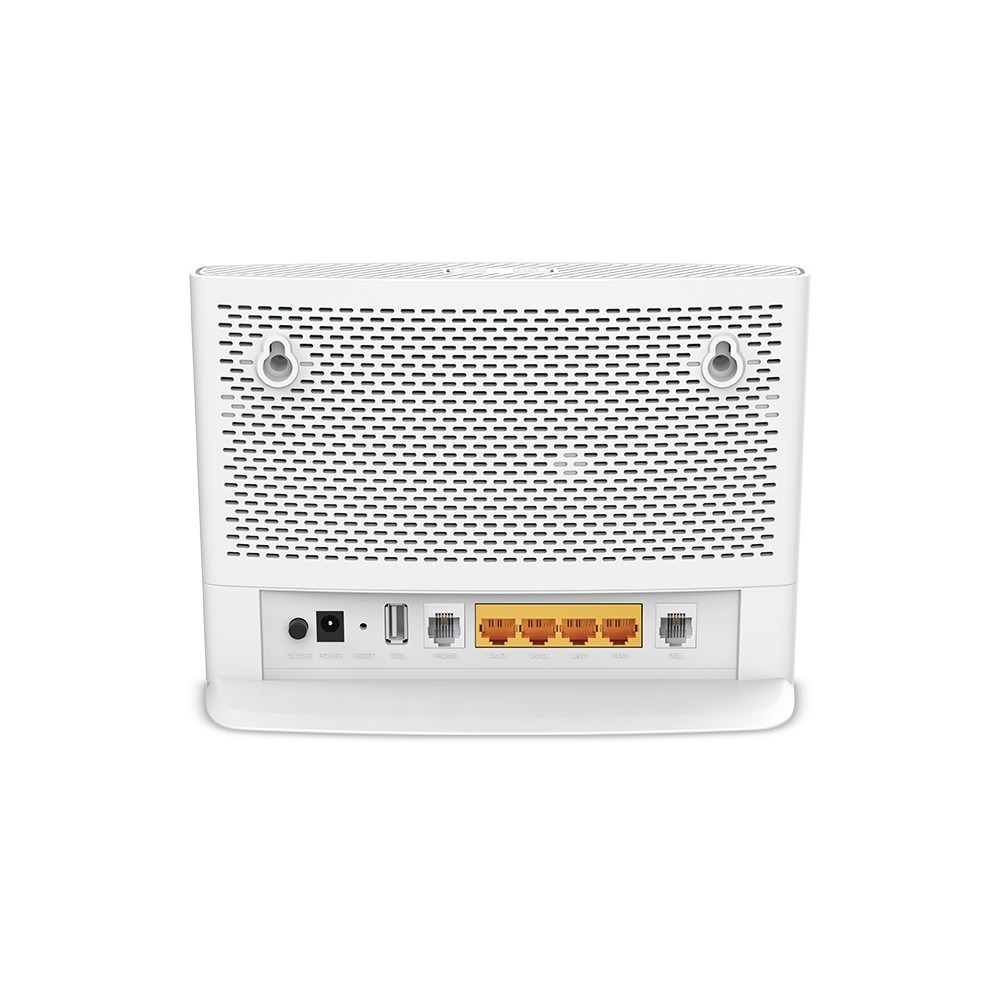

Interface3× 10/100/1000 Mbps RJ45 LAN Ports 1× 10/100/1000Mbps RJ45 WAN Port 1× DSL Port 1× FXS Port 1× USB 2.0 Port
ButtonPower On/Off Button, Reset Button, WPS On/Off Button, Wi-Fi On/Off Button
External Power Supply12V/2.0A
IEEE StandardsIEEE 802.3, IEEE 802.3u, 802.3ab
VDSL2 StandardsITU G.993.2, Up to 35b profile ITU-T G.993.5 (G.vector) ITU-T G.998.4 (G.INP)
ADSL StandardsFull-rate ANSI T1.413 Issue 2, ITU-T G.992.1(G.DMT), ITU-T G.992.2(G.Lite), ITU-T G.994.1 (G.hs), ITU-T G.995.1
ADSL2 StandardsITU-T G.992.3 (G.DMT.bis) ITU-T G.992.4 (G.lite.bis)
ADSL2+ StandardsITU-T G.992.5
Dimensions ( W x D x H )7.9 × 5.9 × 2.7 in (199.7 x 148.6 x 67.5 mm)
VOIP StandardsSIP, up to 8 Accounts, Call Logs, Call Rules, DND & Call Blocking, Call Forwarding, Voice Mail, T.38
Wireless Features
Wireless StandardsIEEE 802.11 ax/ac/n/a 5 GHz, IEEE 802.11 ax/b/g/n 2.4 GHz
Frequency2.4 GHz and 5 GHz
Signal Rate5 GHz: 1201 Mbps 2.4 GHz: 574 Mbps
Wireless FunctionsEnable/Disable Wireless Radio, WMM, Air Time Fairness, Wireless Statistics, MAC Filtering
Wireless SecurityWPA/WPA2/WPA3 encryptions
Transmission PowerCE: <30 dBm (5.47 GHz—5.725 GHz)
Wireless ScheduleSupport 2.4 GHz and 5 GHz Wireless Schedule
Mesh TechnologyEasyMesh Compatible, and support 802.11k/v/r
Software Features
Advanced FeaturesNAT Forwarding, Address Reservation, QoS(Quality of Service), CWMP, Network Diagnosis, Traffic Statistic, Cloud upgrade, 1024-QAM, MU-MIMO, OFDMA, EasyMesh
SecurityIPv4/IPv6 SPI Firewall, DDoS, Service Filtering, Access Control, IP&MAC Binding
Management FeaturesLocal management: WebGUI, Aginet app (for end users); Remote management:; TR-069, TR-098, TR-181, TR-369, TR-111, and TR-143 for service providers; Aginet App for end users (need to log in with TP-Link ID and bind your device to it); Cloud management: TP-Link Aginet Unified Cloud (TAUC)
DHCPServer, Client, DHCP Client List, Address Reservation, DHCP Relay, Condition Pool
Port ForwardingVirtual Server, Port Triggering, DMZ, ALG, UPnP
Dynamic DNSDyn DNS, NO-IP, TP-Link DNS
VPNOpenVPN, PPTP VPN, IPSec VPN
ProtocolsIPv4 and IPv6
ATM FeaturesATM Forum UNI3.1/4.0, PPP over ATM (RFC 2364), PPP over Ethernet (RFC2516), IPoA (RFC1577/2225), MER\IPoE (RFC 1483 Routed), Bridge (RFC1483 Bridge), PVC – Up to 8 PVCs
USB SharingSupport Samba (Storage) / FTP Server / Media Server, 3G/4G Modem
Guest Network2.4 GHz and 5 GHz Guest Network
IPSec VPNSupport up to 16 IPSec VPN tunnels
Others
CertificationCE
System RequirementsMicrosoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or Linux Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled brower
EnvironmentOperating Temperature: 0°C40°C (32°F—104°F) Storage Temperature: -40°C—60°C (-40°F—140°F) Operating Humidity: 10%—90% non-condensing Storage Humidity: 5%—90% non-condensing

Source: TP-Link's published specifications for this model (TP-Link Australia product page and datasheet). throughput figures are TP-Link's lab results. TP-Link may change specifications without notice.

What's in the box

  • 1× Modem Router VX230v
  • 1× RJ45 Ethernet Cable
  • 1× Power Adapter
  • 1× RJ11 Cable
  • 1× Quick Installation Guide

Source: TP-Link's published package contents.

Who the VX230v is for

Homes on a DSL line

  • VDSL2 up to profile 35b
  • ADSL2+/ADSL2/ADSL fallback
  • Dual-band Wi-Fi 6 in one box

Fibre or cable via Ethernet WAN

  • Gigabit RJ45 WAN port
  • 3G/4G modem via USB
  • Three gigabit LAN ports

Homes keeping a phone service

  • FXS port for a handset
  • Up to 8 SIP accounts
  • Voice mail and call forwarding

VX230v compared

The VX230v and the TP-Link DR3150 both support VDSL2 profile 35b at up to 350 Mbps. The VX230v is a home modem router with Wi-Fi 6 and VoIP; the DR3150 is an Omada wired DSL gateway with more VPN options and Omada SDN management.

SpecificationVX230vDR3150
Product typeAX1800 Wi-Fi 6 VDSL/ADSL modem routerOmada gigabit desktop DSL gateway
DSLVDSL2 up to 35b, ADSL2+/ADSL2/ADSLVDSL2 up to 35b, ADSL2+/ADSL2/ADSL
DSL speedUp to 350 Mbps (compatible plan required)Up to 350 Mbps
Ethernet ports1x gigabit WAN, 3x gigabit LAN4x gigabit (1x WAN/LAN, 3x LAN)
USB1x USB 2.02x USB 2.0
Wi-FiDual-band AX1800 Wi-Fi 6Not listed
VoIPFXS port, up to 8 SIP accountsNot listed
VPNOpenVPN, PPTP, IPSec (16 tunnels)IPsec, OpenVPN, WireGuard, L2TP, PPTP, GRE
Power12V/2.0A external12V/2A external

Source: TP-Link Australia product pages for each model.

Buy the VX230v from ARC IP Networks

ARC IP Networks supplies genuine TP-Link products from Australian stock at competitive prices, with the full manufacturer's warranty, Australia-wide delivery and trade pricing for installers and MSPs.

  • Genuine TP-Link: new TP-Link product from Australian stock.
  • Manufacturer warranty: the full TP-Link manufacturer's warranty for this model.
  • Australia-wide delivery to every state and territory.
  • Trade and project pricing: call 1300 100 440 or email info@arcip.com.au.

Frequently asked questions

Straight answers about the VX230v from the ARC IP Networks team.

Last reviewed October 2026.

VDSL2 up to profile 35b and ADSL2+/ADSL2/ADSL through its DSL port, fibre or cable connections through its gigabit Ethernet WAN port, and 3G/4G internet through a USB modem.

TP-Link states up to 350 Mbps with VDSL2 profile 35b. This requires a compatible service plan and equipment, and real speed depends on your provider, cabling and line conditions.

It is an AX1800 dual-band Wi-Fi 6 router with signal rates of 1201 Mbps on 5 GHz and 574 Mbps on 2.4 GHz. These are maximum physical rates; real throughput varies with clients and the environment.

Yes. The VX230v has an FXS port for a telephone and supports SIP VoIP with up to 8 accounts, call logs, call rules, do-not-disturb, call blocking, call forwarding, voice mail and T.38.

One 10/100/1000 Mbps WAN port and three 10/100/1000 Mbps LAN ports, plus one DSL port, one FXS port and one USB 2.0 port.

TP-Link lists Samba storage sharing, an FTP server, a media server and a 3G/4G modem.

It is compatible with standardised EasyMesh and supports 802.11k/v/r. A mesh needs two or more devices, the VX230v works only as the controller, and it does not hold Wi-Fi EasyMesh certification.

WPA/WPA2/WPA3 encryption, an IPv4/IPv6 SPI firewall, DDoS protection, service filtering, access control, IP and MAC binding, and 2.4 GHz and 5 GHz guest networks. WPA3 needs clients that support it.

Yes. TP-Link lists OpenVPN, PPTP VPN and IPSec VPN, with up to 16 IPSec VPN tunnels.

TP-Link's datasheet lists 4 SSIDs on 2.4 GHz and 4 SSIDs on 5 GHz, and the product page lists 2.4 GHz and 5 GHz guest networks.

No. The VX230v datasheet lists internal antennas, with beamforming to extend Wi-Fi through the home.

Through the web interface or the Aginet app, which needs a TP-Link ID with the router bound to it. Service providers can also manage it through TR-069 family protocols and TP-Link Aginet Unified Cloud.

The VX230v modem router, an RJ45 Ethernet cable, a power adapter, an RJ11 cable and a quick installation guide.
