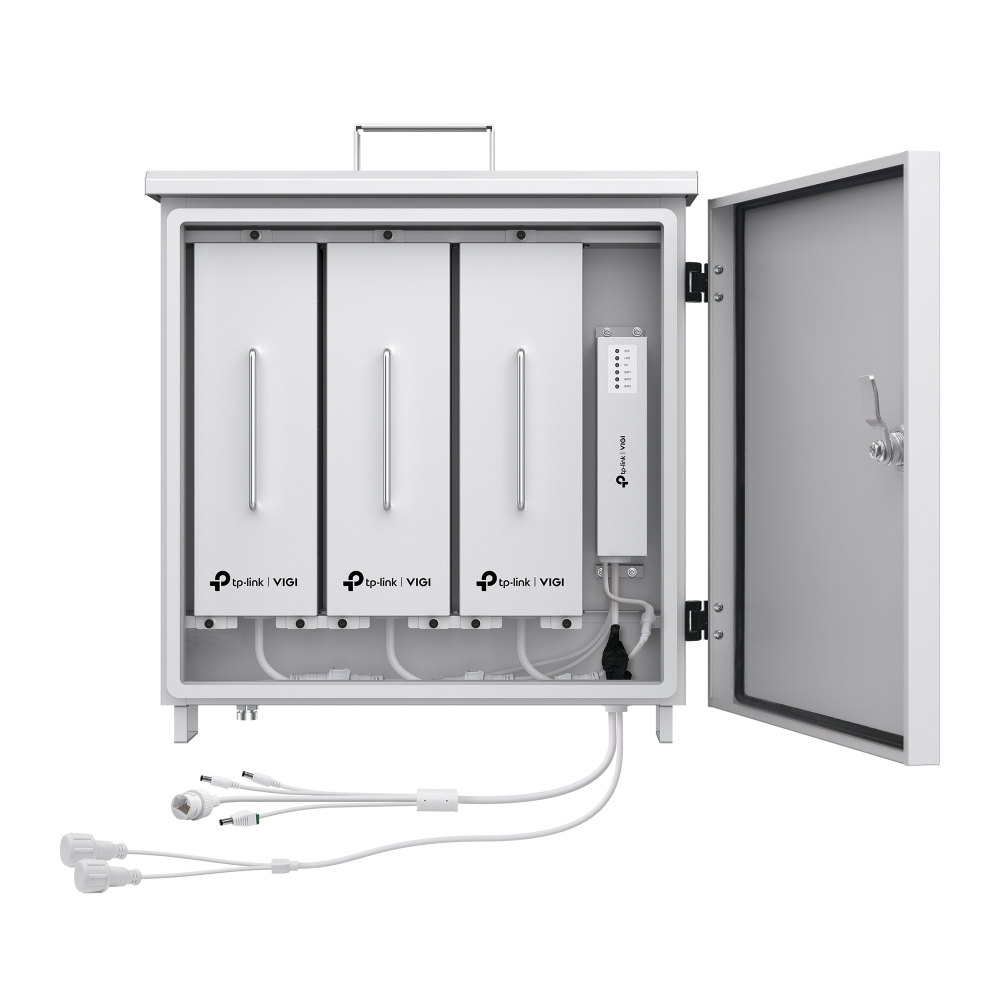

TP-Link VIGI PS90 Solar System Controller

Price:

$ 2,120.51


TP-Link VIGI PS30 Solar System Controller
TP-Link VIGI PS30 Solar System Controller
$ 794.50
$ 794.50
Yealink SP96-D-C/A SP96 Bluetooth Speakerphone – 6 Mics, 65 mm Speaker, Up to 5 Meters Pickup, Wireless Daisy Chain
Yealink SP96-D-C/A SP96 Bluetooth Speakerphone – 6 Mics, 65 mm Speaker, Up to 5 Meters Pickup, Wireless Daisy Chain
$ 272.76
$ 272.76

TP-Link VIGI PS90 Solar System Controller

https://arcip.com.au/web/image/product.template/11426/image_1920?unique=d95db27

The TP-Link VIGI PS90 is a VIGI solar system controller with a built-in MPPT controller and modular lithium batteries totalling up to 93.6 Ah (31.2 Ah per battery). It integrates with network devices for centralised control through the VIGI app or VIGI Cloud VMS, so you can monitor power statistics, receive low-battery alerts, update firmware and reboot the system remotely. Each battery has its own protection circuit, and intelligent auxiliary heating allows charging from -30°C. Interfaces include a 10/100 Mbps RJ45 port, two solar panel connectors and three 5.5mm DC power plugs. Supplied by ARC IP Networks from Australian stock with the full manufacturer's warranty.

$ 2,120.51 2120.51 AUD $ 2,120.51 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

In stock online
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
VIGI-PS90
Barcode
1210002601009

The TP-Link VIGI PS90 is a VIGI solar system controller with a built-in MPPT controller, lithium battery capacity of up to 93.6 Ah (31.2 Ah per battery) and intelligent auxiliary heating. It provides three DC outputs and a 10/100 Mbps RJ45 port, is IP66 certified, and is managed remotely through the VIGI app or VIGI Cloud VMS.

VIGI PS90 overview

The VIGI PS90 is the controller at the centre of a VIGI solar power system. It has a built-in MPPT (Maximum Power Point Tracking) controller, which TP-Link says optimises solar panel power, reduces power losses and increases charging efficiency by 20 per cent compared with PWM (Pulse Width Modulation) controllers. Its connections are two four-pin female connectors for the solar panel, a three-pin female connector for the controller, a three-pin male connector for the modular battery, one 10/100 Mbps RJ45 port and three 5.5 mm DC power plugs. Outputs #1 and #2 supply 9 to 12.6 VDC at 2 A and output #3 supplies 12 VDC at 2 A, for powering connected devices.

Energy storage is lithium. Battery capacity is listed as 93.6 Ah maximum, with 31.2 Ah per lithium battery, a battery voltage of 10.95 V and a maximum output voltage of 12.6 V. Each lithium battery measures 240 x 74 x 72 mm. TP-Link says each individual battery has its own protection circuit, which prevents a failure in one battery from affecting the entire pack, for battery safety and uninterrupted device operation. Software protections include high and low temperature protection and overdischarge protection, and load control is supported. The package listing does not include a solar panel, so plan the panel separately.

For cold sites, the battery supports intelligent auxiliary heating technology, which TP-Link says lets it operate normally across a wide temperature range. Charging is rated from 0 to 45 degrees C, or -30 to 45 degrees C with intelligent auxiliary heating; discharging is rated from -20 to 60 degrees C, or -30 to 60 degrees C with heating. Intelligent auxiliary heating control and smart charging control both operate in the -30 to 5 degrees C range. Overall, the system's operating temperature is -30 to 60 degrees C with intelligent auxiliary heating, at 10 to 90 per cent RH non-condensing. Certifications are CB and PSE for the battery, and CE, FCC, VCCI, IC and IP66.

Remote management avoids site visits. TP-Link says the PS90 integrates with network devices for centralised control via the VIGI app or VIGI Cloud VMS, so you can remotely monitor power statistics, receive low-battery alerts, update firmware and reboot the system without needing to be on site. The software also provides power consumption statistics, real-time load status, battery level display, time zone selection, schedule saving, remote reset, remote message push, account management and local LAN management. Six blue LEDs show SYS, LAN, PV and three BAT states. The product weighs 16.5 kg (24 kg packaged). In the box are the VIGI PS90, an installation guide, waterproof cable attachments, mounting accessories, an extension cable and a box key. ARC IP Networks supplies the VIGI PS90 from Australian stock with the full manufacturer's warranty.

Key features

Built-in MPPT controller

TP-Link says MPPT increases charging efficiency by 20% compared with PWM controllers.

Up to 93.6 Ah lithium storage

31.2 Ah per lithium battery, 10.95 V battery voltage, 12.6 V maximum output.

Independent protection circuits

Each battery has its own protection circuit so one failure does not affect the whole pack.

Intelligent auxiliary heating

Charging down to -30 degrees C and discharging from -30 to 60 degrees C with heating.

Three DC outputs

Two 9-12.6 VDC / 2 A outputs and one 12 VDC / 2 A output on 5.5 mm plugs.

10/100 Mbps RJ45

A network port for local LAN management and remote management.

VIGI app and Cloud VMS

Monitor power statistics, get low-battery alerts, update firmware and reboot remotely.

Protection and load control

High and low temperature protection, overdischarge protection and load control.

IP66 certified

Certified CE, FCC, VCCI, IC and IP66, with CB and PSE for the battery.

VIGI PS90 specifications

At a glance

Built-in MPPT
Up to 93.6 Ah
31.2 Ah per battery
-30 to 60 °C (heated)
3 x DC outputs
10/100 RJ45
IP66
VIGI app / Cloud VMS
VIGI PS90 full specifications
Battery
TypeLithium
Intelligent Auxiliary HeatYes
Battery Capacity93.6Ah(Max),31.2Ah(Per Lithium Battery)
Voltage10.95 V
Max. Output Voltage12.6 V
LifeMore than 500 cycles
Dimension9.4×2.9×2.8 in (240×74×72 mm) (Per Lithium Battery)
Charging Condition0°C~45°C; -30°C~45°C (With intelligent auxiliary heating)
Discharging Condition-20°C~60°C; -30°C~60°C (With intelligent auxiliary heating)
Hardware
Interface1× Three-pin Female Connector For Connecting The Controller; 1× Three-pin Male Connector For Connecting The Modular Battery; 2× Four-pin Female Connectors For Connecting The Solar Panel; 1× 10/100 Mbps RJ45; 3× 5.5mm DC Power Plugs (#1, #2: 9V-12.6 VDC/2A, #3: 12 VDC/2A)
Indicator LEDQuantity: 6 (1× SYS Indicator, 1× LAN Indicator, 1× PV Indicator, 3× BAT Indicator); Color: Blue
Software Features
Load ControlYes
High and Low Temperature ProtectionYes
Overdischarge ProtectionYes
Power Consumption StatisticsYes
Displays Real-time Load StatusYes
Battery Level DisplayYes
Time Zone SelectionYes
Schedule SavingYes
Firmware Remote UpdateYes
Remote RebootYes
Local LAN ManagementYes
Intelligent Auxiliary Heating Control-30°C~5°C
Smart Charging Control-30°C~5°C
Account ManagementYes
Remote ResetYes
Remote Message PushYes
Others
CertificationCB, PSE (Battery); CE, FCC, VCCI, IC, IP66
Box Dimensions (W X D X H)18.9×16.8×6.4 in (481 426 163 mm)
WeightProduct Weight: 16.5 kg; Package Weight: 24 kg
EnvironmentOperating Temperature: -30°C-60°C (With intelligent auxiliary heating); Operating Humidity: 10%~90%RH, Non-condensing

Source: TP-Link's published specifications for this model (TP-Link Australia product page). throughput figures are TP-Link's lab results. TP-Link may change specifications without notice.

What's in the box

  • VIGI PS90
  • Installation Guide
  • Waterproof Cable Attachments
  • Mounting Accessories
  • Extension Cable
  • Box Key

Source: TP-Link's published package contents.

Who the VIGI PS90 is for

Solar-powered VIGI sites

  • MPPT charging from the solar panel
  • Lithium storage up to 93.6 Ah
  • DC outputs for connected devices

Sites managed remotely

  • Monitoring via VIGI app or Cloud VMS
  • Low-battery alerts and remote reboot
  • Auxiliary heating for cold conditions

Buy the VIGI PS90 from ARC IP Networks

ARC IP Networks supplies genuine TP-Link VIGI products from Australian stock at competitive prices, with the full manufacturer's warranty, Australia-wide delivery and trade pricing for installers and MSPs.

  • Genuine TP-Link: new TP-Link VIGI product from Australian stock.
  • Manufacturer warranty: the full TP-Link manufacturer's warranty for this model.
  • Australia-wide delivery to every state and territory.
  • Trade and project pricing: call 1300 100 440 or email info@arcip.com.au.

Frequently asked questions

Straight answers about the VIGI PS90 from the ARC IP Networks team.

Last reviewed October 2026.

A solar system controller with a built-in MPPT controller, lithium battery storage and DC outputs, managed through the VIGI app or VIGI Cloud VMS.

Up to 93.6 Ah, with 31.2 Ah per lithium battery.

TP-Link says the MPPT controller increases charging efficiency by 20% compared with PWM controllers.

With intelligent auxiliary heating, charging is rated from -30 to 45 degrees C and discharging from -30 to 60 degrees C.

Three 5.5 mm DC plugs (#1 and #2 at 9-12.6 VDC / 2 A, #3 at 12 VDC / 2 A) and one 10/100 Mbps RJ45 port.

No solar panel is listed in the package contents. The PS90 has two four-pin connectors for connecting the solar panel.

Yes. Through the VIGI app or VIGI Cloud VMS you can monitor power statistics, receive low-battery alerts, update firmware and reboot the system.

Its certifications include IP66.

The product weighs 16.5 kg; the package weighs 24 kg.

The VIGI PS90, an installation guide, waterproof cable attachments, mounting accessories, an extension cable and a box key.

Need more than one VIGI PS90 for a solar-powered VIGI deployment?

Ask ARC IP Networks for volume and project pricing on genuine TP-Link VIGI products.
