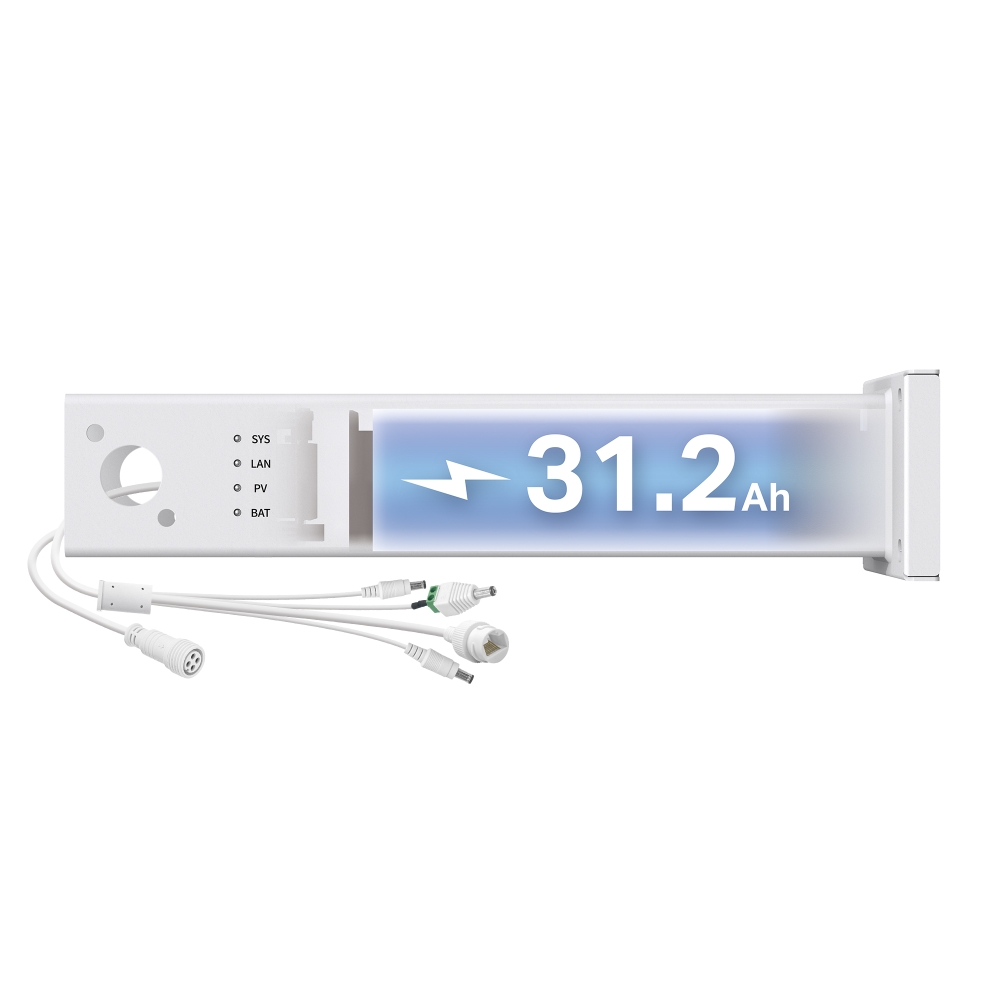

TP-Link VIGI PS30 Solar System Controller

https://arcip.com.au/web/image/product.template/11425/image_1920?unique=d95db27

The TP-Link VIGI PS30 is a VIGI solar system controller with an automotive-grade lithium battery that delivers continuous power to solar systems in harsh outdoor conditions. The 10.8 V lithium battery has a capacity of 31.2 Ah, and intelligent auxiliary heating allows charging from -30°C. It has one 10/100 Mbps RJ45 port, a photovoltaic panel connector and three 5.5mm DC power plugs, with load control, overdischarge and high and low temperature protection, power consumption statistics and a battery level display. Supplied by ARC IP Networks from Australian stock with the full manufacturer's warranty.

$ 794.50 794.5 AUD $ 794.50 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

In stock online
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
VIGI-PS30
Barcode
8885020624373

The TP-Link VIGI PS30 is a VIGI solar system controller with a 31.2 Ah, 10.8 V lithium battery and intelligent auxiliary heating, one photovoltaic panel connector, three 5.5 mm DC power outputs and a 10/100 Mbps RJ45 port. It offers load control, overdischarge and temperature protection, power consumption statistics, remote reboot, reset and firmware update, and carries an IP66 weatherproof rating.

VIGI PS30 overview

The VIGI PS30 is TP-Link's VIGI solar system controller. VIGI lists its battery as a lithium type with a capacity of 31.2 Ah, a voltage of 10.8 V and a maximum output voltage of 12.6 V, rated for more than 500 cycles. Intelligent auxiliary heat is built in. Without heating, the battery charges from 0 to 45 °C and discharges from -20 to 60 °C; with the intelligent auxiliary heating, charging extends down to -30 °C and discharging covers -30 to 60 °C. A smart charging control function operates in the -30 to 5 °C range. The battery measures 242 x 70 x 65 mm (9.5 x 2.8 x 2.6 in).

The controller's connections are one photovoltaic panel connector for the solar panel input, one 10/100 Mbps RJ45 port, and three 5.5 mm DC power plugs. DC outputs #1 and #2 supply 9 to 12.6 V DC at 2 A, and output #3 supplies 12 V DC at 2 A. Four blue indicator LEDs show system (SYS), LAN, photovoltaic (PV) and battery (BAT) status, so the state of each part of the system can be checked on the unit. When choosing the devices to power, check each device's DC input against these output ratings.

Software features cover both protection and management. Protection functions include load control, high- and low-temperature protection and overdischarge protection. For monitoring, the PS30 provides power consumption statistics, displays real-time load status and shows the battery level. Management features include local LAN management, account management, time zone and region selection, schedule saving, remote firmware update, remote reboot, remote reset and remote message push. Together with the power consumption statistics and battery level display, these functions are the management toolset VIGI lists for the PS30.

The PS30 has an IP66 weatherproof rating and operates from -30 to 60 °C with intelligent auxiliary heating, at 10 to 90% RH non-condensing humidity. Certifications are CB and PSE for the battery, and CE, FCC, VCCI and IC. In the box are the VIGI solar system controller, a quick start guide, waterproof cable attachments and mounting accessories; VIGI lists a package weight of 9.9 kg and box dimensions of 580 x 320 x 225 mm. The solar panel is not listed among the package contents. ARC IP Networks supplies the VIGI PS30 from Australian stock with the full manufacturer's warranty.

Key features

31.2 Ah lithium battery

10.8 V lithium battery with 12.6 V maximum output, rated for more than 500 cycles.

Intelligent auxiliary heat

Extends charging down to -30 °C and discharging to -30 to 60 °C.

Photovoltaic panel input

One photovoltaic panel connector for solar charging.

Three DC power outputs

Two 9-12.6 V DC / 2 A outputs and one 12 V DC / 2 A output on 5.5 mm plugs.

10/100 Mbps RJ45 port

One RJ45 port for local LAN management.

Protection functions

Load control, high and low temperature protection and overdischarge protection.

Power statistics and status

Power consumption statistics, real-time load status and battery level display.

Remote management

Remote firmware update, reboot, reset and message push.

IP66 weatherproof

Rated IP66, operating from -30 to 60 °C with auxiliary heating.

VIGI PS30 specifications

At a glance

31.2 Ah lithium
10.8 V battery
Auxiliary heating
PV panel input
3 x DC outputs
10/100 Mbps RJ45
Remote management
IP66
VIGI PS30 full specifications
Battery
TypeLithium
Intelligent Auxiliary HeatYes
Battery Capacity31.2 Ah
Voltage10.8 V
Max. Output Voltage12.6 V
LifeMore than 500 cycles
Dimension242×70×65 mm (9.5×2.8×2.6 in)
Charging Condition0°C~45°C; -30°C~45°C (With intelligent auxiliary heating)
Discharging Condition-20°C~60°C; -30°C~60°C (With intelligent auxiliary heating)
Hardware
Interface1× 10/100 Mbps RJ45; 1× Photovoltaic Panel Connector; 3× 5.5mm DC Power Plugs (#1, #2: 9V-12.6 VDC/2A, #3: 12 VDC/2A)
Indicator LEDQuantity: 4 (1× SYS Indicator, 1× LAN Indicator, 1× PV Indicator, 1× BAT Indicator); Color: Blue
Software Features
Load ControlYes
High and Low Temperature ProtectionYes
Overdischarge ProtectionYes
Power Consumption StatisticsYes
Displays Real-time Load StatusYes
Battery Level DisplayYes
Time Zone SelectionYes
Region SelectionYes
Schedule SavingYes
Firmware Remote UpdateYes
Remote RebootYes
Local LAN ManagementYes
Smart Charging Control-30°C~5°C
Account ManagementYes
Remote ResetYes
Remote Message PushYes
Others
CertificationCB, PSE (Battery); CE, FCC, VCCI, IC, IP66 Weatherproof
Box Dimensions (W X D X H)580×320×225 mm (22.83×12.60×8.86 in)
WeightPackage Weight: 9.9 kg
EnvironmentOperating Temperature: -30°C-60°C (With intelligent auxiliary heating); Operating Humidity: 10%~90%RH, Non-condensing

Source: TP-Link's published specifications for this model (TP-Link Australia product page). throughput figures are TP-Link's lab results. TP-Link may change specifications without notice.

What's in the box

  • VIGI Solar System Controller
  • Quick Start Guide
  • Waterproof Cable Attachments
  • Mounting Accessories

Source: TP-Link's published package contents.

Who the VIGI PS30 is for

Solar-powered DC devices

  • PV panel connector for solar charging
  • 9-12.6 V and 12 V DC outputs at 2 A
  • 31.2 Ah lithium battery

Remotely monitored power systems

  • Power consumption statistics
  • Battery level and load status display
  • Remote reboot, reset and message push

Buy the VIGI PS30 from ARC IP Networks

ARC IP Networks supplies genuine TP-Link VIGI products from Australian stock at competitive prices, with the full manufacturer's warranty, Australia-wide delivery and trade pricing for installers and MSPs.

  • Genuine TP-Link: new TP-Link VIGI product from Australian stock.
  • Manufacturer warranty: the full TP-Link manufacturer's warranty for this model.
  • Australia-wide delivery to every state and territory.
  • Trade and project pricing: call 1300 100 440 or email info@arcip.com.au.

Frequently asked questions

Straight answers about the VIGI PS30 from the ARC IP Networks team.

Last reviewed October 2026.

A VIGI solar system controller with a 31.2 Ah lithium battery, a photovoltaic panel connector, three DC power outputs and an RJ45 port.

A lithium battery rated at 31.2 Ah and 10.8 V, with a 12.6 V maximum output voltage and a life of more than 500 cycles.

It has intelligent auxiliary heating. With heating, the battery charges from -30 to 45 °C and discharges from -30 to 60 °C; without it, charging is 0 to 45 °C.

Three 5.5 mm DC power plugs: #1 and #2 at 9-12.6 V DC / 2 A, and #3 at 12 V DC / 2 A.

VIGI lists the package contents as the controller, a quick start guide, waterproof cable attachments and mounting accessories. A solar panel is not listed.

Yes. It supports remote firmware update, remote reboot, remote reset and remote message push, plus local LAN management.

Load control, high and low temperature protection and overdischarge protection.

Yes. It carries an IP66 weatherproof rating.

Four blue LEDs: SYS, LAN, PV and BAT.

The VIGI solar system controller, a quick start guide, waterproof cable attachments and mounting accessories.

Need more than one VIGI PS30 for a solar-powered site project?

Ask ARC IP Networks for volume and project pricing on genuine TP-Link VIGI products.
