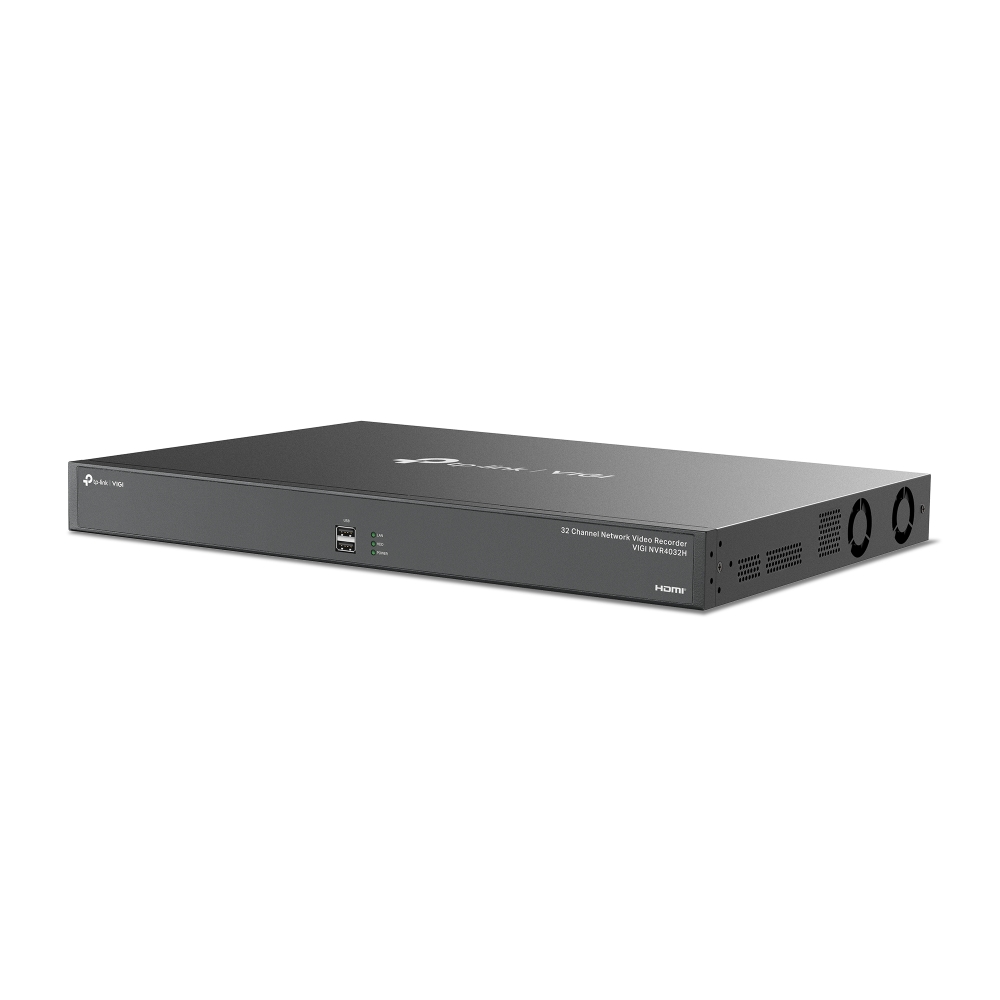

TP-Link VIGI NVR4032H 32-Channel Network Video Recorder

https://arcip.com.au/web/image/product.template/11423/image_1920?unique=d95db27

The TP-Link VIGI NVR4032H is a 32-channel network video recorder for storing, live viewing and playing back IP camera feeds. It accepts 320 Mbps incoming bandwidth, decodes up to 4-ch @ 8MP or 16-ch @ 1080P at 25fps, and outputs 4K over HDMI alongside simultaneous VGA. Four SATA interfaces support drives of up to 16 TB each (HDD not included), and 16-channel synchronous playback applies while the total resolution stays within 32MP. Dual Gigabit Ethernet ports allow multi-address mode, network fault tolerance and port aggregation, with 16 alarm inputs, four alarm outputs and H.265+ compression. Supplied by ARC IP Networks from Australian stock with the full manufacturer's warranty.

$ 741.55 741.55 AUD $ 741.55 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

In stock online
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
VIGI-NVR4032H
Barcode
4895252500752

The TP-Link VIGI NVR4032H is a 32-channel network video recorder with 320 Mbps of incoming bandwidth, four SATA hard drive bays and two gigabit Ethernet ports for network fault tolerance and port aggregation. It records up to 8MP with H.265+, has independent 4K HDMI and VGA outputs, 16 alarm inputs and 4 outputs, and an Auto Initialize function for quick setup.

VIGI NVR4032H overview

The VIGI NVR4032H is TP-Link's VIGI 32-channel network video recorder. It accepts 32 channels of IP video with 320 Mbps of incoming and 320 Mbps of outgoing bandwidth, and records at resolutions up to 8MP, with 5MP, 4MP, 3MP, 1080p and lower also listed. Video compression covers H.265+, H.265, H.264+ and H.264, and audio G.711A, G.711U and G.726. Decoding capability at 25 fps is listed as four channels at 8MP, six at 5MP, eight at 4MP, ten at 3MP or sixteen at 1080p. Record modes are manual, scheduled and motion-detection recording, with instant, regular, tag and event playback, digital zoom, recording lock and regular or video clip backup.

Networking is a highlight. The NVR4032H has two RJ45 10/100/1000 Mbps ports, and TP-Link lists network fault tolerance, which creates a safeguard or redundancy for your data, and port aggregation, which realises bandwidth stacking and mutual backup. Storage is provided by four SATA interfaces, and there are two front USB 2.0 ports and one rear USB 3.0 port. For local viewing, the HDMI output reaches 3840 x 2160 at 30 Hz and the VGA output 1920 x 1080 at 60 Hz, and the two outputs run independently, with multi-view layouts of 1, 4, 6, 8, 9, 16, 25, 32 or 36 windows. To save time on setup, TP-Link says a single click on Auto Initialize sets up basic IPC and hard disk parameters, greatly reducing configuration time.

Alarm features, which require a camera, include motion detection, video tampering, line-crossing, intrusion, region entering and exiting, object abandoned or removed, vehicle detection and human detection. Anomaly alarms cover video loss, offline and IP conflict, disk exceptions, login exceptions and fan exceptions, and alarm linkage options are recording, white light alarm, buzzer, log and audible alarm. For integration with other systems there are sixteen alarm inputs and four alarm outputs, an RS232 serial interface and one-channel RCA audio input and output. ONVIF Profile S and CGI interoperability are listed, and remote viewing is available from Android and iOS phones or a web browser.

The NVR4032H takes 100 to 240 V AC at 50 to 60 Hz (1.5 A) through an AC jack, with maximum consumption of 5 W without disks and 48 W with disks. It is a 440 x 330 x 44 mm unit, and mounting brackets, screws and rubber feet are included. It operates from -10 to 55 degrees C at 10 to 90% RH non-condensing, and certifications include CE, RCM and FCC. In the box: the NVR, a mouse, an installation guide, a power cord, HDD power and data cables, terminal blocks, mounting brackets, screws and rubber feet; hard drives are not listed. ARC IP Networks supplies the VIGI NVR4032H from Australian stock with the full manufacturer's warranty.

Key features

32-channel recording

32 IP channels with 320 Mbps incoming and outgoing bandwidth, up to 8MP.

Four SATA bays

Four SATA interfaces for internal hard drives.

Dual gigabit ports

Network fault tolerance for redundancy and port aggregation for bandwidth stacking and mutual backup.

Independent 4K HDMI and VGA

HDMI up to 3840 x 2160 at 30 Hz and VGA up to 1080p, as independent outputs.

Up to 36-window display

Multi-view layouts from 1 to 36 windows.

Auto Initialize

One click sets up basic IPC and hard disk parameters.

Smart alarms

Line-crossing, intrusion, region entering/exiting, vehicle and human detection (camera required).

16/4 alarm I/O and RS232

Sixteen alarm inputs, four outputs and an RS232 serial interface.

ONVIF Profile S

ONVIF Profile S and CGI interoperability.

VIGI NVR4032H specifications

At a glance

32-channel NVR
320 Mbps incoming
4 SATA bays
2 x gigabit ports
Up to 8MP recording
4K HDMI output
H.265+
16/4 alarm I/O
VIGI NVR4032H full specifications
Video and Audio
IP Video Input32-Channel
Incoming Bandwidth320 Mbps
Outgoing Bandwidth320 Mbps
HDMI Output Resolution1 Channel, Resolution: 3840x2160/30Hz,1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
VGA Output Resolution1 Channel, Resolution: 1920x1080/60Hz,1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
Video Output ModeHDMI/VGA Independent Output
Multi-View Display1/4/6/8/9/16/25/32/36
Decoding
Audio CompressionG.711A/G.711U/G.726
Video CompressionH.265+/H.265/ H.264+/H.264
Record Resolution8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Synchronous Playback16-Channel
Capability4-ch@8MP (25fps), 6-ch@5MP (25fps), 8-ch@4MP (25fps), 10-ch@3MP (25fps), 16-ch@1080P (25fps)
Record Management
Record ModeManual Recording; Scheduling Recording; Motion Detection Recording
Playback ModeInstant Playback; Regular Playback; Tag Playback; Event Playback
Backup ModeRegular Backup; Video Clip Backup
Playback FunctionPlay; Pause; Stop; Fast Forward; Fast Backward; Play By Frame; Full Screen; Video Clip; Export Clip; Digital Zoom; Lock Recording; Audio On/Off
Network
ProtocolUPnP (Plug and Play), NTP (Network Timing), TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, RTSP, SSL/TLS, RTP, IPv4, ARP
Mobile Phone AccessAndroid, iOS
Web BrowserChrome (57+), Firefox (52+), Edge (91+)
InteroperabilityONVIF Profile S, CGI
External Interface
Network Interface2, RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet Interface
USB Interface2 Front USB 2.0 Ports, 1 Rear USB 3.0 Port
Audio Interface1-ch RCA Input; 1-ch RCA Output
Alarm In/Out16/4
Serial Interface1, RS232
Power1× AC Jack
Reset Button1
SpeakerN/A
eSATAN/A
HDMI1
VGA1
Hard Disk
SATA4 SATA Interfaces
CapacityUp to 16 TB Capacity for Each HDD
Alarm
General AlarmMotion Detection; Video Tampering; Line-Crossing Detection; Intrusion Detection; Region Entering Detection; Region Exiting Detection; Object Abandoned/Removal Detection; Vehicle Detection; Human Detection Note: The alarm function requires the use of a camera.
Anomaly AlarmVideo Loss; Offline and IP Conflict; Disk Exception; Login Exception; Fan Exception Note: The alarm function requires the use of a camera.
Alarm LinkageRecording; White Light Alarm; Buzzer; Log; Audible Alarm Note: The alarm function requires the use of a camera.
General
Storage Temperature-40–70 °C
Storage Humidity10%~90% RH Non-Condensing
Working TemperatureNVR: -10–55 °C; Power Adapter: 0–40 °C
Working Humidity10%~90% RH Non-Condensing
Dimensions( W X D X H )440 × 330 × 44 mm
External Power Supply100-240 VAC, 50 to 60HZ, 1.5A
Net Weight4.0 Kg
Gross Weight5.2 Kg
Power Supply100-240 VAC, 50 to 60HZ, 1.5A
Max. Power Consumption5 W (Without Disk); 48 W (With Disk)
CertificationsCE, EAC, UKCA, RCM, Triman, VCCI, FCC, IC, HDMI

Source: TP-Link's published specifications for this model (TP-Link Australia product page). throughput figures are TP-Link's lab results. TP-Link may change specifications without notice.

What's in the box

  • VIGI Network Video Recorder
  • Mouse
  • Installation Guide
  • Power Cord
  • HDD Power Cables
  • HDD Data Cables
  • Terminal Blocks
  • Mounting Brackets
  • Screws
  • Rubber Feet

Source: TP-Link's published package contents.

Who the VIGI NVR4032H is for

Larger camera systems

  • Up to 32 IP channels
  • Four SATA bays
  • Up to 36-window live view

Networks needing redundancy

  • Network fault tolerance
  • Port aggregation for bandwidth stacking
  • Alarm I/O and RS232 integration

VIGI NVR4032H compared

The VIGI NVR4032H and VIGI NVR2008H-8MP are both VIGI network video recorders with 4K HDMI output and H.265+. The NVR4032H is a 32-channel model with four SATA bays and two gigabit network ports; the NVR2008H-8MP is an 8-channel model with eight built-in PoE+ ports.

FeatureVIGI NVR4032HVIGI NVR2008H-8MP
IP video input32 channels8 channels
Incoming bandwidth320 Mbps160 Mbps
PoE portsNone listed8 x PoE+ (802.3at/af)
SATA interfaces42
Network ports2 x gigabit RJ451 x gigabit RJ45
Alarm in/out16/46/4
HDMI/VGA outputIndependentSimultaneous
Power100–240 VAC53.5 V DC adapter

Source: TP-Link Australia product pages for each model.

Buy the VIGI NVR4032H from ARC IP Networks

ARC IP Networks supplies genuine TP-Link VIGI products from Australian stock at competitive prices, with the full manufacturer's warranty, Australia-wide delivery and trade pricing for installers and MSPs.

  • Genuine TP-Link: new TP-Link VIGI product from Australian stock.
  • Manufacturer warranty: the full TP-Link manufacturer's warranty for this model.
  • Australia-wide delivery to every state and territory.
  • Trade and project pricing: call 1300 100 440 or email info@arcip.com.au.

Frequently asked questions

Straight answers about the VIGI NVR4032H from the ARC IP Networks team.

Last reviewed October 2026.

32 IP video channels.

No PoE ports are listed in its specifications.

It has four SATA interfaces. No drives are listed in the box.

TP-Link lists network fault tolerance for redundancy and port aggregation for bandwidth stacking and mutual backup.

8MP. Decoding at 25 fps is listed as four channels at 8MP up to sixteen channels at 1080p.

Yes. HDMI supports 3840 x 2160 at 30 Hz, and HDMI and VGA are independent outputs.

It supports ONVIF Profile S and CGI interoperability.

A one-click function that sets up basic IPC and hard disk parameters to reduce configuration time.

Yes. Sixteen alarm inputs, four alarm outputs and an RS232 serial interface.

The NVR, a mouse, an installation guide, a power cord, HDD power and data cables, terminal blocks, mounting brackets, screws and rubber feet.

Need more than one VIGI NVR4032H for a large surveillance install?

Ask ARC IP Networks for volume and project pricing on genuine TP-Link VIGI products.
