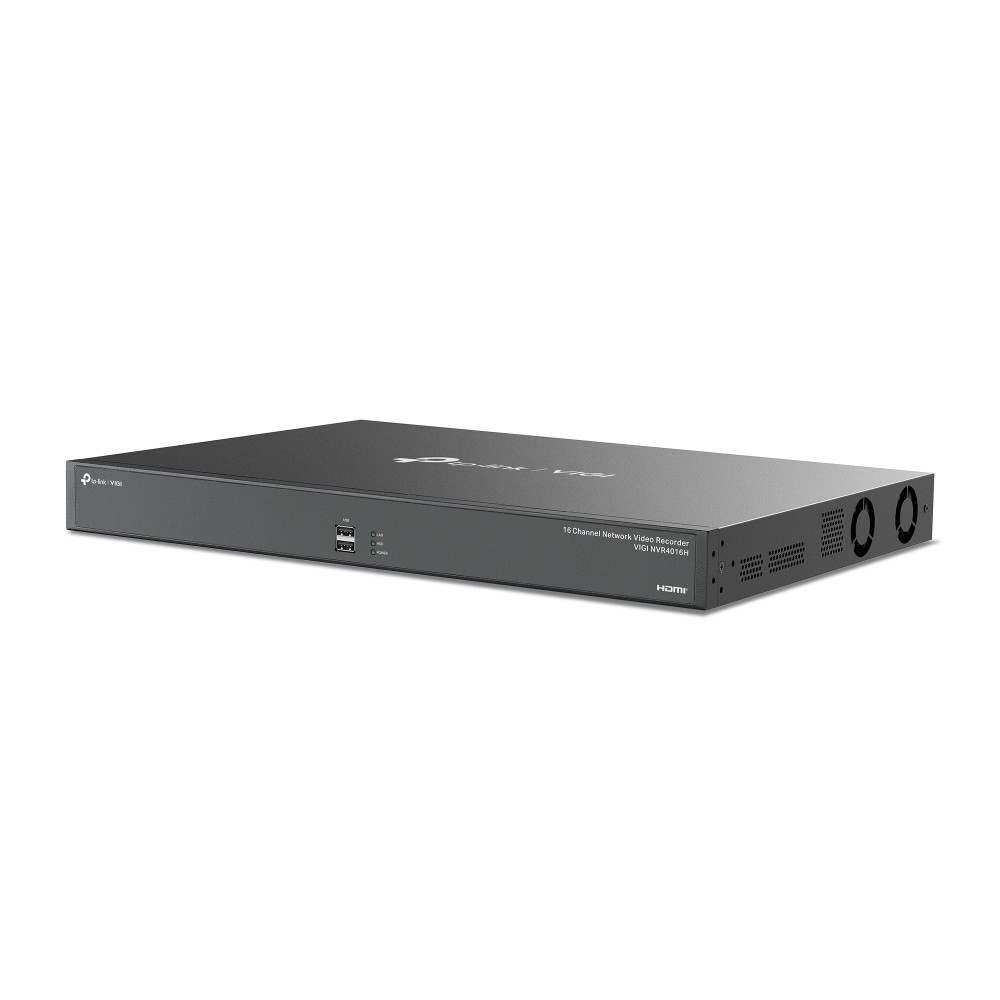

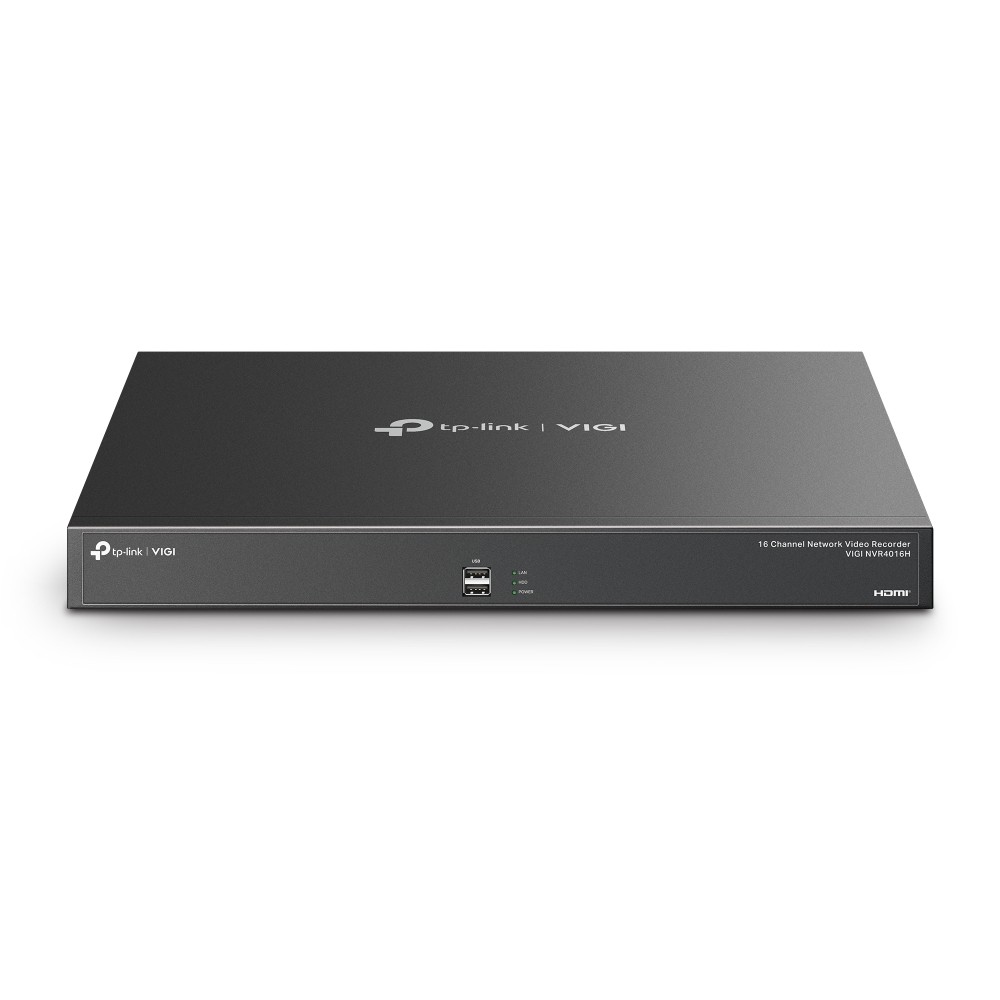

TP-Link VIGI NVR4016H 16-Channel Network Video Recorder

https://arcip.com.au/web/image/product.template/11422/image_1920?unique=0bbdb30

The TP-Link VIGI NVR4016H is a 16-channel network video recorder with 320 Mbps incoming and 320 Mbps outgoing bandwidth. It has four SATA interfaces supporting up to 16 TB per drive (drives not included), two gigabit Ethernet ports for network fault tolerance and port aggregation, H.265+ compression and recording up to 8MP. Outputs are HDMI1 up to 4K, HDMI2 and VGA, and it adds 16/4 alarm I/O, RS232 and one-click Auto Initialise. Supplied by ARC IP Networks from Australian stock with the full manufacturer's warranty.

$ 635.37 635.37 AUD $ 635.37 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
VIGI-NVR4016H
Barcode
8885020623666

The TP-Link VIGI NVR4016H is a 16-channel network video recorder with 320 Mbps of incoming and outgoing bandwidth, four SATA hard drive bays and two gigabit Ethernet ports for network fault tolerance and port aggregation. It records up to 8MP with H.265+, has two HDMI outputs (one up to 4K) plus VGA, 16-channel synchronous playback, 16 alarm inputs and 4 outputs, and Auto Initialise for quick setup.

VIGI NVR4016H overview

The VIGI NVR4016H is TP-Link's VIGI 16-channel network video recorder, with the headline "Security Never Shuts Down". It accepts 16 channels of IP video with 320 Mbps of incoming and 320 Mbps of outgoing bandwidth, and records at resolutions up to 8MP, with 5MP, 4MP, 3MP, 1080p and lower also listed. Video compression covers H.265+, H.265, H.264+ and H.264, and audio G.711A, G.711U and G.726. Decoding capability is listed as ten channels at 3MP or sixteen at 1080p at 25 fps, and four channels at 8MP, six at 5MP or eight at 4MP at 30 fps. Up to 16 channels can play back synchronously; TP-Link notes that fewer than 16, or none, may play simultaneously if the total resolution exceeds 32MP.

Record modes are manual, scheduled and motion-detection recording, with instant, regular, tag and event playback, and backups as regular or video clip backup. Playback controls include play, pause, stop, fast forward and backward, frame-by-frame, full screen, video clip and clip export, digital zoom, recording lock and audio on/off. Storage is provided by four SATA interfaces, each supporting a hard drive of up to 16 TB (hard drives are not included), plus one eSATA interface, two front USB 2.0 ports and one rear USB 3.0 port. To save time on setup, TP-Link says a single click on Auto Initialise sets up basic IPC and hard disk parameters, greatly reducing configuration time.

Networking is a highlight. The NVR4016H has two RJ45 10/100/1000 Mbps ports, and TP-Link lists three dual-port modes: Multi-Address Mode, which allows two different gateways; network fault tolerance, which creates a safeguard or redundancy for your data; and port aggregation, which realises bandwidth stacking and mutual backup. For local viewing it has two HDMI outputs and one VGA output. HDMI1 reaches 3840 x 2160 at 30 Hz, while HDMI2 and VGA reach 1920 x 1080 at 60 Hz. HDMI1 can run independently alongside either HDMI2 or VGA, but HDMI2 and VGA cannot operate at the same time; if both are connected, HDMI2 takes precedence. Multi-view layouts are 1, 4, 6, 8, 9 or 16 windows.

Alarm features, which require a camera, include motion detection, video tampering, scene change, line-crossing, intrusion, region entering and exiting, loitering, object abandoned or removed, vehicle and human detection, abnormal sound detection and Smart Frame. Anomaly alarms cover video loss, offline and IP conflict, disk, login and fan exceptions, and alarm linkage options are recording, white light alarm, buzzer, log and audible alarm. For integration there are sixteen alarm inputs and four alarm outputs, an RS232 serial interface and one-channel RCA audio input and output; TP-Link's port diagram shows detectors such as smoke and infrared detectors on the alarm inputs and a horn or alarm bell on the outputs. ONVIF Profile S and CGI interoperability are listed, with remote viewing from Android and iOS phones or Chrome, Firefox and Edge browsers. The unit takes 100 to 240 V AC at 50 to 60 Hz (1.5 A), drawing up to 5.5 W without disks and 45 W with disks. It measures 440 x 330 x 44 mm, weighs 4.0 kg net, and operates from -10 to 55 degrees C at 10 to 90% RH non-condensing. Because of its weight, TP-Link recommends using a tray (not included) when rack mounting with angle iron.

Key features

16-channel recording

16 IP channels with 320 Mbps incoming and outgoing bandwidth, up to 8MP.

Four SATA bays

Up to 16 TB per drive, plus eSATA; drives not included.

Dual gigabit ports

Multi-Address Mode, network fault tolerance and port aggregation.

Two HDMI plus VGA

HDMI1 up to 3840 x 2160 at 30 Hz; HDMI2 and VGA up to 1080p.

16-channel synchronous playback

Up to 16 channels at once, within a 32MP total resolution.

Auto Initialise

One click sets up basic IPC and hard disk parameters.

Smart alarms

Line-crossing, intrusion, loitering, vehicle and human detection (camera required).

16/4 alarm I/O and RS232

Sixteen alarm inputs, four outputs and an RS232 serial interface.

H.265+ compression

H.265+, H.265, H.264+ and H.264 video compression.

VIGI NVR4016H specifications

At a glance

16-channel NVR
320 Mbps incoming
4 SATA bays, 16 TB each
2 x gigabit ports
Up to 8MP recording
4K HDMI output
H.265+
16/4 alarm I/O
VIGI NVR4016H full specifications
Video and Audio
IP Video Input16-Channel
Incoming Bandwidth320 Mbps
Outgoing Bandwidth320 Mbps
HDMI Output Resolution2 Channels; HDMI1 Resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz; HDMI2 Resolution: 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz
VGA Output Resolution1 Channel, Resolution: 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz
Video Output ModeHDMI1/HDMI2 Independent output; HDMI1/VGA Independent output Note: HDMI2 and VGA cannot operate simultaneously. If both connections are made, HDMI2 will take precedence and function as the primary output.
Multi-View Display1,4,6,8,9,16
Decoding
Audio CompressionG.711A/G.711U/G.726
Video CompressionH.265+/H.265/ H.264+/H.264
Record Resolution8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Synchronous Playback16-Channel
Capability25fps: 10-ch@3MP、16-ch@1080P; 30fps: 4-ch@8MP、6-ch@5MP、8-ch@4MP
Record Management
Record ModeManual Recording; Scheduling Recording; Motion Detection Recording
Playback ModeInstant Playback; Regular Playback; Tag Playback; Event Playback
Backup ModeRegular Backup; Video Clip Backup
Playback FunctionPlay; Pause; Stop; Fast Forward; Fast Backward; Play By Frame; Full Screen; Video Clip; Export Clip; Digital Zoom; Lock Recording; Audio On/Off
Network
ProtocolUPnP (Plug and Play), NTP (Network Timing), SMTP, DNS, TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, RTSP, SSL/TLS, RTP, IPv4, ARP
Mobile Phone AccessAndroid, iOS
Web BrowserChrome (57+), Firefox (52+), Edge (91+)
InteroperabilityONVIF Profile S, CGI

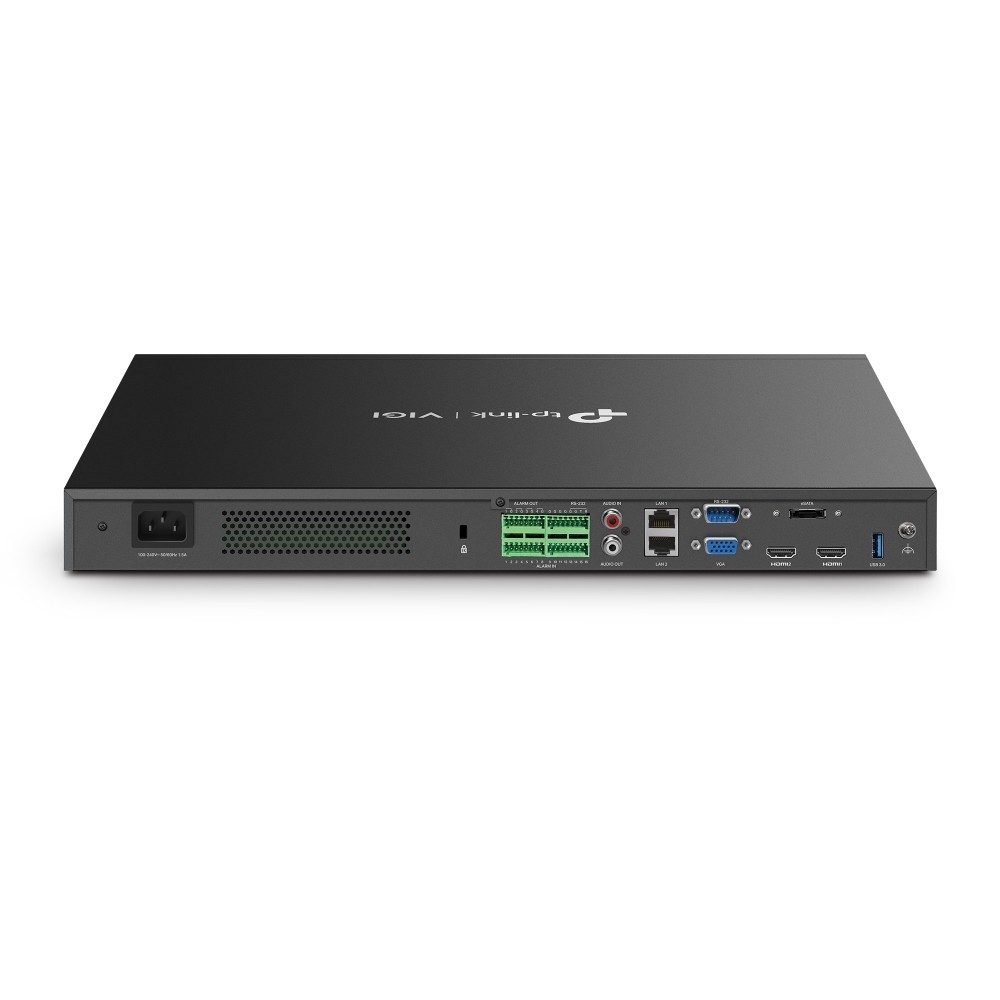

External Interface
Network Interface2, RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet Interface
USB Interface2 Front USB 2.0 Ports, 1 Rear USB 3.0 Port
Audio Interface1-ch RCA Input; 1-ch RCA Output
Alarm In/Out16/4
Serial Interface1, RS232
Power1× AC Jack
Reset Button1
SpeakerN/A
eSATA1
HDMI2
VGA1
Hard Disk
SATA4 SATA Interfaces
CapacityUp to 16 TB Capacity for Each HDD
Alarm
General AlarmMotion Detection; Video Tampering; Scene Change Detection; Line-Crossing Detection; Intrusion Detection; Region Entering Detection; Region Exiting Detection; Loitering Detection; Object Abandoned/Removal Detection; Vehicle Detection; Human Detection; Abnormal Sound Detection; Smart Frame Note: The alarm function requires the use of a camera.
Anomaly AlarmVideo Loss; Offline and IP Conflict; Disk Exception; Login Exception; Fan Exception Note: The alarm function requires the use of a camera.
Alarm LinkageRecording; White Light Alarm; Buzzer; Log; Audible Alarm Note: The alarm function requires the use of a camera.
General
Storage Temperature-40–70 °C
Storage Humidity10%~90% RH Non-Condensing
Working TemperatureNVR: -10–55 °C
Working Humidity10%~90% RH Non-Condensing
Dimensions( W X D X H )17.32 × 12.99 × 1.73 in (440 × 330 × 44 mm)
Net Weight4.0 Kg #
Gross Weight5.0 Kg #
Power Supply100-240 VAC, 50 to 60Hz, 1.5A
Max. Power Consumption5.5 W (Without Disk); 45 W (With Disk)
CertificationsCE, NTRA, KC, HDMI, FCC, IC, VCCI, BSMI, ONVIF

Source: TP-Link's published specifications for this model (TP-Link Australia product page). throughput figures are TP-Link's lab results. TP-Link may change specifications without notice.

What's in the box

  • VIGI Network Video Recorder
  • Mouse
  • Installation Guide
  • Power Cord
  • HDD Power Cables
  • HDD Data Cables
  • Terminal Blocks
  • Mounting Brackets
  • Screws
  • Rubber Feet

Source: TP-Link's published package contents.

Who the VIGI NVR4016H is for

Mid-sized camera systems

  • Up to 16 IP channels
  • Four SATA bays
  • Two HDMI plus VGA outputs

Networks needing redundancy

  • Network fault tolerance
  • Port aggregation for bandwidth stacking
  • Multi-Address Mode for two gateways

VIGI NVR4016H compared

The VIGI NVR4016H, NVR4032H and NVR4064H share the same 440 x 330 x 44 mm 4-bay chassis, two gigabit network ports, 16/4 alarm I/O and RS232. They differ mainly in channel count, bandwidth, display layouts and video outputs, as listed on each model's TP-Link product page.

FeatureVIGI NVR4016HVIGI NVR4032HVIGI NVR4064H
IP video input16 channels32 channels64 channels
Incoming bandwidth320 Mbps320 Mbps260 Mbps default, 320 Mbps extended
Outgoing bandwidth320 Mbps320 Mbps180 Mbps default, 320 Mbps extended
Multi-view displayUp to 16 windowsUp to 36 windowsUp to 64 windows
Video outputsHDMI1 (4K), HDMI2, VGAHDMI (4K), VGAHDMI (4K), VGA
SATA interfaces4, up to 16 TB each4, up to 16 TB each4, up to 16 TB each
InteroperabilityONVIF Profile S, CGIONVIF Profile S, CGIONVIF Profile S/T/G, CGI
Alarm in/out16/416/416/4
Max power (with disks)45 W48 W48.38 W

Source: TP-Link Australia product pages for each model.

Buy the VIGI NVR4016H from ARC IP Networks

ARC IP Networks supplies genuine TP-Link VIGI products from Australian stock at competitive prices, with the full manufacturer's warranty, Australia-wide delivery and trade pricing for installers and MSPs.

  • Genuine TP-Link: new TP-Link VIGI product from Australian stock.
  • Manufacturer warranty: the full TP-Link manufacturer's warranty for this model.
  • Australia-wide delivery to every state and territory.
  • Trade and project pricing: call 1300 100 440 or email info@arcip.com.au.

Frequently asked questions

Straight answers about the VIGI NVR4016H from the ARC IP Networks team.

Last reviewed October 2026.

16 IP video channels, with 320 Mbps of incoming bandwidth.

No PoE ports are listed in its specifications. Cameras connect over your network through its two gigabit ports.

Four SATA drives, each up to 16 TB. Hard drives are not included. There is also one eSATA interface.

TP-Link lists Multi-Address Mode for two different gateways, network fault tolerance for redundancy, and port aggregation for bandwidth stacking and mutual backup.

8MP. Decoding is listed as four channels at 8MP (30 fps) up to sixteen channels at 1080p (25 fps).

Yes. HDMI1 supports 3840 x 2160 at 30 Hz. HDMI2 and VGA support up to 1920 x 1080 at 60 Hz.

No. HDMI1 runs independently with HDMI2 or with VGA, but HDMI2 and VGA cannot operate simultaneously; if both are connected, HDMI2 takes precedence.

Up to 16 channels synchronously, but fewer, or none, if the total resolution exceeds 32MP.

It supports ONVIF Profile S and CGI interoperability.

A one-click function that sets up basic IPC and hard disk parameters to reduce configuration time.

Yes. Sixteen alarm inputs, four alarm outputs and an RS232 serial interface. Alarm functions require a camera.

Mounting brackets are included. Due to its weight, TP-Link recommends using a tray (not included) when mounting it in a rack with angle iron.

Need more than one VIGI NVR4016H for a multi-site surveillance project?

Ask ARC IP Networks for volume and project pricing on genuine TP-Link VIGI products.
