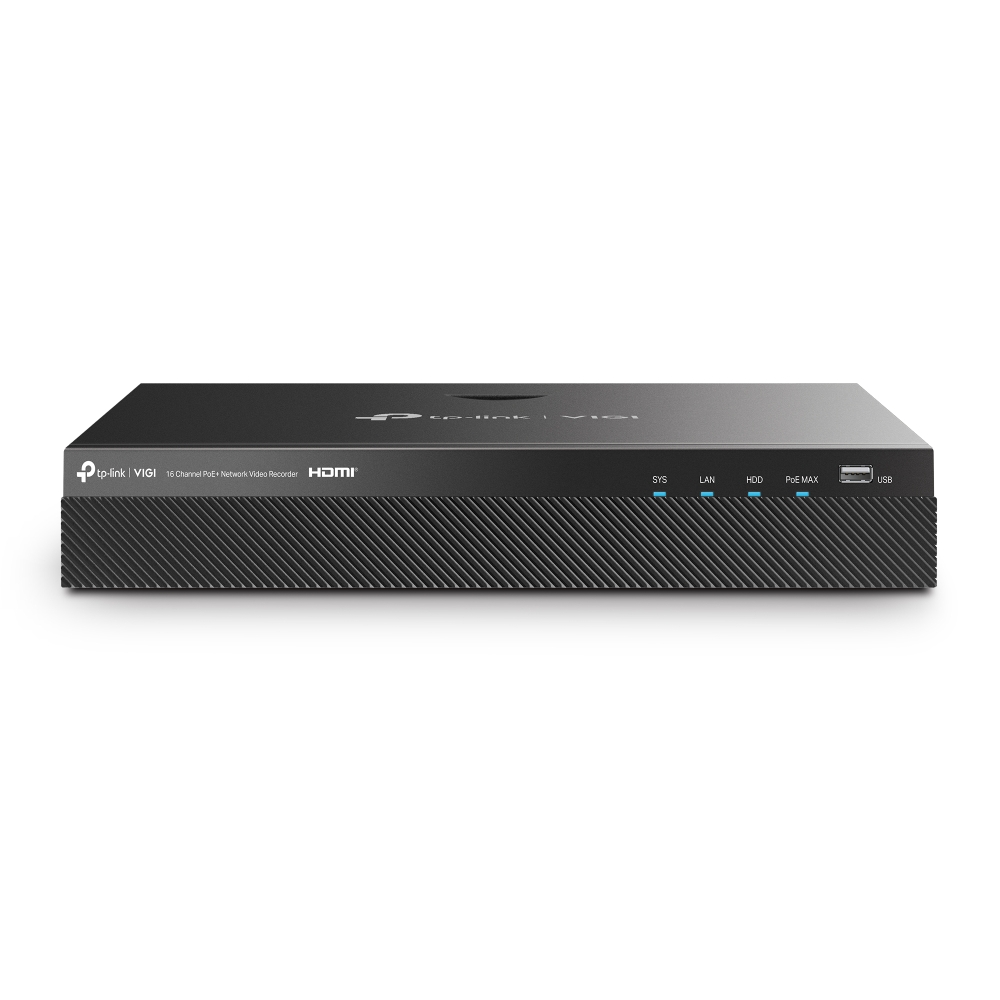

TP-Link VIGI NVR2016H-16P 16-Channel PoE+ Network Video Recorder

https://arcip.com.au/web/image/product.template/11421/image_1920?unique=d95db27

The TP-Link VIGI NVR2016H-16P is a 16-channel PoE+ network video recorder for storing, live viewing and playing back camera feeds. Its sixteen 10/100 Mbps PoE+ ports supply up to 30 W each from a 90 W budget based on laboratory testing with VIGI cameras. It offers 160 Mbps incoming bandwidth, decoding of up to 10-ch @ 1080P at 25fps and simultaneous 4K HDMI and VGA output. Two SATA interfaces take drives of up to 16 TB each (HDD not included), and 16-channel synchronous playback applies while the total resolution stays within 16MP. Six alarm inputs, four outputs and H.265+ are built in. Supplied by ARC IP Networks from Australian stock with the full manufacturer's warranty.

$ 582.42 582.42 AUD $ 582.42 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
VIGI-NVR2016H-16P
Barcode
4895252504040

The TP-Link VIGI NVR2016H-16P is a 16-channel PoE+ network video recorder with sixteen 802.3af/at PoE ports (up to 30 W per port), 160 Mbps incoming bandwidth, recording at up to 8MP with H.265+, 4K HDMI and VGA outputs, two SATA bays plus eSATA, a gigabit network port, 6/4 alarm inputs and outputs, and remote access from mobile and web.

VIGI NVR2016H-16P overview

The VIGI NVR2016H-16P is a 16-channel PoE+ network video recorder from TP-Link's VIGI range. It accepts 16 IP video inputs with 160 Mbps of incoming and 160 Mbps of outgoing bandwidth, and records at resolutions up to 8MP, including 5MP, 4MP, 3MP and 1080p. Supported video compression is H.265+, H.265, H.264+ and H.264, and audio compression is G.711A, G.711U or G.726. Decoding capability is 10 channels at 1080p at 25 fps, or at 30 fps 2 channels at 8MP, 4 channels at 5MP, 5 channels at 4MP or 6 channels at 3MP.

Cameras connect directly to sixteen PoE ports. Ports 1 to 16 are 10/100 Mbps RJ45 interfaces compliant with 802.3at and 802.3af, delivering up to 30 W on any one port, so each camera receives data and power over one cable. A separate 10/100/1000 Mbps RJ45 port provides the gigabit link to your network. Interoperability covers ONVIF Profile S and CGI, and network protocols include RTSP, HTTPS, SSL/TLS, SMTP, DHCP, UPnP and NTP. For alarm integration there are six alarm inputs and four alarm outputs, plus one RCA audio input and one RCA audio output.

Local viewing uses one HDMI output at up to 3840 x 2160 at 30 Hz and one VGA output at up to 1920 x 1080 at 60 Hz, running simultaneously, with multi-view layouts of 1, 4, 6, 8, 9 or 16 cameras. Recording modes are manual, scheduled and motion detection recording, and playback modes are instant, regular, tag and event playback, with fast forward and backward, frame-by-frame play, digital zoom, clip export and recording lock. Storage is two SATA interfaces plus an eSATA port, backups can be regular or by video clip, and there is a front USB 2.0 port and a rear USB 3.0 port.

With a compatible camera, alarm functions cover motion detection, video tampering, scene change, line crossing, intrusion, region entering and exiting, loitering, object abandoned or removed, vehicle and human detection, abnormal sound and Smart Frame, with linkage to recording, white light alarms, buzzer, log and audible alarm. Anomaly alarms include video loss, IP conflict, disk, login and fan exceptions. Remote access is available from Android and iOS phones and from Chrome, Firefox, Edge and Safari. The 330 x 285 x 45 mm recorder runs from a 53.5 V DC / 2.43 A adapter, has a maximum power consumption of 6.2 W without disks and 40 W with disks, and works from -10 °C to 55 °C. ARC IP Networks supplies the VIGI NVR2016H-16P from Australian stock with the full manufacturer's warranty.

Key features

16 PoE+ camera ports

Sixteen 802.3at/af PoE ports, up to 30 W on any one port.

160 Mbps bandwidth

160 Mbps incoming and 160 Mbps outgoing bandwidth for 16 IP channels.

Up to 8MP recording

Records at 8MP, 5MP, 4MP, 3MP, 1080p and lower resolutions.

H.265+ compression

Supports H.265+, H.265, H.264+ and H.264 video compression.

4K HDMI and VGA

HDMI up to 3840 x 2160 / 30 Hz and VGA up to 1080p, simultaneous output, up to 16-way multi-view.

Two SATA bays plus eSATA

Two internal SATA interfaces and one eSATA port for storage.

Gigabit network port

A 10/100/1000 Mbps RJ45 port for the network connection.

6/4 alarm I/O

Six alarm inputs and four alarm outputs, plus RCA audio in and out.

Smart event alarms

Human and vehicle detection, line crossing, intrusion and more with a compatible camera.

Mobile and web access

Android and iOS mobile access and Chrome, Firefox, Edge or Safari browsers.

VIGI NVR2016H-16P specifications

At a glance

16 channels
16 x PoE+ ports
30 W max per port
Up to 8MP recording
4K HDMI output
2 x SATA + eSATA
Gigabit network port
6/4 alarm I/O
VIGI NVR2016H-16P full specifications
Video and Audio
IP Video Input16-Channel
Incoming Bandwidth160 Mbps
Outgoing Bandwidth160 Mbps
HDMI Output Resolution1 Channel, Resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz
VGA Output Resolution1 Channel, Resolution: 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz
Video Output ModeHDMI/VGA Simultaneous Output
Multi-View Display1/4/6/8/9/16
Decoding
Audio CompressionG.711A/G.711U/G.726
Video CompressionH.265+/H.265/ H.264+/H.264
Record Resolution8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
Synchronous Playback16-Channel
Capability25fps: 10-ch @ 1080P; 30fps: 2-ch@8MP, 4-ch@5MP, 5-ch@4MP, 6-ch@3MP
Record Management
Record ModeManual Recording, Scheduling Recording, Motion Detection Recording
Playback ModeInstant Playback, Regular Playback, Tag Playback, Event Playback
Backup ModeRegular Backup, Video Clip Backup
Playback FunctionPlay, Pause, Stop, Fast Forward, Fast Backward, Play By Frame, Full Screen, Video Clip, Export Clip, Digital Zoom, Lock Recording, Audio On/Off
Network
ProtocolUPnP (Plug and Play), NTP (Network Timing), SMTP, DNS, TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, RTSP, SSL/TLS, RTP, IPv4, ARP
Mobile Phone AccessAndroid, iOS
Web BrowserChrome (57+), Firefox (52+), Edge (91+), Safari (11+)
InteroperabilityONVIF Profile S, CGI
External Interface
Network Interface1, RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet Interface
USB Interface1 Front USB 2.0 Port, 1 Rear USB 3.0 Port
Audio Interface1-ch RCA Input; 1-ch RCA Output
Alarm In/Out6/4
Serial InterfaceN/A
Power1× DC Jack
Reset Button1
SpeakerN/A
eSATA1
HDMI1
VGA1
Hard Disk
SATA2 SATA Interfaces
CapacityUp to 16 TB Capacity for Each HDD
PoE
Standard802.3at/af Compliant
Interface1- 16, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface
PoE Budget90 W Available for All PoE+ Ports, 30 W Max per Port
Alarm
General AlarmMotion Detection; Video Tampering; Scene Change Detection; Line-Crossing Detection; Intrusion Detection; Region Entering Detection; Region Exiting Detection; Loitering Detection; Object Abandoned/Removal Detection; Vehicle Detection; Human Detection; Abnormal Sound Detection; Smart Frame Note: The alarm function requires the use of a camera.
Anomaly AlarmVideo Loss; Offline and IP Conflict; Disk Exception; Login Exception; Fan Exception Note: The alarm function requires the use of a camera.
Alarm LinkageRecording; White Light Alarm; Buzzer; Log; Audible Alarm Note: The alarm function requires the use of a camera.
General
Storage Temperature-40–70 °C
Storage Humidity10%~90% RH Non-Condensing
Working TemperatureNVR: -10–55 °C Power Adapter: 0–40 °C
Working Humidity10%~90% RH Non-Condensing
Dimensions( W X D X H )13.0 × 11.2 × 1.8 in (330 × 285 × 45 mm)
Net Weight2.2 Kg
Gross Weight4.2 Kg
Power Supply53.5V DC/2.43A
Max. Power Consumption6.2 W (Without Disk) 40 W (With Disk)
CertificationsCE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI

Source: TP-Link's published specifications for this model (TP-Link Australia product page). throughput figures are TP-Link's lab results. TP-Link may change specifications without notice.

What's in the box

  • VIGI Network Video Recorder
  • Power Adapter
  • Power Cable
  • HDD Power Cables
  • HDD Data Cables
  • Mounting Accessories
  • Mouse
  • Quick Installation Guide

Source: TP-Link's published package contents.

Who the VIGI NVR2016H-16P is for

Systems of up to 16 cameras

  • Sixteen PoE+ ports power cameras directly
  • Up to 30 W per port
  • 160 Mbps incoming bandwidth

Alarm-integrated sites

  • Six alarm inputs and four outputs
  • White light, buzzer and audible alarm linkage
  • Human and vehicle event alarms

Local and remote viewing

  • 4K HDMI and VGA at once
  • Up to 16-way multi-view
  • Mobile and web remote access

Buy the VIGI NVR2016H-16P from ARC IP Networks

ARC IP Networks supplies genuine TP-Link VIGI products from Australian stock at competitive prices, with the full manufacturer's warranty, Australia-wide delivery and trade pricing for installers and MSPs.

  • Genuine TP-Link: new TP-Link VIGI product from Australian stock.
  • Manufacturer warranty: the full TP-Link manufacturer's warranty for this model.
  • Australia-wide delivery to every state and territory.
  • Trade and project pricing: call 1300 100 440 or email info@arcip.com.au.

Frequently asked questions

Straight answers about the VIGI NVR2016H-16P from the ARC IP Networks team.

Last reviewed October 2026.

Sixteen. It has 16-channel IP video input and sixteen built-in PoE+ ports.

Up to 30 W on any one port. The ports are 802.3at/af compliant.

Up to 8MP, plus 5MP, 4MP, 3MP, 1080p and lower resolutions.

It has two SATA interfaces, plus an eSATA port.

One HDMI output at up to 3840 x 2160 / 30 Hz and one VGA output at up to 1920 x 1080 / 60 Hz, with simultaneous output and 1/4/6/8/9/16 multi-view layouts.

Yes. Its network interface is a 10/100/1000 Mbps RJ45 port. The 16 PoE ports are 10/100 Mbps.

Yes, six alarm inputs and four alarm outputs.

Yes. It supports H.265+, H.265, H.264+ and H.264.

Yes, from Android and iOS mobile phones and from Chrome, Firefox, Edge and Safari browsers.

The VIGI network video recorder, a power adapter, a power cable, HDD power and data cables, mounting accessories, a mouse and a quick installation guide.

Need more than one VIGI NVR2016H-16P for a security camera rollout?

Ask ARC IP Networks for volume and project pricing on genuine TP-Link VIGI products.
