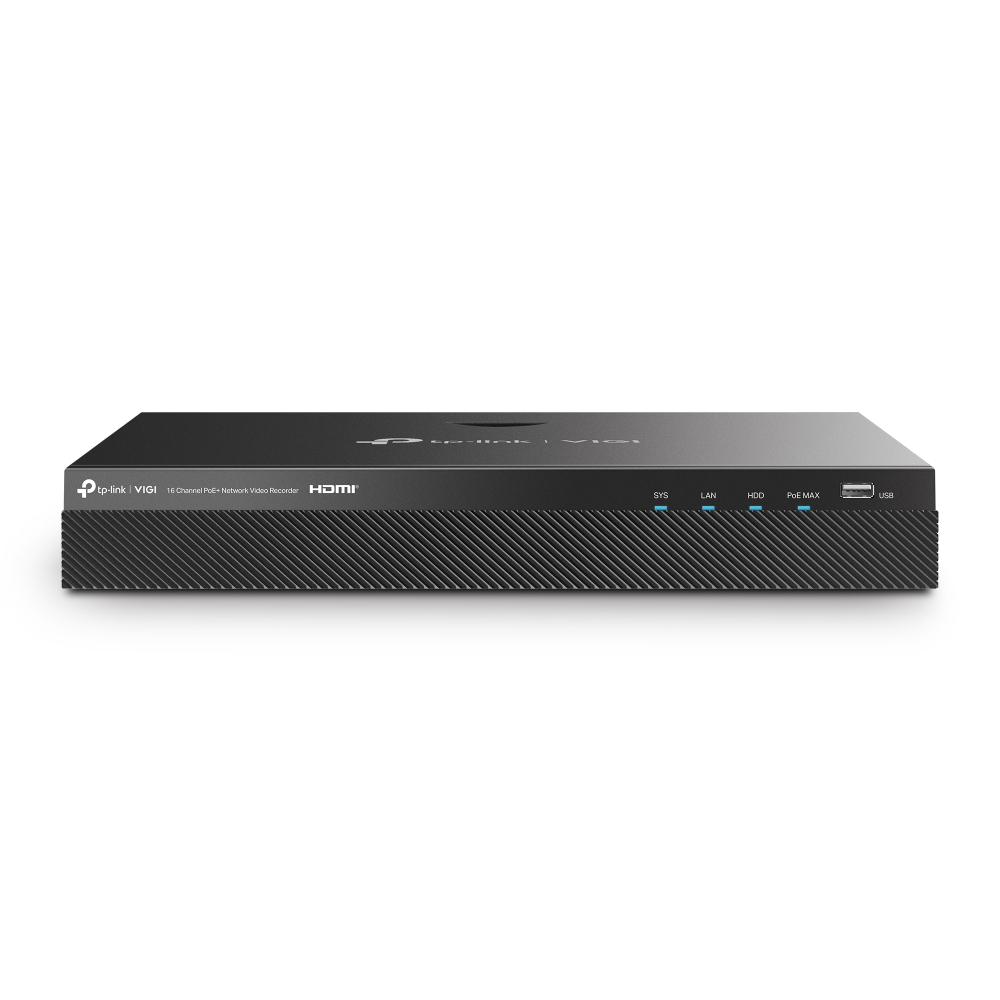

TP-Link VIGI NVR2016H-16MP 16-Channel Network Video Recorder

https://arcip.com.au/web/image/product.template/11420/image_1920?unique=d95db27

The TP-Link VIGI NVR2016H-16MP is a 16-channel PoE+ network video recorder with sixteen 10/100 Mbps PoE+ ports, delivering up to 30 W per port from a 140 W budget based on laboratory testing. It handles 320 Mbps incoming bandwidth and decodes up to 10-ch @ 3MP or 16-ch @ 1080P at 25fps, with 4K HDMI and independent VGA output. Two SATA interfaces support drives of up to 16 TB each (HDD not included and required), and 16-channel synchronous playback applies while the total resolution stays within 32MP. It adds six alarm inputs, four outputs and H.265+. Supplied by ARC IP Networks from Australian stock with the full manufacturer's warranty.

$ 741.55 741.55 AUD $ 741.55 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

In stock online
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
VIGI-NVR2016H-16MP
Barcode
4895252504026

The TP-Link VIGI NVR2016H-16MP is a 16-channel PoE+ network video recorder with sixteen 802.3af/at PoE ports (up to 30 W per port), 320 Mbps incoming bandwidth, recording up to 8MP, 4K HDMI and 1080p VGA outputs, and two SATA drive bays. It adds NVR-side motion, line crossing and intrusion detection with human and vehicle classification, and one-click system initialisation.

VIGI NVR2016H-16MP overview

The VIGI NVR2016H-16MP is VIGI's 16-channel PoE+ network video recorder. It accepts 16 channels of IP video input with 320 Mbps of incoming bandwidth and 320 Mbps of outgoing bandwidth, and records at resolutions up to 8MP, with 5MP, 4MP, 3MP, 1080p and lower also supported. Decoding capability is listed as 4 channels at 8MP, 6 channels at 5MP or 8 channels at 4MP at 30 fps, and 10 channels at 3MP or 16 channels at 1080p at 25 fps. Video compression covers H.265+, H.265, H.264+ and H.264, and audio compression covers G.711A, G.711U and G.726. VIGI says its NVRs enable quick camera additions, HDD initialisation and storage scheduling with a single click, reducing setup expenses.

Cameras connect directly to the sixteen built-in PoE ports, numbered 1 to 16. Each is a 10/100 Mbps RJ45 port compliant with 802.3at/af, with up to 30 W per port. The recorder itself connects to your network through a 10/100/1000 Mbps RJ45 Ethernet interface. Storage is provided by two SATA interfaces for internal hard drives, and HDD power and data cables are included in the box. There is also one front USB 2.0 port and one rear USB 3.0 port, a 1-channel RCA audio input and output, and six alarm inputs and four alarm outputs.

For display, the NVR has one HDMI output at up to 3840 x 2160 at 30 Hz and one VGA output at up to 1920 x 1080 at 60 Hz, which can run as independent outputs, with 1/4/6/8/9/16 multi-view layouts. Recording modes are manual, scheduled and motion detection recording, and playback modes are instant, regular, tag and event playback, with digital zoom, clip export and recording lock. The NVR runs its own AI on up to 4 channels simultaneously: motion detection, line crossing detection and intrusion detection, each enhanced with human and vehicle classification for more accurate alerts. When paired with AI cameras it also handles camera-side events such as people and vehicle attribute analytics, region entering and exiting, loitering and abnormal sound detection.

Alarm linkage includes recording, white light alarm, buzzer, log and audible alarm, plus anomaly alarms for video loss, offline and IP conflict, disk exception, login exception and fan exception; VIGI notes the alarm functions require the use of a camera. Mobile access is available on Android and iOS, along with web browser access, and the NVR supports ONVIF Profile S and CGI. Power comes from a 53.5 V DC / 3.37 A adapter, with maximum consumption of 6.2 W without disks and 40 W with disks. It measures 330 x 285 x 45 mm and operates from -10 to 55 °C. ARC IP Networks supplies the VIGI NVR2016H-16MP from Australian stock with the full manufacturer's warranty.

Key features

16 channels, 320 Mbps

16-channel IP video input with 320 Mbps incoming and 320 Mbps outgoing bandwidth.

16 built-in PoE+ ports

Sixteen 802.3at/af compliant 10/100 Mbps PoE ports, up to 30 W per port.

Records up to 8MP

8MP, 5MP, 4MP, 3MP, 1080p and lower, with H.265+ and H.264+ compression.

4K HDMI and VGA

HDMI up to 3840 x 2160 at 30 Hz and VGA up to 1080p, as independent outputs.

Two SATA bays

Two SATA interfaces for internal hard drives, with HDD cables included.

AI by NVR

Motion, line crossing and intrusion detection with human and vehicle classification, up to 4 channels.

One-click initialisation

Quick camera additions, HDD initialisation and storage scheduling with a single click.

Alarm and audio I/O

6 alarm inputs, 4 alarm outputs and 1-channel RCA audio in and out.

Remote access

Android and iOS mobile access, web browser access, ONVIF Profile S and CGI.

VIGI NVR2016H-16MP specifications

At a glance

16 channels
16 x PoE+ ports
30 W per port
Up to 8MP recording
320 Mbps incoming
4K HDMI output
2 SATA bays
Human & vehicle AI
VIGI NVR2016H-16MP full specifications
Intelligent Analytics
AI by NVRMotion Detection; Line Crossing Detection; Intrusion Detection Note: Enhanced with Human & Vehicle Classification for more accurate alerts Number of Channels; Up to 4-ch Simultaneous Output
AI by CameraPeople & Vehicle Attributes Analytics; Motion Detection; Intrusion Detection; Line-Crossing Detection; Region Entering Detection; Region Exiting Detection; Object Abandoned Detection; Object Removal Detection; Loitering Detection; People Detection; Vehicle Detection; Abnormal Sound Detection; Scene Change Detection Note: Enhanced with Human & Vehicle Classification for more accurate alerts
Video and Audio
IP Video Input16-Channel
Incoming Bandwidth320 Mbps
Outgoing Bandwidth320 Mbps
HDMI Output Resolution1 Channel, Resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz
VGA Output Resolution1 Channel, Resolution: 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz
Video Output ModeHDMI/VGA Independent Output
Multi-View Display1/4/6/8/9/16
Decoding
Audio CompressionG.711A/G.711U/G.726
Video CompressionH.265+/H.265/H.264+/H.264
Record Resolution8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Synchronous Playback16-Channel
Capability25fps: 10-ch @ 3MP, 16-ch @ 1080P; 30fps: 4-ch @ 8MP, 6-ch @ 5MP, 8-ch @ 4MP
Record Management
Record ModeManual Recording; Scheduling Recording; Motion Detection Recording
Playback ModeInstant Playback; Regular Playback; Tag Playback; Event Playback
Backup ModeRegular Backup; Video Clip Backup
Playback FunctionPlay; Pause; Stop; Fast Forward; Fast Backward; Play By Frame; Full Screen; Video Clip; Export Clip; Digital Zoom; Lock Recording; Audio On/Off
Network
ProtocolUPnP (Plug and Play), NTP (Network Timing), SMTP, DNS, TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, RTSP, SSL/TLS, RTP, IPv4, ARP
Mobile Phone AccessAndroid, iOS
Web BrowserChrome (57+), Firefox (52+), Edge (91+), Safari (11+)
InteroperabilityONVIF Profile S, CGI
External Interface
Network Interface1, RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet Interface
USB Interface1 Front USB 2.0 Port, 1 Rear USB 3.0 Port
Audio Interface1-ch RCA Input; 1-ch RCA Output
Alarm In/Out6/4
Serial InterfaceN/A
Power1× DC Jack
Reset Button1
SpeakerN/A
eSATA1
HDMI1
VGA1
Hard Disk
SATA2 SATA Interfaces
CapacityUp to 16 TB Capacity for Each HDD
PoE
Standard802.3at/af Compliant
Interface1-16, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface
PoE Budget140 W Available for All PoE+ Ports, 30 W Max per Port
Alarm
General AlarmMotion Detection; Video Tampering; Scene Change Detection; Line-Crossing Detection; Intrusion Detection; Region Entering Detection; Region Exiting Detection; Loitering Detection; Object Abandoned/Removal Detection; Vehicle Detection; Human Detection; Abnormal Sound Detection; Smart Frame Note: The alarm function requires the use of a camera.
Anomaly AlarmVideo Loss; Offline and IP Conflict; Disk Exception; Login Exception; Fan Exception Note: The alarm function requires the use of a camera.
Alarm LinkageRecording; White Light Alarm; Buzzer; Log; Audible Alarm Note: The alarm function requires the use of a camera.
General
Storage Temperature-40–70 °C
Storage Humidity10%~90% RH Non-Condensing
Working TemperatureNVR: -10–55 °C; Power Adapter: 0–40 °C
Working Humidity10%~90% RH Non-Condensing
Dimensions( W X D X H )13.0 × 11.2 × 1.8 in (330 × 285 × 45 mm)
Net Weight2.2 Kg #
Gross Weight4.2 Kg #
Power Supply53.5V DC/3.37A
Max. Power Consumption6.2 W (Without Disk); 40 W (With Disk)
CertificationsCE, NTRA, BSMI, VCCI, FCC, HDMI, ONVIF

Source: TP-Link's published specifications for this model (TP-Link Australia product page). throughput figures are TP-Link's lab results. TP-Link may change specifications without notice.

What's in the box

  • VIGI Network Video Recorder
  • Power Adapter
  • Power Cable
  • HDD Power Cables
  • HDD Data Cables
  • Mounting Accessories
  • Mouse
  • Quick Installation Guide

Source: TP-Link's published package contents.

Who the VIGI NVR2016H-16MP is for

Cabling cameras straight to the recorder

  • Sixteen built-in 802.3at/af PoE ports
  • Up to 30 W per port
  • One-click camera addition

Smarter alerts across a site

  • NVR AI with human and vehicle classification
  • Camera-side smart events supported
  • 6 alarm inputs and 4 alarm outputs

Buy the VIGI NVR2016H-16MP from ARC IP Networks

ARC IP Networks supplies genuine TP-Link VIGI products from Australian stock at competitive prices, with the full manufacturer's warranty, Australia-wide delivery and trade pricing for installers and MSPs.

  • Genuine TP-Link: new TP-Link VIGI product from Australian stock.
  • Manufacturer warranty: the full TP-Link manufacturer's warranty for this model.
  • Australia-wide delivery to every state and territory.
  • Trade and project pricing: call 1300 100 440 or email info@arcip.com.au.

Frequently asked questions

Straight answers about the VIGI NVR2016H-16MP from the ARC IP Networks team.

Last reviewed October 2026.

It has 16-channel IP video input, with 320 Mbps incoming bandwidth.

Yes. It has sixteen 10/100 Mbps PoE ports (1-16) compliant with 802.3at/af, with up to 30 W per port.

Up to 8MP, plus 5MP, 4MP, 3MP, 1080p and lower resolutions.

VIGI lists decoding capability of 4 channels at 8MP at 30 fps, 8 channels at 4MP at 30 fps, or 16 channels at 1080p at 25 fps.

Two, via two SATA interfaces. HDD power and data cables are included in the box.

One HDMI output up to 3840 x 2160 at 30 Hz and one VGA output up to 1920 x 1080 at 60 Hz, which can run independently.

Yes. The NVR itself runs motion, line crossing and intrusion detection with human and vehicle classification on up to 4 channels at once, and it supports AI events detected by the camera, such as people and vehicle attribute analytics, region entering and exiting and loitering.

Yes. Mobile phone access is supported on Android and iOS, and web browser access is supported in Chrome, Firefox, Edge and Safari.

Maximum 6.2 W without disks and 40 W with disks, from a 53.5 V DC / 3.37 A power adapter.

The NVR, a power adapter, a power cable, HDD power cables, HDD data cables, mounting accessories, a mouse and a quick installation guide.

Need more than one VIGI NVR2016H-16MP for a 16-camera site rollout?

Ask ARC IP Networks for volume and project pricing on genuine TP-Link VIGI products.
