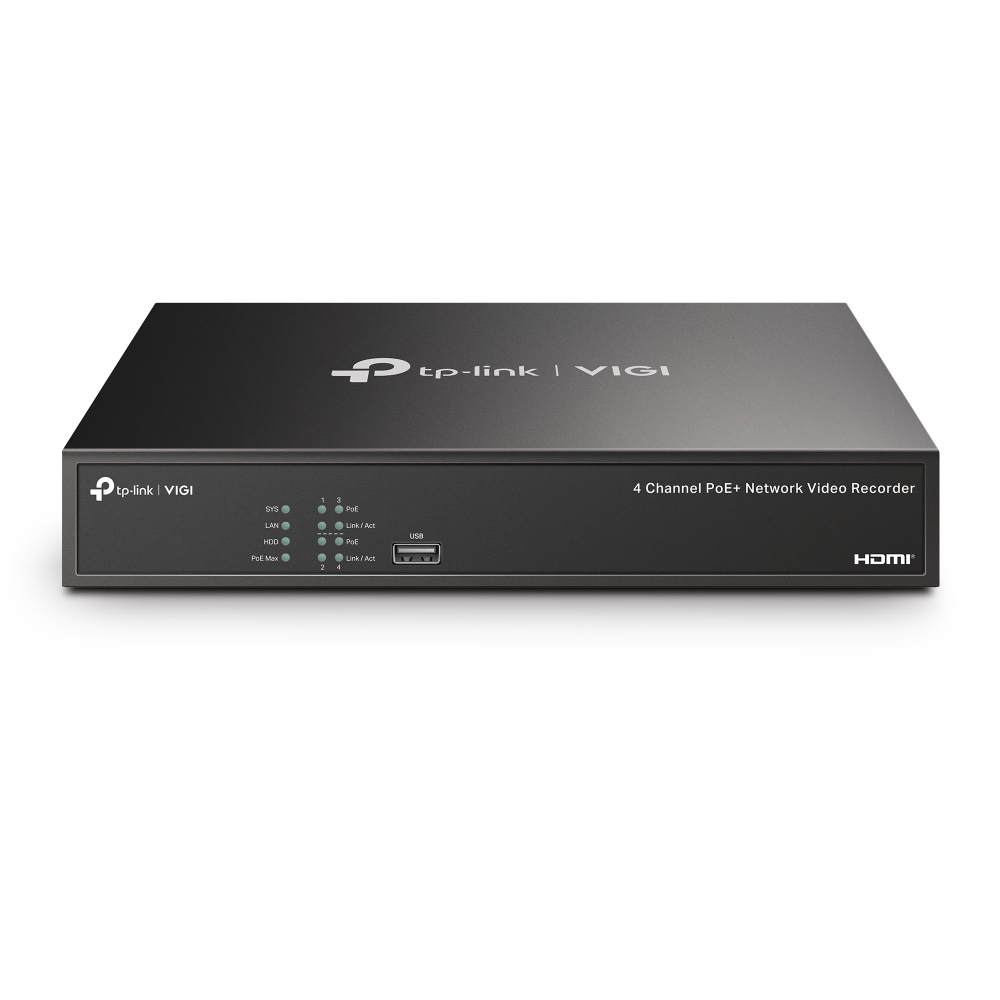

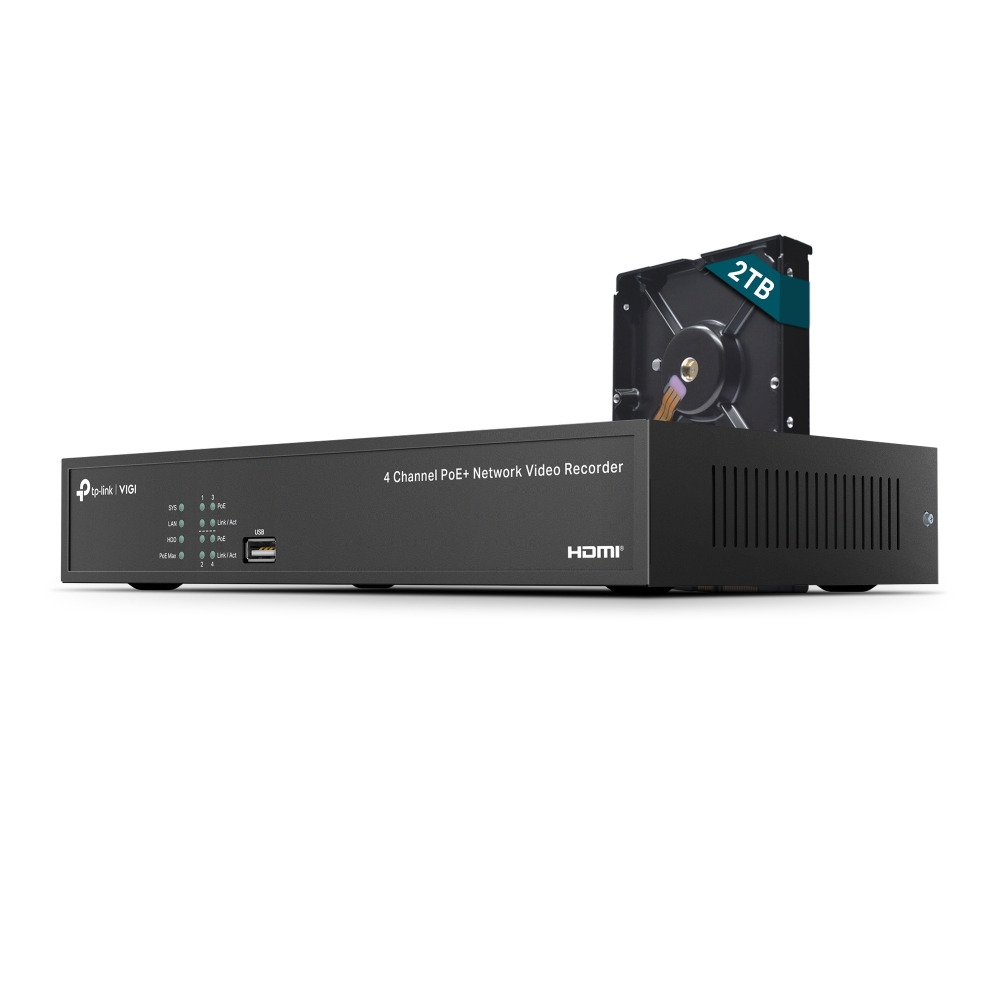

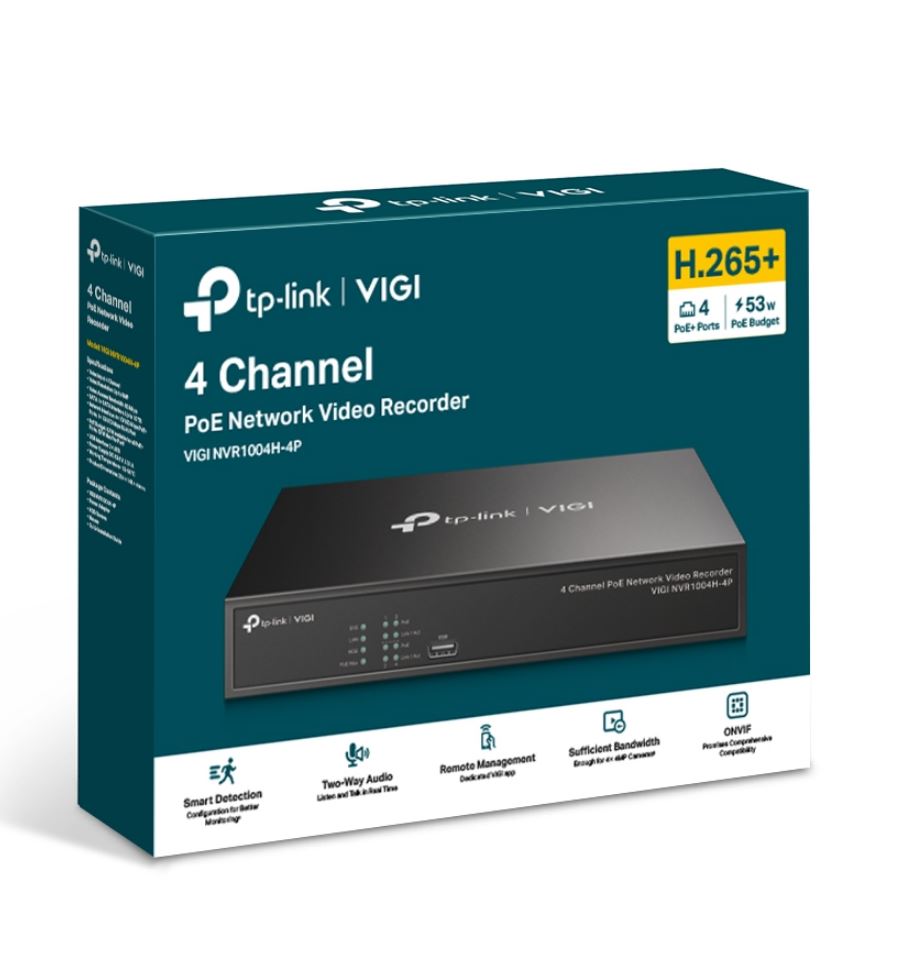

TP-Link VIGI NVR1004H-4P 4 Channel PoE+ Network Video Recorder

Price:

$ 211.06


TP-Link EAP770 BE9300 Tri-Band Ceiling Mount Wi-Fi 7 Access Point
TP-Link EAP770 BE9300 Tri-Band Ceiling Mount Wi-Fi 7 Access Point
$ 509.93
$ 509.93
Mercusys MA70XE AX1800 Wi-Fi 6 Bluetooth 5.4 PCIe Adapter
Mercusys MA70XE AX1800 Wi-Fi 6 Bluetooth 5.4 PCIe Adapter
$ 49.45
$ 49.45

TP-Link VIGI NVR1004H-4P 4 Channel PoE+ Network Video Recorder

https://arcip.com.au/web/image/product.template/11277/image_1920?unique=d95db27

The TP-Link VIGI NVR1004H-4P is a 4 channel PoE+ network video recorder for VIGI and ONVIF cameras. Four 10/100 Mbps PoE+ ports share a 53 W PoE budget based on laboratory testing (30 W max per port), so each camera gets power and data over one cable. It records up to 8MP and decodes 2-ch at 8MP or 4-ch at 4MP at 25fps. Synchronous playback covers up to 4 channels while the total resolution stays within 16MP. 4K HDMI and VGA outputs run at the same time, and one SATA interface takes a drive of up to 10 TB. Supplied by ARC IP Networks from Australian stock with the full manufacturer's warranty.

$ 211.06 211.06 AUD $ 211.06 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

In stock online
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
VIGI-NVR1004H-4P
Barcode
4897098688748

The TP-Link VIGI NVR1004H-4P is a 4-channel PoE+ network video recorder with four 802.3af/at PoE ports sharing a 53 W budget (30 W max per port), recording at up to 8MP with H.265+ compression, 4K HDMI and 1080p VGA outputs, one SATA bay for a hard disk of up to 10 TB, and Auto Initialise for quick setup of cameras and disk.

VIGI NVR1004H-4P overview

The VIGI NVR1004H-4P is a 4-channel PoE+ network video recorder from TP-Link's VIGI range. It accepts four IP video inputs with 80 Mbps of incoming bandwidth and 60 Mbps outgoing, and records at resolutions up to 8MP, including 5MP, 4MP, 3MP, 1080p and lower. Supported video compression is H.265+, H.265, H.264+ and H.264, and audio compression is G.711A, G.711U or G.726. Decoding capability is 2 channels at 8MP or 4 channels at 4MP at 25 fps, and 4 channels at 4MP or 3 channels at 5MP at 30 fps, with 4-channel synchronous playback.

Cameras connect directly to the recorder's four PoE ports. Ports 1 to 4 are 10/100 Mbps RJ45 interfaces compliant with 802.3at and 802.3af, with 53 W available across all PoE+ ports and up to 30 W on any one port, so each camera gets data and power over a single cable. A separate 10/100 Mbps RJ45 port connects the NVR to your network. TP-Link's Auto Initialise lets you set up basic IPC and hard disk parameters with one click, which TP-Link says greatly reduces configuration time. The NVR also works with ONVIF and CGI for interoperability, and supports UPnP and NTP.

For local viewing it has one HDMI output at up to 3840 x 2160 at 30 Hz and one VGA output at up to 1920 x 1080 at 60 Hz, which can run simultaneously, with single or four-way multi-view display. Recording modes are manual, scheduled and motion detection recording, and playback modes are instant, regular, tag and event playback, with functions including fast forward and backward, frame-by-frame play, digital zoom, clip export and recording lock. Backups can be regular or by video clip, through the front and rear USB 2.0 ports. There is also one audio input and one audio output.

Storage is a single SATA interface supporting a hard disk of up to 10 TB. With a compatible camera, alarm functions cover motion detection, video tampering, scene change, line crossing, intrusion, region entering and exiting, loitering, object abandoned or removed, vehicle and human detection, abnormal sound and Smart Frame, with anomaly alarms for video loss, IP conflicts and disk or login exceptions. Remote access is available from Android and iOS mobile phones and from Chrome, Firefox and Edge browsers. The 246.2 x 148.2 x 45 mm recorder runs from a 53.5 V DC / 1.31 A adapter and works from -10 °C to 55 °C. ARC IP Networks supplies the VIGI NVR1004H-4P from Australian stock with the full manufacturer's warranty.

Key features

4 PoE+ camera ports

Four 802.3at/af PoE ports with 53 W shared and up to 30 W per port.

Up to 8MP recording

Records at 8MP, 5MP, 4MP, 3MP, 1080p and lower, with 80 Mbps incoming bandwidth.

H.265+ compression

Supports H.265+, H.265, H.264+ and H.264 video compression.

4K HDMI output

HDMI at up to 3840 x 2160 / 30 Hz plus VGA at 1080p, with simultaneous output.

Auto Initialise

Set up basic IPC and hard disk parameters with one click.

One SATA bay

One SATA interface for a hard disk of up to 10 TB.

Smart event alarms

Human and vehicle detection, line crossing, intrusion, loitering and more with a compatible camera.

Remote viewing

Access from Android and iOS phones and Chrome, Firefox or Edge browsers.

ONVIF interoperability

Works with ONVIF and CGI.

VIGI NVR1004H-4P specifications

At a glance

4 channels
4 x PoE+ ports
53 W PoE budget
Up to 8MP recording
4K HDMI output
H.265+
1 SATA, up to 10 TB
Auto Initialise
VIGI NVR1004H-4P full specifications
Video and Audio
IP Video Input4-Channel
Incoming Bandwidth80 Mbps
Outgoing Bandwidth60 Mbps
HDMI Output Resolution1 Channel, Resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz
VGA Output Resolution1 Channel, Resolution: 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz
Video Output ModeHDMI/VGA Simultaneous Output
Multi-View Display1/4
Decoding
Audio CompressionG.711A/G.711U/G.726
Video CompressionH.265+/H.265/ H.264+/H.264
Record Resolution8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
Synchronous Playback4-Channel
Capability25fps: 2-ch @ 8MP, 4-ch @ 4MP; 30fps: 4-ch @ 4MP, 3-ch @ 5MP
Record Management
Record ModeManual Recording; Scheduling Recording; Motion Detection Recording
Playback ModeInstant Playback; Regular Playback; Tag Playback; Event Playback
Backup ModeRegular Backup; Video Clip Backup
Playback FunctionPlay; Pause; Stop; Fast Forward; Fast Backward; Play By Frame; Full Screen; Video Clip; Export Clip; Digital Zoom; Lock Recording; Audio On/Off
Network
ProtocolUPnP (Plug and Play), NTP (Network Timing)
Mobile Phone AccessAndroid, iOS
Web BrowserChrome (57+), Firefox (52+), Edge (91+)
InteroperabilityONVIF, CGI
External Interface
Network Interface1, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface
USB Interface1 Front USB 2.0 Port, 1 Rear USB 2.0 Port
Audio Interface1, Audio In; 1, Audio Out
Alarm In/OutN/A
Serial InterfaceN/A
Power1× DC Jack
Reset Button1
SpeakerN/A
eSATAN/A
HDMI1
VGA1
Hard Disk
SATA1 SATA Interface
PoE
Standard802.3at/af Compliant
Interface1- 4, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface
PoE Budget53 W Available for All PoE+ Ports, 30 W Max per Port
Alarm
General AlarmMotion Detection; Video Tampering; Scene Change Detection; Line-Crossing Detection; Intrusion Detection; Region Entering Detection; Region Exiting Detection; Loitering Detection; Object Abandoned/Removal Detection; Vehicle Detection; Human Detection; Abnormal Sound Detection; Smart Frame; Note: The alarm function requires the use of a camera.
Anomaly AlarmVideo Loss; Offline and IP Conflict; Disk Exception; Login Exception; Note: The alarm function requires the use of a camera.
Alarm LinkageRecording; White Light Alarm; Buzzer; Log; Audible Alarm; Note: The alarm function requires the use of a camera.
General
Storage Temperature-40–70 °C
Storage Humidity10%~90% RH Non-Condensing
Working TemperatureNVR: -10–55 °C; Power Adapter: 0–40 °C
Working Humidity10%~90% RH Non-Condensing
Dimensions( W X D X H )246.2 × 148.2 × 45 mm
Power Supply53.5V DC/1.31A
Max. Power Consumption4.25 W (Without Disk); 13.10 W (With Disk)
CertificationsCE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI

Source: TP-Link's published specifications for this model (TP-Link Australia product page). throughput figures are TP-Link's lab results. TP-Link may change specifications without notice.

What's in the box

  • VIGI Network Video Recorder
  • Power Adapter
  • Power Cables
  • Rubber Feet
  • Mouse
  • Quick Installation Guide

Source: TP-Link's published package contents.

Who the VIGI NVR1004H-4P is for

Four-camera systems

  • Four PoE+ ports power cameras directly
  • Up to 30 W per port
  • Recording at up to 8MP

Local and remote viewing

  • 4K HDMI and VGA outputs at once
  • Android and iOS mobile access
  • Event and tag playback

Buy the VIGI NVR1004H-4P from ARC IP Networks

ARC IP Networks supplies genuine TP-Link VIGI products from Australian stock at competitive prices, with the full manufacturer's warranty, Australia-wide delivery and trade pricing for installers and MSPs.

  • Genuine TP-Link: new TP-Link VIGI product from Australian stock.
  • Manufacturer warranty: the full TP-Link manufacturer's warranty for this model.
  • Australia-wide delivery to every state and territory.
  • Trade and project pricing: call 1300 100 440 or email info@arcip.com.au.

Frequently asked questions

Straight answers about the VIGI NVR1004H-4P from the ARC IP Networks team.

Last reviewed October 2026.

Four. It has 4-channel IP video input and four built-in PoE+ ports.

53 W across all PoE+ ports, with up to 30 W on any one port. The ports are 802.3at/af compliant.

Up to 8MP, plus 5MP, 4MP, 3MP, 1080p, UXGA, 720p and lower resolutions.

One SATA interface, supporting a hard disk of up to 10 TB.

One HDMI output at up to 3840 x 2160 / 30 Hz and one VGA output at up to 1920 x 1080 / 60 Hz. Both can output at the same time.

Yes. It supports H.265+, H.265, H.264+ and H.264.

A one-click setup that configures basic IPC and hard disk parameters, which TP-Link says greatly reduces configuration time.

Yes. It supports mobile phone access on Android and iOS and web access through Chrome, Firefox and Edge.

With a compatible camera, alarm functions include human and vehicle detection, line crossing, intrusion, loitering and more. TP-Link notes the alarm function requires the use of a camera.

The VIGI network video recorder, a power adapter, power cables, rubber feet, a mouse and a quick installation guide.
