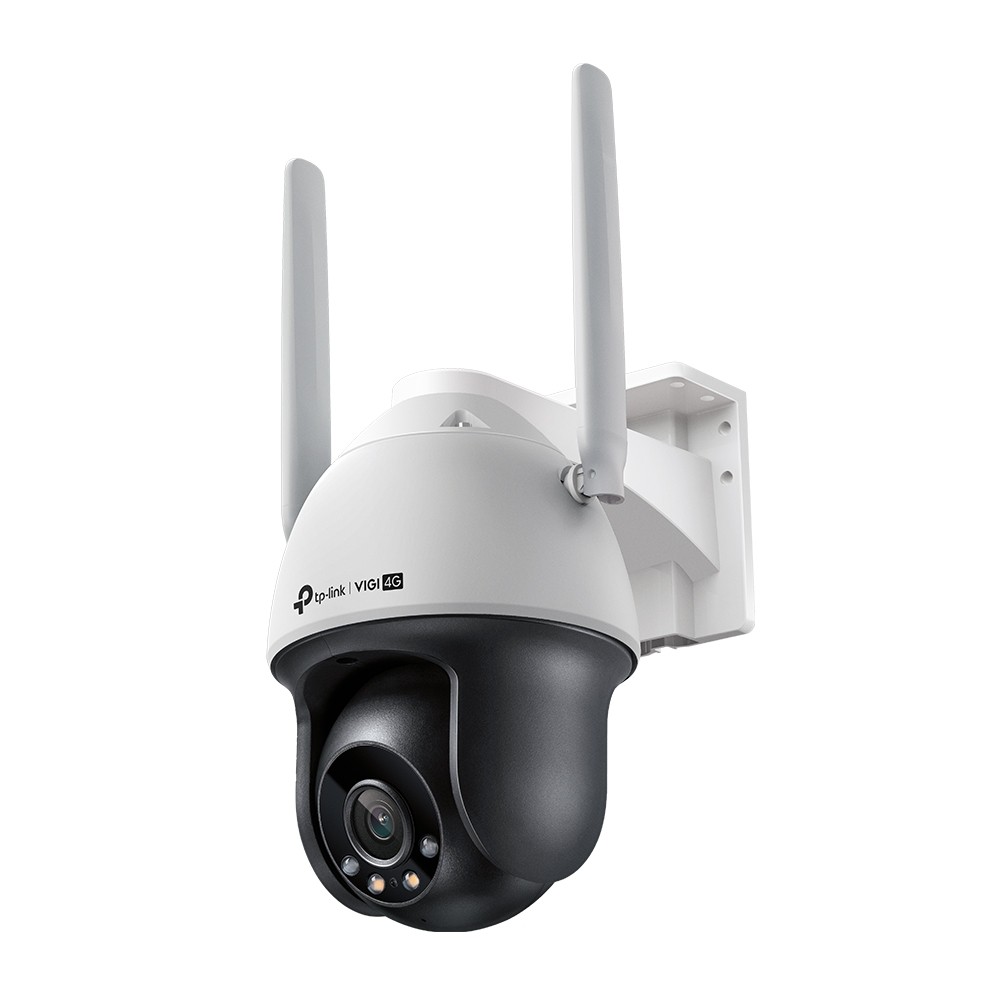

TP-Link VIGI C540-4G(4mm) 4MP Outdoor Full-Colour 4G Pan Tilt Network Camera

https://arcip.com.au/web/image/product.template/8239/image_1920?unique=ef8d9a6

The TP-Link VIGI C540-4G(4mm) is a 4MP outdoor full-colour 4G pan tilt network camera. A Nano-SIM slot and Cat 4 LTE modem (150 Mbps down, 50 Mbps up) connect it without network cabling. The 4 mm F1.6 lens covers 80° horizontally with DORI detection to 80 m; it pans 0 to 348° and tilts 0 to 120°, stores 300 presets and 8 patrols, and tracks people and vehicles automatically. Two white and two IR LEDs reach 30 m, with two-way audio, a microSD slot, IP66 and 12 V DC power. Supplied by ARC IP Networks with the full manufacturer's warranty.

$ 187.30 187.3 AUD $ 187.30 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

In stock online
IP Camera TP-Link VIGI
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
VIGI-C540-4G-4MM
Barcode
4895252504910
Tags

The TP-Link VIGI C540-4G(4mm) is a 4MP outdoor full-colour pan tilt camera that connects over 4G LTE with a Nano-SIM, so it needs no network cable. It has a 4 mm F1.6 lens (80-degree horizontal view), pans 0 to 348 degrees and tilts 0 to 120 degrees with 300 presets, patrols and automatic tracking, and adds two white and two IR LEDs to 30 m, two-way audio, a microSD slot and an IP66 rating. It is powered by the included 12 V adapter.

VIGI C540-4G(4mm) overview

The VIGI C540-4G is the cellular member of VIGI's C540 pan tilt family. TP-Link's pitch is simple: no need to connect network cables, just insert a Nano-SIM card and the camera is ready to connect to a 4G LTE network. TP-Link names farms, forests and construction sites as examples of places where the internet is not available. The modem is Category 4, supporting LTE-FDD bands 1, 3, 5, 7, 8, 20 and 28, LTE-TDD bands 38, 40 and 41 and WCDMA bands 1, 5 and 8, with rated data rates of 150 Mbps down and 50 Mbps up. Two dipole omni-directional antennas cover 690 to 960 MHz and 1710 to 2690 MHz. A 10/100M RJ45 port is also fitted.

Power is from a 12 V DC, 1 A supply through a 5.5 mm coaxial plug, and a power adapter is included; PoE is not listed for this model. The box also contains waterproof cable attachments and mounting accessories. The camera is IP66 rated, operates from -30 to 60 degrees C, measures 120 x 182 x 201 mm excluding antennas and weighs 0.69 kg.

The lens is a 4 mm F1.6 fixed lens on an M12 x 0.5 mount with a 1/3.06-inch progressive scan CMOS sensor. VIGI lists the field of view as 80 degrees horizontal, 43 degrees vertical and 94 degrees diagonal, and DORI distances of 80 m detect, 33 m observe, 16 m recognise and 8 m identify. The motorised head pans 0 to 348 degrees and tilts 0 to 120 degrees at configurable speeds of 8 to 44 degrees per second (preset speed 44 degrees per second), with manual control at 8 to 35 degrees per second. It holds 300 presets and 8 patrols of up to 8 presets each, with power-off memory, park action and 3D positioning. Automatic tracking follows persons or vehicles of interest to give seamless, longer video of an event.

Two white LEDs and two 850 nm IR LEDs, each to 30 m, provide what TP-Link calls clear, vibrant 24-hour monitoring even in total darkness. Video reaches 2560 x 1440, with H.265+, H.265, H.264+ and H.264 on the main stream at 256 Kbps to 3 Mbps, and up to two main and two sub-streams can be viewed at once. Human and vehicle classification, intrusion, line-crossing, region entering and exiting, and object abandoned and removal detection are listed, with Active Defence sound and light warnings and two-way audio through the built-in microphone and speaker. The camera has a built-in microSD card slot for onboard recording and is managed through the VIGI app, VIGI Security Manager or web UI.

Key features

4G LTE with Nano-SIM

Cat 4, 150 Mbps down / 50 Mbps up; no network cable needed.

Wide band support

LTE-FDD B1/3/5/7/8/20/28, LTE-TDD B38/40/41, WCDMA B1/5/8.

Pan 348°, tilt 120°

Speeds configurable from 8 to 44°/s.

300 presets, 8 patrols

Up to 8 presets per patrol, plus 3D positioning and park action.

Automatic tracking

Follows persons or vehicles of interest.

4 mm F1.6 lens

80° horizontal view, DORI detect 80 m, identify 8 m.

Full colour to 30 m

Two white LEDs and two IR LEDs.

Two-way audio and Active Defence

Microphone, speaker, sound and light warnings.

IP66, 12 V adapter included

Outdoor rated, powered by 12 V DC 1 A.

VIGI C540-4G(4mm) specifications

At a glance

4G LTE Cat 4, Nano-SIM
4MP (2560 x 1440)
4 mm F1.6, 80° horizontal
Pan 348° / tilt 120°
300 presets, auto tracking
White + IR LEDs, 30 m
Two-way audio, microSD
IP66, 12 V DC
VIGI C540-4G(4mm) full specifications
Camera
Image Sensor1/3.06” Progressive Scan CMOS
Shutter Speed1/3 to 1/10000 s
Slow ShutterYes
Minimum Illumination0.005 Lux; 0 Lux with IR/White Light
Day/Night MechanismIR Cut Filter
Day/Night SwitchUnified/ Scheduled/ Auto
Lens
TypeFixed Focal Lens
Focal Length4 mm
ApertureF1.6
FOVHorizontal FOV: 80°, Vertical FOV: 43°, Diagonal FOV: 94°
Lens MountM12 0.5
DORI DistanceDetect: 80 m (262 ft) Observe: 33 m (109 ft) Recognize: 16 m (52 ft) Identify: 8 m (26 ft)
Ptz
Pan/tilt RangePan: 0° to 348°, Tilt: 0° to 120°
Pan/tilt SpeedPan Speed: Configurable from 8° to 44°/s; Preset Speed: 44°/s; Tilt Speed: Configurable from 8° to 44°/s, Preset Speed 44°/s
Manual Control SpeedConfigurable from 8° to 35°/s
Presets300
Patrol Scan8 patrols, up to 8 presets for each patrol
Power-off MemoryYes; Auto restore to previous PT and lens status after power failure
Park ActionYes; Preset; Patrol Scan
3D PositioningYes
Angle Adjustment (Manual)
RangePan: 0° to 348°; Tilt: 0° to 120°
Illuminator
IR LEDQuantity: 2; Range: 30m; Wavelength: 850nm
White LEDQuantity: 2; Range: 30m
Illuminator On/Off ControlAuto/Scheduled/Always on/Always off
Video
Max. Resolution2560 X 1440
Main StreamFrame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps; Resolution: 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720 Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Sub-StreamFrame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps; Resolution: 640x480, 352x288, 320x240 Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Bit Rate ControlCBR, VBR
Video CompressionMain Stream: H.265+/H.265/H.264+/H.264; Sub-Stream: H.265/H.264
H.264 TypeMain Profile/High Profile
H.264+Main Stream Supported
H.265 TypeMain Profile
H.265+Main Stream Supported
Video Bit RateMain Stream: 256 Kbps to 3 Mbps; Sub-Stream: 64 Kbps to 512 Kbps
Image SettingsMirror; Brightness; Contrast; Saturation; Sharpness; Exposure, WDR,; White Balance; Prevent Overexposure to Infrared Light; HLC Adjustable by Client Software; Rotation (90°/270°)
Image EnhancementBLC/3D DNR/HLC/SmartIR
Wide Dynamic RangeDWDR
SNR≥ 52 dB
Image Parameters SwitchYes
Privacy MaskUp to 4 Masks
ROI1 Region
OSD SettingYes
Audio
Audio CommunicationTwo-Way Audio
Audio InputYes
Audio OutputYes
Audio CompressionYes
Audio Sampling Rate8KHz
Environment Noise FilteringYes
Audio Bit Rate64 Kbps(G.711 alaw)
Network
ProtocolTCP/IP; UDP; ICMP; HTTP; HTTPS; DHCP; DNS; RTSP; NTP; UPnP UDP; SSL/TLS; FTP/SFTP; RTP; IPv4; ARP; SMTP
ONVIFYes
APIONVIF
Simultaneous Live View2 Main Streams & 2 Sub-Streams
ClientVIGI App, VIGI Security Manager, Web UI
Web BrowserGoogle Chrome 57 and above; Firefox 52 and above; Safari 11 and above; Microsoft Edge 91 and above
CloudYes
SecurityPassword Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
4G
StandardLTE-TDD/LTE-FDD/WCDMA
SIM TypeNano SIM
Category4
FrequencyLTE-FDD: B 1/3/5/7/8/20/28; LTE-TDD: B 38/40/41; WCDMA: B 1/5/8
Uplink and Download Data RateUplink: 50 Mbps, Downlink: 150 Mbps
AntennaQuantity: 2; Type: 690~960&1710~2690MHz Dipole Omni-Directional Antenna; Gain: Ant1:0.84dBi@690~960MHz, 2.85dBi@1710~2690MHz Ant2:0.74dBi@690~960MHz, 3.06dBi@1710~2690MHz
Alarm And Event Management
Smart EventHuman & Vehicle Classification; Intrusion Detection; Line-Crossing Detection; Region Entering Detection; Region Exiting Detection; Object Abandoned Detection; Object Removal Detection; People Detection; Vehicle Detection
Basic EventMotion Detection; Video Tampering Detection; Exception (Illegal Login)
Alarm LinkageMemory Card Video Recording; Message Push; Audible Warning; White Light Flashing
Linkage MethodN/A
Output NotificationMessage Push
Interfaces
Network Interface1 RJ45 10/100M Self-Adaptive Ethernet Port
AlarmN/A
Reset ButtonYes
PowerDC Power Port
On-board StorageBuilt-In Memory Card Slot, Support MicroSD Card , Up to 512 GB
Built-in Nano-SIM Card SlotYes
Built-in MicrophoneYes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera
Built-in SpeakerYes
AudioN/A
General
Operating Temperature-30–60 °C
Storage Temperature-40–60 °C
Operating Humidity95% or Less (Non-Condensing)
Storage Humidity95% or Less (Non-Condensing)
MaterialPlastic
Net Weight0.69 Kg
Gross Weight1.16 Kg
Power Supply12V DC/1A, 5.5mm Coaxial Power Plug
AntennaQuantity: 2; Type: 690~960&1710~2690MHz Dipole Omni-Directional Antenna; Gain: Ant1:0.84dBi@690~960MHz, 2.85dBi@1710~2690MHz Ant2:0.74dBi@690~960MHz, 3.06dBi@1710~2690MHz
ProtectionIP66
Product Dimensions (L x W x H)120 × 182 × 201 mm (excluding antennas)
CertificationsCE, RCM, BSMI, NCC

Source: TP-Link's published specifications for this model (TP-Link Australia product page). throughput figures are TP-Link's lab results. TP-Link may change specifications without notice.

What's in the box

  • VIGI Network Camera
  • Quick Start Guide
  • Waterproof Cable Attachments
  • Mounting Accessories
  • Power Adapter

Source: TP-Link's published package contents.

Who the VIGI C540-4G(4mm) is for

Sites without internet

  • Farms, forests and construction sites (TP-Link's examples)
  • Nano-SIM 4G LTE
  • No network cable needed

Wide-area pan tilt

  • 348° pan, 120° tilt
  • Patrols and presets
  • Automatic tracking

Onboard recording

  • microSD slot
  • VIGI app and Security Manager
  • Two-way audio

VIGI C540-4G(4mm) compared

The C540-4G and C540-W share VIGI's 4MP full-colour pan tilt design with a 4 mm lens; they differ in how they connect. Figures are from each model's VIGI page.

VIGI C540-4G(4mm)VIGI C540-W(4mm)
Connection4G LTE (Nano-SIM) + RJ452.4 GHz Wi-Fi + RJ45
Horizontal FOV80°79°
Pan / tilt0-348° / 0-120°0-350° / 0-120°
Pan speed8 to 44°/s1 to 55°/s
Presets / patrols300 / 8300 / 8
White / IR LEDs2 / 2, 30 m2 / 2, 30 m
Power12 V DC 1 A adapter12 V DC adapter, max 15.5 W
Weather ratingIP66IP66
Net weight0.69 kg0.62 kg

Source: TP-Link Australia product pages for each model.

Buy the VIGI C540-4G(4mm) from ARC IP Networks

ARC IP Networks supplies TP-Link VIGI products from Australian stock at competitive prices, with the full manufacturer's warranty, Australia-wide delivery and trade pricing for installers and MSPs.

  • New TP-Link VIGI product from Australian stock.
  • Manufacturer warranty: the full TP-Link manufacturer's warranty for this model.
  • Australia-wide delivery to every state and territory.
  • Trade and project pricing: call 1300 100 440 or email info@arcip.com.au.

Frequently asked questions

Straight answers about the VIGI C540-4G(4mm) from the ARC IP Networks team.

Last reviewed October 2026.

Through a 4G LTE network using a Nano-SIM card inserted in its built-in slot. It also has a 10/100M RJ45 port.

LTE-FDD bands 1, 3, 5, 7, 8, 20 and 28; LTE-TDD bands 38, 40 and 41; and WCDMA bands 1, 5 and 8. It is a Category 4 device.

No SIM card is listed in the package contents, which are the camera, quick start guide, waterproof cable attachments, mounting accessories and a power adapter.

PoE is not listed. It is powered by 12 V DC (1 A) through a 5.5 mm coaxial plug, using the included adapter.

Pan 0 to 348 degrees and tilt 0 to 120 degrees, with 300 presets and 8 patrols.

Yes. Automatic tracking follows persons or vehicles of interest, and human and vehicle classification reduces irrelevant alerts.

Yes. Two white LEDs reach 30 m for colour night images, with two IR LEDs also rated to 30 m.

Yes, it has a built-in microSD card slot, and memory card recording is one of its alarm actions.

It is rated IP66 and operates from -30 to 60 degrees C.

Need more than one VIGI C540-4G(4mm) for a 4G VIGI camera deployment?

Ask ARC IP Networks for volume and project pricing on TP-Link VIGI products.
