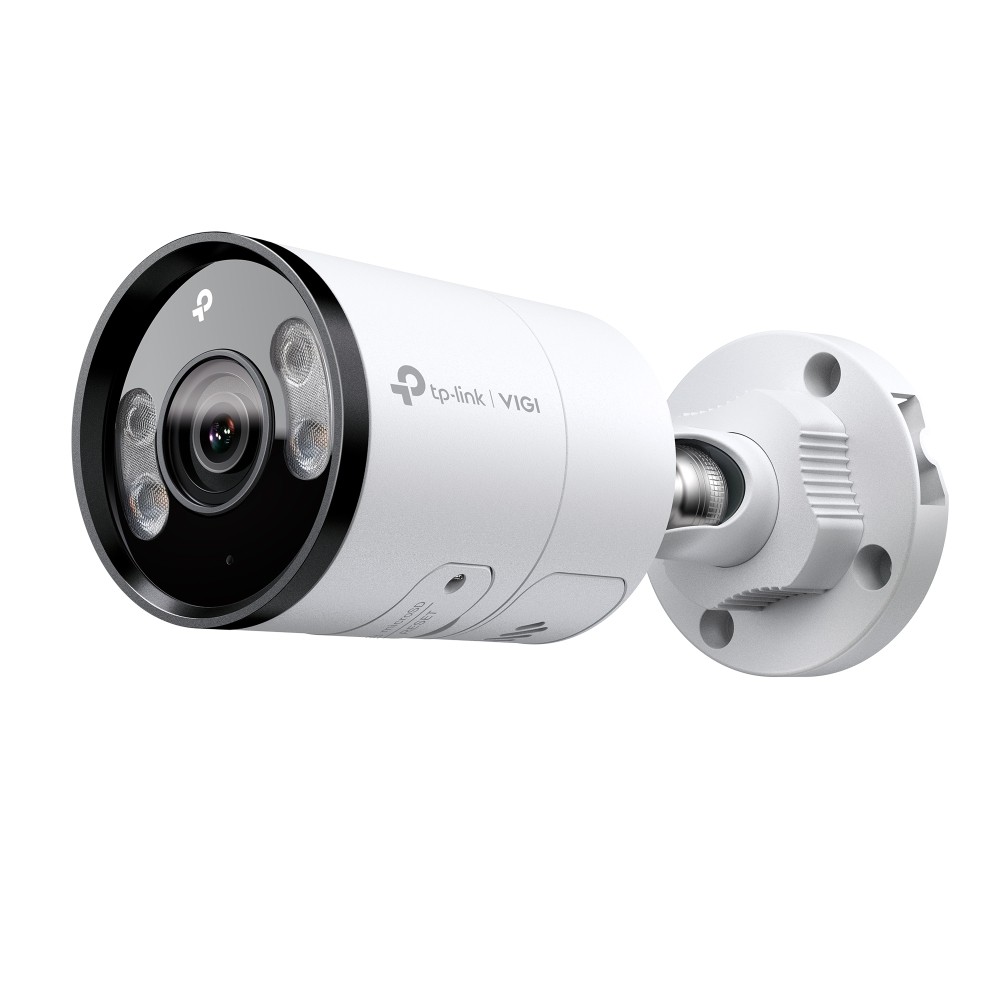

TP-Link VIGI C345(6mm) 4MP Outdoor Full-Colour Bullet Network Camera

https://arcip.com.au/web/image/product.template/11418/image_1920?unique=690f977

The TP-Link VIGI C345(6mm) is a 4MP outdoor full-colour bullet network camera. Its 6 mm F1.6 lens covers 52.7° horizontally with DORI detection at 120 m and identification at 12 m, and it records up to 2688 x 1520 with 120 dB WDR. Two white LEDs and two IR LEDs reach 30 m. It offers two-way audio, audible and white-light alarms, human and vehicle classification, loitering detection, a microSD slot, a metal IP67 housing and PoE or 12 V DC power. Supplied by ARC IP Networks with the full manufacturer's warranty.

$ 87.52 87.52 AUD $ 87.52 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
VIGI-C345-6MM
Barcode
4895252506969

The TP-Link VIGI C345(6mm) is a 4MP outdoor full-colour bullet network camera with the long-reach 6 mm F1.6 lens: a 52.7-degree horizontal view and published detection at 120 m and identification at 12 m. Two white LEDs and two IR LEDs reach 30 m, and it adds two-way audio with sound and light alarms, human and vehicle classification, people and vehicle analytics, a microSD slot, a metal IP67 housing and PoE or 12 V DC power.

VIGI C345(6mm) overview

TP-Link sells the VIGI C345 with 2.8 mm, 4 mm or 6 mm lenses; this one has the 6 mm lens, which gives the narrowest view and the longest reach of the three. Through its F1.6 aperture on an M12 x 0.5 mount, the 6 mm lens covers 52.7 degrees horizontally, 29 degrees vertically and 60.8 degrees diagonally. TP-Link's DORI distances for the 6 mm version are detect 120 m, observe 50 m, recognise 24 m and identify 12 m. The sensor is a 1/2.7-inch progressive scan CMOS that records up to 2688 x 1520, with main-stream options down to 1280 x 720 and a sub-stream of up to 704 x 576, at up to 25 fps on 50 Hz or 30 fps on 60 Hz.

The C345 is a full-colour model with a hybrid light setup: two white LEDs and two 850 nm IR LEDs, each with a 30 m range, switched with an IR-cut filter and controlled as auto, scheduled, always on or always off. Minimum illumination is 0.005 lux, and 0 lux with IR or white light. TP-Link's Smart Video Enhancement covers True WDR, which it says blends different exposures so bright and dark areas remain properly exposed, plus Smart IR to adjust infrared lighting against overexposure and glare, 3D DNR and white balance. WDR is rated at 120 dB, with the footnote that only DWDR is supported while People and Vehicle Analytics is enabled.

Human and vehicle classification is built in and listed alongside intrusion, line-crossing, region entering and exiting, object abandoned and removal, loitering, people and vehicle detection and Smart Frame; motion detection, video tampering, scene change and illegal-login exceptions are basic events. People and Vehicle Analytics lets you search and filter footage by attributes for faster post-event review. When something happens, the C345 can record to its memory card, push a message, sound an audible warning and flash its white lights, and its built-in microphone and speaker provide two-way audio, with the microphone covering a 5 m (16.4-ft) radius.

The body is metal, rated IP67, and specified for -30 to 60 degrees C. It measures 74 x 184 x 74 mm and weighs 0.525 kg, and the bracket adjusts 0 to 360 degrees pan, 0 to 90 degrees tilt and 0 to 360 degrees rotation. Power is by PoE (802.3af/at, class 0, max 10.7 W) through the 10/100M RJ45 port or 12 V DC (max 9.7 W) through a 5.5 mm coaxial plug. A microSD slot accepts cards up to 512 GB, and TP-Link notes the card is not included. Management options are the VIGI app, VIGI Security Manager, web UI and VIGI VMS, with ONVIF Profile S and three simultaneous main streams and sub-streams. Main-stream bit rate runs from 256 Kbps to 6 Mbps in H.265+, H.265, H.264+ or H.264.

Key features

6 mm F1.6 lens

52.7° horizontal, 29° vertical and 60.8° diagonal: the longest-reach C345 lens.

120 m detection

DORI for the 6 mm lens: detect 120 m, observe 50 m, recognise 24 m, identify 12 m.

White and IR light

Two white LEDs and two 850 nm IR LEDs, each to 30 m.

120 dB True WDR

DWDR only while People and Vehicle Analytics is enabled.

Two-way audio

Built-in microphone and speaker for talk-back.

Active alarms

Audible warning and white-light flashing on events.

AI detection

Human and vehicle classification, loitering, intrusion, line-crossing and Smart Frame.

Metal IP67 body

Rated for -30 to 60 °C outdoors.

microSD up to 512 GB

Onboard recording; card not included.

VIGI C345(6mm) specifications

At a glance

4MP (2688 x 1520)
6 mm F1.6 lens
52.7° horizontal FOV
120 m detect / 12 m identify
2 white + 2 IR LEDs, 30 m
Two-way audio
IP67 metal housing
PoE up to 10.7 W
VIGI C345(6mm) full specifications
Camera
Image Sensor1/2.7” Progressive Scan CMOS
Shutter Speed1/3 to 1/10000 s
Slow ShutterYes
Minimum Illumination0.005 Lux; 0 Lux with IR/White light
Day/Night MechanismIR Cut Filter
Day/Night SwitchUnified/ Scheduled/ Auto
Lens
TypeFixed Focal Lens
Focal Length2.8/4/6 mm
ApertureF1.6
FOV2.8 mm: Horizontal FOV: 100°, Vertical FOV: 54°, Diagonal FOV: 118°; 4 mm: Horizontal FOV: 80.4°, Vertical FOV: 41.8°, Diagonal FOV: 98.7°; 6 mm: Horizontal FOV: 52.7°, Vertical FOV: 29°, Diagonal FOV: 60.8°
Lens MountM12 P 0.5
DORI Distance2.8 mm Detect: 64 m (210 ft) Observe: 27 m (89 ft) Recognize: 13 m (43 ft) Identify: 6 m (20 ft); 4 mm Detect: 80 m (262 ft) Observe: 33 m (108 ft) Recognize: 16 m (52 ft) Identify: 8 m (26 ft); 6 mm Detect: 120 m (394 ft) Observe: 50 m (164 ft) Recognize: 24 m (79 ft) Identify: 12 m (39 ft)
Angle Adjustment (Manual)
RangePan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360°
Illuminator
IR LEDQuantity: 2; Range: 30m; Wavelength: 850nm
White LEDQuantity: 2; Range: 30m
Illuminator On/Off ControlAuto/Scheduled/Always on/Always off
Video
Max. Resolution2688 x 1520
Main StreamFrame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps; Resolution: 2688x1520, 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720; Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Sub-StreamFrame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps; Resolution: 704x576,640x480, 352x288, 320x240; Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Bit Rate ControlCBR, VBR
Video CompressionMain Stream: H.265+/H.265/H.264+/H.264; Sub-Stream: H.265/H.264
H.264 TypeHigh Profile
H.264+Main Stream Supported
H.265 TypeMain Profile
H.265+Main Stream Supported
Video Bit RateMain Stream: 256 Kbps to 6 Mbps; Sub-Stream: 64 Kbps to 512 Kbps
Image SettingsMirror; Brightness; Contrast; Saturation; Sharpness; Exposure; WDR; White Balance; Prevent Overexposure to Infrared Light; HLC Adjustable by Client Software
Image EnhancementBLC/3D DNR/HLC/SmartIR
Wide Dynamic Range120 dB Note: When People & Vehicle Analytics is enabled, only DWDR is supported.
SNR≥ 52 dB
Image Parameters SwitchYes
Privacy MaskUp to 4 Masks
ROI1 Region
OSD SettingYes
Audio
Audio CommunicationTwo-Way Audio
Audio InputYes
Audio OutputYes
Audio CompressionYes
Audio Sampling Rate8KHz
Environment Noise FilteringYes
Audio Bit Rate64 Kbps(G.711 alaw)
Network
ProtocolTCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
ONVIFYes
APIOpen Network Video Interface (Profile S)
Simultaneous Live View3 Main Streams & 3 Sub-Streams
ClientVIGI App, VIGI Security Manager, Web UI, VIGI VMS
Web BrowserGoogle Chrome 57 and above; Firefox 52 and above; Safari 11 and above; Microsoft Edge 91 and above
CloudYes
SecurityPassword Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
Alarm And Event Management
Smart EventHuman & Vehicle Classification; Intrusion Detection; Line-Crossing Detection; Region Entering Detection; Region Exiting Detection; Object Abandoned Detection; Object Removal Detection; Loitering Detection; Smart Frame; People Detection; Vehicle Detection
Basic EventMotion Detection; Video Tampering Detection; Exception ( Illegal Login); Scene Change Detection
Alarm LinkageMemory Card Video Recording; Message Push; Audible Warning; White Light Flashing
Linkage MethodN/A
Output NotificationMessage Push
Deep Learning Function
People & Vehicle AnalyticsSearch and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier.
Interfaces
Network Interface1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
AlarmN/A
Reset ButtonYes
PowerDC Power Port
On-board StorageBuilt-In Memory Card Slot, Support MicroSD Card, up to 512 GB
Built-in MicrophoneYes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera
Built-in SpeakerYes
AudioN/A
General
Operating Temperature-30–60 °C
Storage Temperature-40–60 °C
Operating Humidity95% or Less (Non-Condensing)
Storage Humidity95% or Less (Non-Condensing)
MaterialMetal
Net Weight0.525 Kg
Power Supply12V DC ± 5%, Max. 9.7 W, 5.5 mm Coaxial Power Plug; PoE: 802.3af/at, class 0, Max. 10.7 W
ProtectionIP67
Product Dimensions (L x W x H)74 × 184 × 74 mm
CertificationsCE, NTRA, VCCI, KC, BSMI, FCC, IC

Source: TP-Link's published specifications for this model (TP-Link Australia product page). throughput figures are TP-Link's lab results. TP-Link may change specifications without notice.

What's in the box

  • VIGI Network Camera
  • Quick Start Guide
  • Waterproof Cable Attachments
  • Mounting Accessories

Source: TP-Link's published package contents.

Who the VIGI C345(6mm) is for

Distant subjects

  • 6 mm lens for the longest reach
  • Identify at 12 m
  • Colour or IR to 30 m

Deterrence and talk-back

  • Audible warning alarms
  • White-light flashing
  • Two-way audio

Footage review

  • People and Vehicle Analytics
  • Loitering and line-crossing events
  • microSD or recorder storage

VIGI C345(6mm) compared

At 6 mm, the VIGI C345 and VIGI C340I reach the same 120 m detection figure. The C345 adds white LEDs for colour at night, a brighter F1.6 lens, two-way audio and microSD; the C340I has the longer 50 m IR range.

VIGI C345(6mm)VIGI C340I(6mm)
Max. resolution2688 x 15202560 x 1440
Image sensor1/2.7-inch CMOS1/3-inch CMOS
ApertureF1.6F2.0
Horizontal FOV52.7°49.8°
DORI detect / identify120 m / 12 m120 m / 12 m
Night illumination2 white + 2 IR LEDs, 30 m2 IR LEDs, 50 m
AudioTwo-wayMicrophone only
HousingMetal, IP67Plastic, IP67

Source: TP-Link Australia product pages for each model.

Buy the VIGI C345(6mm) from ARC IP Networks

ARC IP Networks supplies TP-Link VIGI products from Australian stock at competitive prices, with the full manufacturer's warranty, Australia-wide delivery and trade pricing for installers and MSPs.

  • New TP-Link VIGI product from Australian stock.
  • Manufacturer warranty: the full TP-Link manufacturer's warranty for this model.
  • Australia-wide delivery to every state and territory.
  • Trade and project pricing: call 1300 100 440 or email info@arcip.com.au.

Frequently asked questions

Straight answers about the VIGI C345(6mm) from the ARC IP Networks team.

Last reviewed October 2026.

The 6 mm F1.6 fixed lens, the longest of the C345's three lens options (2.8 mm, 4 mm and 6 mm).

52.7 degrees horizontal, 29 degrees vertical and 60.8 degrees diagonal.

Detect 120 m, observe 50 m, recognise 24 m and identify 12 m.

Yes. It has two white LEDs for full-colour imaging and two 850 nm IR LEDs, all rated to 30 m, with minimum illumination of 0 lux with IR or white light.

Yes. It has a built-in microphone and speaker, and alarms can also trigger an audible warning.

No. The slot supports cards up to 512 GB, but TP-Link notes the card is not included in the package.

Yes. WDR is rated at 120 dB, but TP-Link notes only DWDR is supported while People and Vehicle Analytics is enabled.

By PoE (802.3af/at, class 0, max 10.7 W) or 12 V DC (max 9.7 W) through a 5.5 mm coaxial plug.

The VIGI app, VIGI Security Manager, the web UI and VIGI VMS, with ONVIF Profile S support.
