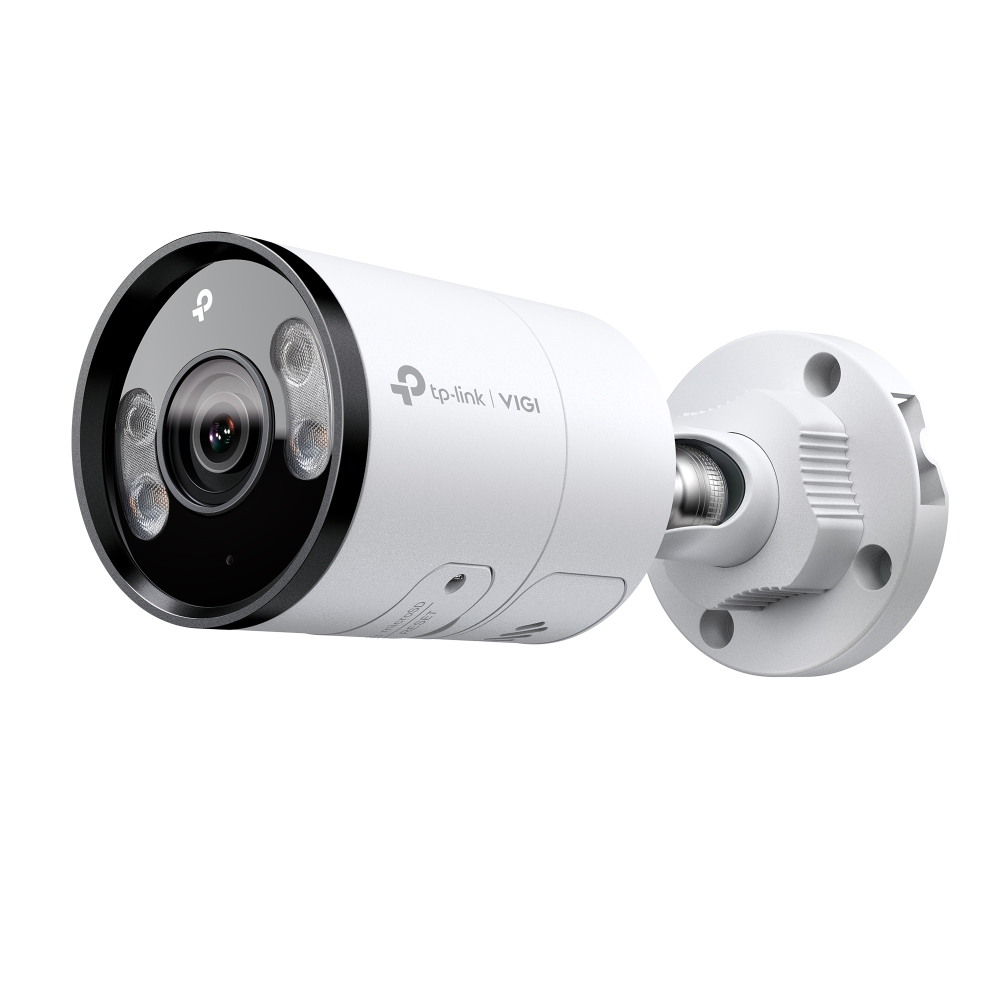

TP-Link VIGI C345(6mm) 4MP Bullet Camera

https://arcip.com.au/web/image/product.template/11418/image_1920?unique=d95db27

The TP-Link VIGI C345(6mm) is a 4MP outdoor full-colour bullet network camera with a maximum resolution of 2688 x 1520. Its 6 mm F1.6 fixed lens gives a 52.7° horizontal field of view with a detection distance of up to 120 m, and two IR LEDs plus two white LEDs each reach 30m for 24-hour full colour. Human & Vehicle Classification provides more accurate event notifications, and active defence adds audible warnings and white light flashing. It also offers two-way audio with a built-in speaker, H.265+ compression and IP67 protection, powered by 802.3af/at PoE or 12V DC. Supplied by ARC IP Networks from Australian stock with the full manufacturer's warranty.

$ 87.52 87.52 AUD $ 87.52 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
VIGI-C345-6MM
Barcode
4895252506969

The TP-Link VIGI C345(6mm) is a 4MP (2688 x 1520) outdoor full-colour bullet network camera with a 6 mm F1.6 lens for a narrower 52.7° view and longer reach, rated for detection at 120 m and identification at 12 m. It has white-light and IR illumination to 30 m, human and vehicle classification, two-way audio, PoE or 12 V DC power and an IP67 metal housing.

VIGI C345(6mm) overview

The VIGI C345 is TP-Link's 4MP outdoor full-colour bullet camera, and this version has the 6 mm lens. A 1/2.7-inch progressive scan CMOS sensor records at up to 2688 x 1520, at up to 25 fps on 50 Hz or 30 fps on 60 Hz, with lower main-stream resolutions of 2560 x 1440, 2304 x 1296, 2048 x 1280, 1920 x 1080 and 1280 x 720 available; TP-Link notes the frame rate is limited to 20 fps if the image is rotated 90° or 270°. The 6 mm F1.6 fixed lens gives a 52.7° horizontal, 29° vertical and 60.8° diagonal field of view. That narrower view than the 2.8 mm and 4 mm versions comes with longer DORI distances: TP-Link quotes 120 m for detection, 50 m for observation, 24 m for recognition and 12 m for identification with the 6 mm lens.

Two white LEDs and two 850 nm IR LEDs each have a 30 m range, and minimum illumination is 0.005 lux, or 0 lux with IR or white light. The illuminators can be set to auto, scheduled, always on or always off, and the day/night switch can be unified, scheduled or auto. Image tools include 120 dB WDR (only DWDR is supported when People & Vehicle Analytics is enabled), BLC, 3D DNR, HLC, Smart IR, prevention of overexposure to infrared light, an SNR of 52 dB or more, up to four privacy masks and one region of interest. Video is compressed with H.265+, H.265, H.264+ or H.264 at 256 Kbps to 6 Mbps on the main stream.

Human and vehicle classification distinguishes people and vehicles from other objects for more accurate event notifications, and People & Vehicle Analytics lets you search and filter for a person or vehicle of interest by many attributes, making post-event search faster. Smart events also include intrusion, line-crossing, region entering and exiting, object abandoned and removed, and loitering detection, alongside motion, video tampering and scene change detection. Alarms can trigger memory card recording, message push, an audible warning and white light flashing. A built-in microphone, which picks up activity within a 5 m radius, and a built-in speaker give two-way audio with environment noise filtering, and recordings can be stored on a microSD card in the built-in slot.

The camera connects through one 10/100 Mbps RJ45 port with 802.3af/at PoE (class 0, 10.7 W maximum) or a 12 V DC input (9.7 W maximum). It works with the VIGI App, VIGI Security Manager, VIGI VMS and its web UI, supports ONVIF Profile S, and allows three main streams and three sub-streams to be viewed at once. Security includes password protection, HTTPS encryption, IP address filtering and digest authentication. The metal housing is rated IP67, operates from -30 °C to 60 °C, measures 74 x 184 x 74 mm and weighs 0.525 kg. In the box are the camera, a Quick Start Guide, waterproof cable attachments and mounting accessories. ARC IP Networks supplies the VIGI C345(6mm) from Australian stock with the full manufacturer's warranty.

Key features

4MP resolution

Up to 2688 x 1520 from a 1/2.7-inch progressive scan CMOS sensor, at 25 fps (50 Hz) or 30 fps (60 Hz).

6 mm lens for longer reach

A 52.7° horizontal view with DORI distances of 120 m detect, 50 m observe, 24 m recognise and 12 m identify.

Full-colour night vision

Two white LEDs and two IR LEDs, each with a 30 m range.

Human and vehicle classification

Distinguishes people and vehicles from other objects for more accurate notifications.

People & Vehicle Analytics

Search and filter for people or vehicles of interest by attribute after an event.

Smart event detection

Intrusion, line-crossing, region entering/exiting, object abandoned/removed and loitering detection.

Two-way audio

Built-in microphone and speaker with environment noise filtering.

120 dB WDR

120 dB wide dynamic range, with DWDR only when People & Vehicle Analytics is on.

PoE and IP67 metal housing

802.3af/at PoE or 12 V DC, in an IP67 metal housing rated from -30 °C to 60 °C.

VIGI C345(6mm) specifications

At a glance

4MP (2688 x 1520)
6 mm F1.6 lens
52.7° horizontal FOV
120 m detection
30 m colour night vision
Human/vehicle classification
Two-way audio
PoE, IP67
VIGI C345(6mm) full specifications
Camera
Image Sensor1/2.7” Progressive Scan CMOS
Shutter Speed1/3 to 1/10000 s
Slow ShutterYes
Minimum Illumination0.005 Lux; 0 Lux with IR/White light
Day/Night MechanismIR Cut Filter
Day/Night SwitchUnified/ Scheduled/ Auto
Lens
TypeFixed Focal Lens
Focal Length2.8/4/6 mm
ApertureF1.6
FOV2.8 mm: Horizontal FOV: 100°, Vertical FOV: 54°, Diagonal FOV: 118°; 4 mm: Horizontal FOV: 80.4°, Vertical FOV: 41.8°, Diagonal FOV: 98.7°; 6 mm: Horizontal FOV: 52.7°, Vertical FOV: 29°, Diagonal FOV: 60.8°
Lens MountM12 P 0.5
DORI Distance2.8 mm Detect: 64 m (210 ft) Observe: 27 m (89 ft) Recognize: 13 m (43 ft) Identify: 6 m (20 ft); 4 mm Detect: 80 m (262 ft) Observe: 33 m (108 ft) Recognize: 16 m (52 ft) Identify: 8 m (26 ft); 6 mm Detect: 120 m (394 ft) Observe: 50 m (164 ft) Recognize: 24 m (79 ft) Identify: 12 m (39 ft)
Angle Adjustment (Manual)
RangePan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360°
Illuminator
IR LEDQuantity: 2; Range: 30m; Wavelength: 850nm
White LEDQuantity: 2; Range: 30m
Illuminator On/Off ControlAuto/Scheduled/Always on/Always off
Video
Max. Resolution2688 x 1520
Main StreamFrame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps; Resolution: 2688x1520, 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720; Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Sub-StreamFrame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps; Resolution: 704x576,640x480, 352x288, 320x240; Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Bit Rate ControlCBR, VBR
Video CompressionMain Stream: H.265+/H.265/H.264+/H.264; Sub-Stream: H.265/H.264
H.264 TypeHigh Profile
H.264+Main Stream Supported
H.265 TypeMain Profile
H.265+Main Stream Supported
Video Bit RateMain Stream: 256 Kbps to 6 Mbps; Sub-Stream: 64 Kbps to 512 Kbps
Image SettingsMirror; Brightness; Contrast; Saturation; Sharpness; Exposure; WDR; White Balance; Prevent Overexposure to Infrared Light; HLC Adjustable by Client Software
Image EnhancementBLC/3D DNR/HLC/SmartIR
Wide Dynamic Range120 dB Note: When People & Vehicle Analytics is enabled, only DWDR is supported.
SNR≥ 52 dB
Image Parameters SwitchYes
Privacy MaskUp to 4 Masks
ROI1 Region
OSD SettingYes
Audio
Audio CommunicationTwo-Way Audio
Audio InputYes
Audio OutputYes
Audio CompressionYes
Audio Sampling Rate8KHz
Environment Noise FilteringYes
Audio Bit Rate64 Kbps(G.711 alaw)
Network
ProtocolTCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
ONVIFYes
APIOpen Network Video Interface (Profile S)
Simultaneous Live View3 Main Streams & 3 Sub-Streams
ClientVIGI App, VIGI Security Manager, Web UI, VIGI VMS
Web BrowserGoogle Chrome 57 and above; Firefox 52 and above; Safari 11 and above; Microsoft Edge 91 and above
CloudYes
SecurityPassword Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
Alarm And Event Management
Smart EventHuman & Vehicle Classification; Intrusion Detection; Line-Crossing Detection; Region Entering Detection; Region Exiting Detection; Object Abandoned Detection; Object Removal Detection; Loitering Detection; Smart Frame; People Detection; Vehicle Detection
Basic EventMotion Detection; Video Tampering Detection; Exception ( Illegal Login); Scene Change Detection
Alarm LinkageMemory Card Video Recording; Message Push; Audible Warning; White Light Flashing
Linkage MethodN/A
Output NotificationMessage Push
Deep Learning Function
People & Vehicle AnalyticsSearch and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier.
Interfaces
Network Interface1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
AlarmN/A
Reset ButtonYes
PowerDC Power Port
On-board StorageBuilt-In Memory Card Slot, Support MicroSD Card, up to 512 GB
Built-in MicrophoneYes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera
Built-in SpeakerYes
AudioN/A
General
Operating Temperature-30–60 °C
Storage Temperature-40–60 °C
Operating Humidity95% or Less (Non-Condensing)
Storage Humidity95% or Less (Non-Condensing)
MaterialMetal
Net Weight0.525 Kg
Power Supply12V DC ± 5%, Max. 9.7 W, 5.5 mm Coaxial Power Plug; PoE: 802.3af/at, class 0, Max. 10.7 W
ProtectionIP67
Product Dimensions (L x W x H)74 × 184 × 74 mm
CertificationsCE, NTRA, VCCI, KC, BSMI, FCC, IC

Source: TP-Link's published specifications for this model (TP-Link Australia product page). throughput figures are TP-Link's lab results. TP-Link may change specifications without notice.

What's in the box

  • VIGI Network Camera
  • Quick Start Guide
  • Waterproof Cable Attachments
  • Mounting Accessories

Source: TP-Link's published package contents.

Who the VIGI C345(6mm) is for

Longer-range outdoor views

  • Narrow 52.7° view with 120 m detection
  • Identification out to 12 m
  • Full-colour night vision to 30 m

Monitoring people and vehicles

  • Human and vehicle classification
  • Post-event search by attribute
  • Audible warning and white light flashing

Buy the VIGI C345(6mm) from ARC IP Networks

ARC IP Networks supplies genuine TP-Link VIGI products from Australian stock at competitive prices, with the full manufacturer's warranty, Australia-wide delivery and trade pricing for installers and MSPs.

  • Genuine TP-Link: new TP-Link VIGI product from Australian stock.
  • Manufacturer warranty: the full TP-Link manufacturer's warranty for this model.
  • Australia-wide delivery to every state and territory.
  • Trade and project pricing: call 1300 100 440 or email info@arcip.com.au.

Frequently asked questions

Straight answers about the VIGI C345(6mm) from the ARC IP Networks team.

Last reviewed October 2026.

4MP, up to 2688 x 1520, at up to 25 fps on 50 Hz or 30 fps on 60 Hz. Frame rate is limited to 20 fps with 90°/270° rotation.

52.7° horizontal, 29° vertical and 60.8° diagonal.

TP-Link quotes DORI distances of 120 m detection, 50 m observation, 24 m recognition and 12 m identification with the 6 mm lens.

Yes. It has two white LEDs and two IR LEDs, each with a 30 m range.

Yes. Human and vehicle classification distinguishes them from other objects, and People & Vehicle Analytics lets you search by attribute.

Yes. It has a built-in microphone and speaker.

802.3af/at PoE (class 0), up to 10.7 W. It can also run from 12 V DC.

Yes. It is rated IP67 and operates from -30 °C to 60 °C.

The VIGI App, VIGI Security Manager, VIGI VMS and its web UI. It also supports ONVIF Profile S.

The camera, a Quick Start Guide, waterproof cable attachments and mounting accessories.

Need more than one VIGI C345(6mm) for a site security rollout?

Ask ARC IP Networks for volume and project pricing on genuine TP-Link VIGI products.
