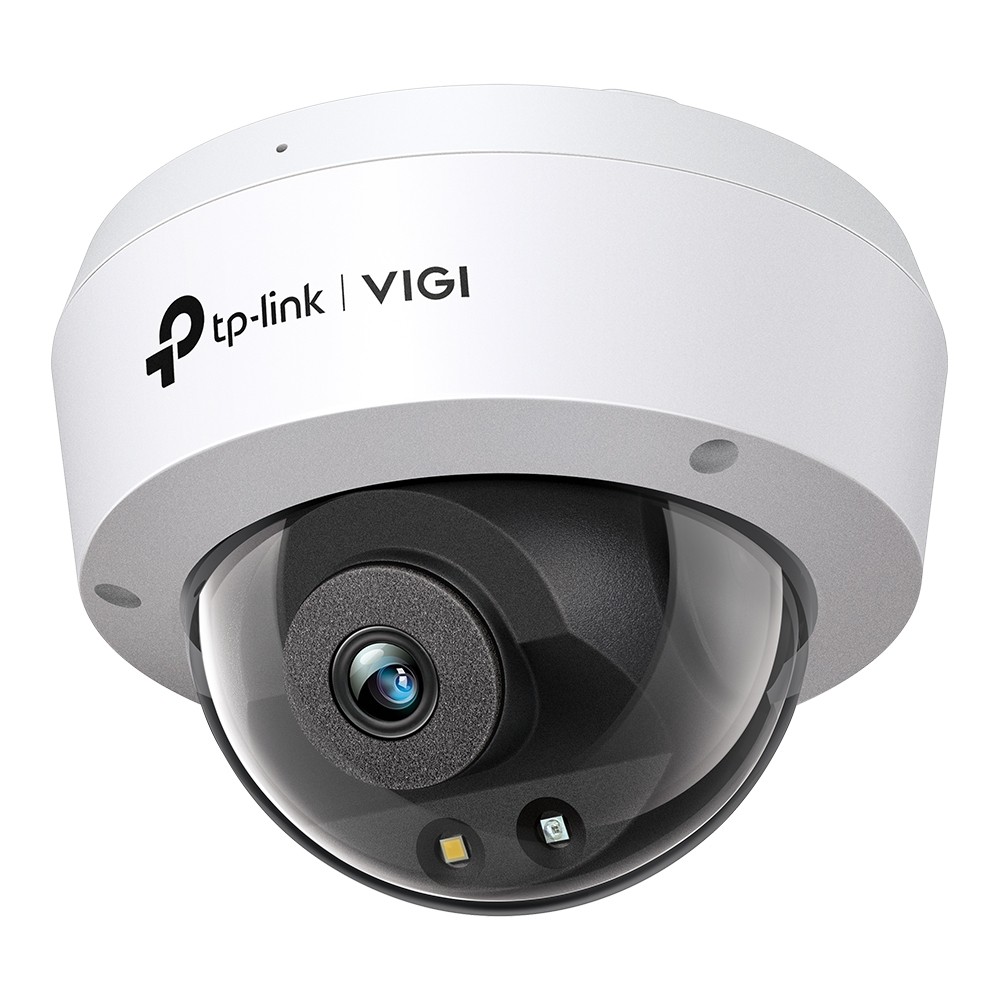

TP-Link VIGI C240(4mm) 4MP Full-Colour Dome Network Camera

https://arcip.com.au/web/image/product.template/8238/image_1920?unique=0fae419

The TP-Link VIGI C240(4mm) is a 4MP full-colour dome network camera with a 4 mm F1.6 lens. It covers 79.7° horizontally and reaches DORI detection at 80 m and identification at 8 m, recording up to 2560 x 1440 in H.265+. One white LED and one IR LED each reach 30 m. It supports human and vehicle classification and smart detection, has a built-in microphone and microSD slot, carries IK10 and IP67 ratings, and runs on PoE (802.3af/at) or 12 V DC. Supplied by ARC IP Networks with the full manufacturer's warranty.

$ 125.44 125.44 AUD $ 125.44 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

IP Camera TP-Link VIGI
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
VIGI C240(4MM)
Barcode
4895252501094
Tags

The TP-Link VIGI C240(4mm) is the 4 mm lens version of TP-Link's 4MP full-colour dome network camera. Its F1.6 lens narrows the view to 79.7 degrees horizontally in exchange for longer reach, with published detection at 80 m and identification at 8 m. It pairs one white LED and one IR LED (30 m each) with human and vehicle classification, a built-in microphone, microSD recording, an IK10 and IP67 housing, and PoE or 12 V DC power.

VIGI C240(4mm) overview

The VIGI C240 is offered with a 2.8 mm or a 4 mm lens, and this product is the 4 mm model. Choosing the longer focal length trades some width for distance: TP-Link lists a horizontal field of view of 79.7 degrees, vertical 42.9 degrees and diagonal 93.9 degrees, and the published DORI distances for the 4 mm lens rise to detect 80 m, observe 33 m, recognise 16 m and identify 8 m. The aperture is still F1.6 on an M12 mount. Image capture is handled by a 1/3-inch progressive scan CMOS, and the camera's top resolution is 4MP at 2560 x 1440, with lower main-stream options of 2304 x 1296, 2048 x 1280, 1920 x 1080 and 1280 x 720.

Colour after dark is the point of the C240. TP-Link credits its large-aperture lens, high-sensitivity sensor and attached supplemental lights for clear and colourful monitoring around the clock. The dome carries a single white LED and a single 850 nm IR LED, both rated to 30 m, and the illuminators can be set to auto, scheduled, always on or always off. Minimum illumination is 0.005 lux in colour and 0 lux once IR or white light is on. SmartVid processing applies Smart IR, digital WDR, 3D DNR and night vision enhancement, alongside BLC and HLC, prevention of infrared overexposure, an SNR of 52 dB or more and up to four privacy masks.

Event handling is driven by on-board AI. Human and vehicle classification distinguishes humans and vehicles from other objects so customised alarm rules produce more relevant notifications, and the event list covers area intrusion, line-crossing, people and vehicle detection, region entering and exiting, object abandoned and removal, and abnormal sound. Basic events add motion detection, video tampering and illegal-login alerts, and an alarm can trigger white-light flashing as well as a push message. TP-Link says the built-in microphone records anything within a 15-ft radius; the C240 has no speaker. Video is compressed with H.265+, H.265, H.264+ or H.264 on the main stream at 256 Kbps to 4 Mbps.

Physically, the C240 is a 115 x 86 x 115 mm plastic dome weighing 0.28 kg, built to IK10 against impact and IP67 against water and dust, and rated for -30 to 60 degrees C. It takes PoE (802.3af/at, class 0) from a single network cable on its 10/100M port, or 12 V DC (max 5.4 W) from a 5.5 mm coaxial plug, and the cable can exit through the side outlet or pass into a dropped ceiling. Recording can go to a VIGI NVR or to a microSD card: the specification table for the 4 mm model lists cards up to 512 GB, while the feature summary on the same page quotes up to 256 GB. Live view and setup are available in the web UI, VIGI app and VIGI Security Manager, and ONVIF is supported for compatible recorders.

Key features

4 mm F1.6 lens

79.7° horizontal, 42.9° vertical and 93.9° diagonal field of view for longer reach.

80 m detection

DORI for the 4 mm lens: detect 80 m, observe 33 m, recognise 16 m, identify 8 m.

Colour night vision

One white LED and one 850 nm IR LED, both rated to 30 m, with four control modes.

SmartVid enhancement

Smart IR, DWDR, 3D DNR, BLC and HLC for cleaner footage.

AI classification

Human and vehicle classification for fewer irrelevant alarms.

Event detection

Intrusion, line-crossing, region entering/exiting, object abandoned/removal and abnormal sound.

White-light alarm

Alarms can flash the white light and send a push message.

IK10 vandal resistance

Rugged dome with IP67 waterproofing for rain and dust.

Single-cable PoE

802.3af/at class 0, or 12 V DC at up to 5.4 W.

VIGI C240(4mm) specifications

At a glance

4MP (2560 x 1440)
4 mm F1.6 lens
79.7° horizontal FOV
80 m detect / 8 m identify
1 IR + 1 white LED, 30 m
H.265+
IK10 / IP67
PoE or 12 V DC
VIGI C240(4mm) full specifications
Camera
Image Sensor1/3” Progressive Scan CMOS
Shutter Speed1/3 to 1/10000 s
Slow ShutterYes
Aperture2.8 mm: F1.6 4 mm: F1.6
Lens2.8 mm/ 4 mm
Lens MountM12
Minimum IlluminationColor: 0.005 Lux; 0 Lux with IR/White Light
Day/Night MechanismIR Cut Filter
Day/Night SwitchUnified/ Scheduled/ Auto
Digital Noise Reduction3D DNR
WDRDWDR
Weatherproof RatingIP67
Pan/Tilt RangePan: 0° to 360°, Tilt: 0° to 85°, Rotate: 0° to 360°
Viewing Angle2.8mm: Horizontal FOV: 95.7°, Vertical FOV: 51.7°, Diagonal FOV: 113.0° 4mm: Horizontal FOV: 79.7°, Vertical FOV:42.9°, Diagonal FOV: 93.9°
Lens
TypeFixed Focal Lens
Focal Length2.8 mm/4 mm
Aperture2.8 mm: F1.6 4 mm: F1.6
FOV2.8 mm: Horizontal FOV: 95.7°, Vertical FOV: 51.7°, Diagonal FOV: 113.0° 4 mm: Horizontal FOV: 79.7°, Vertical FOV: 42.9°, Diagonal FOV: 93.9°
Lens MountM12
DORI Distance2.8 mm: Detect: 64 m (209 ft) Observe: 27 m (87 ft) Recognize: 13 m (42 ft) Identify: 6 m (21 ft) 4 mm: Detect: 80 m (262 ft) Observe: 33 m (109 ft) Recognize: 16 m (52 ft) Identify: 8 m (26 ft)
Angle Adjustment (Manual)
RangePan: 0° to 355° Tilt: 0° to 75°
Illuminator
IR LEDQuantity: 1 Range: 30m Wavelength: 850nm
White LEDQuantity: 1 Range: 30m
Illuminator On/Off ControlAuto/Scheduled/Always on/Always off
Video
Max. Resolution2560 × 1440
Main StreamFrame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 2560x1440,2304x1296, 2048x1280, 1920x1080, 1280x720 Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Sub-StreamFrame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 640x480,352x288, 320x240 Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Bit Rate ControlCBR, VBR
Video CompressionMain Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264
H.264 TypeMain Profile/High Profile
H.264+Main Stream Supported
H.265 TypeMain Profile
H.265+Main Stream Supported
Video Bit RateMain Stream: 256 Kbps to 4 Mbps Sub-Stream: 64 Kbps to 512 Kbps
Image SettingsMirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software, Rotation(90°/270°)
Image EnhancementBLC/3D DNR/HLC/SmartIR
Wide Dynamic RangeDWDR
SNR≥ 52 dB
Image Parameters SwitchYes
Privacy MaskUp to 4 Masks
ROI1 Region
OSD SettingYes
Audio
Audio CommunicationN/A
Audio InputYes
Audio OutputN/A
Audio CompressionYes
Audio Sampling Rate8KHz
Environment Noise FilteringYes
Audio Bit Rate64 Kbps(G.711 alaw)
Network
ProtocolTCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
ONVIFYes
APIONVIF
Simultaneous Live View3 Main Streams & 3 Sub-Streams
ClientVIGI App, VIGI Security Manager, VIGI NVR, Web
Web BrowserGoogle Chrome 57 and above Firefox 52 and above Safari 11 and above Microsoft Edge 91 and above
CloudYes
SecurityPassword Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
Alarm And Event Management
Smart EventArea Intrusion Detection; Line-Crossing Detection; People Detection; Vehicle Detection; Region Entering Detection; Region Exiting Detection; Object Abandoned Detection; Object Removal Detection; Abnormal Sound Detection
Basic EventMotion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts); Video Tampering Detection; Exception ( Illegal Login)
Alarm LinkageWhite Light Flashing, Message Push
Linkage MethodN/A
Output NotificationMessage Push
Interfaces
Network Interface1 RJ45 10/100M Self-Adaptive Ethernet Port
AlarmN/A
Reset ButtonN/A
PowerDC Power Port
Button-
Video Output-
On-board StorageBuilt-in Memory Card Slot, Support MicroSD Card, Up to 512 GB
Built-in MicrophoneYes
Built-in SpeakerN/A
AudioN/A
General
Operating Temperature-30–60 °C
Storage Temperature-40–60 °C
Operating Humidity95% or Less (Non-Condensing)
Storage Humidity95% or Less (Non-Condensing)
Dimensions( H X W X D )115 × 115 × 86 mm
MaterialPlastic
General FeaturesTwo Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening
Net Weight0.28 Kg
Gross Weight0.46 Kg
Max. Power Consumption12V DC: Max 5.4W PoE: Class 0
Power Supply12V DC ± 5%, 5.5mm Coaxial Power Plug PoE (802.3af/at, class 0)
Vandal ResistantIK10
ProtectionIP67, IK10
Product Dimensions (L x W x H)115× 86× 115 mm
CertificationsCE/BSMI/VCCI/ONVIF
Video/Image
Video CompressionMain Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264
Frame Rate & ResolutionsMain Stream: Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 2560x1440,2304x1296, 2048x1280, 1920x1080, 1280x720 Sub-Stream: Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 640x480,352x288, 320x240
Max. Resolution4MP (2560 × 1440)
Video StreamingMain Stream Sub-Stream
Image SettingsMirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software, Rotation(90°/270°)
Image EnhancementBLC/3D DNR/HLC/SmartIR
Video Bit Rate64 Kbps to 4 Mbps
Day/Night SwitchDay/Night/Auto/Schedule
Smart Feature-Set
Smart EventHuman & Vehicle Classification, Intrusion Detection, Line-Crossing Detection, Human Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection
Basic EventMotion Detection, Camera Tampering Detection, Exception (Illegal Login)
Linkage MethodTrigger Notification: ONVIF, HTTPS
Region of Interest1 Region

Source: TP-Link's published specifications for this model (TP-Link Australia product page). throughput figures are TP-Link's lab results. TP-Link may change specifications without notice.

What's in the box

  • VIGI Network Camera Quick Start Guide Waterproof Cable Attachments Mounting Accessories

Source: TP-Link's published package contents.

Who the VIGI C240(4mm) is for

Longer sight lines

  • 4 mm lens for added reach
  • Identify at 8 m
  • 30 m supplemental light

Alert-driven monitoring

  • Human and vehicle classification
  • Intrusion and line-crossing rules
  • White-light flashing on alarm

Ceiling and wall domes

  • IK10 and IP67 housing
  • Side cable outlet
  • PoE from one cable

VIGI C240(4mm) compared

With 4 mm lenses fitted, the VIGI C240 and VIGI C250 share the same 80 m detection figure; the C250 adds 5MP resolution, a 1/2.7-inch sensor and a wider 90° view.

VIGI C240(4mm)VIGI C250(4mm)
Max. resolution2560 x 14402880 x 1620
Image sensor1/3-inch CMOS1/2.7-inch CMOS
Horizontal FOV79.7°90°
DORI detect / identify80 m / 8 m80 m / 8 m
Wide dynamic rangeDWDR120 dB
Loitering detectionNot listedYes
ProtectionIK10, IP67IK10, IP67

Source: TP-Link Australia product pages for each model.

Buy the VIGI C240(4mm) from ARC IP Networks

ARC IP Networks supplies TP-Link VIGI products from Australian stock at competitive prices, with the full manufacturer's warranty, Australia-wide delivery and trade pricing for installers and MSPs.

  • New TP-Link VIGI product from Australian stock.
  • Manufacturer warranty: the full TP-Link manufacturer's warranty for this model.
  • Australia-wide delivery to every state and territory.
  • Trade and project pricing: call 1300 100 440 or email info@arcip.com.au.

Frequently asked questions

Straight answers about the VIGI C240(4mm) from the ARC IP Networks team.

Last reviewed October 2026.

The 4 mm F1.6 fixed lens. The C240 is also made with a 2.8 mm lens; the 4 mm version has the narrower view and the longer published distances.

79.7 degrees horizontal, 42.9 degrees vertical and 93.9 degrees diagonal.

Detect 80 m, observe 33 m, recognise 16 m and identify 8 m.

It uses one white LED for full-colour imaging and one 850 nm IR LED, each rated to 30 m, with an IR-cut filter. Minimum illumination is 0 lux with IR or white light.

Yes. TP-Link rates it IP67 and IK10, with an operating range of -30 to 60 degrees C.

PoE (802.3af/at, class 0) through its RJ45 port, or 12 V DC through a 5.5 mm coaxial plug at up to 5.4 W.

The specification table for the 4 mm model lists microSD cards up to 512 GB, while the feature summary on the same TP-Link page says up to 256 GB.

No. It has a built-in microphone (TP-Link quotes a 15-ft recording radius) but no built-in speaker.

The web UI, VIGI app, VIGI Security Manager and VIGI NVRs, with ONVIF support for compatible recorders.

Need more than one VIGI C240(4mm) for a dome camera installation?

Ask ARC IP Networks for volume and project pricing on TP-Link VIGI products.

Brand TP-Link

Accurate Shipping Costs

Our online shipping calculator is designed to provide a final, accurate shipping cost based on the items in your cart and your delivery postcode. Shipping costs are calculated at checkout based on your order and delivery postcode. The final cost is calculated based on several factors which are automatically accounted for by our system, including:

  • The stock location of the item(s) across our warehouses.
  • Orders with multiple items that may require special packaging.
  • The weight and dimensions of the order (including heavy or oversized items).
  • The delivery courier servicing your specific region.

Delivery Times




Standard Processing


Most orders placed by 2pm AEDT are dispatched for next working day delivery. Larger orders may require 1-2 additional business days for processing. If timing is critical, please contact us to discuss expedited options (additional charges may apply).


Delivery Timeframes


Region

Processing Time

Express Delivery

Standard Delivery

VIC, NSW, SA, QLD Metro, TAS

1-2 business days

1-2 business days

2-4 business days

NT, WA, QLD Rural

1-2 business days

1-2 business days

3-5 business days

New Zealand

1-2 business days

2-3 business days

4-10 business days

Please note: Processing times may extend during peak periods such as Christmas and end of financial year.

Free Warehouse Pickup



Save on shipping costs with free pickup from our ARC IP Networks Blackburn warehouse. Simply place your order online or by phone, and collect during business hours (Monday to Friday). Please allow time for picking and packing. For urgent orders, call 1300 100 440 to confirm your order is ready.

ARC IP Networks Pickup Address: 6 George Street, Blackburn, VIC 3130


Insurance & Tracking



All ARC IP Networks shipments are fully insured and trackable. Once dispatched, you'll receive an email with your tracking number and courier website details. If your item is confirmed lost or damaged by our courier, we'll arrange a replacement in consultation with you.


International Shipping



ARC IP Networks ships to New Zealand. Please note:


  • Import duties and taxes vary by country
  • Buyers are responsible for all customs charges
  • Contact your local customs authority before ordering
  • We'll provide required documentation for smooth customs clearance
  • Buyers cover all shipping costs for returns due to refused duties/taxes


Delivery Requirements


Signature Required


All deliveries must be signed for. If you won't be home, contact our Sales Support team to arrange Authority to Leave. Important: Authority to Leave voids shipping insurance if parcels are lost or stolen.


Delivery Restrictions


We do not deliver to PO Boxes or Parcel Lockers as our couriers cannot access them. Orders sent to these addresses will be returned, incurring redelivery fees.


Shipping Issue Resolution


ARC IP Networks works closely with our shipping partners to resolve any delivery issues quickly and fairly:


  1. Confirmation: We verify expected delivery dates with our shipping partners
  2. Investigation: Issues outside normal timeframes trigger formal investigations
  3. Communication: We keep you updated throughout the resolution process
  4. Resolution: Confirmed lost items are replaced or refunded after investigation completion


Please note: Refunds for lost, missing, or delayed orders cannot be processed until shipping partner investigations are complete. This does not affect your rights under the Australian Consumer Law, and refunds or replacements will be provided where required once loss or damage is confirmed.

Warranty & Faulty Products

ARC IP Networks complies with the Australian Consumer Law (ACL).

If a product is faulty, damaged, not of acceptable quality, or does not perform as advertised, you are entitled to a repair, replacement, or refund in accordance with ACL.

Manufacturer Warranty Returns

For faults developing after 14 days within the warranty period:

  • Contact ARC IP Networks first at info@arcip.com.au or 1300 100 440
  • We will assess the issue and coordinate with manufacturers, authorised service centres, or distributors on your behalf
  • Where required, a manufacturer RMA may be arranged
  • ARC IP Networks manages the return process and next steps

Dead on Arrival (DOA)

Products that arrive faulty or damaged must be reported within 14 days of delivery.

ARC IP Networks will arrange assessment, replacement, or refund as appropriate.

Change of Mind & Non-Faulty Returns

Change-of-mind returns must be requested within 14 days of delivery. For change-of-mind returns, the product must be unused, unopened, in its original packaging, and returned with all accessories and documentation. These conditions apply only to change-of-mind returns and do not limit or exclude your rights under the Australian Consumer Law. Some products are not eligible for change-of-mind returns, including:

  • Ex-demo products
  • Clearance or markdown items
  • Special-order items
  • Products clearly marked “No Change-of-Mind Returns”

Important

This does not affect your rights under Australian Consumer Law.

If a product is faulty, not of acceptable quality, or does not meet advertised specifications, it remains eligible for return regardless of category.

Refunds & Processing Timeframes

  • Approved refunds are processed within 7 business days of receiving returned goods
  • Refunds are issued to the original payment method, unless otherwise agreed
  • Replacement or repair may be offered where appropriate
  • Store credit may be offered only with customer consent

Handling fees and non-returnable service charges may not be refundable where permitted by law.


Restocking Fees

For approved change-of-mind or non-faulty returns, a 15% restocking fee applies.

  • Any applicable restocking fee will be clearly communicated prior to return approval
  • The fee will be deducted from the refund amount
  • Restocking fees do not apply to returns made under the Australian Consumer Law, including faulty, damaged, or misrepresented goods.

Return Shipping Costs

  • Change-of-mind returns: The customer is responsible for return shipping costs.
  • Faulty or defective products: ARC IP Networks covers return shipping under Australian Consumer Law.

Non-Warranty Repairs

For issues not covered by warranty:

  • ARC IP Networks will provide a quote before proceeding
  • Customers are responsible for all shipping and service costs
  • No repairs are undertaken without customer approval

Return Methods

Returns may be made:

  • In-store at ARC IP Networks – 6 George Street, Blackburn VIC 3130
  • Or by shipment as instructed by our support team

Proof of purchase is required for all returns.

Enquire About this Product


Any questions about this product? Fill out the form below, and we'll get back to you soon!
