Ubiquiti USW-Mission-Critical Ubiquiti UniFi Network Mission Critical

https://arcip.com.au/web/image/product.template/4036/image_1920?unique=68bd5c0

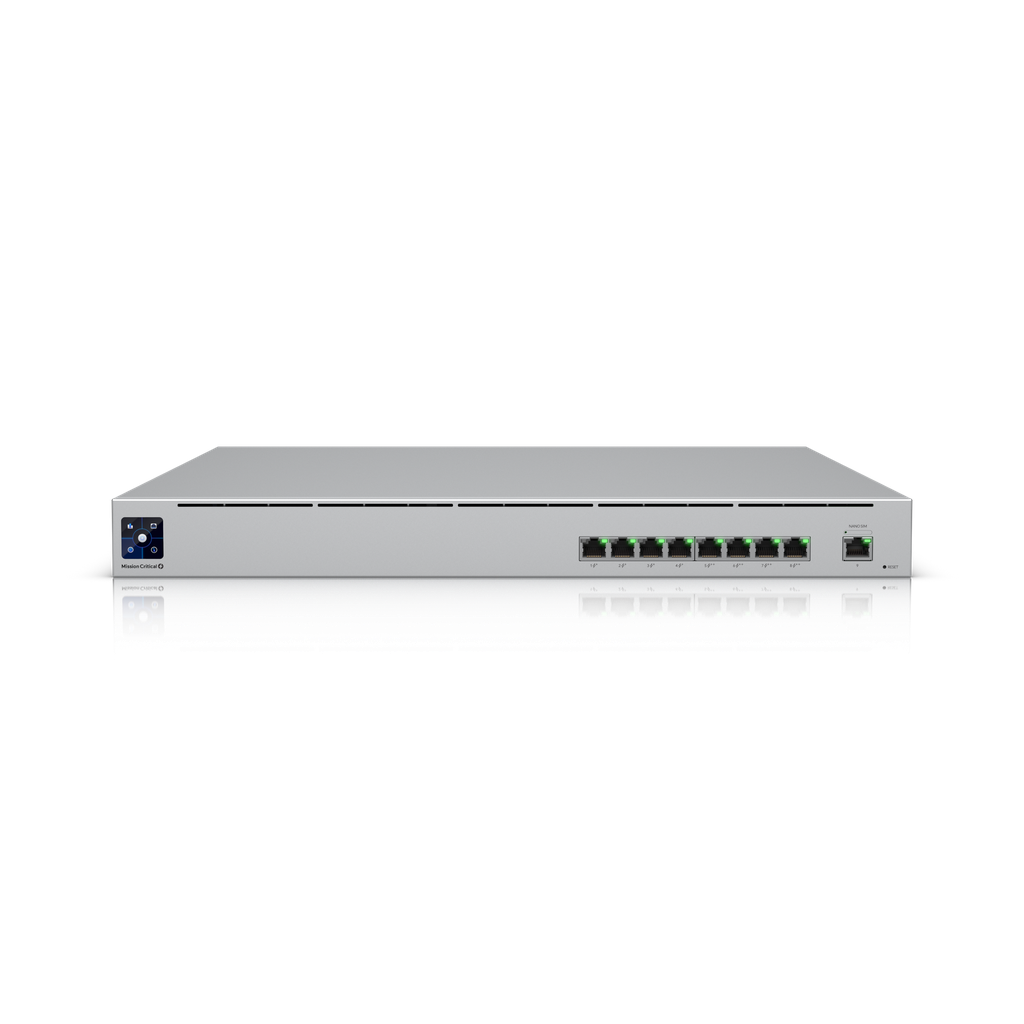

The Ubiquiti USW-Mission-Critical is a Layer 2 managed switch with (9) GbE. A switch with an integrated 368Wh lithium-ion battery capable of providing uninterruptible PoE to 8 devices.

1,837.97 1837.97 AUD 1,921.15 incl. GST

Not Available For Sale


  • Brand
  • Switching Capacity
  • Network Layer
  • Form Factor
  • Port Speed
  • Ports
  • Network Connectivity
  • PoE Specification
  • Switch Features

This combination does not exist.

In stock online
UniFi Switch Rackmount PoE Managed Switch Ubiquiti 120W PoE 9-Port 18 Gbps
UBIQUITI
UBIQUITI

Ubiquiti Inc. offers a wide range of networking solutions for service providers and enterprises, including fixed wireless broadband, wireless backhaul, routing, LAN infrastructure, and video surveillance. The company stands out through its proprietary software, advanced firmware, and innovative hardware design.

  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
SKU
USW-Mission-Critical
Barcode
810010079879
Tags
USW-Mission-Critical
Ubiquiti UniFi UPS PoE Switch Mission Critical — 18 Gbps Switching, 120W PoE

Features

  • (4) GbE PoE+, (4) GbE PoE++ ports
  • (1) GbE port
  • (2) 110V AC outputs; 120W total PoE available
  • Battery backup power system
  • Internal battery 368Wh

Specifications

Overview
Dimensions442 x 480 x 44 mm
1 GbE RJ459 (4 PoE+; 4 PoE++) / (1G/100M/10M)
Max. PoE OutputUp to PoE++
Total PoE Availability120W
RedundancyBattery Power Backup
Form FactorRack mount (1U)
Performance
Switching Capacity18 Gbps
Total Non-Blocking Throughput9 Gbps
Forwarding Rate13 Mpps
Supported VLANs1,000
MAC Address Table Size8,000
Packet Buffer Size0.5 MB
IPv4128
MAC128
Hardware
PoE+4
PoE++4
PoE+32W
PoE++64W
Max. Power Consumption50W (Excluding PoE Output) / 240W (Including PoE Output and AC Output)
Power MethodUniversal input, 100–240V AC, 50/60 Hz / External battery input, 48V DC
Power Input MethodAC input / DC input (Backup)
Power SupplyAC/DC, internal, 240W
Supported Voltage Range100–240V AC
ManagementEthernet / AR
Heat Dissipation170.6 BTU/hr (Excluding PoE Output)
WeightWithout mount: 9 kg / With mount: 9.2 kg
Enclosure MaterialSGCC steel
Mount MaterialSGCC steel
Supported Rack Depth482.6 mm four-post racks / Posts depths ranging from 700 to 1,000 mm (27.6–39.4”)
LCM Display1.3" touchscreen
ESD ProtectionAir/contact: ± 24kV
Ambient Operating Temperature-5 to 40° C (23 to 104° F)
Ambient Operating Humidity5 to 95% noncondensing
CertificationsCE, FCC, IC, Anatel: 06679-25-08356
Software
UniFi NetworkVersion 6.2.26 and later

Professional Overview

The Ubiquiti USW-Mission-Critical is a Layer 2 managed switch with (9) GbE. A switch with an integrated 368Wh lithium-ion battery capable of providing uninterruptible PoE to 8 devices.

With 18 Gbps switching capacity and 9 Gbps non-blocking throughput at 13 Mpps forwarding rate, the switch delivers wire-speed performance for demanding network environments. The 120W PoE budget powers access points, cameras, and VoIP phones over Ethernet.

The USW-Mission-Critical features Battery Power Backup redundancy, a Rack mount (1U) form factor measuring 442 x 480 x 44 mm. It integrates with the UniFi Network ecosystem for centralised management, VLAN configuration, and traffic monitoring.

Weighing Without mount: 9 kg / With mount: 9.2 kg, the USW-Mission-Critical is engineered for reliable 24/7 operation. Australian stock, fast shipping from ARC IP Networks.

Part of our Ubiquiti UniFi Switches range — browse and compare the full lineup of PoE, aggregation, compact and 10G switches.

Ubiquiti USW-Mission-Critical: Layer 2 switch

The UPS PoE Switch Mission Critical is a Layer 2 UniFi switch offering 120W of PoE, 9 Gbps of non-blocking throughput, 18 Gbps switching capacity.

Port layout is 9 × Gigabit RJ45.

Ports and PoE

InterfaceCount & speeds
Gigabit RJ459 (4 PoE+; 4 PoE++) (1G/100M/10M)
Total PoE availability120W
Max. PoE outputUp to PoE++

Per-port PoE classes: 4 ports at PoE+ (802.3at) up to 32W; 4 ports at PoE++ (802.3bt) up to 60W.

Total PoE availability is 120W, which is the budget shared across all powered ports — not a per-port figure. Add up the draw of everything you intend to power before committing; our access point comparison lists the consumption of each UniFi AP.

Switching performance

Non-blocking throughput9 Gbps
Switching capacity18 Gbps
Forwarding rate13 Mpps
Supported VLANs1,000
MAC address table8,000
Packet buffer0.5 MB

Who the USW-Mission-Critical suits

  • Deployments that must stay up through upstream interruptions.
  • Critical devices such as cameras, door access and alarms.
  • Sites needing continuity during controller or gateway maintenance.
  • UniFi estates where selected ports must never drop.

Physical, power and mounting

Form factorRack mount (1U)
Dimensions442 x 480 x 44 mm (17.4 x 18.9 x 1.7")
WeightWithout mount: 9 kg (19.9 lb) With mount: 9.2 kg (20.3 lb)
Supported rack depth482.6 mm (19") four-post racks Posts depths ranging from 700 to 1,000 mm (27.6–39.4”)
Power supplyAC/DC, internal, 240W
Power methodUniversal input, 100–240V AC, 50/60 Hz External battery input, 48V DC
Max. power consumption50W (Excluding PoE Output) 240W (Including PoE Output and AC Output)
Heat dissipation170.6 BTU/hr (Excluding PoE Output)
Operating temperature-5 to 40° C (23 to 104° F)
Display1.3" touchscreen
EnclosureSGCC steel
RequiresVersion 6.2.26 and later

Two power figures are quoted: the switch itself, and the total including PoE output. Size the circuit and any UPS on the higher figure.

Frequently Asked Questions

What is the USW-Mission-Critical?

The UPS PoE Switch Mission Critical is a UniFi managed switch with 120W of total PoE availability, 9 Gbps of non-blocking throughput.

What ports does the USW-Mission-Critical have?

Gigabit RJ45: 9 (4 PoE+; 4 PoE++) (1G/100M/10M).

How much PoE can the USW-Mission-Critical deliver?

120W in total across all powered ports. That is a shared budget, not a per-port figure, so total up the draw of everything you plan to power.

What PoE classes does it support?

4 ports at up to 32W; 4 ports at up to 60W.

How is the USW-Mission-Critical mounted?

Rack mount (1U).

How much power does the USW-Mission-Critical use?

50W (Excluding PoE Output) 240W (Including PoE Output and AC Output).

What UniFi version does it require?

UniFi Network 6.2.26 and later.

Does it need a separate UniFi controller?

UniFi switches are adopted and managed by a UniFi controller — a Cloud Gateway, Dream Machine, CloudKey or UniFi hosting. The switch itself does not host the controller.

Is the USW-Mission-Critical available in Australia?

Yes. ARC IP Networks is an authorised Ubiquiti reseller holding Australian stock with full manufacturer warranty and fast domestic shipping.
