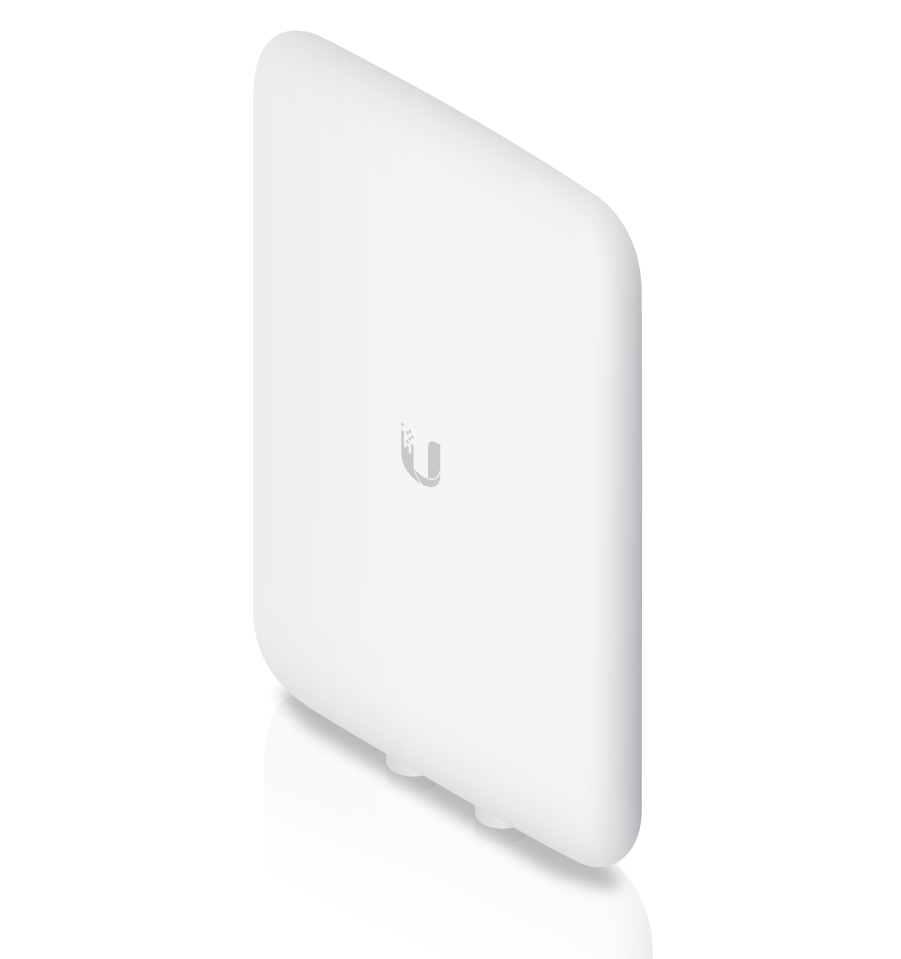

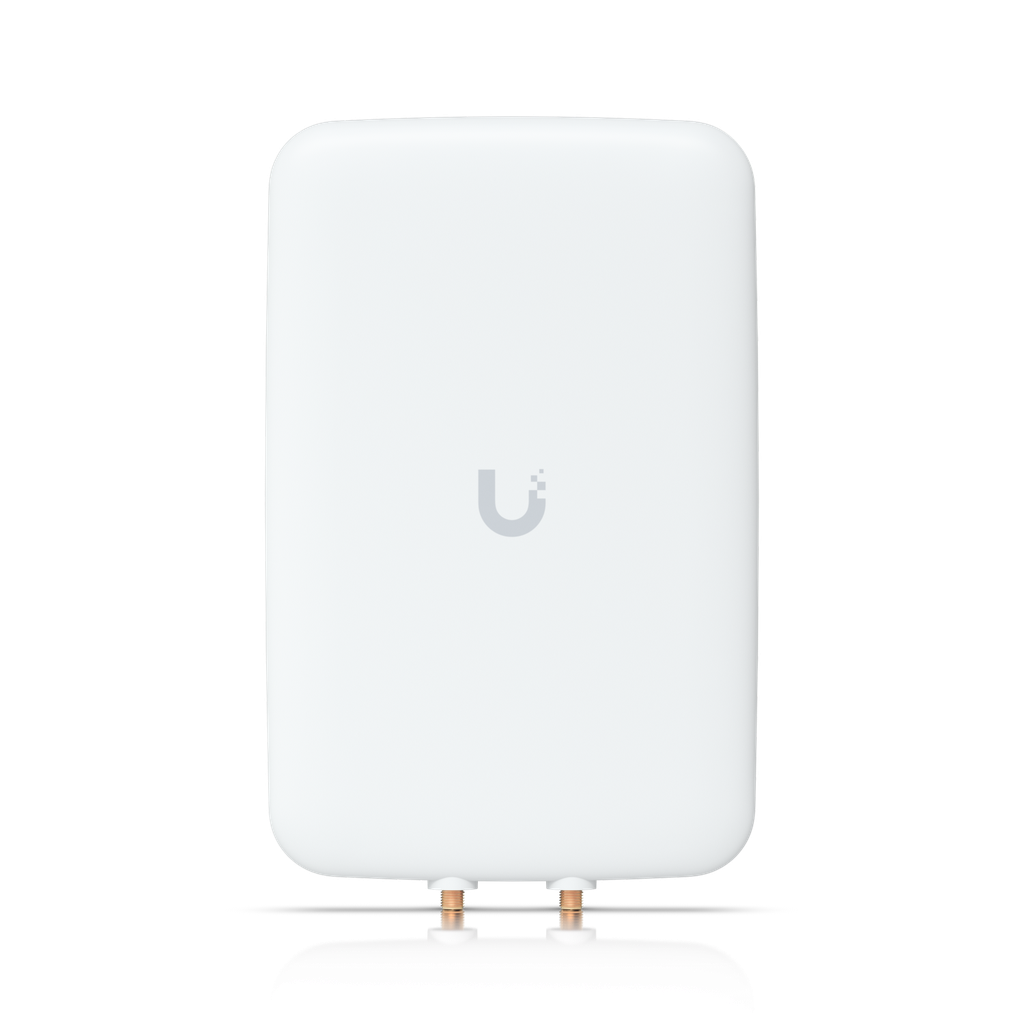

Ubiquiti UMA-D High Efficiency Dual-Band Directional Mesh Antenna

https://arcip.com.au/web/image/product.template/3992/image_1920?unique=8867584
The Ubiquiti UMA-D is a high-efficiency, dual-band directional antenna designed to significantly extend the range and shape the coverage of your UniFi AC Mesh access point (UAP-AC-M).

161.70 161.7 AUD 161.70 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

Ubiquiti
UBIQUITI
UBIQUITI

Ubiquiti Inc. offers a wide range of networking solutions for service providers and enterprises, including fixed wireless broadband, wireless backhaul, routing, LAN infrastructure, and video surveillance. The company stands out through its proprietary software, advanced firmware, and innovative hardware design.

  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
SKU
UMA-D
Barcode
817882022736
Tags
UMA-D
Ubiquiti UMA-D High Efficiency Dual-Band Directional Mesh Antenna

Features

  • High-efficiency, dual-band directional antenna
  • Optimized for use with the UniFi AC Mesh AP (UAP-AC-M)
  • Extends range and shapes beamwidth for focused coverage
  • Weather-resistant enclosure for outdoor durability
  • Includes a 3-axis ball joint mount for precise aiming

Specifications

RF Characteristics
Frequency Range2.4 - 2.5 GHz
5.1 - 5.9 GHz
Gain (2.4 GHz)10 dBi
Gain (5 GHz)15 dBi
HPOL Beamwidth90° (2.4 GHz), 45° (5 GHz)
VPOL Beamwidth90° (2.4 GHz), 45° (5 GHz)
PolarizationDual-Linear
Mechanical
Mounting3-Axis Ball Joint Mount (Wall/Pole)
Connectors(2) RP-SMA
WeatherproofingOutdoor Rated
Dimensions201.3 x 128.0 x 32.5 mm
Weight400 g

Professional Overview

The Ubiquiti UMA-D is a specialized antenna accessory designed to dramatically enhance the performance and versatility of the UniFi AC Mesh access point (UAP-AC-M). Its purpose is to transform the standard omnidirectional coverage of the UAP-AC-M into a focused, high-gain directional beam. This makes it an indispensable tool for network architects and installers who need to precisely control their Wi-Fi coverage, extend range in a specific direction, or build robust Point-to-MultiPoint (PtMP) links.

The antenna's performance benefits are significant. By concentrating the RF energy, it delivers a high gain of 10 dBi on the 2.4 GHz band and 15 dBi on the 5 GHz band. This results in a much stronger, more reliable signal over longer distances compared to the AP's stock antennas. The defined beamwidth (90° on 2.4 GHz, 45° on 5 GHz) not only projects the signal where it's needed but also inherently improves noise immunity by ignoring interference from other directions, leading to a more stable and higher-capacity link.

Designed for seamless integration and professional deployment, the UMA-D is built to withstand harsh outdoor conditions with its rugged, weather-resistant enclosure. The UAP-AC-M access point mounts directly onto the rear of the antenna, creating a single, cohesive unit. A key feature is the included 3-axis ball joint mount, which allows for precise and flexible aiming of the antenna—a critical requirement for optimizing the performance of any directional link. The mount supports both wall and pole installation for maximum versatility.

The UMA-D is the perfect solution for a variety of challenging scenarios. Use it to beam a strong Wi-Fi signal from a building to cover a specific outdoor area like a courtyard or parking lot, or deploy it on a pole to create a powerful PtMP basestation serving multiple clients. For any UniFi Mesh network that requires customized coverage and extended range, the UMA-D is the definitive, professional-grade upgrade.
