RF Elements ULD-TP-400 UltraDish TP 400 24.5 dBi 5 GHz TwistPort Dish Antenna

Price:

$ 80.89


RF Elements UD-TP-21 UltraDish TP 21 21.2 dBi 5 GHz TwistPort Dish Antenna, 2-Pack
RF Elements UD-TP-21 UltraDish TP 21 21.2 dBi 5 GHz TwistPort Dish Antenna, 2-Pack
$ 375.14
$ 375.14
Grandstream WP822 Enterprise Portable WiFi Phone
Grandstream WP822 Enterprise Portable WiFi Phone
$ 142.42
$ 142.42

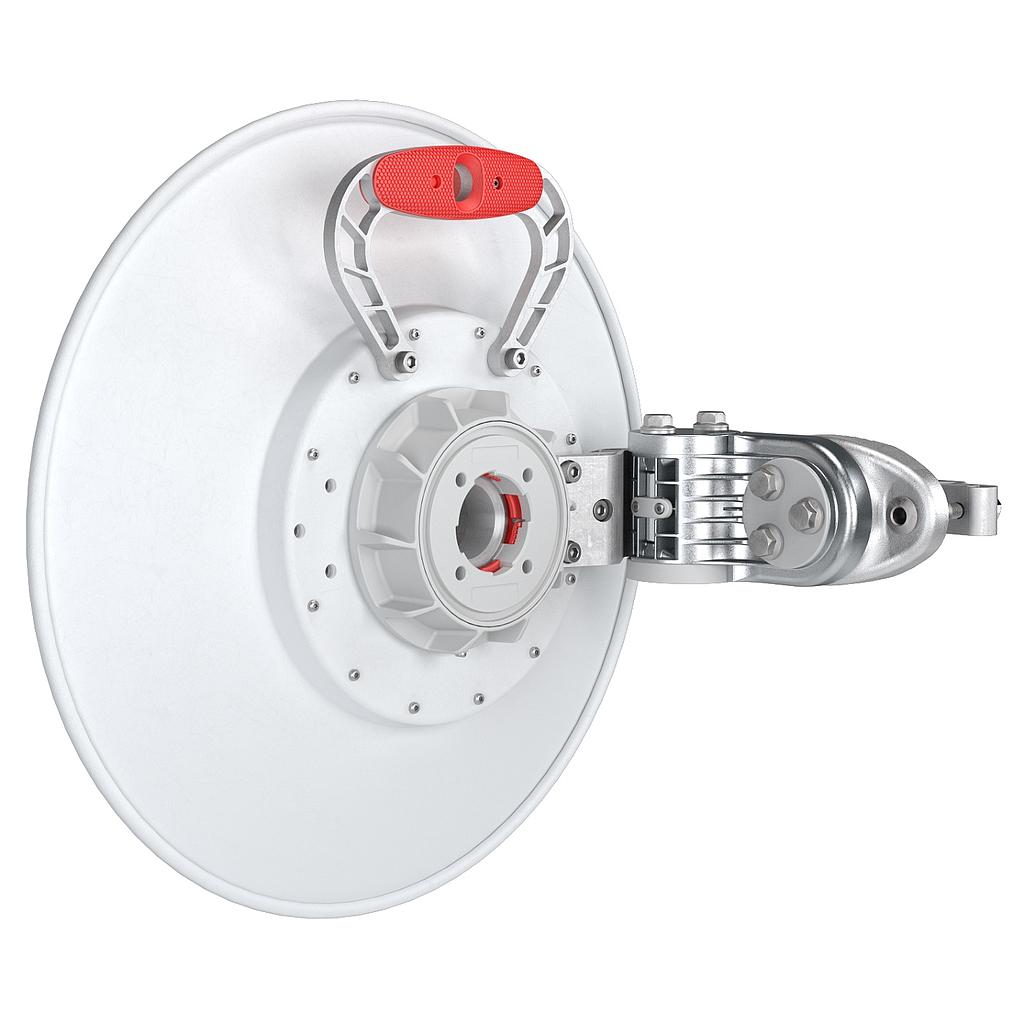

RF Elements ULD-TP-400 UltraDish TP 400 24.5 dBi 5 GHz TwistPort Dish Antenna

https://arcip.com.au/web/image/product.template/3600/image_1920?unique=860a48b

RF Elements UltraDish TP 400 (ULD-TP-400) is a 24.5 dBi parabolic dish antenna with the TwistPort quick-lock connector, covering 5180–6100 MHz with a 35 dB front-to-back ratio. Its mount fits 25–80 mm poles and swaps for left or right side mounting.

$ 80.89 80.89 AUD $ 80.89 incl. GST

Not Available For Sale


  • Brand
  • Frequency Band
  • Antenna Gain
  • Antenna Type
  • Connector
  • Mounting

This combination does not exist.

In stock online
5 GHz RF Elements Point-to-Point TwistPort Outdoor Antenna UltraDish Dish Antenna Backhaul
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
ULD-TP-400
Barcode
8588006459289
Tags

RF Elements ULD-TP-400 at a glance

The RF Elements ULD-TP-400 is the UltraDish TP 400: a 24.5 dBi parabolic dish with RF Elements' TwistPort quick-lock connector, covering 5180–6100 MHz. A 35 dB front-to-back ratio rejects interference from behind, and the mount fits 25–80 mm poles and can be swapped for left or right side mounting with one hex key.

ARC IP Networks is an authorised RF Elements reseller in Australia. We supply the genuine RF Elements UltraDish TP 400 at competitive prices, from Australian stock, with the full manufacturer's warranty and a GST tax invoice.

Gain24.5 dBi
Frequency5180–6100 MHz
Beamwidth −6 dB11°
Front-to-back35 dB
ConnectorTwistPort
Pole25–80 mm
Weight2.7 kg
RatingIP65

Best for

  • Subscriber links to horn or sector access points
  • Short 5 GHz point-to-point links
  • Small poles down to 25 mm

Consider instead

Key features

24.5 dBi parabolic dish, aluminium alloy reflector

5180–6100 MHz

35 dB minimum front-to-back ratio

TwistPort quick-lock waveguide connector

Mount fits 25–80 mm poles, left or right side

Works with any TwistPort adaptor or SIMPER radio

What's in the box

  • UltraDish TP 400 antenna with mount

RF Elements packs this antenna in cartons of four (ULD-TP-400-4PACK); the price shown is per antenna. TwistPort adaptors are sold separately.

RF Elements ULD-TP-400 specifications

Physical

Antenna ConnectionTwistPort™ - Quick Locking Waveguide Port
Antenna TypeParabolic Dish
EnvironmentalIP65
Pole Mounting Diameter25-80 mm (we recommend as close to 80 mm as possible)
Temperature-40 °C to +60 °C (-40°F to +140°F)
Wind Survival160 km/hour
Wind Loading156 N at 160 km/hour
Weight2.7 kg / 6 lbs - single unit (one antenna); 14 kg / 31 lbs - 4PACK (4 units) incl. package
Retail Box 4PACK450 x 450 x 390 mm / 17.7 x 17.7 x 15.3 inch
Product Dimensions407 mm reflector diameter (448 mm overall incl. mount); depth 315 mm (100 mm reflector section); mount 198 x 127 mm
Adjustment±25° elevation and ±21° azimuth shown in mount drawings

Performance

Gain24.5 dBi
Frequency Range5180 - 6100 MHz
PolarizationDual (separate H and V gain/patterns given)
Azimuth Beam Width -6 dBH 11° / V 11°
Elevation Beam Width -6 dBH 11° / V 11°
Azimuth Beam Width -3 dBH 7° / V 7°
Elevation Beam Width -3 dBH 7° / V 7°
Beam Efficiency (to first null)39%
Front-to-Back Ratio (Min)35 dB

Specifications from RF Elements' official product documentation for the ULD-TP-400, checked October 2026.

The RF Elements UltraDish TP 400 in depth

What it is

The UltraDish TP 400 is an earlier-generation RF Elements dish with the TwistPort connector, giving 24.5 dBi across 5180–6100 MHz with 11° beamwidth at −6 dB. It suits CPE and short point-to-point links.

Mounting

The mount fits poles from 25 to 80 mm and can be swapped for left or right side mounting with a single hex tool. RF Elements' drawings show about ±25° elevation and ±21° azimuth adjustment.

Availability

RF Elements lists the UltraDish TP 400 among its discontinued products. We sell remaining Australian stock while it lasts.

Frequently asked questions

Straight answers about the RF Elements UltraDish TP 400 from the ARC IP Networks team. Last reviewed October 2026.

The RF Elements UltraDish TP 400, a 24.5 dBi TwistPort parabolic dish for 5180–6100 MHz with a 35 dB front-to-back ratio.

RF Elements packs it in cartons of four (ULD-TP-400-4PACK). Our price is per antenna.

Any radio through an RF Elements TwistPort adaptor, and SIMPER radios directly.

RF Elements lists the UltraDish TP 400 among its discontinued products. We sell remaining Australian stock while it lasts; ask us about the current RF Elements replacement if you need more units.

ARC IP Networks is an authorised RF Elements reseller and supplies the genuine RF Elements ULD-TP-400 at competitive prices from Australian stock, with the full manufacturer's warranty and a GST tax invoice. Trade and project pricing is available.

Buy the RF Elements ULD-TP-400 in Australia

ARC IP Networks is an authorised RF Elements reseller, supplying genuine RF Elements horn, dish and sector antennas and TwistPort adaptors at competitive prices to ISPs, integrators and businesses across Australia.

  • Genuine RF Elements products, never grey import.
  • Australian stock with Australia-wide delivery.
  • Full manufacturer's warranty and local pre-sales help with antenna selection.
  • GST tax invoice on every order, with trade and project pricing available.

Building 5 GHz subscriber links?

Ask ARC IP Networks for project pricing or a configured quote, or call us to check the right RF Elements antenna for your network.

Brand RF Elements
Frequency Band 5.18-6.0 GHz
Antenna Gain 21 dBi
Antenna Type Parabolic Dish Lite
Connector TwistPort
Mounting Pole Mount
