Ubiquiti UP-Viewport UniFi Protect ViewPort HDMI

Price:

$ 361.37


Ubiquiti UACC-Pro-Bullet-Enhancer-B Pro Bullet Enhancer
Ubiquiti UACC-Pro-Bullet-Enhancer-B Pro Bullet Enhancer
$ 325.71
$ 350.90 (7% OFF)
Ubiquiti UACC-Rack-42U-1000-G 42U Rack Cabinet, 1,000 mm, Glass Door
Ubiquiti UACC-Rack-42U-1000-G 42U Rack Cabinet, 1,000 mm, Glass Door
$ 3,133.02
$ 3,377.55 (7% OFF)

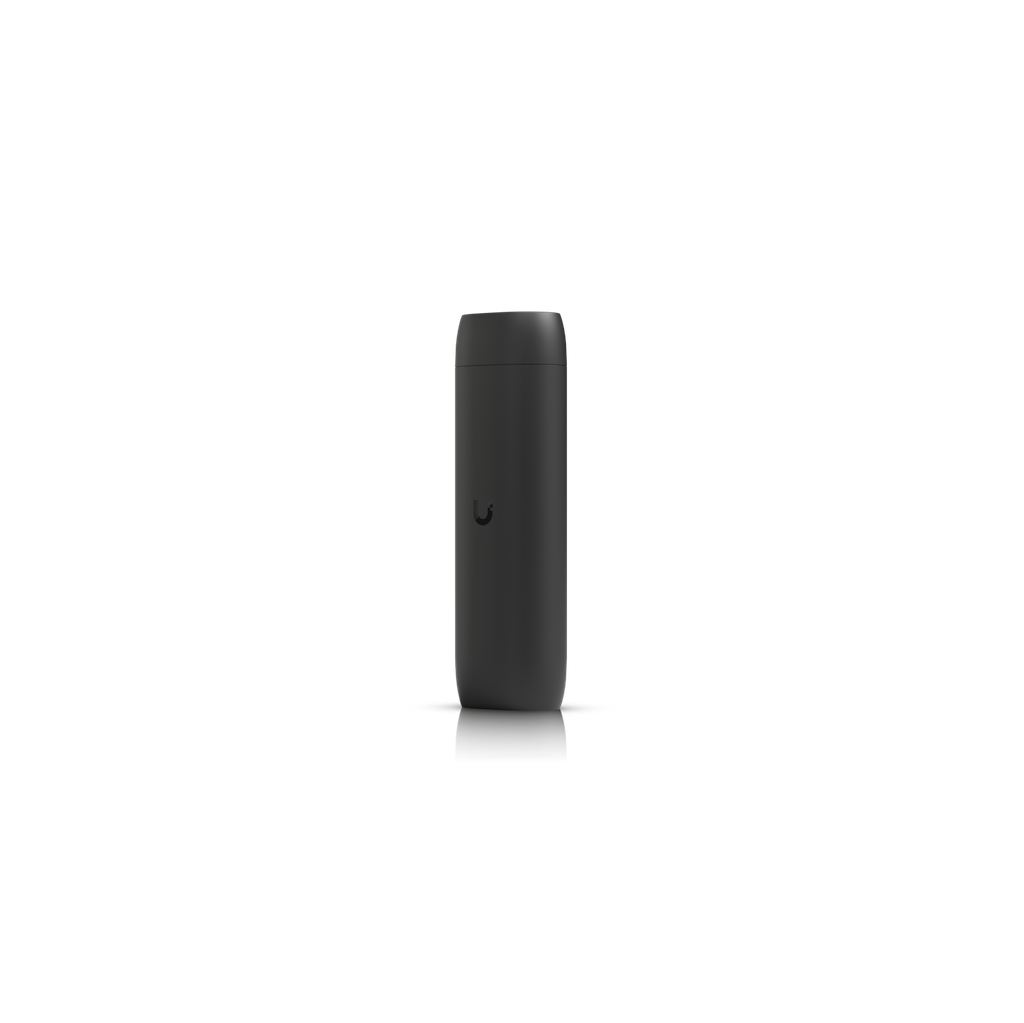

Ubiquiti UP-Viewport UniFi Protect ViewPort HDMI

https://arcip.com.au/web/image/product.template/7941/image_1920?unique=3a466d9

PoE-powered HDMI display adapter for UniFi Protect camera feeds. Single Ethernet cable for data and power, multi-camera grid layouts, fully managed via Protect app.

$ 361.37 361.37 AUD $ 398.20 incl. GST

Not Available For Sale


  • Brand
  • Form Factor
  • Port Speed
  • Ports
  • Network Connectivity
  • PoE Specification

This combination does not exist.

Ubiquiti UniFi Protect
UBIQUITI
UBIQUITI

Ubiquiti Inc. offers a wide range of networking solutions for service providers and enterprises, including fixed wireless broadband, wireless backhaul, routing, LAN infrastructure, and video surveillance. The company stands out through its proprietary software, advanced firmware, and innovative hardware design.

  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
UP-Viewport
Barcode
817882029575
Tags

Ubiquiti UP-Viewport at a glance

The Ubiquiti UP-Viewport (Protect Viewport) is an easy-to-use hub for viewing Protect camera feeds on an HDMI display. It supports 16-stream matrix view and HDMI video output up to 4K @ 30 FPS, and is connected and powered using PoE with a 9.5W maximum power consumption.

ARC IP Networks is an authorised Ubiquiti reseller in Australia. We supply the genuine UniFi Protect Viewport from Australian stock with the full manufacturer's warranty.

Video outputHDMI, up to 4K @ 30 FPS
Matrix view16-stream support
PowerPoE
Networking(1) GbE RJ45 port
Max. power9.5W
Dimensions157 x 52 x 37 mm
Operating temp0 to 40° C

Best for

  • Viewing Protect camera feeds on an HDMI display
  • Multi-camera monitoring with a 16-stream matrix view
  • Installations needing flexible mounting

Consider instead

  • Ubiquiti UNVR-Instant: a compact UniFi Protect NVR with an integrated HDMI View Port and a 6-port PoE switch
  • Ubiquiti UNVR-G2: a UniFi Protect NVR with built-in HDMI output and four HDD bays
  • Ubiquiti UNVR-G2-Pro: a UniFi Protect NVR with HDMI output and eight HDD bays for larger camera counts

Key features

Flexible mounting

16-stream matrix view support

Connect and power using PoE

HDMI video output up to 4K @ 30 FPS

Ubiquiti UP-Viewport specifications

Mechanical

Dimensions157 x 52 x 37 mm / (6.2 x 2.1 x 1.5")
WeightWithout mount: 230 g (8.1 oz) / With TV mount: 252 g (8.9 oz)
Enclosure MaterialPolycarbonate
Mount MaterialPolycarbonate

Hardware

Networking Interface(1) GbE RJ45 port
Power MethodPoE
Max. Power Consumption9.5W
ESD/EMP ProtectionAir: ± 8kV, contact: ± 4kV
Buttons(1) Factory reset
Ambient Operating Temperature0 to 40° C (32 to 104° F)
Ambient Operating Humidity20 to 80% noncondensing
CertificationsFCC, IC, CE

Software

Web ApplicationUniFi Protect
Mobile AppUniFi Protect iOS™ and Android™

Specifications from Ubiquiti's official product data for the UP-Viewport, checked October 2026.

The UniFi Protect Viewport in depth

A simple hub for Protect camera feeds

The Protect Viewport is an easy-to-use hub for viewing Protect camera feeds on an HDMI display. It supports a 16-stream matrix view, so multiple camera feeds can be shown on one screen, with HDMI video output up to 4K @ 30 FPS.

Power, connection and mounting

The Viewport connects to the network and is powered using PoE through its (1) GbE RJ45 port, with a maximum power consumption of 9.5W. It offers flexible mounting, and a TV mount is part of the design: the unit weighs 230 g without the mount and 252 g with the TV mount. The enclosure and mount are both polycarbonate, and the unit measures 157 x 52 x 37 mm.

Management and operating details

The Viewport is managed through UniFi Protect, with the web application and the UniFi Protect mobile app for iOS™ and Android™. It includes a factory reset button and ESD/EMP protection of Air: ± 8kV, contact: ± 4kV. Ambient operating range is 0 to 40° C at 20 to 80% noncondensing humidity.

Frequently asked questions

Straight answers about the UniFi Protect Viewport from the ARC IP Networks team. Last reviewed October 2026.

The Ubiquiti UP-Viewport is the Protect Viewport, an easy-to-use hub for viewing Protect camera feeds on an HDMI display. It supports 16-stream matrix view and HDMI output up to 4K @ 30 FPS.

It is connected and powered using PoE through its (1) GbE RJ45 port. Maximum power consumption is 9.5W.

It provides HDMI video output up to 4K @ 30 FPS, and supports a 16-stream matrix view.

It is managed through UniFi Protect, available as a web application and as a mobile app for iOS™ and Android™.

It measures 157 x 52 x 37 mm. It weighs 230 g without the mount and 252 g with the TV mount.

ARC IP Networks is an authorised Ubiquiti reseller and supplies the UP-Viewport from Australian stock with the full manufacturer's warranty.

Buy the Ubiquiti UP-Viewport in Australia

ARC IP Networks is an authorised Ubiquiti reseller supplying UniFi networking, WiFi, camera and access products to businesses, schools, MSPs and installers across Australia.

  • Genuine Ubiquiti: sourced through Ubiquiti's authorised Australian distribution.
  • Australian stock with the correct AU power supply where one is included.
  • Full manufacturer's warranty and local pre-sales and after-sales support.
  • Trade and project pricing available.

ARC IP Networks, authorised Ubiquiti reseller in Australia — Australian stock, manufacturer warranty, fast shipping, trade pricing.

Planning a UniFi Protect display setup with the Viewport?

Ask ARC IP Networks for project pricing or a configured quote, or call us to check the right model for your site.

Brand UBIQUITI
Form Factor Compact Desktop
Port Speed (1) GbE RJ45 + (1) HDMI
Ports 1 Port
Network Connectivity Wired
PoE Specification 802.3af PoE Input
