Ubiquiti UniFi UACC-Retrofit-PSU-12V — 12V DC / 5A (80W) Power Supply with Optional SLA Backup Battery Support for the UniFi Retrofit Hub (UA-Hub-Retrofit)
Ubiquiti UniFi UACC-Retrofit-PSU-12V — 12V DC / 5A (80W) Power Supply with Optional SLA Backup Battery Support for the UniFi Retrofit Hub (UA-Hub-Retrofit)
$ 184.25
$ 184.25
Ubiquiti UniFi UA-Retrofit-Reader (Black) — Indoor/Outdoor OSDP v2 Door Access Reader with NFC, Apple Touch Pass and BLE 4.1, IP55 Weatherproof (for UA-Retrofit-Hub-2)
Ubiquiti UniFi UA-Retrofit-Reader (Black) — Indoor/Outdoor OSDP v2 Door Access Reader with NFC, Apple Touch Pass and BLE 4.1, IP55 Weatherproof (for UA-Retrofit-Hub-2)
$ 367.40
$ 367.40

Ubiquiti UniFi UA-Retrofit-Hub-2 — UniFi Access 2-Door Retrofit Hub with Wiegand / OSDP Reader Support, 12/24V DC Lock Outputs, DIN Rail Mount (10,000 Users)

https://arcip.com.au/web/image/product.template/9732/image_1920?unique=7561d77

The Ubiquiti UA-Retrofit-Hub-2 (Access Retrofit Hub) is a DC-powered hub that supports Wiegand and OSDP readers and provides entry and exit control for up to two doors. It handles up to 10,000 users and has inputs for two third-party Wiegand or UniFi Retrofit readers, two door exit requests, two door position sensors and one emergency input, plus two lock and two AUX terminals. It runs on 12/24V DC, has two 10/100 MbE RJ45 ports, mounts on DIN rail (included), is for indoor use only and is managed in UniFi Access. Request a quote from ARC IP Networks for project pricing via Ubiquiti deal registration.

This product is supplied under the Ubiquiti Enterprise Program.


  • Brand
  • Connectivity
  • Door Access Form Factor
  • IP Rating
  • Display
  • Power Method
  • Reader Type
  • Intercom
  • Doors Supported
  • Max Users
  • Lock Output
  • Mount

This combination does not exist.

Indoor UniFi Ubiquiti Door Access UniFi Access DIN Rail 12V Hub Wiegand OSDP 2-Door 24V Retrofit 10000 Users Ubiquiti Enterprise Program
UBIQUITI
UBIQUITI

Ubiquiti Inc. offers a wide range of networking solutions for service providers and enterprises, including fixed wireless broadband, wireless backhaul, routing, LAN infrastructure, and video surveillance. The company stands out through its proprietary software, advanced firmware, and innovative hardware design.

  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
UA-Retrofit-Hub-2
Barcode
810177161677
Tags

Ubiquiti UA-Retrofit-Hub-2 at a glance

The Ubiquiti UA-Retrofit-Hub-2 (Access Retrofit Hub) is a DC-powered hub that supports Wiegand and OSDP readers and provides entry and exit control for up to two doors. It supports a maximum of 10,000 users and is powered by 12/24V DC. It is managed through the Access application.

ARC IP Networks is an authorised Ubiquiti reseller in Australia. We supply the genuine UniFi Access Retrofit Hub under the Ubiquiti Enterprise programme with the full manufacturer's warranty. Contact us before ordering for project pricing and lead time.

Supported doors2
Maximum users10,000
Power method12/24V DC
Reader supportWiegand and OSDP
Network ports(2) 10/100 MbE RJ45
Dimensions140 x 120 x 45 mm
UL 294Level I
Operating temp-10 to 40° C

Best for

  • Adding entry and exit control for up to two doors
  • Retrofitting third-party Wiegand readers or UniFi Retrofit Readers
  • Indoor installations managed through Access

Consider instead

💼

Ubiquiti Enterprise Program

The Ubiquiti Retrofit Hub (UA-Retrofit-Hub-2) is supplied under the Ubiquiti Enterprise Program. Please contact ARC IP Networks before ordering for project pricing and lead time.

Key features

See the UniFi Access Retrofit Hub




Introducing: UniFi Access Retrofit [Coming Soon] (Video: Ubiquiti)

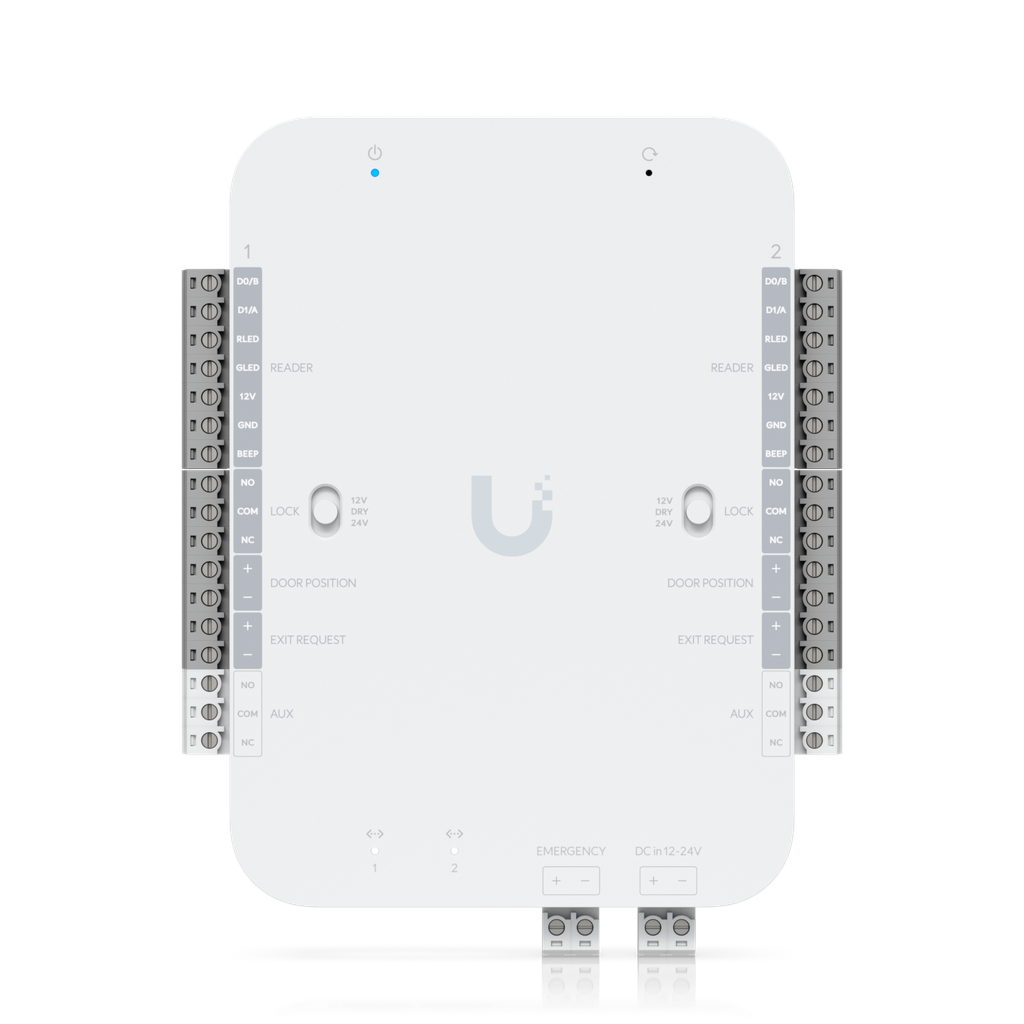

UA-Retrofit-Hub-2 Front + Terminals
UA-Retrofit-Hub-2 Wiring Diagram

Ubiquiti UA-Retrofit-Hub-2 specifications

Overview

Dimensions140 x 120 x 45 mm / (5.5 x 4.7 x 1.8")
Supported Doors2
Maximum User Count10,000
Input Terminals(2) Third-party Wiegand Reader / UniFi Retrofit Reader / (2) Door exit request / (2) Door position / (1) Emergency
Power Method12/24V DC
UL 294 LevelDestructive attack: Level I / Line security: Level I / Endurance: Level I / Standby power: Level I

Mechanical

Weight420 g (14.8 oz)
Enclosure MaterialPolycarbonate
Mount MaterialSGCC steel
MountingDin-rail (Included)

Hardware

Digital Input(2) Third-party Wiegand Reader / UniFi Retrofit Reader / (2) Door exit request / (2) Door position / (1) Emergency
Dry Output RelayLock: rated 30V DC, up to 1A / Aux: rated 30V DC, up to 1A
Powered Output Relay12V Lock: 12V DC, up to 1A / 24V Lock: 24V DC, up to 0.5A
Indoor and Outdoor UseIndoor only
Ambient Operating Temperature-10 to 40° C / (14 to 104° F)
Ambient Operating Humidity5 to 90% noncondensing
Networking Interface(2) 10/100 MbE RJ45 ports
Power SupplyDC 12/24V
Max. Power Consumption50W
Reader Power Output12V DC, up to 0.5A
LEDsW/B Learn More
Buttons(1) Factory reset / (2) 12V/Dry/24V switch
UA-Retrofit-Reader (250mA)18 UACC-Cable-DoorLockRelay length: 152.4 m (500 ft)
UA-Lock-Electric (400mA)24 AWG length: 25 m (82 ft) / 22 AWG length: 42 m (138 ft) / 20 AWG length: 66 m (217 ft) / 18 UACC-Cable-DoorLockRelay length: 100 m (328 ft)
UA-Lock-Magnetic-540kg (500mA)24 AWG length: 20 m (66 ft) / 22 AWG length: 32 m (105 ft) / 20 AWG length: 51 m (167 ft) / 18 UACC-Cable-DoorLockRelay length: 80 m (262 ft)
UA-Lock-Magnetic-270kg (800mA)24 AWG length: 12 m (39 ft) / 22 AWG length: 20 m (66 ft) / 20 AWG length: 30 m (98 ft) / 18 UACC-Cable-DoorLockRelay length: 46 m (151 ft)
Other locks (1A)24 AWG length: 9 m (30 ft) / 22 AWG length: 15 m (49 ft) / 20 AWG length: 24 m (79 ft) / 18 UACC-Cable-DoorLockRelay length: 36 m (118 ft)
PoE Cabling RequirementsCat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. / The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable.
UL 294 StatementCompliance with IEEE 802.3 specifications was not verified as part of UL 294. / The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
CAN/ULC-60839-11-1 GradeGrade assignment: I
CertificationsCE, FCC, IC, UL 294, CAN/ULC-60839-11-1
Document number, and issue date and/or revision levelUA-Retrofit-Hub-2, V01

Software

Management ApplicationAccess
Software InformationThe software version can be checked at https://unifi.ui.com

Specifications from Ubiquiti's official product data for the UA-Retrofit-Hub-2, checked October 2026.

The UniFi Access Retrofit Hub in depth

Two-door entry and exit control

The Access Retrofit Hub is a DC-powered hub that supports Wiegand and OSDP readers and provides entry and exit control for up to two doors. It supports up to 10,000 users and is managed through the Access application. Input terminals cover third-party Wiegand readers or UniFi Retrofit Readers (2), door exit request (2), door position (1 per record: 2) and an emergency input (1). It also includes 2 lock terminals, 2 AUX terminals and 2 additional inputs.

Power, outputs and networking

The hub is powered by 12/24V DC, with a maximum power consumption of 50W. It offers a reader power output of 12V DC, up to 0.5A. Lock outputs include dry relay (rated 30V DC, up to 1A) and powered output (12V DC up to 1A, or 24V DC up to 0.5A). Two 10/100 MbE RJ45 ports provide networking, and buttons include a factory reset and 12V/Dry/24V switches.

Build and compliance

The enclosure is polycarbonate with an SGCC steel mount, and a DIN-rail mount is included. The hub measures 140 x 120 x 45 mm and weighs 420 g. It is for indoor use only, with an ambient operating temperature of -10 to 40° C and humidity of 5 to 90% noncondensing. Certifications listed are CE, FCC, IC, UL 294 and CAN/ULC-60839-11-1.

Frequently asked questions

Straight answers about the UniFi Access Retrofit Hub from the ARC IP Networks team. Last reviewed October 2026.

The Ubiquiti UA-Retrofit-Hub-2 is the Access Retrofit Hub, a DC-powered hub that supports Wiegand and OSDP readers. It provides entry and exit control for up to two doors.

It supports 2 doors and a maximum of 10,000 users.

It uses a 12/24V DC power supply, with a maximum power consumption of 50W. It also provides a 12V DC reader power output of up to 0.5A.

No. The record lists the hub as indoor only, with an ambient operating temperature of -10 to 40° C.

Yes, DIN-rail mounting is included. The mount is made of SGCC steel and the enclosure is polycarbonate.

ARC IP Networks is an authorised Ubiquiti reseller. The UA-Retrofit-Hub-2 is part of the Ubiquiti Enterprise programme, so contact us for project pricing via Ubiquiti deal registration.

Buy the Ubiquiti UA-Retrofit-Hub-2 in Australia

ARC IP Networks is an authorised Ubiquiti reseller supplying UniFi networking, WiFi, camera and access products to businesses, schools, MSPs and installers across Australia.

  • Genuine Ubiquiti: sourced through Ubiquiti's authorised Australian distribution.
  • Ubiquiti Enterprise programme: project pricing via Ubiquiti deal registration.
  • Full manufacturer's warranty and local pre-sales and after-sales support.
  • Trade and project pricing available.

Planning a retrofit door access upgrade with the Access Retrofit Hub?

Ask ARC IP Networks for project pricing or a configured quote, or call us to check the right model for your site.

Brand UBIQUITI
Connectivity (2) 10/100 MbE RJ45
Door Access Form Factor Hub (DIN Rail)
IP Rating Indoor only
Display None
Power Method 12 / 24V DC, 50W max
Reader Type Wiegand + OSDP (third-party readers supported)
Intercom No
Doors Supported 2
Max Users 10,000
Lock Output Dry relay 30V/1A; Powered 12V/1A or 24V/0.5A
Mount DIN Rail (included)
