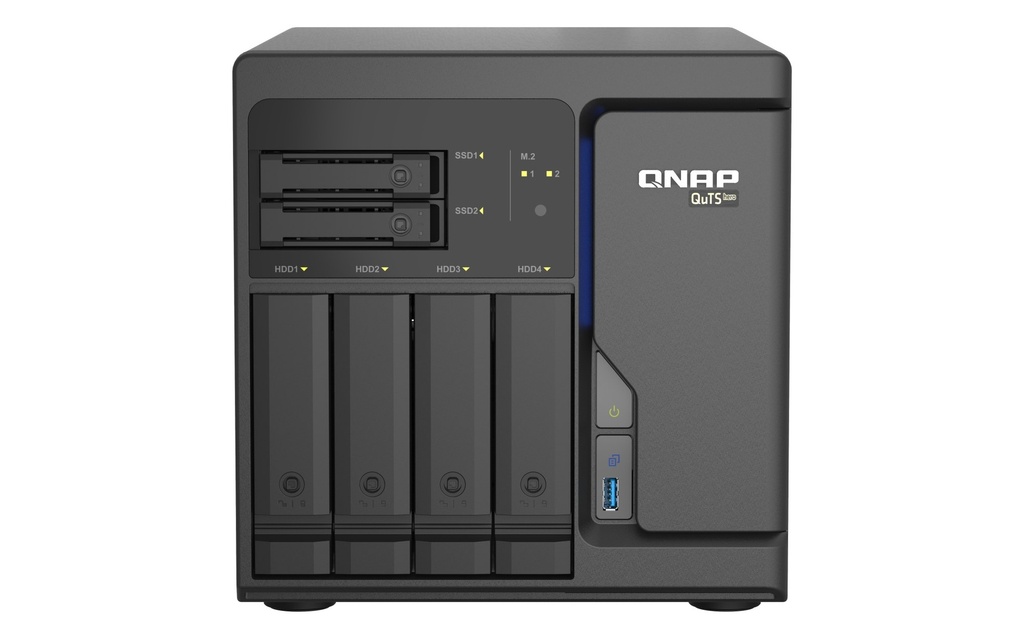

QNAP TS-H686-D1602-8G 6-Bay Tower NAS, Xeon D-1602, 8GB DDR4 ECC, 4 x 2.5GbE, Dual M.2 NVMe, QuTS hero

https://arcip.com.au/web/image/product.template/11540/image_1920?unique=874d354

QNAP TS-H686-D1602-8G 6-bay tower NAS running the ZFS-based QuTS hero operating system. Intel Xeon D-1602 2-core/4-thread processor up to 3.2 GHz, 8 GB DDR4 ECC memory expandable to 128 GB, 4 x 3.5-inch plus 2 x 2.5-inch SATA bays, 2 x M.2 NVMe PCIe Gen3 x4 slots, 4 x 2.5GbE ports, 2 x PCIe Gen3 x8 slots for 10GbE or 25GbE cards, 3 x USB 3.2 Gen 1, 250W PSU. Supports snapshots, SnapSync, inline deduplication and virtualisation. 3-year standard warranty. Genuine QNAP from ARC IP Networks, authorised QNAP reseller with Australian stock.

$ 2,203.59 2203.59 AUD $ 2,203.59 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
TS-H686-D1602-8G
Barcode
4713213518052

QNAP TS-H686-D1602-8G at a glance

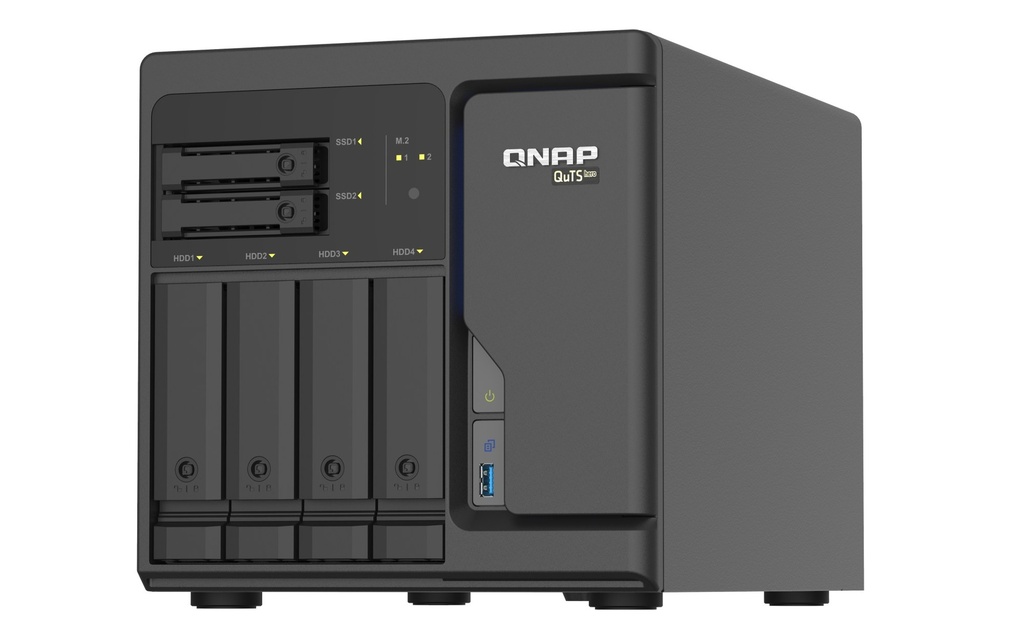

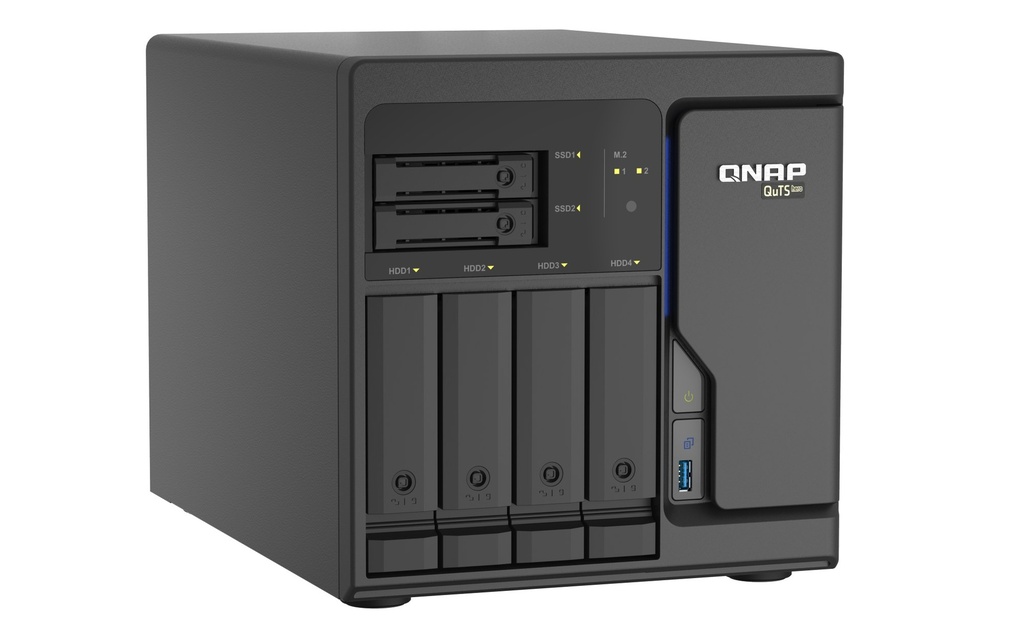

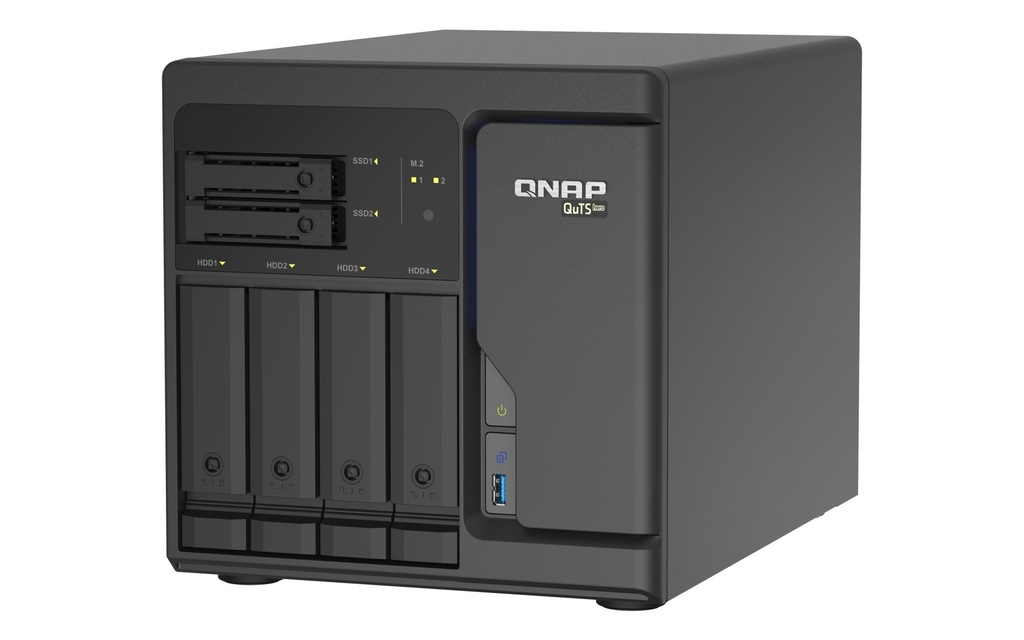

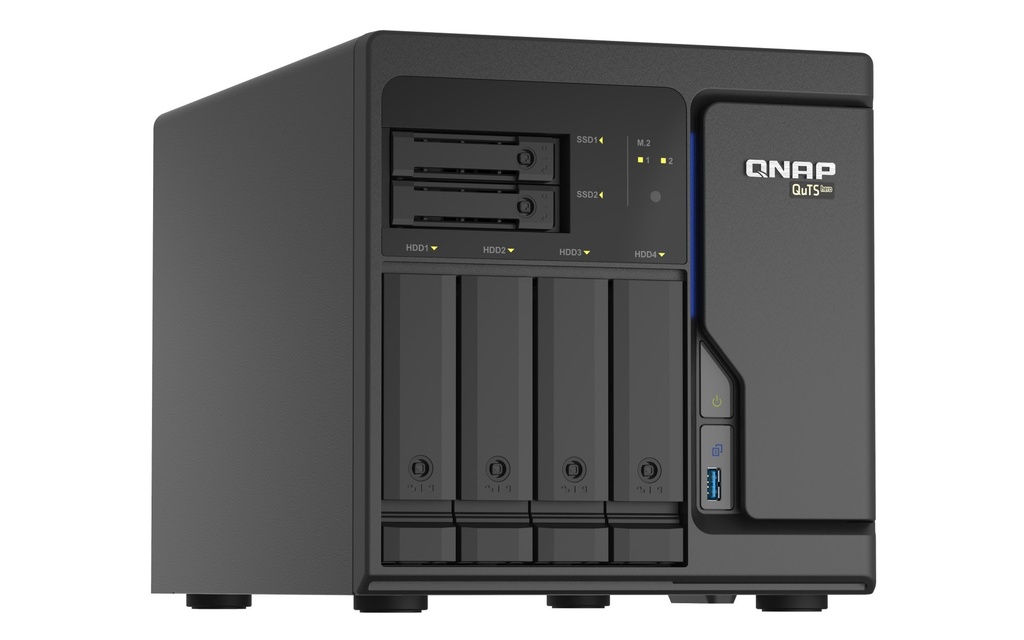

The QNAP TS-H686-D1602-8G is a 6-bay tower NAS (4 x 3.5-inch plus 2 x 2.5-inch SATA bays) built around the ZFS-based QuTS hero operating system. It has an Intel Xeon D-1602 2-core/4-thread processor up to 3.2 GHz, 8 GB DDR4 ECC memory expandable to 128 GB, four 2.5GbE ports, two M.2 NVMe Gen3 x4 slots and two PCIe Gen3 x8 slots.

ARC IP Networks is an authorised QNAP reseller in Australia. We supply the genuine QNAP TS-H686-D1602-8G from Australian stock, with a GST tax invoice on every order.

Drive bays4 x 3.5" + 2 x 2.5" SATA
CPUXeon D-1602 2-core
Memory8 GB ECC, max 128 GB
Network4 x 2.5GbE

Best for

  • Business file serving and backup with ZFS data integrity, snapshots and real-time SnapSync
  • Hosting virtual machines and containers with Virtualization Station and Container Station
  • Hybrid cloud storage with HybridMount and M.2 SSD local caching

Key features

Intel Xeon D-1602 2-core/4-thread processor up to 3.2 GHz with AES-NI encryption engine.

8 GB UDIMM DDR4 ECC memory in four slots, expandable to 128 GB (4 x 32 GB).

Four 3.5-inch SATA bays plus two 2.5-inch SATA SSD bays for hybrid storage and caching.

Two M.2 22110/2280 NVMe PCIe Gen3 x4 slots for SSD cache without using drive bays.

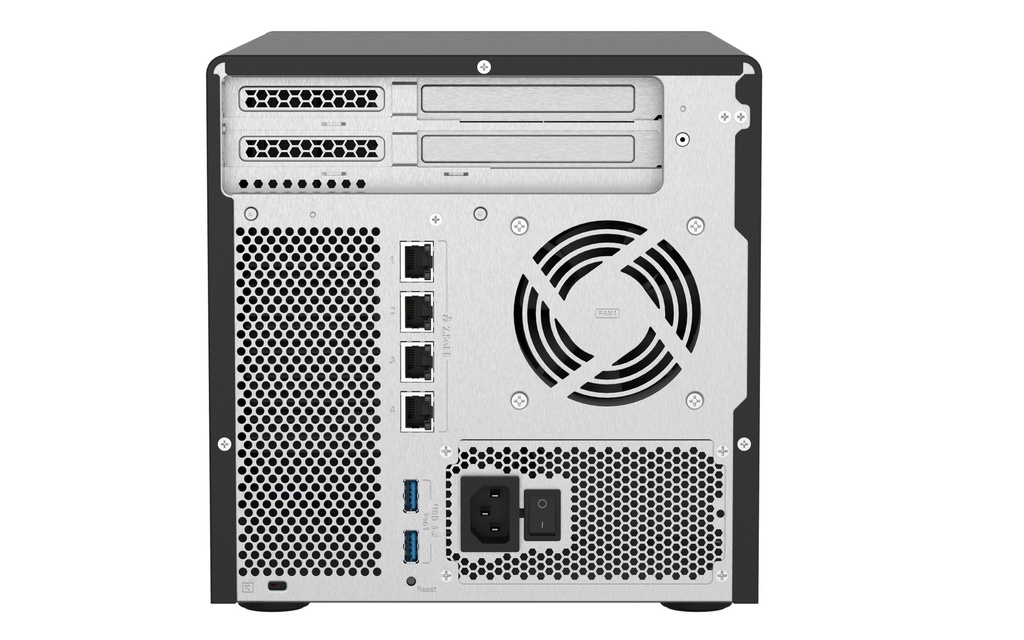

Four 2.5GbE ports with Port Trunking and failover, using existing CAT5e cabling.

Two PCIe Gen3 x8 slots for 5GbE/10GbE/25GbE/40GbE NICs, QM2 cards, graphics cards or QXP SATA expansion cards.

QuTS hero with self-healing, inline deduplication, compression and compaction, RAID Z and WORM support.

Real-time SnapSync, snapshots, Snapshot Replica and HBS for backup and disaster recovery.

Can switch to QTS to migrate drives from an existing QTS-based NAS.

3-year standard warranty, extendable up to 5 years.

QNAP TS-H686-D1602-8G specifications

QNAP TS-H686-D1602-8G technical specifications
SpecificationValue
Processor and memory
CPUIntel Xeon D-1602 2-core/4-thread, up to 3.2 GHz
CPU architecture64-bit x86
Encryption engineAES-NI
Hardware transcodingOptional via a PCIe adapter
System memory8 GB UDIMM DDR4 ECC
Maximum memory128 GB (4 x 32 GB)
Memory slots4 x UDIMM DDR4 (dual-DIMM configurations need a pair of identical modules)
Flash memory5GB (dual boot OS protection)
Storage
Drive bays4 x 3.5-inch SATA 6Gb/s, 3Gb/s + 2 x 2.5-inch SATA 6Gb/s, 3Gb/s (shipped without drives)
3.5-inch bay compatibility3.5-inch SATA HDD, 2.5-inch SATA HDD, 2.5-inch SATA SSD
2.5-inch bay compatibility2.5-inch SATA SSD
M.2 slots2 x M.2 22110/2280 NVMe PCIe Gen3 x4
Connectivity and expansion
2.5 Gigabit Ethernet4 (2.5G/1G/100M/10M)
5GbE / 25GbEOptional via an adapter
Wake on LAN2.5GbE ports
PCIe slots2 x PCIe Gen3 x8
PCIe card sizeSlot 1: 260 x 111.15 x 37.52 mm; Slot 2: 150 x 68.9 x 37.52 mm
USB 3.2 Gen 13
Physical and power
Form factorTower
Dimensions (H x W x D)225 x 224.9 x 319.8 mm (excluding foot pad)
Power supply250W PSU, 100-240V
Power consumption (operating, typical)61.115 W with drives fully populated
FansSystem: 1 x 97mm, 12VDC; CPU: 1 x 90mm, 12VDC
Operating temperature0 - 40 °C
Relative humidity5-95% RH non-condensing
Warranty
Standard warranty3 years

Figures from QNAP's official product page and hardware specifications.

The QNAP TS-H686-D1602-8G in depth

Xeon D with ECC memory

The TS-h686 pairs an Intel Xeon D-1600 series processor with DDR4 ECC memory that detects and corrects single-bit errors to help prevent downtime and data loss. This model ships with 8 GB and four DIMM slots take it to 128 GB for heavier workloads.

Hybrid storage and fast networking

Two 2.5-inch SSD bays and two M.2 NVMe slots let you add SSD caching for databases and virtual machines without giving up the four 3.5-inch bays. Four 2.5GbE ports support Port Trunking; in QNAP's testing over 4 x 2.5GbE the TS-h686 reached 1051 MB/s download and 965 MB/s upload SMB throughput.

QuTS hero data protection

QuTS hero combines QTS apps with the 128-bit ZFS file system for self-healing data integrity, inline data reduction, multi-level caching and RAID Z. Snapshots, real-time SnapSync and HBS 3 help build a 3-2-1 backup plan.

Frequently asked questions

Straight answers about the QNAP TS-H686-D1602-8G from the ARC IP Networks team. Last reviewed October 2026.

It has an Intel Xeon D-1602 2-core/4-thread processor up to 3.2 GHz and 8 GB UDIMM DDR4 ECC memory, expandable to 128 GB (4 x 32 GB).

Six: four 3.5-inch SATA bays and two 2.5-inch SATA SSD bays, plus two M.2 22110/2280 NVMe PCIe Gen3 x4 slots. It ships without drives.

Yes. It has two PCIe Gen3 x8 slots that accept 5GbE, 10GbE, 25GbE or 40GbE network cards and QM2 cards; four 2.5GbE ports are built in.

It is a QuTS hero NAS and can also be switched to QTS. QTS and QuTS hero use different file systems, so all drives must be removed before switching from QuTS hero to QTS.

QNAP provides a 3-year standard warranty, and a warranty extension can take coverage up to 5 years.

ARC IP Networks is an authorised QNAP reseller and supplies the TS-H686-D1602-8G from Australian stock with a GST tax invoice.
