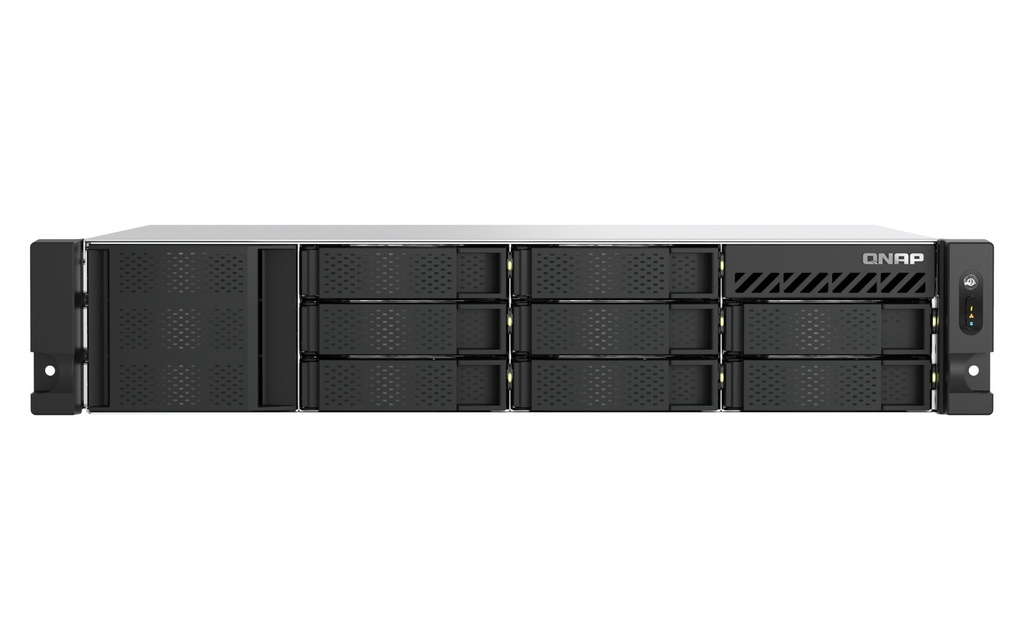

QNAP TS-855EU-RP-8G 8-Bay 2U Short Depth Rackmount NAS, Redundant PSU, Intel Atom C5125 8-Core, 8GB, 2 x 2.5GbE, 2 x M.2

Price:

$ 4,655.18


QNAP TS-855EU-8G 8-Bay 2U Short Depth Rackmount NAS, Intel Atom C5125 8-Core, 8GB, 2 x 2.5GbE, 2 x M.2, 2 x PCIe
QNAP TS-855EU-8G 8-Bay 2U Short Depth Rackmount NAS, Intel Atom C5125 8-Core, 8GB, 2 x 2.5GbE, 2 x M.2, 2 x PCIe
$ 3,589.28
$ 3,589.28
QNAP TS-873A-8G 8-Bay Tower NAS, AMD Ryzen V1500B Quad-Core, 8GB, 2 x 2.5GbE, 2 x M.2, 2 x PCIe Gen 3
QNAP TS-873A-8G 8-Bay Tower NAS, AMD Ryzen V1500B Quad-Core, 8GB, 2 x 2.5GbE, 2 x M.2, 2 x PCIe Gen 3
$ 2,579.48
$ 2,579.48

QNAP TS-855EU-RP-8G 8-Bay 2U Short Depth Rackmount NAS, Redundant PSU, Intel Atom C5125 8-Core, 8GB, 2 x 2.5GbE, 2 x M.2

https://arcip.com.au/web/image/product.template/8374/image_1920?unique=874d354

QNAP TS-855EU-RP-8G 8-bay 2U short depth rackmount NAS, 297.4 mm deep, shipped without drives. Intel Atom C5125 8-core 2.8GHz processor with AES-NI and Intel QuickAssist Technology, 8 GB DDR4 (max 64 GB, ECC supported), 5GB flash. 8 x 3.5-inch SATA 6Gb/s bays, 2 x M.2 2280 PCIe Gen 3 x4 NVMe slots, 2 x PCIe Gen 3 x4 slots for 10GbE/25GbE, SAS or Fibre Channel cards. 2 x 2.5GbE, 4 x USB 3.2 Gen 1. Redundant power supplies (minimum 300W x2). Snapshots, iSCSI, virtual machines and containers. 3 year standard warranty. Genuine QNAP from ARC IP Networks, authorised QNAP reseller with Australian stock.

$ 4,655.18 4655.18 AUD $ 4,655.18 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

In stock online
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
TS-855EU-RP-8G
Barcode
4711103083307

QNAP TS-855EU-RP-8G at a glance

The QNAP TS-855EU-RP-8G is a 2U short depth 8-bay rackmount NAS, 297.4 mm deep, with redundant power supplies and an Intel Atom C5125 8-core 2.8GHz processor with AES-NI and Intel QuickAssist Technology. It ships with 8 GB DDR4 (max 64 GB) and has two 2.5GbE ports, two M.2 2280 PCIe Gen 3 x4 NVMe slots and two PCIe Gen 3 x4 slots.

ARC IP Networks is an authorised QNAP reseller in Australia. We supply the genuine QNAP TS-855EU-RP-8G from Australian stock, with a GST tax invoice on every order.

Drive bays8 x 3.5-inch SATA
CPUAtom C5125 8-core 2.8GHz
Network2 x 2.5GbE
PowerRedundant PSUs (x2)

Best for

  • Compact offices, AV rooms and surveillance recording in shallow racks
  • File servers, high-speed backup/recovery and virtualisation
  • iSCSI storage for virtualisation and affordable Fibre Channel SAN

Key features

2U short depth chassis only 297.4 mm deep; the optional RAIL-S01 short rail kit mounts it in a 19-inch rack.

Redundant power supplies (minimum 300W x2) included for 24/7 system stability.

Intel Atom C5125 8-core 2.8GHz processor with AES-NI and Intel QuickAssist Technology (QAT) to offload compression and IPsec/SSL cryptography.

8 GB non-ECC DDR4 memory, expandable to 64 GB (2 x 32 GB) with ECC memory support.

Two 2.5GbE RJ45 ports with port trunking and failover over existing CAT5e cables.

Two M.2 2280 PCIe Gen 3 x4 NVMe slots for SSD caching, a QuTS hero system drive or an Edge TPU.

Two PCIe Gen 3 x4 slots for 5/10/25GbE network cards, SAS/SATA expansion cards or 16Gb Fibre Channel cards.

SR-IOV support with a compatible PCIe SmartNIC for virtualisation bandwidth allocation.

Block-based snapshots, iSCSI LUNs, virtual machines and containers.

QNAP TS-855EU-RP-8G specifications

QNAP TS-855EU-RP-8G technical specifications
SpecificationValue
Processor and memory
CPUIntel Atom C5125 8-core, 2.8GHz
CPU architecture64-bit x86
Encryption engineAES-NI
System memory8 GB non-ECC SODIMM DDR4
Maximum memory64 GB (2 x 32 GB)
Memory slots2 x SODIMM DDR4, ECC supported (identical pair required for dual-DIMM)
Flash memory5GB (dual boot OS protection)
Storage
Drive bays8 x 3.5-inch SATA 6Gb/s, 3Gb/s (shipped without HDD)
Drive compatibility3.5-inch SATA HDD, 2.5-inch SATA HDD, 2.5-inch SATA SSD
Hot-swappableYes (M.2 SSD not hot-swappable)
M.2 slots2 x M.2 2280 PCIe Gen 3 x4 (NVMe SSD)
Networking and expansion
2.5 Gigabit Ethernet2 (2.5G/1G/100M/10M)
5GbE / 10GbE / 25GbEOptional via a network adapter
Wake on LAN2.5GbE port only
PCIe slots2 x PCIe Gen 3 x4 (slot 1 card max. 97 x 68.9 x 18.76 mm; slot 2 card max. 210 x 68.9 x 18.76 mm)
USB 3.2 Gen 14
HDMI outputOptional via a PCIe graphics card
Physical
Form factor2U short depth rackmount
Dimensions (H x W x D)88.6 x 432 x 297.4 mm
LED indicatorsHDD 1-8, Status, LAN, USB, Power
ButtonsPower, Reset
Fan3 x 60mm, 12VDC
Power and environment
Power supplyMinimum 300W (x2) PSU, 100-240VAC (redundant)
Power consumption (disk standby)54.331 W
Power consumption (operating, typical)78.73 W (fully populated with WD10EFRX drives)
Operating temperature0 - 40 °C
Storage temperature-20 - 70 °C
Relative humidity5-95% RH non-condensing
Warranty and limits
Standard warranty3 years
Max. concurrent CIFS connections (max. memory)2500

Figures from QNAP's official product page and hardware specifications.

The QNAP TS-855EU-RP-8G in depth

8 bays in a short depth 2U chassis

At only 297.4 mm deep, the TS-855eU suits smaller racks, wall-mount AV cabinets and network cabinets, leaving room for cabling and ventilation. QNAP targets compact offices, audiovisual rooms and surveillance recording, and the optional RAIL-S01 kit fits standard 19-inch racks.

8-core Atom with QuickAssist

An Intel Atom C5125 8-core 2.8 GHz processor handles heavy, concurrent business workloads, with AES-NI and Intel QAT offloading compression and IPsec/SSL cryptography. Memory scales to 64 GB with ECC support, redundant power supplies help ensure 24/7 stability, and in QNAP's testing Windows file transfer over 2 x 2.5GbE reached 591 MB/s download.

M.2 and PCIe expansion

Two M.2 2280 PCIe Gen 3 x4 slots take NVMe SSDs for caching or a QuTS hero system drive, or a Coral Edge TPU for AI image recognition. Two PCIe Gen 3 x4 slots add 5/10/25GbE networking, SAS/SATA expansion for petabyte-scale capacity, or Fibre Channel for an affordable SAN.

Frequently asked questions

Straight answers about the QNAP TS-855EU-RP-8G from the ARC IP Networks team. Last reviewed October 2026.

It is a 2U short depth rackmount NAS measuring 88.6 x 432 x 297.4 mm (H x W x D). The optional RAIL-S01 short rail kit mounts it in a 19-inch rack.

It has an Intel Atom C5125 8-core 2.8GHz processor and 8 GB non-ECC DDR4 memory, expandable to 64 GB (2 x 32 GB); ECC RAM is supported but cannot be mixed with non-ECC RAM.

Yes. 5GbE, 10GbE and 25GbE are optional via a network adapter in one of the two PCIe Gen 3 x4 slots.

Yes. It has two M.2 2280 PCIe Gen 3 x4 slots for NVMe SSDs, usable for SSD caching or as a QuTS hero system drive.

Yes. QNAP includes redundant power supplies, listed as minimum 300W (x2), 100-240VAC. The standard warranty is 3 years.

ARC IP Networks is an authorised QNAP reseller and supplies the TS-855EU-RP-8G from Australian stock with a GST tax invoice.
