TP-Link TL-WA1801 AX1800 Gigabit Wi-Fi 6 Access Point

Price:

$ 125.74


TP-Link TL-SL1311MP 8-Port 10/100Mbps + 3-Port Gigabit Desktop Switch with 8-Port PoE+ (124 W)
TP-Link TL-SL1311MP 8-Port 10/100Mbps + 3-Port Gigabit Desktop Switch with 8-Port PoE+ (124 W)
$ 133.25
$ 171.39 (22% OFF)
TP-Link TL-WA801N 300Mbps Wireless N Access Point
TP-Link TL-WA801N 300Mbps Wireless N Access Point
$ 47.63
$ 61.26 (22% OFF)

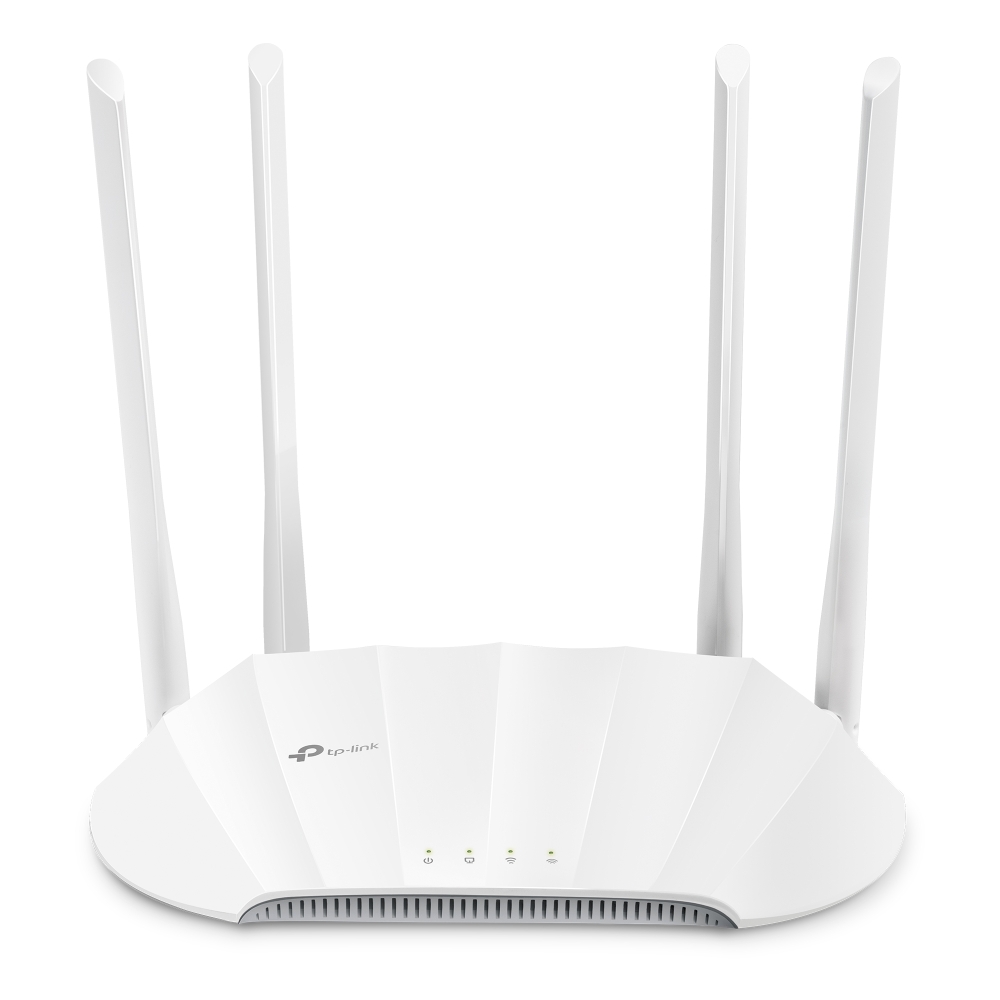

TP-Link TL-WA1801 AX1800 Gigabit Wi-Fi 6 Access Point

https://arcip.com.au/web/image/product.template/8232/image_1920?unique=fd476d6

The TP-Link TL-WA1801 is an AX1800 gigabit Wi-Fi 6 access point. It delivers 802.11ax Wi-Fi at 1201 Mbps on 5 GHz and 574 Mbps on 2.4 GHz through four antennas with beamforming, and has one gigabit port that supports passive PoE, with a PoE injector and 48 V adapter included. It supports Access Point, Range Extender, Client and Multi-SSID modes, up to four SSIDs and VLANs per band, captive portal, WPA3 and WPA/WPA2-Enterprise, SNMP and Ping Watchdog, and Tether app setup.

$ 125.74 125.74 AUD $ 161.73 incl. GST

Not Available For Sale


  • Brand
  • WiFi Standard

This combination does not exist.

WiFi 6 Access Point TP-Link
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
TL-WA1801
Barcode
4895252502022
Tags

The TP-Link TL-WA1801 is an AX1800 dual-band Wi-Fi 6 access point with up to 1201 Mbps on 5 GHz and 574 Mbps on 2.4 GHz. It has four antennas with beamforming, a gigabit port with passive PoE and an included injector, Access Point, Range Extender, Client and Multi-SSID modes, captive portal, WPA3 and WPA/WPA2-Enterprise, and setup in the Tether app.

TL-WA1801 overview

The TL-WA1801 brings Wi-Fi 6 to TP-Link's TL-WA access point range. TP-Link describes 802.11ax as potentially the most significant advancement in Wi-Fi, with a large boost in speed and total capacity, and the TL-WA1801 delivers it at AX1800: 1201 Mbps on 5 GHz and 574 Mbps on 2.4 GHz, or about 1.8 Gbps combined, for browsing, streaming and downloading at the same time. TP-Link positions the 5 GHz band for Ultra-HD streaming and online gaming and the 2.4 GHz band for everyday tasks such as email and browsing. Its chart compares the 2x2 Wi-Fi 6 5 GHz link against 867 Mbps for 2x2 Wi-Fi 5 and 433 Mbps for 1x1 Wi-Fi 5.

Coverage comes from four antennas with beamforming, which concentrate Wi-Fi signals towards your devices to reach every corner of the home or office, even over long distances. The single gigabit port carries both the uplink and, with passive PoE, the power: the box includes a PoE injector and a 48 V 0.375 A power adapter, so you can mount the access point where the signal is needed with one Ethernet cable. TP-Link says the elegant housing attaches to any wall or desktop; it measures 225 x 145.5 x 37 mm, with power, WPS and reset buttons.

The four modes work as on other TL-WA models: Access Point (default) to add Wi-Fi to a wired network, Multi-SSID with up to four separate SSIDs and VLANs per band for departments with different access policies, Range Extender to repeat an existing wireless signal, and Client mode to connect a wired game console or IPTV box to Wi-Fi. A captive portal gives small businesses such as cafes and salons a guest page with an advertisement or terms. Security steps up to WPA, WPA2, WPA3 and WPA/WPA2-Enterprise, with WPA3 needing client support.

Management is through a web page or TP-Link's free Tether app for Android and iOS. System tools include SNMP and Ping Watchdog, and there is a DHCP server with client list, WMM QoS, access control, wireless statistics, and IPv4 and IPv6. The TL-WA1801 operates from 0 °C to 40 °C. In the box are the TL-WA1801, a power adapter, a PoE power injector, an RJ45 Ethernet cable and a quick installation guide.

Key features

AX1800 Wi-Fi 6

1201 Mbps on 5 GHz and 574 Mbps on 2.4 GHz.

Beamforming

Four antennas concentrate signal towards devices.

Gigabit with passive PoE

48 V PoE injector included for one-cable installs.

Four operating modes

Access Point, Range Extender, Client and Multi-SSID.

Up to 4 SSIDs per band

Each SSID can map to its own VLAN.

WPA3 and Enterprise

WPA, WPA2, WPA3 and WPA/WPA2-Enterprise.

Captive portal

Guest portal pages for cafes, salons and shops.

Tether app

Set up and manage from Android or iOS.

SNMP and Ping Watchdog

Monitoring tools for small networks.

TL-WA1801 specifications

At a glance

AX1800 Wi-Fi 6
1201 Mbps (5 GHz)
574 Mbps (2.4 GHz)
4 antennas
Gigabit + passive PoE
Multi-SSID + VLAN
WPA3 / Enterprise
Tether app
TL-WA1801 full specifications
Hardware Features
Interface1 Gigabit Port (Supports Passive PoE)
ButtonPower On/Off Button, WPS Button, Reset Button
External Power Supply48V/0.375A
Dimensions ( W x D x H )8.9×5.7×1.5 in (225×145.5×37mm)
Antenna4 Antennas
Software Features
Quality of ServiceWMM
Operating ModesAccess Point, Range Extender, Client, Multi-SSID
System ToolsSNMP, Ping Watchdog
DHCPServer, DHCP Client List
ProtocolsIPv4, IPv6
Wireless Features
Wireless StandardsIEEE802.11b/g/n/ax 2.4 GHz, IEEE 802.11a/n/ac/ax 5 GHz
Frequency2.4 GHz and 5 GHz
Signal Rate1201 Mbps at 5 GHz 574 Mbps at 2.4 GHz
Reception Sensitivity5GHz: 11a 6Mbps: -97dbm 11a 54Mbps:-76dbm 11ac VHT20_MCS0: -96dbm 11ac VHT20_MCS8: -72dbm 11ac VHT40_MCS0: -93dbm 11ac VHT40_MCS9: -67dbm 11ac VHT80_MCS0: -90dbm 11ac VHT40_MCS9:-63dbm 11ax HE20_MCS0:-96dbm 11ax HE20_MCS11: -65dbm 11ax HE40_MCS0: -93dbm 11ax HE40_MCS11: -61dbm 11ax HE80_MCS0: -90dbm 11ax HE80_MCS11:-60dbm 2.4GHz: 11g 6Mbps:-96dbm 11a 54Mbps:-75dbm 11ac VHT20_MCS0:-95dbm 11ac VHT20_MCS8:-72dbm 11ac VHT40_MCS0:-92dbm 11ac VHT40_MCS9: -67dbm 11ax HE20_MCS0:-95dbm 11ax HE20_MCS11: -65dbm 11ax HE40_MCS0: -92dbm 11ax HE40_MCS11: -62dbm
Wireless FunctionsEnable/Disable Wireless Radio, WMM, Wireless Statistics, Access Control
Wireless SecurityWPA, WPA2, WPA3, WPA/WPA2-Enterprise encryptions
Transmission PowerFCC: <30dBm(2.4 GHz & 5.15 GHz~5.825 GHz)
Other
Network Services Enabled by DefaultWeb Server; Manage and configure device through web (HTTP/HTTPS); Port: 80/443 Protocol: TCP; DNS; DNS; Port: 53 Protocol: TCP & UDP; DHCP Server; IP address assignment (DHCP); Port: 67 Protocol: UDP; App management; Manage and configure device through app; Port: 20001 Protocol: TCP; Port: 30001 Protocol: TCP; Port: 20002 Protocol: UDP
Others
CertificationFCC
System RequirementsInternet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
EnvironmentOperating Temperature: 0°C ~ 40°C(32°F ~ 104°F) Operating Humidity: 10%~90% non-condensing

Source: TP-Link's published specifications for this model (TP-Link Australia product page). throughput figures are TP-Link's lab results. TP-Link may change specifications without notice.

What's in the box

  • Wireless Access Point TL-WA1801 Power Adapter RJ45 Ethernet Cable Quick Installation Guide PoE Power Injector

Source: TP-Link's published package contents.

Who the TL-WA1801 is for

Upgrading an office to Wi-Fi 6

  • AX1800 dual band
  • WPA/WPA2-Enterprise
  • Multi-SSID with VLANs

Customer Wi-Fi

  • Captive portal
  • Separate guest SSID
  • One-cable PoE install

TL-WA1801 compared

The TL-WA1801 is the AX1800 Wi-Fi 6 model in TP-Link's TL-WA access point range, below the AX3000 TL-WA3001.

SpecificationTL-WA801NTL-WA1201TL-WA1801TL-WA3001
Wi-Fi300 Mbps Wi-Fi 4, 2.4 GHzAC1200 Wi-Fi 5AX1800 Wi-Fi 6AX3000 Wi-Fi 6
5 GHz / 2.4 GHz- / 300 Mbps867 / 300 Mbps1201 / 574 Mbps2402 / 574 Mbps
Ethernet port10/100 MbpsGigabitGigabitGigabit
Antennas2 fixed omni4 fixed44 fixed
Passive PoE injectorIncludedIncludedIncludedIncluded
Dimensions181.6 x 129.5 x 36.2 mm225 x 145.5 x 37 mm225 x 145.5 x 37 mm240 x 165 x 43.6 mm

Source: TP-Link Australia product pages for each model.

Buy the TL-WA1801 from ARC IP Networks

ARC IP Networks supplies TP-Link products from Australian stock at competitive prices, with the full manufacturer's warranty, Australia-wide delivery and trade pricing for installers and MSPs.

  • New TP-Link product from Australian stock.
  • Manufacturer warranty: the full TP-Link manufacturer's warranty for this model.
  • Australia-wide delivery to every state and territory.
  • Trade and project pricing: call 1300 100 440 or email info@arcip.com.au.

Frequently asked questions

Straight answers about the TL-WA1801 from the ARC IP Networks team.

Last reviewed October 2026.

Up to 1201 Mbps on 5 GHz and 574 Mbps on 2.4 GHz with Wi-Fi 6, about 1.8 Gbps combined.

It supports passive PoE on its gigabit port, and a PoE injector is included.

Access Point (default), Range Extender, Client and Multi-SSID.

Yes. Security includes WPA, WPA2, WPA3 and WPA/WPA2-Enterprise.

Yes, with the free TP-Link Tether app for Android and iOS.

In Multi-SSID mode it supports up to four separate SSIDs and VLANs on each band.

Yes, for guest access pages showing an advertisement or terms.

Both are Wi-Fi 6. The TL-WA1801 is AX1800 (1201 Mbps on 5 GHz); the TL-WA3001 is AX3000 with 2402 Mbps on 5 GHz.

The TL-WA1801, a power adapter, a PoE power injector, an RJ45 Ethernet cable and a quick installation guide.
