TP-Link VIGI C540V 4MP Outdoor Full-Colour Dual-Lens Varifocal Pan Tilt Network Camera

https://arcip.com.au/web/image/product.template/9449/image_1920?unique=e2aa55b

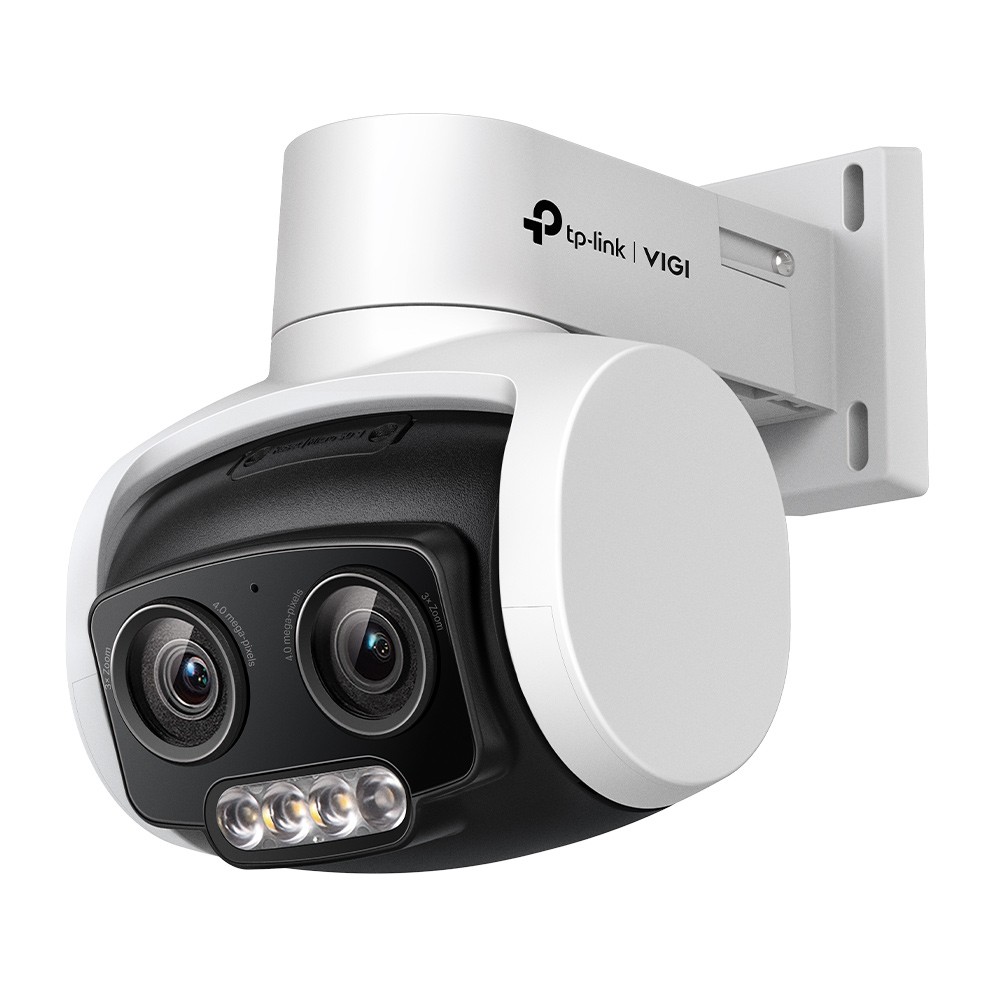

The TP-Link VIGI C540V is a 4MP outdoor full-colour dual-lens varifocal pan tilt network camera. Switching between its short and long lenses gives 3x mixed zoom, with DORI distances of 80 m detect and 8 m identify at 4 mm, and 150 m detect and 15 m identify at 8 mm. It pans 0 to 332° and tilts 0 to 120°, stores 300 presets and 8 patrols, and tracks people and vehicles. Three white LEDs and one IR LED reach 30 m, with two-way audio, a microSD slot, IP66 and 802.3at PoE or 12 V DC power. Supplied by ARC IP Networks with the full manufacturer's warranty.

$ 199.68 199.68 AUD $ 199.68 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

In stock online
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
TL-VIGI-C540V
Barcode
4895252500837

The TP-Link VIGI C540V is a 4MP outdoor full-colour pan tilt camera with two lenses instead of one. It switches between a short and a long lens for 3x mixed zoom (4 to 12 mm listed), with VIGI DORI figures of 80 m detect at 4 mm and 150 m detect at 8 mm. It pans 0 to 332 degrees and tilts 0 to 120 degrees, tracks people and vehicles, and adds three white LEDs and one IR LED to 30 m, two-way audio, a microSD slot, IP66 and 802.3at PoE.

VIGI C540V overview

Unlike the single fixed-lens C540-W and C540-4G, the VIGI C540V has two lenses, a short and a long one, and switches between them for zoom. VIGI lists the focal length as 4 to 12 mm (mixed zoom) and the zoom as 3x mixed zoom, at F1.6. TP-Link says zooming is instantaneous, without lag or image dragging, thanks to its own algorithm; that the zoom is completely noiseless because no extra mechanical moving components are needed; and that switching seamlessly between the long and short lens reduces lens wear, so the camera is less likely to fail or tremble outdoors. VIGI publishes DORI distances at two focal lengths: at 4 mm, detect 80 m, observe 33 m, recognise 16 m and identify 8 m; at 8 mm, detect 150 m, observe 63 m, recognise 30 m and identify 15 m. The listed field of view is 84 degrees horizontal, 46 degrees vertical and 100 degrees diagonal.

The pan tilt head moves 0 to 332 degrees in pan and 0 to 120 degrees in tilt, at configurable speeds of 8 to 44 degrees per second (preset speed 44 degrees per second), with manual control at 8 to 35 degrees per second. It stores 300 presets and 8 patrols of up to 8 presets each, and offers power-off memory, park action and 3D positioning. Automatic tracking continues following specified moving persons or vehicles while the camera analyses the image.

For colour after dark, the C540V has three white LEDs and one 850 nm IR LED, all rated to 30 m, with an IR-cut filter and a minimum illumination of 0.005 lux (0 lux with IR or white light). TP-Link says it monitors clear and colourful details 24 hours a day using its large-aperture lens, high-sensitivity sensor and supplemental lights. The sensor is a 1/3-inch progressive scan CMOS, and video reaches 2560 x 1440 with H.265+, H.265, H.264+ or H.264 at 256 Kbps to 4 Mbps on the main stream.

Human and vehicle classification separates people and vehicles from other objects, and detection rules cover area intrusion, line-crossing, region entering and exiting, object abandoned and removal, abnormal sound, people and vehicle detection. Active Defence warns intruders with sound and light, and two-way audio uses the built-in microphone and speaker. Alarm actions include memory card recording to the built-in microSD slot (listed at up to 512 GB in the spec table). The C540V runs on 802.3at PoE (class 4, max 16 W) or 12 V DC (max 14 W), is rated IP66, measures 107 x 136 x 139 mm, weighs 0.43 kg and operates from -30 to 60 degrees C. It is managed with the VIGI app, VIGI Security Manager or web UI, with ONVIF Profile S.

Key features

Dual-lens 3x mixed zoom

Switches between a short and a long lens; 4-12 mm listed, F1.6.

Instant, quiet zoom

No lag or image dragging, and no extra mechanical moving parts for zoom.

DORI to 150 m

At 8 mm: detect 150 m, identify 15 m. At 4 mm: detect 80 m, identify 8 m.

Pan 332°, tilt 120°

Speeds configurable from 8 to 44°/s.

300 presets, 8 patrols

With power-off memory, park action and 3D positioning.

Automatic tracking

Follows specified moving people or vehicles.

Full colour to 30 m

Three white LEDs and one IR LED.

Two-way audio and Active Defence

Sound and light warnings with a built-in mic and speaker.

802.3at PoE, IP66

Class 4 PoE at up to 16 W, or 12 V DC.

VIGI C540V specifications

At a glance

4MP (2560 x 1440)
Dual lens, 3x mixed zoom
Detect 150 m at 8 mm
Pan 332° / tilt 120°
300 presets, auto tracking
3 white + 1 IR LED, 30 m
Two-way audio, microSD
802.3at PoE, IP66
VIGI C540V full specifications
Camera
Image Sensor1/3” Progressive Scan CMOS
Shutter Speed1/3 to 1/10000 s
Slow ShutterYes
Minimum Illumination0.005 Lux; 0 Lux with IR/white light
Day/Night MechanismIR Cut Filter
Day/Night SwitchUnified/ Scheduled/ Auto
Zoom3x Mixed Zoom
Lens
Focal Length4-12 mm (Mixed Zoom)
ApertureF1.6
FOVDiagonal FOV: 100°, Horizontal FOV: 84°, Vertical FOV: 46°
Lens MountM12 P 0.5
DORI Distance4 mm Detect: 80 m (262 ft) Observe: 33 m (109 ft) Recognize: 16 m (52 ft) Identify: 8 m (26 ft); 8 mm Detect: 150 m (493 ft) Observe: 63 m (205 ft) Recognize: 30 m (98 ft) Identify: 15 m (49 ft)
Ptz
Pan/tilt RangePan: 0° to 332°, Tilt: 0° to 120°
Pan/tilt SpeedPan Speed: Configurable from 8° to 44°/s; Preset Speed: 44°/s Tilt Speed: Configurable from 8° to 44°/s, Preset Speed 44°/s
Manual Control SpeedConfigurable from 8° to 35°/s
Presets300
Patrol Scan8 patrols, up to 8 presets for each patrol
Power-off MemoryYes; Auto restore to previous PTZ and lens status after power failure
Park ActionYes; Preset; Patrol Scan
3D PositioningYes
Angle Adjustment (Manual)
RangePan: 0° to 332°, Tilt: 0° to 120°
Illuminator
IR LEDQuantity: 1 Range: 30m Wavelength: 850nm
White LEDQuantity: 3 Range: 30m
Illuminator On/Off ControlAuto/Scheduled/Always on/Always off
Video
Max. Resolution2560 X 1440
Main StreamFrame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 2560x1440, 2304x1296, 2048x1280, 1920x1080,1280x720
Sub-StreamFrame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 640x480, 352x288, 320x240
Bit Rate ControlCBR, VBR
Video CompressionMain Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264
H.264 TypeMain Profile/High Profile
H.264+Main Stream Supported
H.265 TypeMain Profile
H.265+Main Stream Supported
Video Bit RateMain Stream: 256 Kbps to 4 Mbps Sub-Stream: 64 Kbps to 512 Kbps
Image SettingsMirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software
Image EnhancementBLC/3D DNR/HLC/SmartIR
Wide Dynamic RangeDWDR
SNR≥ 52 dB
Image Parameters SwitchYes
Privacy MaskUp to 4 Masks
ROI1 Region
OSD SettingYes
Audio
Audio CommunicationTwo-Way Audio
Audio InputYes
Audio OutputYes
Audio CompressionYes
Audio Sampling Rate8KHz
Environment Noise FilteringYes
Audio Bit Rate64 Kbps(G.711 alaw)
Network
ProtocolTCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
ONVIFYes
APIOpen Network Video Interface (Profile S)
Simultaneous Live View3 Main Streams & 3 Sub-Streams
ClientVIGI App, VIGI Security Manager, Web UI
Web BrowserGoogle Chrome 57 and above Firefox 52 and above Safari 11 and above Microsoft Edge 91 and above
CloudYes
SecurityPassword Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
Alarm And Event Management
Smart EventArea Intrusion Detection; Line-Crossing Detection; People Detection; Vehicle Detection; Region Entering Detection; Region Exiting Detection; Object Abandoned Detection; Object Removal Detection; Abnormal Sound Detection
Basic EventMotion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts); Video Tampering Detection; Exception ( Illegal Login)
Alarm LinkageMemory Card Video Recording, Message Push, Audible Warning, White Light Flashing
Linkage MethodN/A
Output NotificationMessage Push
Interfaces
Network Interface1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
AlarmN/A
Reset ButtonYes
PowerDC Power Port
On-board StorageBuilt-In Memory Card Slot, Support MicroSD Card, up to 512 GB
Built-in MicrophoneYes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera
Built-in SpeakerYes
AudioN/A
General
Operating Temperature-30–60 °C
Storage Temperature-40–60 °C
Operating Humidity95% or Less (Non-Condensing)
Storage Humidity95% or Less (Non-Condensing)
MaterialPlastic
Net Weight0.43 Kg
Gross Weight0.66 Kg
Power Supply12V DC ± 5%, Max. 14 W, 5.5mm Coaxial Power Plug PoE: 802.3at, class 4, Max. 16 W
ProtectionIP66
Product Dimensions (L x W x H)107× 136× 139 mm
CertificationsCE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC

Source: TP-Link's published specifications for this model (TP-Link Australia product page). throughput figures are TP-Link's lab results. TP-Link may change specifications without notice.

What's in the box

  • VIGI Network Camera Quick Start Guide Waterproof Cable Attachments Mounting Accessories

Source: TP-Link's published package contents.

Who the VIGI C540V is for

Zoom without moving parts

  • Dual-lens 3x mixed zoom
  • Instant, noiseless switching
  • Detect at 150 m at 8 mm

Pan tilt coverage

  • 332° pan, 120° tilt
  • Patrol routes
  • Automatic tracking

Single-cable install

  • 802.3at PoE, class 4
  • IP66 outdoor rating
  • microSD onboard storage

VIGI C540V compared

The C540V adds a second lens and 3x mixed zoom to the C540 pan tilt design. Here it is set against the Wi-Fi C540-W, from each model's VIGI page.

VIGI C540VVIGI C540-W(4mm)
LensDual lens, 4-12 mm mixed zoomSingle 4 mm fixed
DORI detect80 m (4 mm) / 150 m (8 mm)80 m
Pan / tilt0-332° / 0-120°0-350° / 0-120°
White / IR LEDs3 / 1, 30 m2 / 2, 30 m
Connection10/100M RJ45 with PoE2.4 GHz Wi-Fi + RJ45
Power802.3at PoE (max 16 W) or 12 V DC12 V DC adapter (max 15.5 W)
Weather ratingIP66IP66

Source: TP-Link Australia product pages for each model.

Buy the VIGI C540V from ARC IP Networks

ARC IP Networks supplies TP-Link VIGI products from Australian stock at competitive prices, with the full manufacturer's warranty, Australia-wide delivery and trade pricing for installers and MSPs.

  • New TP-Link VIGI product from Australian stock.
  • Manufacturer warranty: the full TP-Link manufacturer's warranty for this model.
  • Australia-wide delivery to every state and territory.
  • Trade and project pricing: call 1300 100 440 or email info@arcip.com.au.

Frequently asked questions

Straight answers about the VIGI C540V from the ARC IP Networks team.

Last reviewed October 2026.

It has two lenses, a short and a long one, and switches between them for 3x mixed zoom, where the C540-W and C540-4G each use a single 4 mm fixed lens.

VIGI lists 4 to 12 mm (mixed zoom) at F1.6, and publishes DORI distances for 4 mm and 8 mm.

At 4 mm: detect 80 m, observe 33 m, recognise 16 m, identify 8 m. At 8 mm: detect 150 m, observe 63 m, recognise 30 m, identify 15 m.

TP-Link says zoom is instantaneous without lag or image dragging, and noiseless because no extra mechanical moving components are needed.

Pan 0 to 332 degrees and tilt 0 to 120 degrees, with 300 presets and 8 patrols.

Yes. Three white LEDs reach 30 m for colour images, and one 850 nm IR LED also reaches 30 m.

Yes, 802.3at PoE (class 4, max 16 W). It can also run from 12 V DC (max 14 W). A power adapter is not listed in the box.

Yes, through a built-in microphone and speaker, which also serves Active Defence sound warnings.

It is rated IP66 and operates from -30 to 60 degrees C.

Need more than one VIGI C540V for a VIGI pan tilt camera installation?

Ask ARC IP Networks for volume and project pricing on TP-Link VIGI products.
