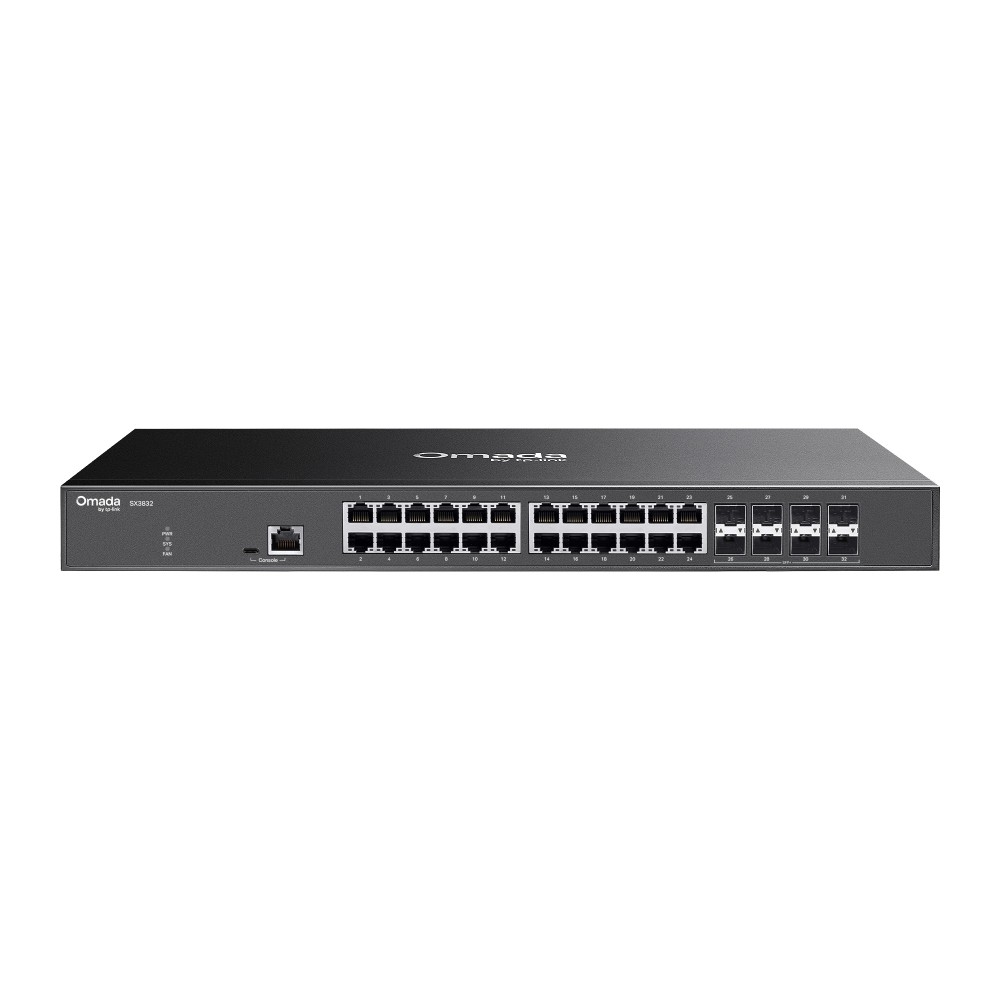

TP-Link SX3832 Omada 24-Port 10GBASE-T L2+ Managed Switch with 8 10GE SFP+ Slots

https://arcip.com.au/web/image/product.template/9389/image_1920?unique=874d354

The TP-Link SX3832 is an Omada Access Max L2+ managed switch with twenty-four 10M/100M/1G/2.5G/5G/10G RJ45 ports, eight 1/10G SFP+ slots, an RJ45 console port and a USB Type-C console port. It provides 640 Gbps switching, 240 Mpps forwarding, a 32K MAC table and a 24 Mbit buffer, with 128 IP interfaces, 48 static routes, DHCP server and relay, link aggregation, spanning tree, VLAN, ACL and QoS. Omada SDN or standalone management. Two fans, 6 kV surge protection, 440 x 220 x 44 mm.

$ 2,899.99 2899.99 AUD $ 2,899.99 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
TL-SX3832
Barcode
8885020622652

The TP-Link SX3832 is an Omada Access Max 24-port 10GBASE-T switch with 8 10G SFP+ slots. Its 24 RJ45 ports run at 10 Mbps up to 10 Gbps (including 2.5G and 5G), and the eight 1/10G SFP+ slots handle uplinks, giving 640 Gbps switching capacity. It supports 128 IP interfaces, 48 static routes, DHCP server, VLAN, ACL and QoS, managed via Omada SDN or standalone, in a rackmount chassis with two fans.

SX3832 overview

The SX3832 is TP-Link's Omada Access Max 24-Port 10GBASE-T Switch with 8x 10G SFP+ Slots, current AU hardware version V1.20. It brings 10G to copper at the access layer: twenty-four RJ45 ports auto-negotiate at 10 Mbps, 100 Mbps, 1 Gbps, 2.5 Gbps, 5 Gbps and 10 Gbps, so devices at any of those speeds can connect to the same switch. Eight 1/10G SFP+ slots provide uplinks and fibre connections, and there are RJ45 and USB Type-C console ports. There is no PoE on this model; the SX3832MPP is the PoE++ version.

Performance figures are 640 Gbps switching capacity, a 240 Mpps forwarding rate, a 32K MAC table, a 24 Mbit buffer and 9 KB jumbo frames. L2+ features include 128 IPv4/IPv6 interfaces and 48 static routes, 128 static ARP entries out of 510, proxy and gratuitous ARP, DHCP server, DHCP interface, VLAN and L2 relay, link aggregation, spanning tree, loopback detection, 802.3x flow control and mirroring, plus VLAN, ACL and QoS.

The SX3832 lists a maximum of 106.5 W at 220 V/50 Hz (104.9 W at 110 V/60 Hz) with 363.23 BTU/hr heat dissipation. It uses two fans, an internal 100 to 240 V AC supply, a physical security lock and 6 kV surge protection, in a 440 x 220 x 44 mm rack-mountable chassis. Operating temperature is -5 to 50 °C.

For management it joins Omada SDN via an Omada Cloud-Based, Hardware or Software Controller, with the Omada app and centralised cloud management, or runs standalone with web GUI, CLI, SNMP and RMON. The package contains the switch, a power cord, a console cable, a quick installation guide, a rackmount kit and rubber feet.

Key features

24 x 10GBASE-T

RJ45 ports at 10M/100M/1G/2.5G/5G/10G.

8 x 1/10G SFP+

Fibre uplinks and aggregation.

640 Gbps switching

240 Mpps forwarding, 32K MAC table.

24 Mbit buffer

With 9 KB jumbo frames.

L2+ routing

128 IP interfaces and 48 static routes.

VLAN, ACL, QoS

Plus DHCP server and relay.

Omada SDN

Cloud, hardware or software controller.

Rackmount, two fans

440 x 220 x 44 mm, -5 to 50 °C.

SX3832 specifications

At a glance

24 x 10GBASE-T RJ45
8 x 1/10G SFP+
640 Gbps switching
Multi-gig 2.5G/5G
L2+ static routing
Omada SDN
1U rackmount
-5 to 50 °C operating
SX3832 full specifications
Hardware Features
Interface24× 10Mbps/100Mbps/1Gbps/2.5Gbps/5Gbps/10Gbps RJ45 Ports (Auto-Negotiation/Auto MDI/MDIX); 8× 1/10G SFP+ Slots; 1× RJ45 Console Port; 1× USB Type C Console Port
Fan Quantity2
Physical Security Lock√
Power Supply100-240 V~ 50/60 Hz
Dimensions ( W x D x H )17.3 × 8.7 × 1.7 in (440 × 220 × 44 mm)
Surge Protection6 kV
MountingRack Mountable
Max. Power Consumption104.9 W (@110V/60Hz) 106.5 W (@220V/50Hz)
Max. Heat Dissipation357.81 BTU/hr (@110 V/60 Hz) 363.23 BTU/hr (@220 V/50 Hz)
Performance
Packet Buffer Memory24 Mbit
Jumbo Frame9 KB
Switching Capacity640 Gbps
Packet Forwarding Rate240 Mpps
MAC Address Table32 K
Software Features
Quality of Service8 priority queues; 802.1p CoS/DSCP priority; Queue scheduling: SP (Strict Priority), WRR (Weighted Round Robin), SP+WRR; Bandwidth Control: Port/Flow-based Rating Limiting; Smoother Performance; Action for Flows: QoS remark (802.1P Remark, DSCP Remark)
L2 and L2+ Features128 IP Interfaces: Support IPv4/IPv6 Interface; Static Routing: 48 IPv4/IPv6 Static Routes; Static ARP: 128 static entries; 510 ARP Entries; Proxy ARP; Gratuitous ARP; DHCP Server; DHCP Relay: DHCP Interface Relay, DHCP VLAN Relay; DHCP L2 Relay; Link Aggregation; Spanning Tree Protocol; Loopback Detection; 802.3x Flow Control; Mirroring
L2 MulticastSupports 4,000 (IPv4, IPv6) IGMP groups; IGMP Snooping; IGMP Authentication; Multicast VLAN Registration (MVR); MLD Snooping; Multicast Filtering: 256 profiles and 16 entries per profile
Advanced FeaturesAutomatic Device Discovery; Batch Configuration; Batch Firmware Upgrading; Intelligent Network Monitoring; Abnormal Event Warnings; Unified Configuration; Reboot Schedule ISP Features :; L2PT (Layer 2 Protocol Tunneling); Device Link Detect Protocol (DLDP); PPPoE ID Insertion; ERPS; 802.3ah Ethernet Link OAM; DDM
VLANVLAN Group: Max 4K VLAN Groups; 802.1q Tagged VLAN; MAC VLAN: 256 Entries; Protocol VLAN: Protocol Template 16, Protocol VLAN 12; Private VLAN; GVRP; VLAN VPN: VLAN Mapping, VLAN Replace; Voice VLAN
Access Control ListTime-based ACL; MAC ACL: Source MAC, Destination MAC, VLAN ID, User Priority, Ether Type; IP ACL: Source IP, Destination IP, Fragment, IP Protocol, TCP Flag, TCP/UDP Port, DSCP/IP TOS; Combined ACL; Packet Content ACL; IPv6 ACL; Policy: Mirroring, Redirect, Rate Limit, QoS Remark; ACL applies to Port/VLAN
SecurityIP-MAC-Port Binding; 512 Entries; DHCP Snooping; ARP Inspection; IPv4 Source Guard: 96 Entries; IPv6-MAC-Port Binding; 512 Entries; DHCPv6 Snooping; ND Detection; ND Snooping; IPv6 Source Guard: 95 Entries; DoS Defend; DHCP Filter; Static/Dynamic Port Security: Up to 64 MAC addresses per port; Broadcast/Multicast/Unicast Storm Control: kbps/ratio control mode; 802.1X; Port-based authentication; Mac-base authentication; VLAN Assignment; MAB; Guest VLAN; Radius authentication and accountability support; AAA (including TACACS+); Port Isolation; Secure web management through HTTPS with SSLv3/TLS 1.2; Secure Command Line Interface (CLI) management with SSHv1/SSHv2; IP/Port/MAC-based access control
IPv6IPv6 Dual IPv4/IPv6; Multicast Listener Discovery (MLD) Snooping; IPv6 ACL; IPv6 Interface; Static IPv6 Routing; IPv6 neighbor discovery (ND); Path maximum transmission unit (MTU) discovery; Internet Control Message Protocol (ICMP) version 6; TCPv6/UDPv6; IPv6 applications: DHCPv6 Client, Ping6, Tracert6, Telnet (v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, Http/Https, IPv6 TFTP
MIBsMIB II (RFC1213); Interface MIB (RFC2233); Ethernet Interface MIB (RFC1643); Bridge MIB (RFC1493); P/Q-Bridge MIB (RFC2674); RMON MIB (RFC2819); RMON2 MIB (RFC2021); Radius Accounting Client MIB (RFC2620); Radius Authentication Client MIB (RFC2618); Remote Ping, Traceroute MIB (RFC2925); Support TP-Link private MIB
Management Features
Omada AppYes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralised ManagementOmada Cloud-Based Controller; Omada Hardware Controller; Omada Software Controller
Cloud AccessYes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch ProvisioningYes. Requiring the use of Omada Cloud-Based Controller.
Management FeaturesWeb-based GUI; Command Line Interface (CLI) through the console port, telnet; SNMP v1/v2c/v3: Trap/Inform, RMON (1,2,3,9 groups); SDM Template; DHCP/BOOTP Client; 802.1ab LLDP/LLDP-MED; DHCP AutoInstall; Dual Image, Dual Configuration; CPU Monitoring; Cable Diagnostics; IEEE 802.3az Energy Efficient Ethernet (EEE); Password Recovery; SNTP; System Log
Others
CertificationCE, FCC
System RequirementsMicrosoft Windows 98SE, NT, 2000, XP, Vista or Windows 7/8/10/11, MAC OS, NetWare, UNIX or Linux.
EnvironmentOperating Temperature: -5–50 ℃ (23–122 ℉);; Storage Temperature: -40–70 ℃ (-40–158 ℉); Operating Humidity: 10–90% RH non-condensing; Storage Humidity: 5–90% RH non-condensing

Source: TP-Link's published specifications for this model (TP-Link Australia product page and datasheet). Some features run only in Standalone Mode or only under an Omada Controller; throughput figures are TP-Link's lab results. TP-Link may change specifications without notice.

What's in the box

  • SX3832 Switch
  • Power Cord
  • Console Cable
  • Quick Installation Guide
  • Rackmount Kit
  • Rubber Feet

Source: TP-Link's published package contents.

Who the SX3832 is for

10G copper access

  • 24 multi-gig RJ45 ports
  • 10M to 10G auto-negotiation
  • 640 Gbps switching

Mixed copper and fibre

  • Eight SFP+ slots
  • Link aggregation
  • Static routing

SX3832 compared

The SX3832 and SX3832MPP share 24 multi-gig RJ45 ports, eight SFP+ slots and 640 Gbps switching. The SX3832MPP adds 90 W PoE++ on all 24 RJ45 ports.

FeatureSX3832SX3832MPP
RJ45 speeds10M to 10G100M to 10G
PoENone24 x PoE++, 770 W
Fans24
Dimensions440 x 220 x 44 mm440 x 330 x 44 mm
Operating temperature-5–50 °C-5–45 °C

Source: TP-Link Australia product pages for each model.

Buy the SX3832 from ARC IP Networks

ARC IP Networks supplies TP-Link Omada products from Australian stock at competitive prices, with the full manufacturer's warranty, Australia-wide delivery and trade pricing for installers and MSPs.

  • New TP-Link Omada product from Australian stock.
  • Manufacturer warranty: the full TP-Link manufacturer's warranty for this model.
  • Australia-wide delivery to every state and territory.
  • Trade and project pricing: call 1300 100 440 or email info@arcip.com.au.

Frequently asked questions

Straight answers about the SX3832 from the ARC IP Networks team.

Last reviewed October 2026.

10 Mbps, 100 Mbps, 1 Gbps, 2.5 Gbps, 5 Gbps and 10 Gbps.

Eight 1/10G SFP+ slots.

No. The SX3832MPP is the PoE++ version.

640 Gbps, with a 240 Mpps forwarding rate.

It is L2+, with 128 IP interfaces and 48 static routes.

Yes, with an Omada Cloud-Based, Hardware or Software Controller, or standalone.

A maximum of 106.5 W at 220 V/50 Hz.

Two.

The switch, a power cord, a console cable, a quick installation guide, a rackmount kit and rubber feet.
