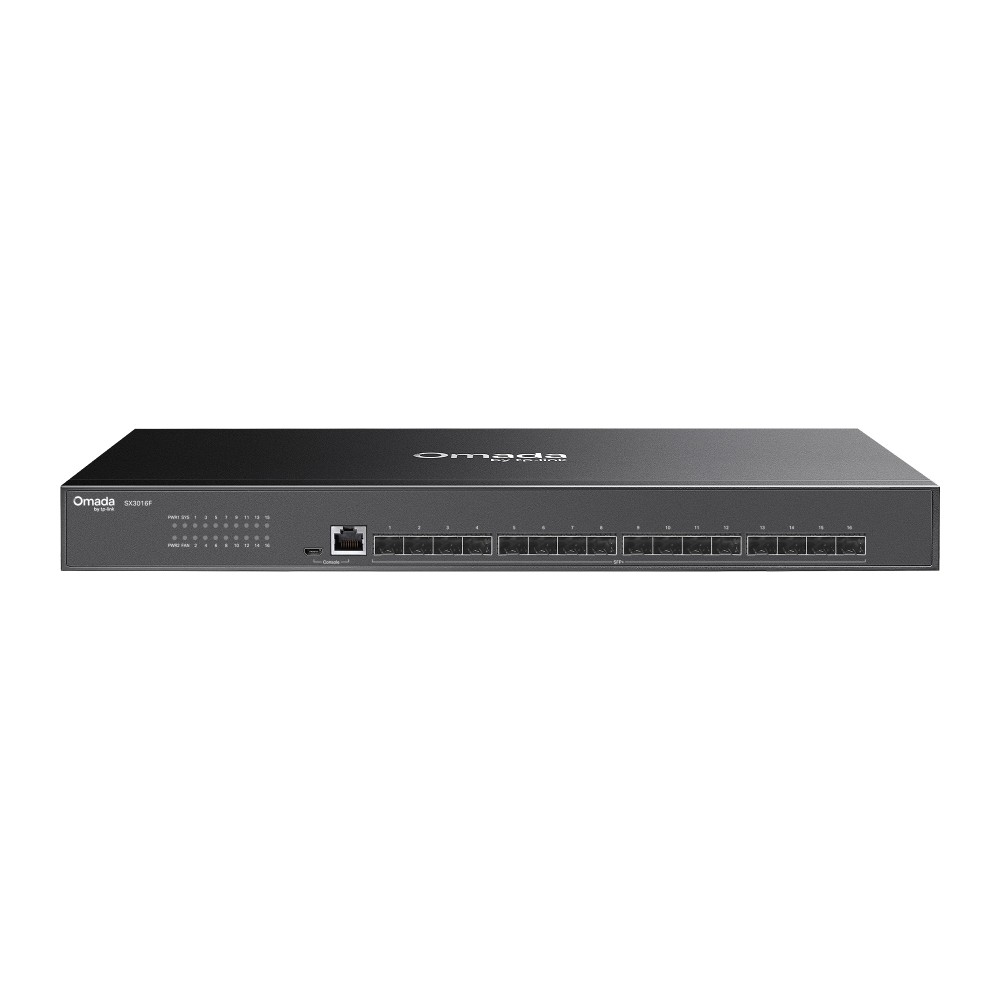

TP-Link SX3016F Omada 16-Port 10GE SFP+ L2+ Managed Aggregation Switch

https://arcip.com.au/web/image/product.template/9387/image_1920?unique=874d354

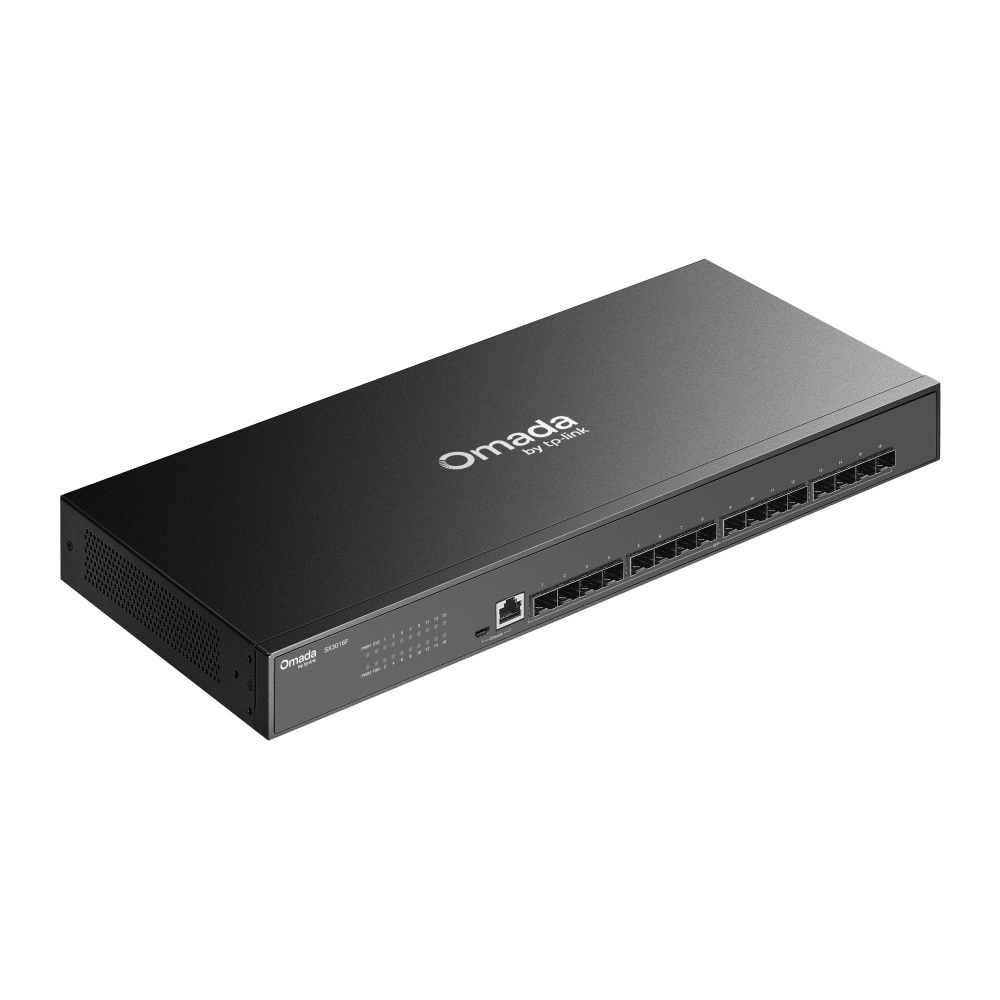

The TP-Link SX3016F is an Omada aggregation switch with sixteen 10G SFP+ slots, an RJ45 console port and a micro-USB console port. It delivers 320 Gbps switching, 238.08 Mpps forwarding, a 32K MAC table and a 24 Mbit buffer, with a 1+1 redundant internal fixed power supply. L2+ features include 128 IP interfaces, 48 static routes, DHCP server and relay, link aggregation, spanning tree, VLAN, ACL and QoS. Omada SDN or standalone management. One fan, 440 x 220 x 44 mm rackmount.

$ 1,518.41 1518.41 AUD $ 1,518.41 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
TL-SX3016F
Barcode
1210002611718

The TP-Link SX3016F is an Omada Aggregation 16-port 10GE SFP+ L2+ managed switch. It has sixteen 10G SFP+ slots plus RJ45 and micro-USB console ports, 320 Gbps switching capacity, a 32K MAC table and a 24 Mbit buffer, and a 1+1 redundant internal power supply. L2+ features include 128 IP interfaces, 48 static routes, DHCP server, VLAN, ACL and QoS, managed through Omada SDN or standalone.

SX3016F overview

The SX3016F is TP-Link's Omada Aggregation 16-Port 10GE SFP+ Switch, current AU hardware version V1.30. Some listings still carry the older JetStream name; TP-Link Australia now lists the SX3016F in the Omada aggregation range. It is an all-fibre 10G switch: sixteen 10G SFP+ slots, plus an RJ45 console port and a micro-USB console port. With 320 Gbps switching capacity and a 238.08 Mpps forwarding rate, it is built to aggregate 10G links in an Omada network.

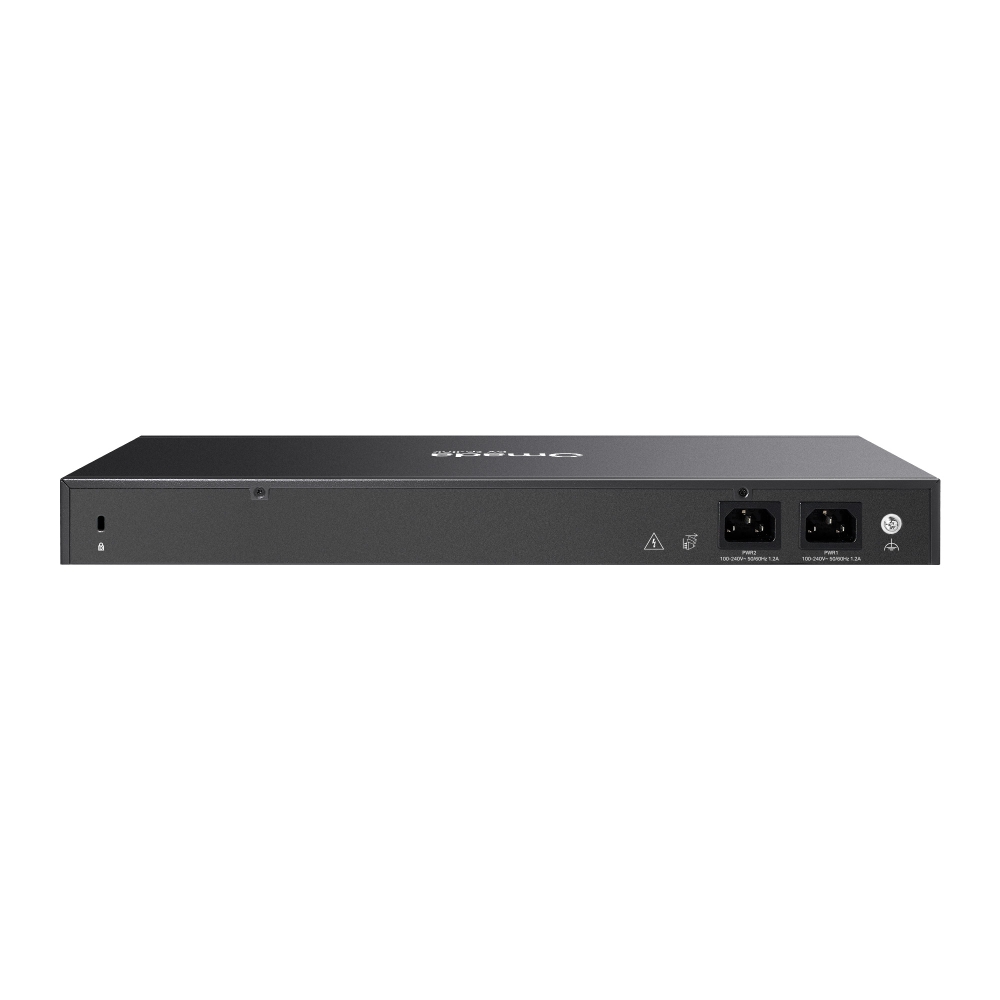

For availability, the SX3016F has a 1+1 redundant internal fixed power supply (100 to 240 V AC), and power cords are included. It has one fan, a physical security lock, and a 440 x 220 x 44 mm rack-mountable chassis. Maximum power consumption is 32.3 W at 220 V/50 Hz (32.7 W at 110 V/60 Hz). Operating temperature is -5 to 45 °C and storage -40 to 70 °C.

L2+ features include 128 IPv4/IPv6 interfaces and 48 static routes, 128 static ARP entries out of 512, proxy and gratuitous ARP, DHCP server, DHCP interface, VLAN and L2 relay, link aggregation, spanning tree, loopback detection, 802.3x flow control and mirroring, with VLAN, ACL and QoS. The 32K MAC table and 24 Mbit buffer are double the figures of the 48-port SG3452X access switch, reflecting its aggregation role. Jumbo frames are 9 KB.

Centralised management needs an Omada Cloud-Based Controller at built-in version 5.15.22 or later, or a Hardware or Software Controller at 5.15.20 or later; standalone management uses web GUI, CLI, SNMP and RMON via the console ports or network. The box contains the switch, power cords, a console cable, a rackmount kit, rubber feet and a quick installation guide. SFP+ transceivers and direct attach cables are not included.

Key features

16 x 10G SFP+

All-fibre 10G aggregation.

320 Gbps switching

238.08 Mpps forwarding.

1+1 redundant power

Internal fixed redundant supply.

32K MAC, 24 Mbit buffer

Sized for the aggregation layer.

L2+ routing

128 IP interfaces and 48 static routes.

VLAN, ACL, QoS

Plus DHCP server and relay.

Omada SDN

Cloud controller 5.15.22+ or hardware/software 5.15.20+.

Console ports

RJ45 and micro-USB; console cable included.

SX3016F specifications

At a glance

16 x 10G SFP+
320 Gbps switching
1+1 redundant PSU
32K MAC table
L2+ static routing
Omada SDN
1U rackmount
-5 to 45 °C operating
SX3016F full specifications
Hardware Features
Interface16× 10G SFP+ Slots; 1× RJ45 Console Port; 1× Micro-USB Console Port
Fan Quantity1
Physical Security Lock√
Power Supply1+1 Redundant Power Supply (Internal Fixed); 100-240 V~ 50/60 Hz
Dimensions ( W x D x H )17.3 × 8.7 × 1.7 in (440 × 220 × 44 mm)
MountingRack Mountable
Max. Power Consumption32.3 W max @ 220V/50Hz 25 °C; 32.7 W max @ 110V/60Hz 25 °C
Max. Heat Dissipation110 BTU/hr (220 V/50 Hz); 111.18 BTU/hr (110 V/60 Hz)
Performance
Packet Buffer Memory24 Mbit
Jumbo Frame9 KB
Switching Capacity320 Gbps
Packet Forwarding Rate238.08 Mpps
MAC Address Table32 K
Software Features
Quality of Service8 priority queues; 802.1p CoS/DSCP priority; Queue scheduling: SP (Strict Priority), WRR (Weighted Round Robin), SP+WRR; Bandwidth Control: Port/Flow-based Rating Limiting; Smoother Performance; Action for Flows: QoS remark (802.1P Remark, DSCP Remark)
L2 and L2+ Features128 IP Interfaces: Support IPv4/IPv6 Interface; Static Routing: 48 IPv4/IPv6 Static Routes; Static ARP: 128 static entries; 512 ARP Entries; Proxy ARP; Gratuitous ARP; DHCP Server; DHCP Relay: DHCP Interface Relay, DHCP VLAN Relay; DHCP L2 Relay; Link Aggregation; Spanning Tree Protocol; Loopback Detection; 802.3x Flow Control; Mirroring
L2 MulticastSupports 4,000 (IPv4, IPv6) IGMP groups; IGMP Snooping; IGMP Authentication; Multicast VLAN Registration (MVR); MLD Snooping; Multicast Filtering: 256 profiles and 16 entries per profile
Advanced FeaturesAutomatic Device Discovery; Batch Configuration; Batch Firmware Upgrading; Intelligent Network Monitoring; Abnormal Event Warnings; Unified Configuration; Reboot Schedule ISP Features :; L2PT (Layer 2 Protocol Tunneling); Device Link Detect Protocol (DLDP); PPPoE ID Insertion; ERPS; 802.3ah Ethernet Link OAM; DDM; sFlow
VLANVLAN Group (802.1q VLAN): Max 4K VLAN Groups; 802.1Q Tagged VLAN; MAC VLAN: 30 Entries; Protocol VLAN: Protocol Template 16, Protocol VLAN 12; Private VLAN; GVRP; VLAN VPN (QinQ): Port-Based QinQ, Selective QinQ; Voice VLAN
Access Control ListTime-based ACL; MAC ACL: Source MAC, Destination MAC, VLAN ID, User Priority, Ether Type; IP ACL: Source IP, Destination IP, Fragment, IP Protocol, TCP Flag, TCP/UDP Port, DSCP/IP TOS; Combined ACL; Packet Content ACL; IPv6 ACL; Policy: Mirroring, Redirect, Rate Limit, QoS Remark; ACL applies to Port/VLAN
SecurityIP-MAC-Port Binding; 512 Entries; DHCP Snooping; ARP Inspection; IPv4 Source Guard; IPv6-MAC-Port Binding; 512 Entries; DHCPv6 Snooping; ND Detection; ND Snooping; IPv6 Source Guard; DoS Defend; Static/Dynamic Port Security: Up to 64 MAC addresses per port; Broadcast/Multicast/Unicast Storm Control: kbps/ratio control mode; 802.1X; Port base authentication; MAC-based authentication; VLAN Assignment; MAB; Guest VLAN; Radius authentication and accountability support; AAA (including TACACS+); Port Isolation; Secure web management through HTTPS with SSLv3/TLS 1.2; Secure Command Line Interface (CLI) management with SSHv1/SSHv2; IP/Port/MAC-based access control
IPv6IPv6 Dual IPv4/IPv6; Multicast Listener Discovery (MLD) Snooping; IPv6 ACL; IPv6 Interface; Static IPv6 Routing; IPv6 neighbor discovery (ND); Path maximum transmission unit (MTU) discovery; Internet Control Message Protocol (ICMP) version 6; TCPv6/UDPv6; IPv6 applications: DHCPv6 Client, Ping6, Tracert6, Telnet (v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, Http/Https, IPv6 TFTP
MIBsMIB II (RFC1213); Interface MIB (RFC2233); Ethernet Interface MIB (RFC1643); Bridge MIB (RFC1493); P/Q-Bridge MIB (RFC2674); RMON MIB (RFC2819); RMON2 MIB (RFC2021); Radius Accounting Client MIB (RFC2620); Radius Authentication Client MIB (RFC2618); Remote Ping, Traceroute MIB (RFC2925); Support TP-Link private MIB
Management Features
Omada AppYes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralised ManagementOmada Cloud-Based Controller (Requires built-in version 5.15.22 or later); Omada Hardware Controller (Requires built-in version 5.15.20 or later); Omada Software Controller (Requires built-in version 5.15.20 or later)
Cloud AccessYes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch ProvisioningYes. Requiring the use of Omada Cloud-Based Controller.
Management FeaturesWeb-based GUI; Command Line Interface (CLI) through the console port, telnet; SNMP v1/v2c/v3: Trap/Inform, RMON (1,2,3,9 groups); SDM Template; DHCP/BOOTP Client; 802.1ab LLDP/LLDP-MED; DHCP Auto Install; Dual Image, Dual Configuration; CPU Monitoring; Password Recovery; SNTP; System Log
Others
CertificationCE, FCC
System RequirementsMicrosoft Windows 98SE, NT, 2000, XP, Vista or Windows 7/8/10/11, MAC OS, NetWare, UNIX or Linux.
EnvironmentOperating Temperature: -5 ℃ to 45 ℃ (23 ℉ to 113 ℉); Storage Temperature: -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉); Operating Humidity: 10–90% RH non-condensing; Storage Humidity: 5–90% RH non-condensing

Source: TP-Link's published specifications for this model (TP-Link Australia product page and datasheet). Some features run only in Standalone Mode or only under an Omada Controller; throughput figures are TP-Link's lab results. TP-Link may change specifications without notice.

What's in the box

  • SX3016F Switch
  • Power Cords
  • Console Cable
  • Rackmount Kit
  • Rubber Feet
  • Quick Installation Guide

Source: TP-Link's published package contents.

Who the SX3016F is for

10G aggregation

  • Sixteen SFP+ ports
  • 320 Gbps non-blocking capacity
  • Link aggregation

Resilient cores for small campuses

  • 1+1 redundant power
  • Static routing
  • Omada cloud management

SX3016F compared

The SX3016F and SX3832 are Omada 10G switches. The SX3016F is all SFP+ for aggregation; the SX3832 adds 24 multi-gig 10GBASE-T copper ports alongside 8 SFP+ slots.

FeatureSX3016FSX3832
Ports16 x 10G SFP+24 x 10G RJ45 + 8 x 10G SFP+
Switching capacity320 Gbps640 Gbps
Power supply1+1 redundant internalSingle internal
Fans12
Max power32.3 W106.5 W

Source: TP-Link Australia product pages for each model.

Buy the SX3016F from ARC IP Networks

ARC IP Networks supplies TP-Link Omada products from Australian stock at competitive prices, with the full manufacturer's warranty, Australia-wide delivery and trade pricing for installers and MSPs.

  • New TP-Link Omada product from Australian stock.
  • Manufacturer warranty: the full TP-Link manufacturer's warranty for this model.
  • Australia-wide delivery to every state and territory.
  • Trade and project pricing: call 1300 100 440 or email info@arcip.com.au.

Frequently asked questions

Straight answers about the SX3016F from the ARC IP Networks team.

Last reviewed October 2026.

Sixteen 10G SFP+ slots, an RJ45 console port and a micro-USB console port.

No. All sixteen data ports are SFP+.

Yes, a 1+1 redundant internal fixed power supply.

It is L2+, with 128 IP interfaces and 48 static routes.

Cloud-Based Controller 5.15.22 or later, or Hardware/Software Controller 5.15.20 or later.

No. The box contains the switch, power cords, console cable, rackmount kit, rubber feet and quick installation guide.

320 Gbps, with 238.08 Mpps forwarding.

A maximum of 32.3 W at 220 V/50 Hz.

It is the same SX3016F model; TP-Link Australia now lists it under the Omada brand.

Need more than one SX3016F for a 10G aggregation layer?

Ask ARC IP Networks for volume and project pricing on TP-Link Omada products.
