TP-Link SX3016F JetStream 16-Port 10GE SFP+ L2+ Managed Switch

Price:

$ 1,518.41


TP-Link TL-SX1008 8-Port 10G Desktop/Rackmount Switch
TP-Link TL-SX1008 8-Port 10G Desktop/Rackmount Switch
$ 722.45
$ 722.45
TP-Link SX3832 Omada 24-Port 10GBASE-T L2+ Managed Switch with 8 10GE SFP+ Slots ;24×
TP-Link SX3832 Omada 24-Port 10GBASE-T L2+ Managed Switch with 8 10GE SFP+ Slots ;24×
$ 3,290.61
$ 3,290.61

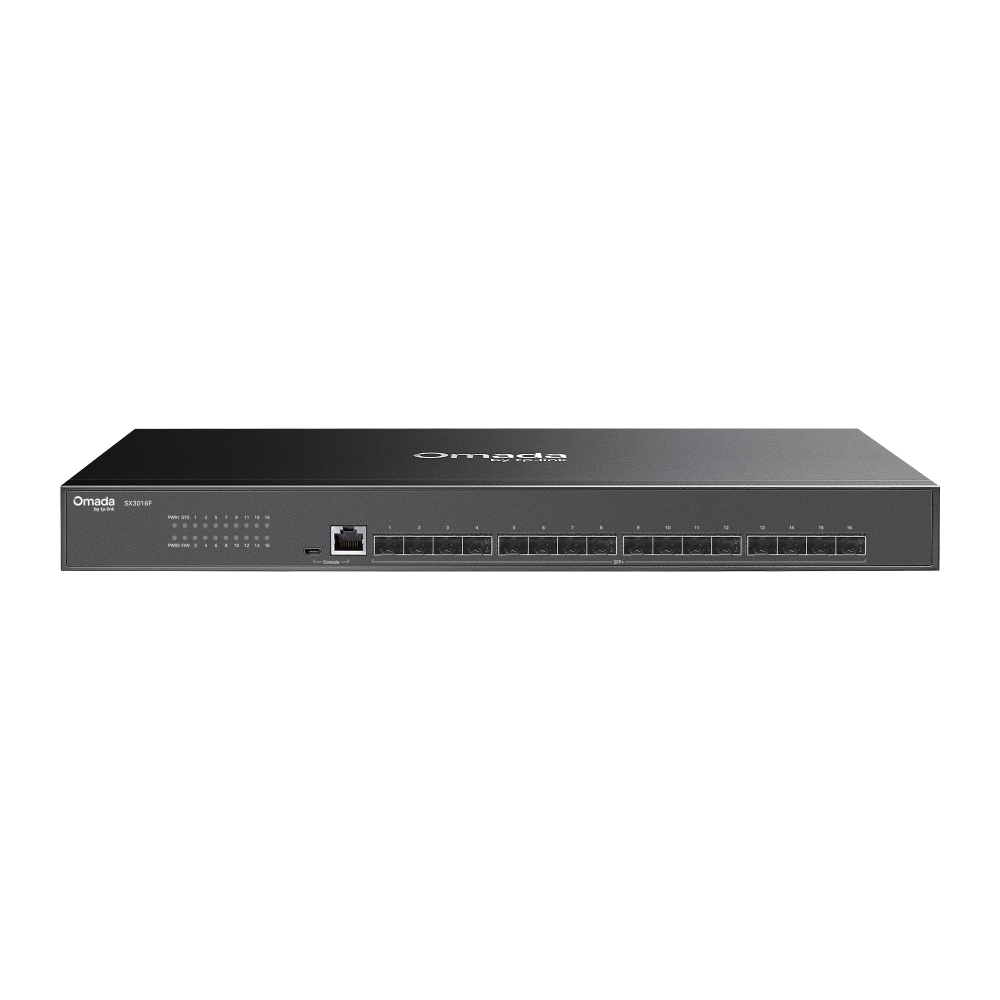

TP-Link SX3016F JetStream 16-Port 10GE SFP+ L2+ Managed Switch

https://arcip.com.au/web/image/product.template/9387/image_1920?unique=6cd61da
TP-Link SX3016F JetStream 16-Port 10GE SFP+ L2+ Managed Switch, Centralised Cloud, Omada SDN, Remote Management, QoS, Igmp Snooping, Fanless. Australian stock from ARC IP Networks with AU warranty and local technical support.

$ 1,518.41 1518.41 AUD $ 1,518.41 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
TL-SX3016F
Barcode
1210002611718
TL-SX3016F
TP-Link SX3016F JetStream 16-Port 10GE SFP+ L2+ Managed Switch, Centralised Cloud, Omada SDN, Remote Management, QoS, Igmp Snooping, Fanless

Features

  • 16 network ports
  • 10 Gigabit Ethernet ports for backbone performance
  • Omada SDN managed — centralised cloud management
  • Full layer-2/3 managed switching with CLI and web UI
  • Genuine Australian stock from authorised distributor
  • Fast nationwide shipping and local technical support

Specifications

Hardware Features
Interface• 16× 10G SFP+ Slots • 1× RJ45 Console Port • 1× Micro-USB Console Port
Fan Quantity1
Physical Security Lock√
Power Supply• Dual Redundant Power Supplies • 100-240 V AC~50/60 Hz
Dimensions ( W x D x H )17.3×8.7×1.7 in (440×220×44 mm)
MountingRack Mountable
Max. Power Consumption32.74 W (220 V / 50 Hz)
Max. Heat Dissipation111.71 BTU/hr (220 V / 50 Hz)
Performance
Switching Capacity320 Gbps
Packet Forwarding Rate238.08 Mpps
MAC Address Table32 K
Packet Buffer Memory24 Mbit
Jumbo Frame9 KB
Software Features
Quality of Service• 8 priority queues • 802.1p CoS/DSCP priority • Queue scheduling: SP (Strict Priority), WRR (Weighted Round Robin), SP+WRR • Bandwidth Control: Port/Flow-based Rating Limiting • Smoother Performance • Action for Flows: QoS remark (802.1P Remark, DSCP Remark)
L2 and L2+ Features• 128 IP Interfaces: Support IPv4/IPv6 Interface • Static Routing: 48 IPv4/IPv6 Static Routes • Static ARP: 128 static entries • 512 ARP Entries • Proxy ARP • Gratuitous ARP • DHCP Server • DHCP Relay: DHCP Interface Relay, DHCP VLAN Relay • DHCP L2 Relay • Link Aggregation • Spanning Tree Protocol • Loopback Detection • 802.3x Flow Control • Mirroring
L2 Multicast• Supports 1000 (IPv4, IPv6) IGMP groups • IGMP Snooping • IGMP Authentication • Multicast VLAN Registration (MVR) • MLD Snooping • Multicast Filtering: 256 profiles and 16 entries per profile
Advanced Features• Automatic Device Discovery † • Batch Configuration † • Batch Firmware Upgrading † • Intelligent Network Monitoring † • Abnormal Event Warnings † • Unified Configuration † • Reboot Schedule † ISP Features *: • L2PT (Layer 2 Protocol Tunneling) • Device Link Detect Protocol (DLDP) • PPPoE ID Insertion • ERPS • 802.3ah Ethernet Link OAM • DDM • sFlow
VLAN• VLAN Group (802.1q VLAN): Max 4K VLAN Groups • 802.1Q Tagged VLAN • MAC VLAN: 30 Entries • Protocol VLAN: Protocol Template 16, Protocol VLAN 12 • Private VLAN • GVRP • VLAN VPN (QinQ): Port-Based QinQ, Selective QinQ • Voice VLAN
Access Control List• Time-based ACL • MAC ACL: Source MAC, Destination MAC, VLAN ID, User Priority, Ether Type • IP ACL: Source IP, Destination IP, Fragment, IP Protocol, TCP Flag, TCP/UDP Port, DSCP/IP TOS • Combined ACL • Packet Content ACL • IPv6 ACL • Policy: Mirroring, Redirect, Rate Limit, QoS Remark • ACL applies to Port/VLAN
Security• IP-MAC-Port Binding - 512 Entries - DHCP Snooping - ARP Inspection - IPv4 Source Guard • IPv6-MAC-Port Binding - 512 Entries - DHCPv6 Snooping - ND Detection - ND Snooping - IPv6 Source Guard • DoS Defend • Static/Dynamic Port Security: Up to 64 MAC addresses per port • Broadcast/Multicast/Unicast Storm Control: kbps/ratio control mode • 802.1X - Port base authentication - MAC-based authentication - VLAN Assignment - MAB - Guest VLAN - Radius authentication and accountability support • AAA (including TACACS+) • Port Isolation • Secure web management through HTTPS with SSLv3/TLS 1.2 • Secure Command Line Interface (CLI) management with SSHv1/SSHv2 • IP/Port/MAC-based access control
IPv6• IPv6 Dual IPv4/IPv6 • Multicast Listener Discovery (MLD) Snooping • IPv6 ACL • IPv6 Interface • Static IPv6 Routing • IPv6 neighbor discovery (ND) • Path maximum transmission unit (MTU) discovery • Internet Control Message Protocol (ICMP) version 6 • TCPv6/UDPv6 • IPv6 applications: DHCPv6 Client, Ping6, Tracert6, Telnet (v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, Http/Https, IPv6 TFTP
MIBs• MIB II (RFC1213) • Interface MIB (RFC2233) • Ethernet Interface MIB (RFC1643) • Bridge MIB (RFC1493) • P/Q-Bridge MIB (RFC2674) • RMON MIB (RFC2819) • RMON2 MIB (RFC2021) • Radius Accounting Client MIB (RFC2620) • Radius Authentication Client MIB (RFC2618) • Remote Ping, Traceroute MIB (RFC2925) • Support TP-Link private MIB
Specifications
Omada AppYes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management• Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller
Cloud AccessYes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch ProvisioningYes. Requiring the use of Omada Cloud-Based Controller.
Management Features• Web-based GUI • Command Line Interface (CLI) through the console port, telnet • SNMP v1/v2c/v3: Trap/Inform, RMON (1,2,3,9 groups) • SDM Template • DHCP/BOOTP Client • 802.1ab LLDP/LLDP-MED • DHCP Auto Install • Dual Image, Dual Configuration • CPU Monitoring • Cable Diagnostics • Password Recovery • SNTP • System Log
Others
CertificationCE, FCC, RoHS
Package Content• SX3016F Switch • 2× Power Cords • Quick Installation Guide • Rackmount Kit • Rubber Feet
System RequirementsMicrosoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.
Environment• Operating Temperature: 0–45 ℃ (32–113 ℉); • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing

Professional Overview

The TP-Link SX3016F JetStream 16-Port 10GE SFP+ L2+ Managed Switch, Centralised Cloud, Omada SDN, Remote Management, QoS, Igmp Snooping, Fanless is part of TP-Link's omada switches line, engineered for Australian home, small-business, and enterprise network deployments. The TL-SX3016F combines TP-Link's proven reliability with the feature set this category demands, making it a practical choice for both retrofit and greenfield installations.

Full product specifications and deployment guidance are available from TP-Link's Australian documentation. The TL-SX3016F ships with firmware pre-configured for AU voltage, frequency bands, and regulatory approvals, so it works out of the box without adjustment.

Typical use cases include residential networking, small-office deployments, and point-of-sale or camera installations where reliable throughput and low administrative overhead matter. Where applicable, the TL-SX3016F integrates with wider TP-Link ecosystems such as Omada SDN for switches/APs/routers, or the Tapo/VIGI apps for smart devices and surveillance.

Australian stock from ARC IP Networks with fast nationwide shipping and local technical support.

Frequently Asked Questions

Is the TL-SX3016F covered by an Australian warranty?

Yes. ARC IP Networks is an authorised TP-Link reseller, and the TL-SX3016F comes with TP-Link's standard Australian warranty and local technical support.

Does it ship with an Australian power supply?

Yes. All TP-Link products shipped by ARC IP Networks include AU-compliant power adapters where applicable.

How quickly can I get the TL-SX3016F delivered?

Stock-on-hand orders ship same or next business day via StarTrack/AusPost eParcel. Metro areas typically receive 1–3 business days; regional areas 2–5 business days.

Can I get volume pricing on multiple units?

Yes. For projects over 5 units, contact sales@arcip.com.au for a direct quote with project pricing.

Is the TL-SX3016F compatible with my existing TP-Link devices?

The TL-SX3016F follows TP-Link's standard interoperability guidelines. For specific compatibility questions, the product documentation and TP-Link support can confirm supported controller versions, firmware, and ecosystems.
