TP-Link TL-SX105 5-Port 10G Desktop Switch

https://arcip.com.au/web/image/product.template/8231/image_1920?unique=4406ff4
5-Port 10G Desktop Switch Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. The wireless speeds listed here are the maximum theoretical data rates. Australian stock from ARC IP Networks with AU warranty and local technical support.

$ 401.01 401.01 AUD $ 515.76 incl. GST

Not Available For Sale


  • Brand
  • Switching Capacity
  • RAM

This combination does not exist.

In stock online
Switch Managed Switch TP-Link
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
TL-SX105
Barcode
1210002617246
Tags

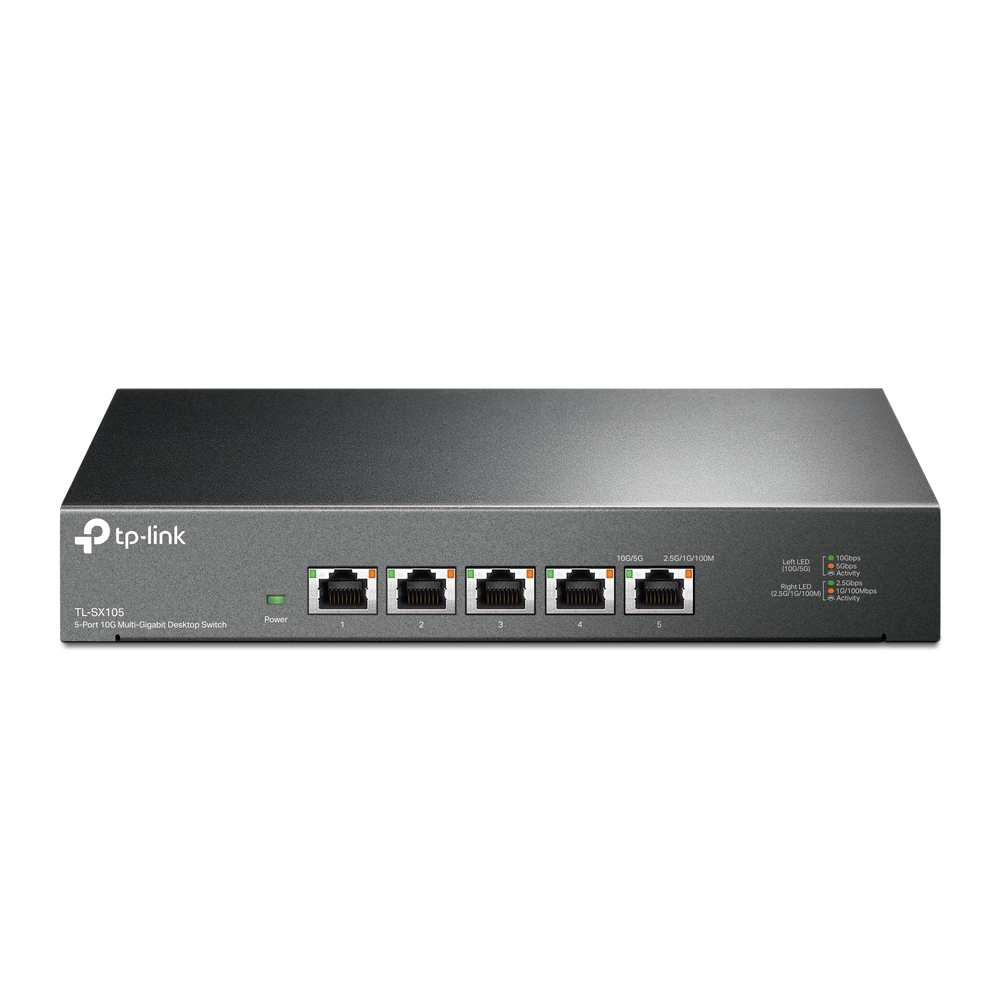

The TP-Link TL-SX105 is a 5-port 10G multi-gigabit desktop switch: every RJ45 port auto-negotiates 100 Mbps, 1G, 2.5G, 5G or 10G, with 100 Gbps of switching capacity and 74.4 Mpps forwarding. It is fanless and silent in a metal case for desk or wall mounting, plug and play, and supports 802.1p/DSCP QoS. TP-Link pitches it at LAN parties, home entertainment, small and home offices and workstations.

TL-SX105 overview

The TL-SX105 is TP-Link's 5-port 10G desktop switch, which TP-Link calls its flagship 10G product. All five RJ45 ports support 100 Mbps, 1 Gbps, 2.5 Gbps, 5 Gbps and 10 Gbps, and auto-negotiation senses each device's link speed and adjusts for compatibility and optimal performance. TP-Link lists 10G NAS, 10G servers, workstations, gaming computers, 2.5G/5G/10G Wi-Fi 6 access points, 8K video and desktops among the devices it serves. Switching capacity is 100 Gbps and the packet forwarding rate is 74.4 Mpps, using store-and-forward transmission, and the switch conforms to IEEE 802.3, 802.3u, 802.3ab, 802.3bz, 802.3an, 802.3x and 802.1p.

Cabling matters at multi-gigabit speeds, and TP-Link's datasheet sets out the limits. For 1000BASE-T, 2.5GBASE-T and 5GBASE-T, Category 5e or better UTP cable supports runs up to 100 m. For 10GBASE-T, Category 6 UTP supports up to 55 m, and Category 6, 6a or 7 STP supports up to 100 m; the product page also notes that Cat6a or higher rated cables support 10G connections up to 100 m. TP-Link says the switch is designed to integrate into existing gigabit Ethernet infrastructures, and Auto MDI/MDIX removes the need for crossover cables. It is plug and play, allowing easy deployment without a technician, and 802.1p/DSCP QoS lets you prioritise traffic such as gaming, along with IEEE 802.3x flow control.

TP-Link names several scenarios for it. For LAN parties, it offers speed and lower latency with QoS to prioritise gaming traffic. For home entertainment, TP-Link mentions buffer-free multi-channel 8K video. You can use it to expand the 10GE LAN ports of a Wi-Fi 6 router and connect more devices at up to 10 Gbps, and for business and home offices it provides fast connections to workstations, desktop computers and Wi-Fi 6 access points. TP-Link describes it as ideal for gaming and for small office and home office use, with reliable connections and the lowest possible latency.

The TL-SX105 has a fanless design for silent operation, which TP-Link says suits any home or business, with a durable metal casing and professional heat dissipation design. It can sit on a desk or be wall mounted, and measures 226 x 131 x 35 mm. LEDs include one system power indicator and five link/activity indicators, one built into each RJ45 port. Power comes from an external 12 VDC / 2.0 A adapter. The switch operates from 0 to 40 °C at 10 to 90 % RH non-condensing, carries CE and FCC certifications, and TP-Link's datasheet lists an MTBF of 262,829.91 hours at 25 °C. In the box are the TL-SX105, a power cord, an installation guide and rubber feet. ARC IP Networks supplies the TL-SX105 from Australian stock with the full manufacturer's warranty.

Key features

Five 10G ports

5 x RJ45 ports supporting 100 Mbps, 1G, 2.5G, 5G and 10G with auto-negotiation.

100 Gbps switching capacity

Up to 100 Gbps of switching capacity, with a 74.4 Mpps packet forwarding rate.

Multi-gigabit compatible

Connects 10G NAS, servers, workstations, gaming PCs and 2.5G/5G/10G Wi-Fi 6 access points.

Cabling guidance

Cat5e for 1G to 5G up to 100 m; Cat6 UTP up to 55 m or Cat6/6a/7 STP up to 100 m for 10G.

Fanless and silent

A fanless design for silent operation in any home or business.

Durable metal casing

Metal case and professional heat dissipation design, for desk or wall mounting.

802.1p/DSCP QoS

Prioritise gaming and other traffic, with 802.3x flow control.

Plug and play

Easy deployment without a technician; Auto MDI/MDIX removes the need for crossover cables.

TL-SX105 specifications

At a glance

5 x 10G ports
100M/1G/2.5G/5G/10G
100 Gbps switching
74.4 Mpps
Fanless
Metal case
Desk or wall mount
Plug and play
TL-SX105 full specifications
Hardware Features
Standards and ProtocolsIEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1p, 802.3an, 802.3bz
Interface5× 100Mbps/1Gbps/2.5Gbps/5Gbps/10Gbps Ports, Auto-Negotiation, Auto-MDI/MDIX
Fan QuantityFanless
External Power SupplyExternal Power Adapter (Output: 12 VDC / 2.0 A)
LEDSystem Power: 1; Link/Act Indicators: 5, 1 indicator per port built into each RJ-45 port
Dimensions ( W x D x H )8.9×5.2×1.4 in (226×131×35 mm)
Max. Power Consumption21.4 W
Performance
Packet Buffer Memory2 Mb
Jumbo Frame10 KB
Switching Capacity100 Gbps
Packet Forwarding Rate74.4 Mpps
MAC Address Table32 K
Software Features
Advanced Features802.3X Flow Control; 802.1p/DSCP QoS
Transmission MethodStore and Forward
Others
CertificationCE, FCC
EnvironmentOperating Temperature: 0–40 °C (32–104 °F); Storage Temperature: -40–70 °C (-40–158 °F); Operating Humidity: 10–90% RH non-condensing; Storage Humidity: 5–90% RH non-condensing

Source: TP-Link's published specifications for this model (TP-Link Australia product page and datasheet). throughput figures are TP-Link's lab results. TP-Link may change specifications without notice.

What's in the box

  • 5-Port 10G Multi-Gigabit Desktop/Rackmount Switch TL-SX105
  • Power Cord
  • Installation Guide
  • Rubber Feet

Source: TP-Link's published package contents.

Who the TL-SX105 is for

LAN parties and gaming

  • Lower latency with QoS for gaming traffic
  • Five ports at up to 10 Gbps
  • Silent fanless design

Home entertainment

  • Multi-channel 8K video
  • More 10GE ports for Wi-Fi 6 routers
  • Desk or wall mounting

Small and home offices

  • Fast links to workstations and 10G NAS
  • 2.5G/5G/10G Wi-Fi 6 access points
  • Plug and play with no technician

Buy the TL-SX105 from ARC IP Networks

ARC IP Networks supplies TP-Link products from Australian stock at competitive prices, with the full manufacturer's warranty, Australia-wide delivery and trade pricing for installers and MSPs.

  • New TP-Link product from Australian stock.
  • Manufacturer warranty: the full TP-Link manufacturer's warranty for this model.
  • Australia-wide delivery to every state and territory.
  • Trade and project pricing: call 1300 100 440 or email info@arcip.com.au.

Frequently asked questions

Straight answers about the TL-SX105 from the ARC IP Networks team.

Last reviewed October 2026.

Each of its five RJ45 ports auto-negotiates 100 Mbps, 1 Gbps, 2.5 Gbps, 5 Gbps or 10 Gbps.

100 Gbps, with a packet forwarding rate of 74.4 Mpps.

TP-Link's datasheet lists Category 6 UTP up to 55 m, or Category 6/6a/7 STP up to 100 m, for 10GBASE-T. Category 5e or above supports 1G, 2.5G and 5G up to 100 m.

No. It is a plug-and-play unmanaged switch that needs no technician, with 802.1p/DSCP QoS and 802.3x flow control built in.

No. It is fanless, for silent operation.

Yes. TP-Link describes a desktop/wall-mounting design.

Yes. Auto-negotiation supports 2.5G and 5G as well as 100 Mbps, 1G and 10G.

By an external power adapter with a 12 VDC / 2.0 A output.

226 x 131 x 35 mm (8.9 x 5.2 x 1.4 in).

The TL-SX105 switch, a power cord, an installation guide and rubber feet.
