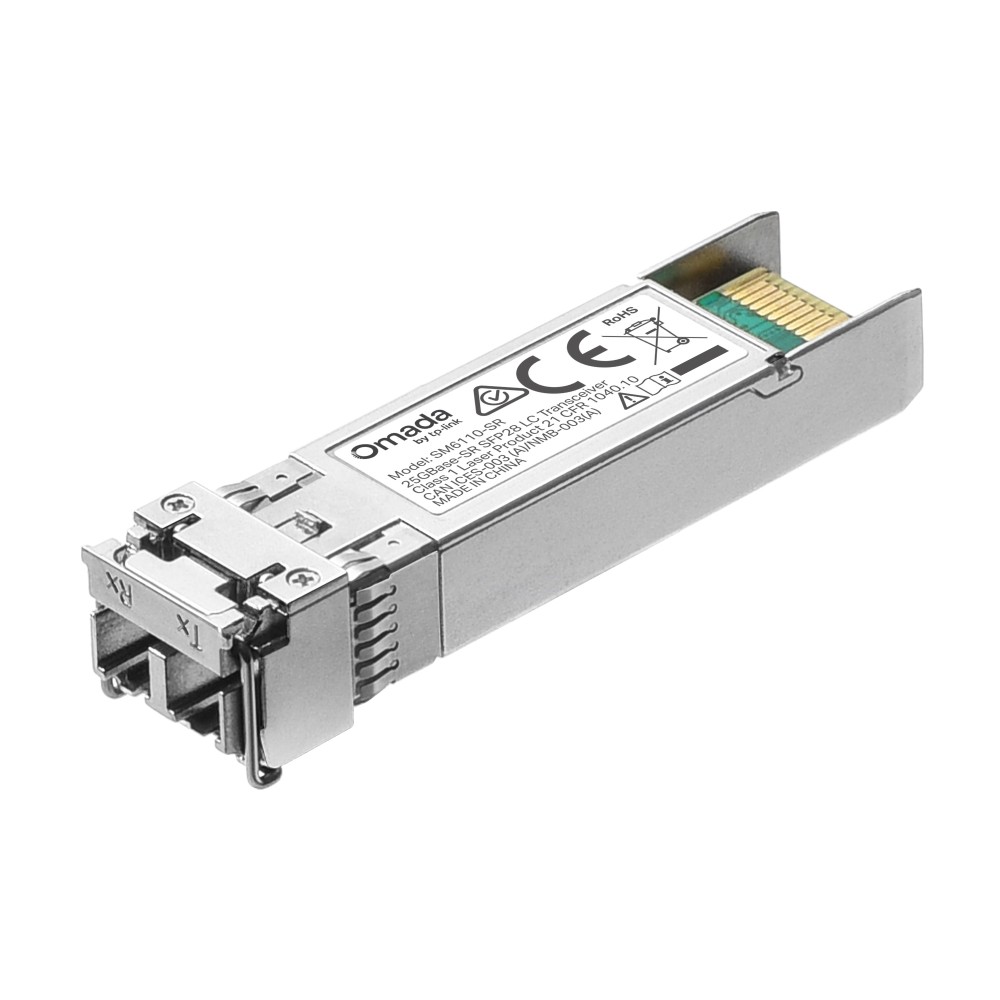

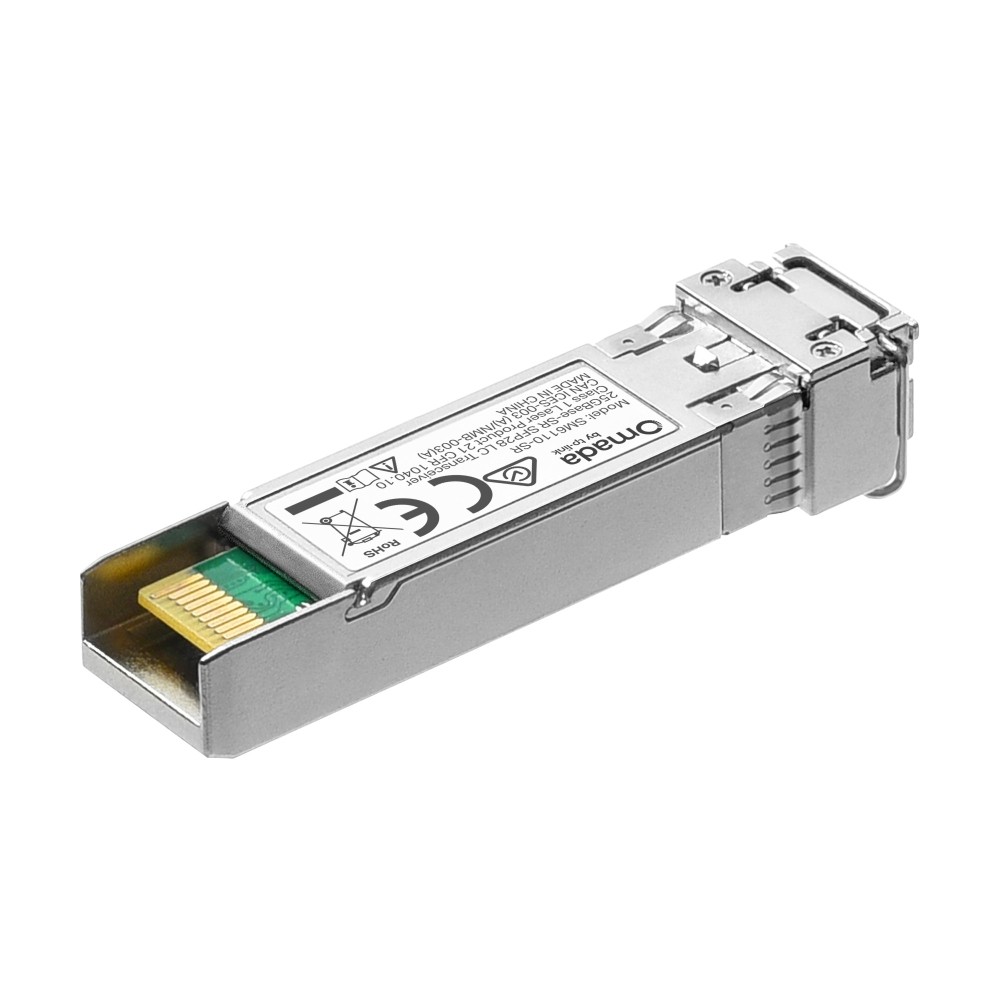

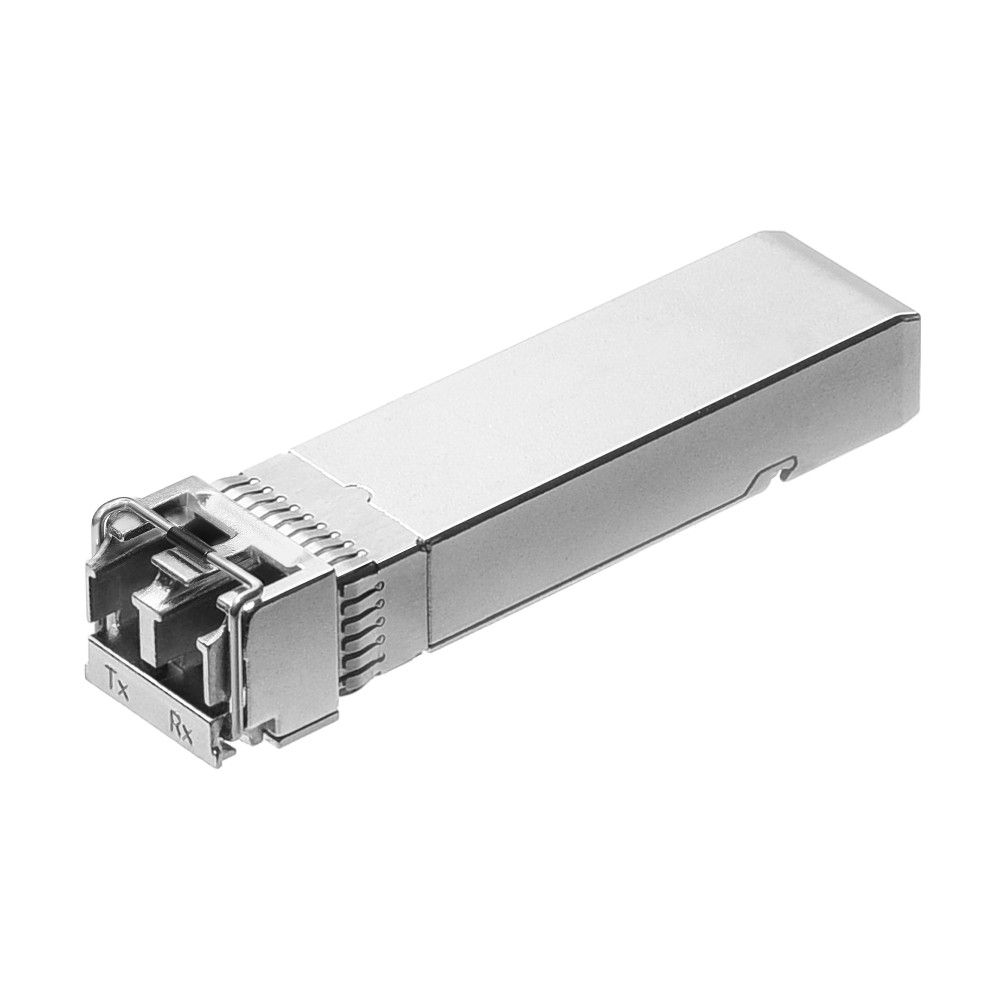

TP-Link SM6110-SR Omada 25GBase-SR SFP28 LC Transceiver

https://arcip.com.au/web/image/product.template/9384/image_1920?unique=f688cdc

The TP-Link SM6110-SR is an Omada 25GBase-SR SFP28 LC transceiver: a 10G/25GBASE-SR 850 nm multi-mode module with a dual data rate of 25.78 Gbps and 10.31 Gbps. It supports full-duplex links up to 100 m on OM4 or 70 m on OM3 at 25.78 Gbps, and up to 300 m on OM3 at 10.31 Gbps, through a duplex LC/UPC connector. It supports DDM, is hot swappable and SFP28 MSA compatible, and draws no more than 1 W. TP-Link names switches with 25G ports like the SX6632YF and 10G ports like the SG3428X and SG3452X as compatible. Supplied by ARC IP Networks from Australian stock with the full manufacturer's warranty.

$ 77.75 77.75 AUD $ 77.75 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
TL-SM6110-SR
Barcode
8885020622331

The TP-Link SM6110-SR is an Omada 25GBase-SR SFP28 LC transceiver for multi-mode fibre. It is dual rate (25.78 Gbps and 10.31 Gbps) and works at 850 nm, reaching up to 100 m on OM4 or 70 m on OM3 at 25.78 Gbps, and up to 300 m on OM3 at 10.31 Gbps. It uses a duplex LC/UPC connector, supports DDM, is hot swappable and draws no more than 1 W.

SM6110-SR overview

The SM6110-SR is TP-Link's short-reach SFP28 optical module for Omada networks. TP-Link says it is designed to extend transfer distances based on 10G/25G Ethernet connectivity, and describes it as a 10G/25GBASE-SR high-performance 850 nm multi-mode SFP+/SFP28 transceiver. It supports full-duplex 10G and 25G Ethernet connections, with a dual data rate of 25.78 Gbps and 10.31 Gbps. The published reach depends on both the data rate and the grade of multi-mode fibre: up to 100 m over OM4 and 70 m over OM3 at 25.78 Gbps, and up to 300 m over OM3 at 10.31 Gbps. Because it is dual rate, the same module suits both port speeds: TP-Link names compatibility with switches with 25G ports like the SX6632YF, and with 10G ports like the SG3428X and SG3452X.

On the optical side, the SM6110-SR uses a VCSEL transmitter and a PIN receiver in COB packaging, with a duplex LC/UPC connector and an 850 nm wavelength. The datasheet lists the media as MMF (multimode fibre) with a 50/125 µm core size; the AU product page lists the fibre type as 50/125 µm or 62.5/125 µm multi-mode, and its reach figures are given for OM3 and OM4. Transmitter power is -8.4 to 2.4 dBm at 25.78 Gbps and -7.3 to -1 dBm at 10.31 Gbps. Receiver sensitivity is better than -10.3 dBm at 25.78 Gbps and -11.1 dBm at 10.31 Gbps, receiver overload is above 2.4 dBm and 0.5 dBm respectively, and the extinction ratio is above 2 dB at 25.78 Gbps and 3 dB at 10.31 Gbps. These are the published figures to work from when you plan the optical budget for a run. A built-in CDR (clock and data recovery) is also listed.

For day-to-day operation, the module supports Digital Diagnostic Monitoring (DDM) and is hot swappable, which TP-Link describes as hot-pluggable with maximum flexibility. It is compatible with the 10G/25G Small Form Pluggable Multi-Source Agreement (SFP+/SFP28 MSA). Listed standards and protocols are IEEE 802.3ae and IEEE 802.3by; SFF-8402, SFF-8431, SFF-8432 and SFF-8472; eCPRI and CPRI; and TCP/IP. It runs from a 3.3 V supply with power consumption of no more than 1 W, which TP-Link highlights as low power consumption.

The SM6110-SR is rated for operating temperatures of 0 to 70 °C (32 to 158 °F) and storage from -40 to 85 °C (-40 to 185 °F). The AU product page lists 5 to 85% RH non-condensing humidity for both operation and storage, while the datasheet gives 10 to 90% RH operating and 5 to 90% RH storage, both non-condensing. It measures 56.75 x 14 x 11.26 mm (2.23 x 0.56 x 0.44 in) and carries CE, FCC and RoHS regulatory compliance. In the box are the SM6110-SR and an installation guide. ARC IP Networks supplies the SM6110-SR from Australian stock with the full manufacturer's warranty.

Key features

Dual rate 25G / 10G

Supports 25.78 Gbps and 10.31 Gbps, so it works in 25G SFP28 ports and in 10G ports.

Up to 100 m at 25G

100 m over OM4 or 70 m over OM3 multi-mode fibre at 25.78 Gbps.

Up to 300 m at 10G

300 m over OM3 multi-mode fibre at 10.31 Gbps.

850 nm SR optics

VCSEL transmitter and PIN receiver at 850 nm, COB packaging, with built-in CDR.

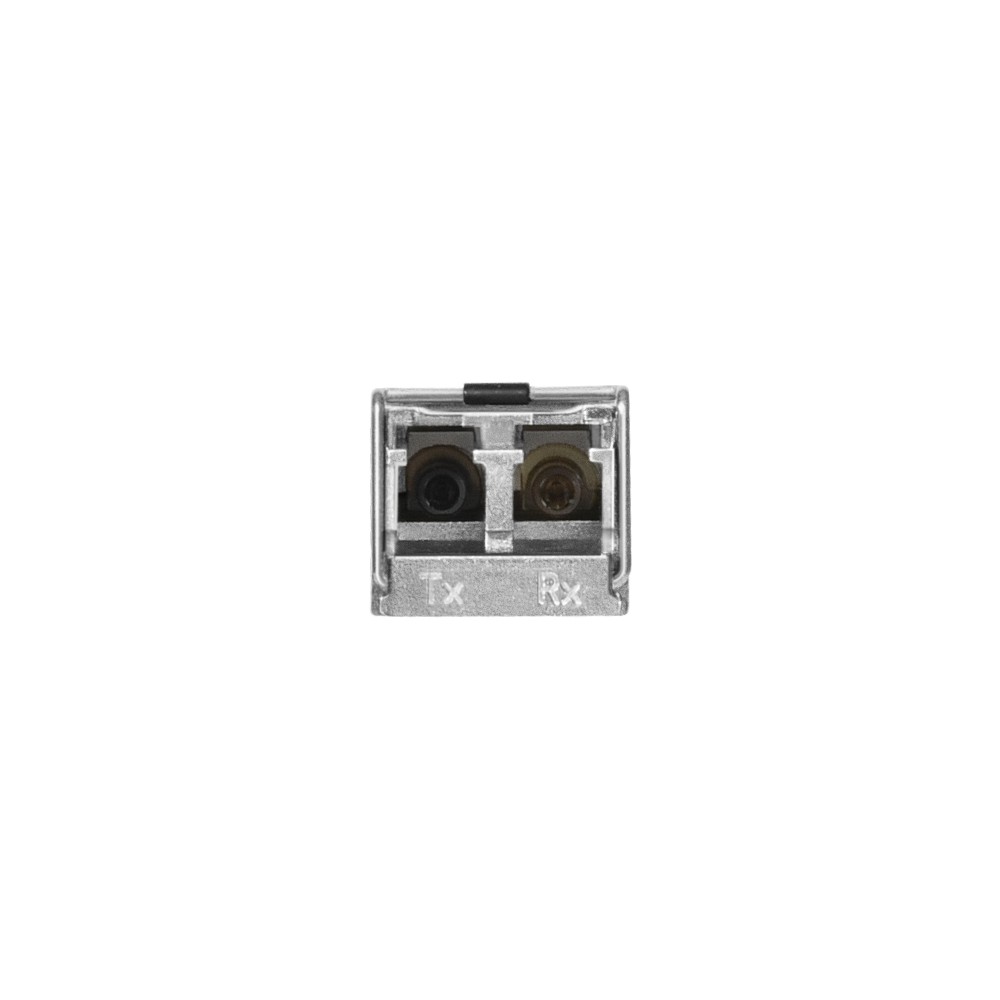

Duplex LC/UPC

Standard duplex LC/UPC connector for multi-mode patch leads.

DDM support

Supports Digital Diagnostic Monitoring (DDM), with SFF-8472 among its listed standards.

Hot swappable

Hot-pluggable with maximum flexibility, compatible with the SFP+/SFP28 MSA.

Low power

No more than 1 W from a 3.3 V supply.

Omada switch compatibility

TP-Link names the SX6632YF (25G ports) and the SG3428X and SG3452X (10G ports).

SM6110-SR specifications

At a glance

SFP28
25.78 / 10.31 Gbps
850 nm
Multi-mode
100 m OM4 / 70 m OM3 at 25G
300 m OM3 at 10G
Duplex LC/UPC
≤ 1 W
SM6110-SR full specifications
Hardware Features
DDMYes
SFP-MSAYes
Hot SwappableYes
Dimensions ( W x D x H )2.23 × 0.56 × 0.44 in (56.75 × 14 × 11.26 mm)
Transceiver
Standards and ProtocolsIEEE 802.3ae, 802.3by; SFF-8402, SFF-8431, SFF-8432, SFF-8472; eCPRI, CPRI; TCP/IP
Wave Length850nm
Power Supply3.3V
Fibre Type50/125um or 62.5/125um Multi-mode
Max. Cable Length70m (OM3) @25.78Gbps, 100m (OM4) @25.78Gbps, 300m (OM3) @10.31Gbps
ConnectorDuplex LC/UPC
Regulatory ComplianceCE, FCC, RoHS
EnvironmentOperating Temperature: 0°C to 70°C (32–158 ℉); Storage Temperature: -40°C to 85°C (-40°F to 185°F); Operating Humidity: 5% to 85% RH non-condensing; Storage Humidity: 5% to 85% RH non-condensing
SFP28 Cable
Data RateDual Rate 25.78 Gbps and 10.31 Gbps

Source: TP-Link's published specifications for this model (TP-Link Australia product page and datasheet). Some features run only in Standalone Mode or only under an Omada Controller; throughput figures are TP-Link's lab results. TP-Link may change specifications without notice.

What's in the box

  • SM6110-SR
  • Installation Guide

Source: TP-Link's published package contents.

Who the SM6110-SR is for

Short multi-mode fibre links

  • 25G up to 100 m on OM4 or 70 m on OM3
  • 10G up to 300 m on OM3
  • Duplex LC/UPC connection

Omada switch uplinks

  • 25G ports such as the SX6632YF
  • 10G ports such as the SG3428X and SG3452X
  • Dual-rate module for either port type

SM6110-SR compared

The SM6110-SR and SM6110-LR are both TP-Link Omada dual-rate 25G/10G SFP28 LC transceivers. The SM6110-SR is the multi-mode short-reach module; the SM6110-LR is the single-mode long-reach module rated for 10 km.

FeatureSM6110-SRSM6110-LR
Type25GBase-SR SFP2825GBase-LR SFP28
Data rate25.78 Gbps and 10.31 Gbps25.78 Gbps and 10.31 Gbps
Wavelength850 nm1310 nm
Fibre typeMulti-mode (OM3 / OM4)9/125 µm single-mode
Max. cable length100 m OM4 / 70 m OM3 at 25.78 Gbps; 300 m OM3 at 10.31 Gbps10 km
Transmitter / receiverVCSEL / PINDFB / PIN
ConnectorDuplex LC/UPCDuplex LC/UPC
Power consumption≤ 1 W≤ 1.2 W
Dimensions56.75 x 14 x 11.26 mm57 x 14 x 12 mm
DDM / SFP-MSA / hot swappableYes / Yes / YesYes / Yes / Yes

Source: TP-Link Australia product pages for each model.

Buy the SM6110-SR from ARC IP Networks

ARC IP Networks supplies genuine TP-Link Omada products from Australian stock at competitive prices, with the full manufacturer's warranty, Australia-wide delivery and trade pricing for installers and MSPs.

  • Genuine TP-Link: new TP-Link Omada product from Australian stock.
  • Manufacturer warranty: the full TP-Link manufacturer's warranty for this model.
  • Australia-wide delivery to every state and territory.
  • Trade and project pricing: call 1300 100 440 or email info@arcip.com.au.

Frequently asked questions

Straight answers about the SM6110-SR from the ARC IP Networks team.

Last reviewed October 2026.

An Omada 25GBase-SR SFP28 LC transceiver: an 850 nm multi-mode module for full-duplex 10G and 25G Ethernet links.

Yes. It is dual rate (25.78 Gbps and 10.31 Gbps), and TP-Link lists compatibility with 10G ports like the SG3428X and SG3452X.

TP-Link names switches with 25G ports like the SX6632YF, and with 10G ports like the SG3428X and SG3452X.

Up to 100 m over OM4 or 70 m over OM3 multi-mode fibre at 25.78 Gbps.

Up to 300 m over OM3 multi-mode fibre at 10.31 Gbps.

No. It is a multi-mode (MMF) module. TP-Link's SM6110-LR is the single-mode 25GBase-LR module, rated for 10 km over 9/125 µm fibre.

A duplex LC/UPC connector.

Yes. Digital Diagnostic Monitoring is supported.

Yes. TP-Link describes it as hot-pluggable with maximum flexibility.

No more than 1 W, from a 3.3 V supply.

0 to 70 °C operating and -40 to 85 °C in storage.

The SM6110-SR transceiver and an installation guide.

Need more than one SM6110-SR for a 25G fibre uplink project?

Ask ARC IP Networks for volume and project pricing on genuine TP-Link Omada products.
