TP-Link TL-SG116E 16-Port Gigabit Easy Smart Desktop Switch

Price:

$ 125.00


MikroTik 24HPOW 24V 2.5A Power Supply
MikroTik 24HPOW 24V 2.5A Power Supply
$ 41.25
$ 41.25
Yealink UH42-D-MS-C/A UH42 Dual USB Wired Headset – Ø 35mm Speakers, USB-C Cord with USB-A Adapter, 160 g
Yealink UH42-D-MS-C/A UH42 Dual USB Wired Headset – Ø 35mm Speakers, USB-C Cord with USB-A Adapter, 160 g
$ 60.48
$ 60.48

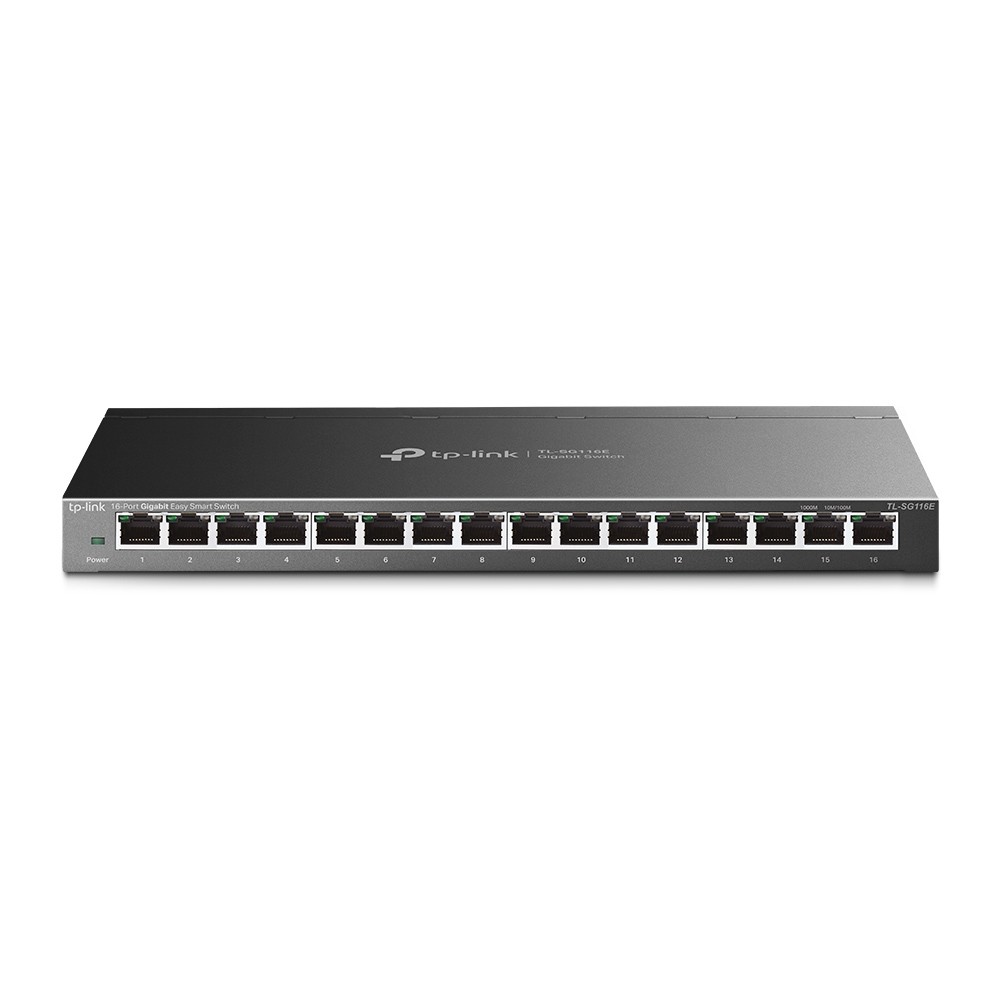

TP-Link TL-SG116E 16-Port Gigabit Easy Smart Desktop Switch

https://arcip.com.au/web/image/product.template/8223/image_1920?unique=8c14c38

The TP-Link TL-SG116E is a 16-port gigabit Easy Smart desktop switch with sixteen 10/100/1000 Mbps RJ45 ports, 32 Gbps switching capacity, 23.81 Mpps forwarding, an 8K MAC table, a 4.1 Mb buffer and 9 KB jumbo frames. It supports MTU, port and tag VLAN (up to 32 VLANs), port/802.1p/DSCP QoS, rate limit, storm control, IGMP snooping, static link aggregation, port mirroring, cable diagnostics and loop prevention. Fanless metal case, 286 x 111.7 x 25.4 mm, 12 V DC external adapter.

$ 125.00 125.0 AUD $ 125.00 incl. GST

Not Available For Sale


  • Brand
  • Switching Capacity
  • RAM

This combination does not exist.

In stock online
Switch Managed Switch TP-Link
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
TL-SG116E
Barcode
1210002617000
Tags

The TP-Link TL-SG116E is a 16-port gigabit Easy Smart desktop switch in a compact metal case. It has sixteen 10/100/1000 Mbps RJ45 ports and 32 Gbps switching capacity, and supports up to 32 VLANs, port/802.1p/DSCP QoS, rate limit, storm control, IGMP snooping v1/v2/v3, static link aggregation, port mirroring, cable diagnostics and loop prevention. It is fanless and powered by a 12 V external adapter.

TL-SG116E overview

The TL-SG116E is TP-Link's 16-Port Gigabit Easy Smart Switch in a desktop form factor. Where the rack-mountable TL-SG1016DE uses an internal mains supply and a 44 mm tall chassis, the TL-SG116E is a slim 286 x 111.7 x 25.4 mm metal unit powered by an external 12 V DC / 1.0 A adapter, and TP-Link says its compact size makes it ideal for desktops or work benches. It provides sixteen 10/100/1000 Mbps RJ45 ports with auto-negotiation and auto MDI/MDIX, giving an easy way to increase the speed of server and backbone connections at home or in the office.

Performance figures are 32 Gbps switching capacity, a 23.81 Mpps packet forwarding rate, an 8K MAC address table, a 4.1 Mb packet buffer and 9 KB jumbo frames, using store-and-forward transmission. Standards supported are IEEE 802.3i, 802.3u, 802.3ab, 802.3x, 802.1q and 802.1p.

The Easy Smart software lets administrators set traffic priority using QoS so voice and video stay clear and lag-free: port-based, 802.1p and DSCP priority are supported with four priority queues, plus rate limit and storm control. IGMP snooping v1/v2/v3 optimises multimedia traffic delivery for applications such as IPTV. VLAN support is MTU, port and tag VLAN, with up to 32 VLANs from 4K VLAN IDs. Static link aggregation, port mirroring, cable diagnostics and loop prevention are also listed. The switch is configured through its web interface or the Easy Smart Configuration Utility on Microsoft Windows.

Energy-saving technology adjusts power consumption automatically according to link status and cable length; maximum power consumption is 9.19 W at 220 V/50 Hz and heat dissipation 31.36 BTU/h. The interior components are protected by a high-quality metal casing, and the switch has passed an array of stringent reliability tests according to TP-Link. It is fanless, rated for 0 to 40 °C operation and -40 to 70 °C storage with 10 to 90% non-condensing humidity, and is FCC and CE certified. The package includes the switch, the power cord/adapter, an installation guide and rubber feet.

Key features

16 gigabit ports

Sixteen 10/100/1000 Mbps RJ45 ports with auto MDI/MDIX.

32 Gbps switching

23.81 Mpps forwarding, 8K MAC table, 4.1 Mb buffer.

VLAN

MTU, port and tag VLAN with up to 32 VLANs.

QoS

Port, 802.1p and DSCP priority, rate limit and storm control.

IGMP snooping

v1/v2/v3 for IPTV and multicast.

Diagnostics

Port mirroring, cable diagnostics and loop prevention.

Compact metal case

286 x 111.7 x 25.4 mm, ideal for desktops or work benches.

Fanless, 12 V adapter

9.19 W maximum power consumption.

TL-SG116E specifications

At a glance

16 x gigabit RJ45
32 Gbps switching
Easy Smart
Up to 32 VLANs
802.1p/DSCP QoS
IGMP snooping
Fanless metal case
12 V DC adapter
TL-SG116E full specifications
Hardware Features
Standards and ProtocolsIEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
Interface16 10/100/1000Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX
Network Media10BASE-T: UTP category 3, 4, 5 cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m); 100BASE-TX: UTP category 5, 5e cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m); 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m)
Fan QuantityFanless
Power SupplyExternal Power Adapter(Output: 12VDC/1.0A)
Dimensions ( W x D x H )11.3 × 4.4 × 1.0 in. (286 × 111.7 × 25.4 mm)
Max. Power Consumption9.19W(220V/50Hz)
Max. Heat Dissipation31.36BTU/h
Performance
Packet Buffer Memory4.1Mb
Jumbo Frame9KB
Switching Capacity32Gbps
Packet Forwarding Rate23.81Mpps
MAC Address Table8K
Software Features
Quality of ServiceSupport Port-based/802.1p/DSCP priority; Support 4 priority queues; Rate Limit; Storm Control
L2 FeaturesIGMP Snooping V1/V2/V3 Static Link Aggregation Port Mirroring Cable Diagnostics Loop Prevention
VLANSupports up to 32 VLANs simultaneously (out of 4K VLAN IDs); MTU/Port/Tag VLAN
Transmission MethodStore-And-Forward
Others
CertificationFCC, CE
System RequirementsMicrosoft Windows for running Utility
EnvironmentOperating Temperature: 0℃~40℃ (32℉~104℉); Storage Temperature: -40℃~70℃ (-40℉~158℉); Operating Humidity: 10%~90% non-condensing; Storage Humidity: 5%~90% non-condensing

Source: TP-Link's published specifications for this model (TP-Link Australia product page). Some features run only in Standalone Mode or only under an Omada Controller; throughput figures are TP-Link's lab results. TP-Link may change specifications without notice.

What's in the box

  • TL-SG116E Power Cord Installation Guide Rubber Feet

Source: TP-Link's published package contents.

Who the TL-SG116E is for

16 ports on a desk

  • Slim 25.4 mm case
  • Fanless
  • External 12 V adapter

Managed small networks

  • 32 VLANs
  • QoS for voice and video
  • Link aggregation

TL-SG116E compared

The TL-SG116E and TL-SG1016DE are both 16-port gigabit Easy Smart switches with 32 Gbps switching. The TL-SG116E is a slim desktop unit with an external adapter; the TL-SG1016DE is rack mountable with an internal supply.

FeatureTL-SG116ETL-SG1016DE
Form factorDesktopRack mountable
PowerExternal 12 V DC / 1.0 A adapterInternal 100–240 V AC
Dimensions286 x 111.7 x 25.4 mm294 x 140 x 44 mm
Jumbo frame9 KB10 KB
Max power consumption9.19 W10.54 W

Source: TP-Link Australia product pages for each model.

Buy the TL-SG116E from ARC IP Networks

ARC IP Networks supplies TP-Link Omada products from Australian stock at competitive prices, with the full manufacturer's warranty, Australia-wide delivery and trade pricing for installers and MSPs.

  • New TP-Link Omada product from Australian stock.
  • Manufacturer warranty: the full TP-Link manufacturer's warranty for this model.
  • Australia-wide delivery to every state and territory.
  • Trade and project pricing: call 1300 100 440 or email info@arcip.com.au.

Frequently asked questions

Straight answers about the TL-SG116E from the ARC IP Networks team.

Last reviewed October 2026.

It is an Easy Smart switch with VLAN, QoS, IGMP snooping, link aggregation, port mirroring, cable diagnostics and loop prevention.

TP-Link positions it as a compact desktop switch, and no rackmount kit is listed in the box. The TL-SG1016DE is the rack-mountable 16-port Easy Smart model.

By an external adapter rated 12 V DC / 1.0 A.

No.

Up to 32 VLANs simultaneously, out of 4K VLAN IDs.

Yes.

32 Gbps, with a 23.81 Mpps forwarding rate.

Yes, 9 KB.

The TL-SG116E, the power supply, an installation guide and rubber feet.

Need more than one TL-SG116E for a desktop 16-port network?

Ask ARC IP Networks for volume and project pricing on TP-Link Omada products.

Brand TP-Link
Switching Capacity 32Gbps
RAM 4.1Mb
