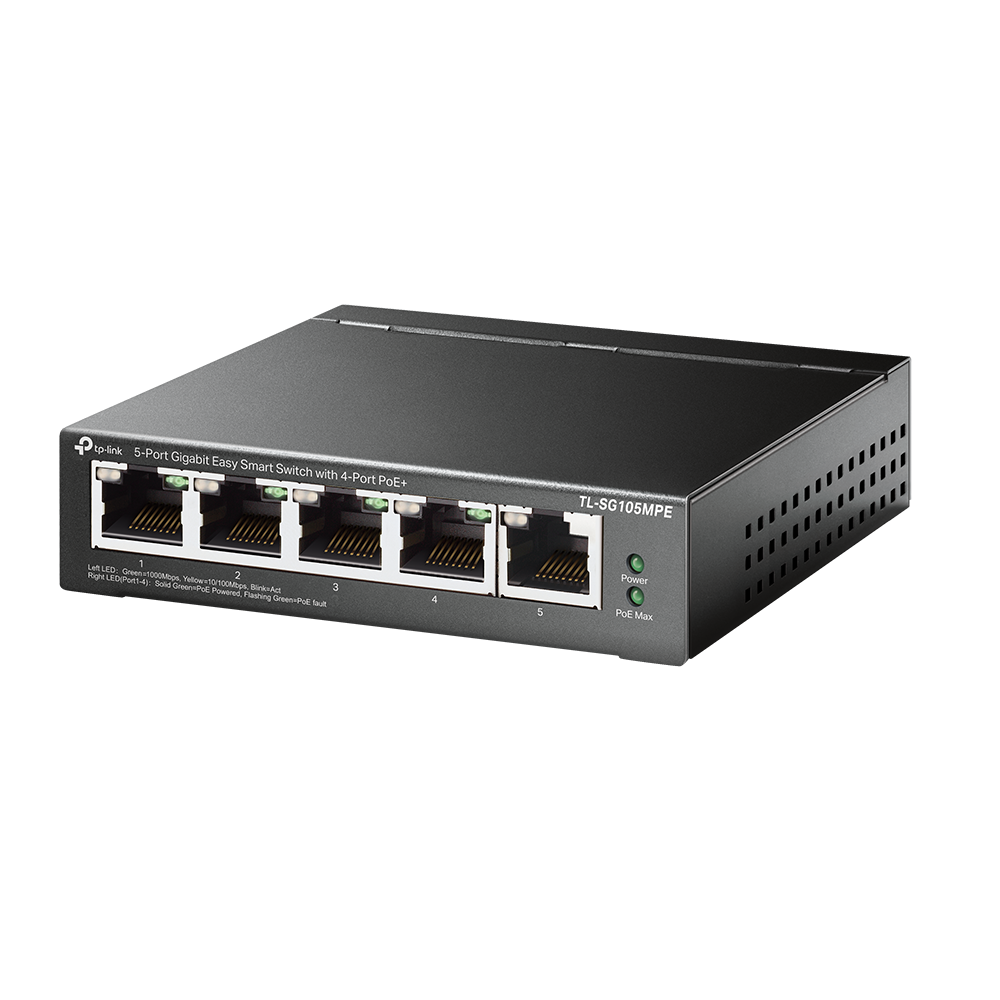

TP-Link TL-SG105MPE 5-Port Gigabit Easy Smart Switch with 4-Port PoE+ (120 W)

https://arcip.com.au/web/image/product.template/8215/image_1920?unique=8455eaa

The TP-Link TL-SG105MPE is a 5-port gigabit Easy Smart switch with PoE+ on ports 1 to 4. The PoE ports are 802.3af/at compliant with a 120 W PoE power budget, supplied by a 53.5 V DC / 2.43 A external adapter. Software features include PoE Auto Recovery, Extend Mode, up to 32 VLANs, port/802.1p/DSCP QoS, rate limit, storm control, IGMP snooping, static link aggregation, port mirroring, cable diagnostics and loop prevention, managed by web GUI or the Easy Smart Configuration Utility. 10 Gbps switching, fanless, 99.8 x 98 x 25 mm.

$ 136.68 136.68 AUD $ 136.68 incl. GST

Not Available For Sale


  • Brand
  • Switching Capacity
  • RAM

This combination does not exist.

In stock online
Switch PoE Managed Switch TP-Link
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
TL-SG105MPE
Barcode
4895252500264
Tags

The TP-Link TL-SG105MPE is a 5-port gigabit Easy Smart switch with 4-port PoE+. Ports 1 to 4 are 802.3af/at compliant and share a 120 W PoE budget, the highest of TP-Link's 5-port Easy Smart PoE models, and the switch adds PoE Auto Recovery and Extend Mode alongside 32 VLANs, port/802.1p/DSCP QoS, IGMP snooping, link aggregation, port mirroring and loop prevention in a fanless 99.8 x 98 x 25 mm case.

TL-SG105MPE overview

The TL-SG105MPE is TP-Link's 5-Port Gigabit Easy Smart Switch with 4-Port PoE+, the higher-power version of the compact 5-port Easy Smart PoE design. All five RJ45 ports run at 10/100/1000 Mbps with auto-negotiation and auto MDI/MDIX. Ports 1 to 4 are PoE ports compliant with IEEE 802.3af and 802.3at, and the fifth port is a non-PoE gigabit port, typically used as the uplink. The PoE power budget is 120 W, so four PoE+ devices can be powered at the same time.

The 120 W budget is what separates the TL-SG105MPE from the TL-SG105PE, which shares the same title, ports and software features but has a 65 W budget. To deliver it, the TL-SG105MPE uses a larger external power adapter rated 53.5 V DC / 2.43 A (the TL-SG105PE adapter is 53.5 V DC / 1.31 A). TP-Link lists maximum power consumption of 4.34 W with no powered device connected (220 V/50 Hz) and 137.01 W with 120 W of powered devices connected (110 V/50 Hz), and heat dissipation of 14.8 BTU/h and 467.17 BTU/h respectively.

The Easy Smart software adds PoE Auto Recovery and Extend Mode to the standard Easy Smart tools: MTU, port and tag VLAN with up to 32 VLANs out of 4K VLAN IDs; port-based, 802.1p and DSCP priority with four queues; rate limit and storm control; IGMP snooping v1/v2/v3; static link aggregation; port mirroring; cable diagnostics; and loop prevention. Configuration is through a web-based GUI or the Easy Smart Configuration Utility, which runs on Microsoft Windows. Performance figures are 10 Gbps switching capacity, a 7.44 Mpps forwarding rate, a 2K MAC table, a 1 Mb buffer and 16 KB jumbo frames, with store-and-forward transmission.

Physically the TL-SG105MPE is fanless and measures 99.8 x 98 x 25 mm. Operating temperature is 0 to 40 °C and storage -40 to 70 °C, with 10 to 90% RH non-condensing operating humidity and 5 to 95% RH non-condensing storage humidity. Standards supported are IEEE 802.3i, 802.3u, 802.3ab, 802.3af, 802.3at, 802.3x, 802.1q and 802.1p, and it is FCC and CE certified. In the box are the switch, the power adapter, an installation guide and rubber feet. The current AU listing is hardware version V1.

Key features

4 PoE+ ports

Ports 1 to 4 are 802.3af/at compliant; port 5 is non-PoE gigabit.

120 W PoE budget

Shared across the four PoE+ ports.

PoE Auto Recovery

Listed in the L2 software features.

Extend Mode

Listed in the L2 software features.

Easy Smart management

Up to 32 VLANs, 802.1p/DSCP QoS, IGMP snooping, link aggregation.

Diagnostics

Port mirroring, cable diagnostics and loop prevention.

Compact and fanless

99.8 x 98 x 25 mm desktop design.

53.5 V adapter

External adapter rated 53.5 V DC / 2.43 A included.

TL-SG105MPE specifications

At a glance

5 x gigabit RJ45
4 x PoE+ (ports 1–4)
120 W PoE budget
PoE Auto Recovery
Extend Mode
Up to 32 VLANs
Fanless
10 Gbps switching
TL-SG105MPE full specifications
Hardware Features
Standards and ProtocolsIEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p, IEEE 802.3at
InterfaceFive 10/100/1000Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX
Network Media10BASE-T: UTP category 3, 4, 5 cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m); 100BASE-TX: UTP category 5, 5e cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m); 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m)
Fan QuantityFanless
Power SupplyExternal Power Adapter (Output: 53.5 VDC / 2.43 A)
PoE Ports (RJ45)Standard: 802.3 af/at compliant PoE Ports: Port 1- Port 4 PoE Power Budget: 120 W
Dimensions ( W x D x H )3.9 × 3.9 × 1.0 in (99.8 × 98 × 25 mm)
Max. Power Consumption4.34 W (220 V/50 Hz with no PD connected) 137.01 W (110 V/50 Hz with 120 W PD connected)
Max. Heat Dissipation14.8 BTU/h (with no PD connected) 467.17 BTU/h (with 120 W PD connected)
Performance
Packet Buffer Memory1 Mb
Jumbo Frame16 KB
Switching Capacity10 Gbps
Packet Forwarding Rate7.44 Mpps
MAC Address Table2 K
Software Features
Quality of ServiceSupport Port-Based/802.1p/DSCP priority; Support 4 priority queues; Rate Limit; Storm Control
L2 FeaturesIGMP Snooping V1/V2/V3 Static Link Aggregation Port Mirroring Cable Diagnostics Loop Prevention PoE Auto Recovery Extend Mode
VLANSupports up to 32 VLANs simultaneously (out of 4K VLAN IDs); MTU/Port/Tag VLAN
Management FeaturesWeb-based GUI; Easy Smart Configuration Utility
Transmission MethodStore-And-Forward
Others
CertificationFCC, CE
System RequirementsMicrosoft Windows for running Utility
EnvironmentOperating Temperature: 0℃~40℃ (32℉~104℉); Storage Temperature: -40℃~70℃ (-40℉~158℉); Operating Humidity: 10%~90%RH non-condensing; Storage Humidity: 5%~95%RH non-condensing

Source: TP-Link's published specifications for this model (TP-Link Australia product page). throughput figures are TP-Link's lab results. TP-Link may change specifications without notice.

What's in the box

  • TL-SG105MPE Power Adapter Installation Guide Rubber Feet

Source: TP-Link's published package contents.

Who the TL-SG105MPE is for

Higher-draw PoE+ devices

  • 120 W across four ports
  • 802.3af/at PoE+
  • PoE Auto Recovery

Small managed PoE edge

  • VLANs for cameras or APs
  • QoS for voice
  • One spare gigabit uplink

TL-SG105MPE compared

The TL-SG105MPE and TL-SG105PE are both 5-port gigabit Easy Smart switches with 4-port PoE+ and the same software features. The difference is PoE power: 120 W on the TL-SG105MPE and 65 W on the TL-SG105PE.

FeatureTL-SG105MPETL-SG105PE
PoE+ portsPorts 1–4Ports 1–4
PoE budget120 W65 W
Power adapter53.5 V DC / 2.43 A53.5 V DC / 1.31 A
Max power with PDs137.01 W (120 W PD)75.16 W (65 W PD)
Dimensions99.8 x 98 x 25 mm99.8 x 98 x 25 mm

Source: TP-Link Australia product pages for each model.

Buy the TL-SG105MPE from ARC IP Networks

ARC IP Networks supplies TP-Link products from Australian stock at competitive prices, with the full manufacturer's warranty, Australia-wide delivery and trade pricing for installers and MSPs.

  • New TP-Link product from Australian stock.
  • Manufacturer warranty: the full TP-Link manufacturer's warranty for this model.
  • Australia-wide delivery to every state and territory.
  • Trade and project pricing: call 1300 100 440 or email info@arcip.com.au.

Frequently asked questions

Straight answers about the TL-SG105MPE from the ARC IP Networks team.

Last reviewed October 2026.

Four. Ports 1 to 4 are 802.3af/at PoE+; port 5 is a non-PoE gigabit port.

120 W in total.

Both have five gigabit ports with PoE+ on ports 1 to 4 and the same Easy Smart features. The TL-SG105MPE has a 120 W budget; the TL-SG105PE has 65 W.

It is an Easy Smart switch, configured by web GUI or the Easy Smart Configuration Utility, with VLAN, QoS, IGMP snooping and link aggregation.

Yes. TP-Link lists PoE Auto Recovery and Extend Mode among its features.

Yes.

By the included external adapter rated 53.5 V DC / 2.43 A.

10 Gbps, with a 7.44 Mpps forwarding rate.

The TL-SG105MPE, a power adapter, an installation guide and rubber feet.
