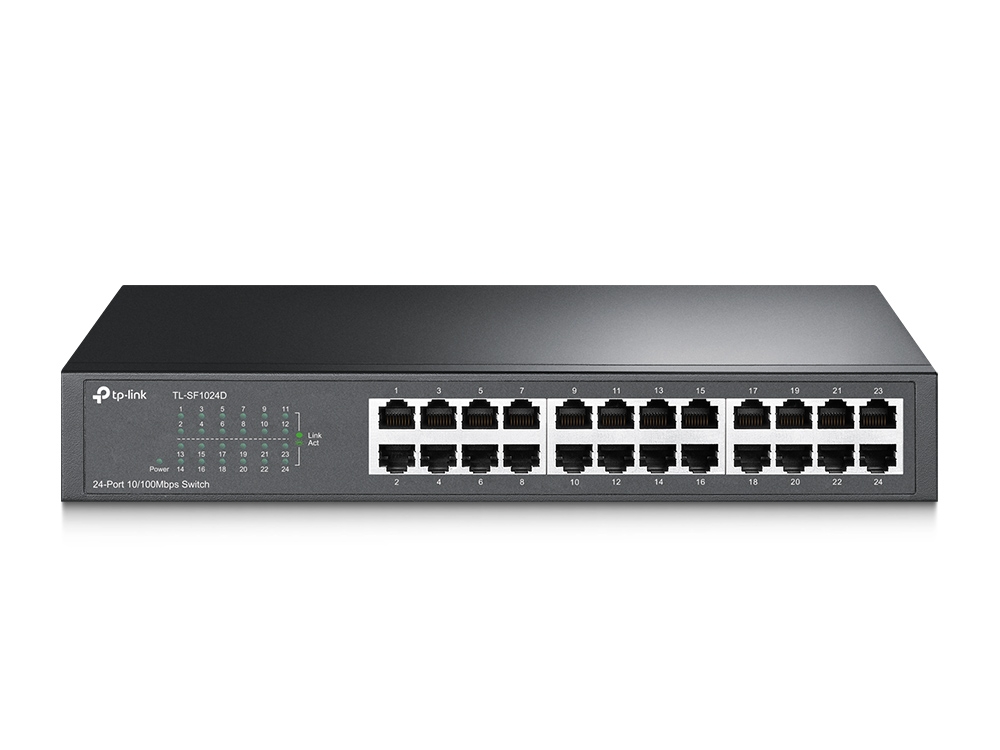

TP-Link TL-SF1024D 24-port 10/100Mbps Desktop/Rackmount Switch

https://arcip.com.au/web/image/product.template/8203/image_1920?unique=73ac110

The TP-Link TL-SF1024D is a 24-port 10/100Mbps desktop/rackmount switch. All 24 RJ45 ports support auto-negotiation and auto MDI/MDIX for plug-and-play installation with no configuration required. Its non-blocking switching architecture forwards packets at full wire speed, with 4.8Gbps switching capacity, an 8K MAC address table and IEEE 802.3x flow control. Energy-efficient technology adjusts power consumption to link status and cable length. TP-Link describes it as cost-effective for environments of fewer than 24 users. Fanless steel case with internal power supply and rackmount kit. Supplied by ARC IP Networks from Australian stock with the full manufacturer's warranty.

$ 125.44 125.44 AUD $ 125.44 incl. GST

Not Available For Sale


  • Brand
  • Switching Capacity
  • RAM

This combination does not exist.

Switch Managed Switch TP-Link
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
TL-SF1024D
Barcode
6935364021498
Tags

The TP-Link TL-SF1024D is a 24-port 10/100 Mbps desktop/rackmount switch: 24 RJ45 ports with auto-negotiation and auto MDI/MDIX, 4.8 Gbps switching capacity, a 3.57 Mpps forwarding rate and an 8K MAC address table, in a fanless rack-mount size steel case with an internal power supply. It is plug and play, with no configuring required.

TL-SF1024D overview

The TL-SF1024D is TP-Link's 24-port 10/100 Mbps switch for desktop or rack installation. TP-Link describes it as a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve an old network to a 100 Mbps network. All 24 RJ45 ports support auto MDI/MDIX, which TP-Link says eliminates the need for crossover cables, and auto-negotiation on each port senses the link speed of a network device (10 or 100 Mbps) and adjusts for compatibility. Installation is plug and play, with no configuring required. Supported standards are IEEE 802.3i, IEEE 802.3u and IEEE 802.3x.

TP-Link states that the TL-SF1024D features a non-blocking switching architecture and forwards and filters packets at full wire-speed for maximum throughput. The published figures are a 4.8 Gbps switching capacity, a 3.57 Mpps packet forwarding rate, an 8K MAC address table and 2 Mb of buffer memory, with store-and-forward transmission. IEEE 802.3x flow control for full-duplex mode and backpressure for half-duplex mode alleviate traffic congestion, which TP-Link says helps the switch work reliably. For cabling, TP-Link specifies UTP category 3, 4 or 5 for 10BASE-T and UTP category 5, 5e or above for 100BASE-TX, each up to 100 m.

The switch is built in a rack-mount size steel case with a safety-certified internal power supply, which TP-Link says makes it very cost-effective for a less than 24-user environment. It runs from 100-240 VAC, 50/60 Hz, using the included power cord, and is fanless. Dimensions are 294 x 180 x 44 mm (11.6 x 7.1 x 1.7 in), it is rack mountable with the rackmount kit supplied, and rubber feet are included for desktop use. There is also a physical security lock. TP-Link lists a maximum power consumption of 3.19 W at 220 V / 50 Hz and a maximum heat dissipation of 10.88 BTU/h.

Under its green technology, TP-Link says the TL-SF1024D automatically adjusts power consumption according to the link status and cable length. It complies with the EU's RoHS directive, and TP-Link states that 80% of the packaging material can be recycled. Certification is FCC and CE. The operating range is 0 to 40 °C at 10 to 90% non-condensing humidity, with storage from -40 to 70 °C at 5 to 90% non-condensing humidity. In the box are the 24-Port 10/100Mbps Desktop/Rackmount Switch, a power cord, an installation guide, a rackmount kit and rubber feet. ARC IP Networks supplies the TL-SF1024D from Australian stock with the full manufacturer's warranty.

Key features

24 x 10/100 Mbps ports

24 RJ45 ports with auto-negotiation and auto MDI/MDIX, so crossover cables are not needed.

Non-blocking architecture

Forwards and filters packets at full wire-speed, with 4.8 Gbps switching capacity and 3.57 Mpps forwarding.

8K MAC address table

An 8K MAC address table, 2 Mb buffer memory and store-and-forward transmission.

Flow control

IEEE 802.3x flow control in full-duplex mode and backpressure in half-duplex mode alleviate traffic congestion.

Plug and play

No configuring is required; auto-negotiation adjusts each port to the connected device's link speed.

Internal power supply

A safety-certified internal power supply running from 100-240 VAC, 50/60 Hz.

Steel desktop/rackmount case

A rack-mount size steel case, 294 x 180 x 44 mm, with a rackmount kit, rubber feet and a physical security lock.

Green technology

Adjusts power consumption according to link status and cable length; maximum power consumption is 3.19 W.

TL-SF1024D specifications

At a glance

24 x 10/100 Mbps RJ45
4.8 Gbps switching
3.57 Mpps
8K MAC table
2 Mb buffer
Internal PSU
Fanless
Desktop / rackmount
TL-SF1024D full specifications
Hardware Features
Standards and ProtocolsIEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Interface24 10/100Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
Network Media10BASE-T: UTP category 3, 4, 5 cable (maximum 100m); 100BASE-TX: UTP category 5, 5e or above cable (maximum 100m)
Fan QuantityFanless
Physical Security LockYes
Power Supply100-240VAC, 50/60Hz
Dimensions ( W x D x H )11.6 7.1 1.7 in. (294 180 44 mm)
MountingRack Mountable
Max. Power Consumption3.19W(220V/50Hz)
Max. Heat Dissipation10.88BTU/h
Performance
Green TechnologyInnovative energy-efficient technology saves power up to 75%
Transmission MethodStore-and-Forward
Switching Capacity4.8Gbps
Buffer Memory2Mb
Packet Forwarding Rate3.57Mpps
MAC Address Table8K
Others
CertificationFCC, CE
EnvironmentOperating Temperature: 0℃~40℃ (32℉~104℉); Storage Temperature: -40℃~70℃ (-40℉~158℉); Operating Humidity: 10%~90% non-condensing; Storage Humidity: 5%~90% non-condensing

Source: TP-Link's published specifications for this model (TP-Link Australia product page). throughput figures are TP-Link's lab results. TP-Link may change specifications without notice.

What's in the box

  • 24-Port 10/100Mbps Desktop/Rackmount Switch
  • Power Cord
  • Installation Guide
  • Rackmount Kit
  • Rubber Feet

Source: TP-Link's published package contents.

Who the TL-SF1024D is for

Business networks of fewer than 24 users

  • 24 x 10/100 Mbps ports
  • Plug and play, no configuring
  • Steel case with internal power supply

Upgrading an older network to 100 Mbps

  • Auto-negotiation at 10 or 100 Mbps
  • Auto MDI/MDIX on all ports
  • Desktop or rack mounting

Buy the TL-SF1024D from ARC IP Networks

ARC IP Networks supplies genuine TP-Link products from Australian stock at competitive prices, with the full manufacturer's warranty, Australia-wide delivery and trade pricing for installers and MSPs.

  • Genuine TP-Link: new TP-Link product from Australian stock.
  • Manufacturer warranty: the full TP-Link manufacturer's warranty for this model.
  • Australia-wide delivery to every state and territory.
  • Trade and project pricing: call 1300 100 440 or email info@arcip.com.au.

Frequently asked questions

Straight answers about the TL-SF1024D from the ARC IP Networks team.

Last reviewed October 2026.

All 24 RJ45 ports are 10/100 Mbps, with auto-negotiation and auto MDI/MDIX. It does not have gigabit ports.

4.8 Gbps, with a packet forwarding rate of 3.57 Mpps and an 8K MAC address table.

No. TP-Link states installation is plug and play, with no configuring required.

Yes. It is rack mountable and a rackmount kit is included. Rubber feet are also supplied for desktop use.

Yes. TP-Link specifies a safety-certified internal power supply running from 100-240 VAC, 50/60 Hz, connected with the included power cord.

Yes. TP-Link lists it as fanless.

TP-Link lists a maximum power consumption of 3.19 W at 220 V / 50 Hz and a maximum heat dissipation of 10.88 BTU/h.

No. Auto MDI/MDIX on all 24 ports eliminates the need for crossover cables.

UTP category 5, 5e or above for 100BASE-TX, and UTP category 3, 4 or 5 for 10BASE-T, each up to 100 m.

The 24-port switch, a power cord, an installation guide, a rackmount kit and rubber feet.
