TP-Link TL-PD30G-M2 2.5G PoE+ Splitter

Price:

$ 30.34


Mercusys Halo H50G(2-pack) AC1900 Whole Home Mesh Wi-Fi System
Mercusys Halo H50G(2-pack) AC1900 Whole Home Mesh Wi-Fi System
$ 150.68
$ 150.68
TP-Link Archer MR402-Outdoor AC1200 4G LTE Wireless Dual-Band Outdoor Router
TP-Link Archer MR402-Outdoor AC1200 4G LTE Wireless Dual-Band Outdoor Router
$ 315.06
$ 315.06

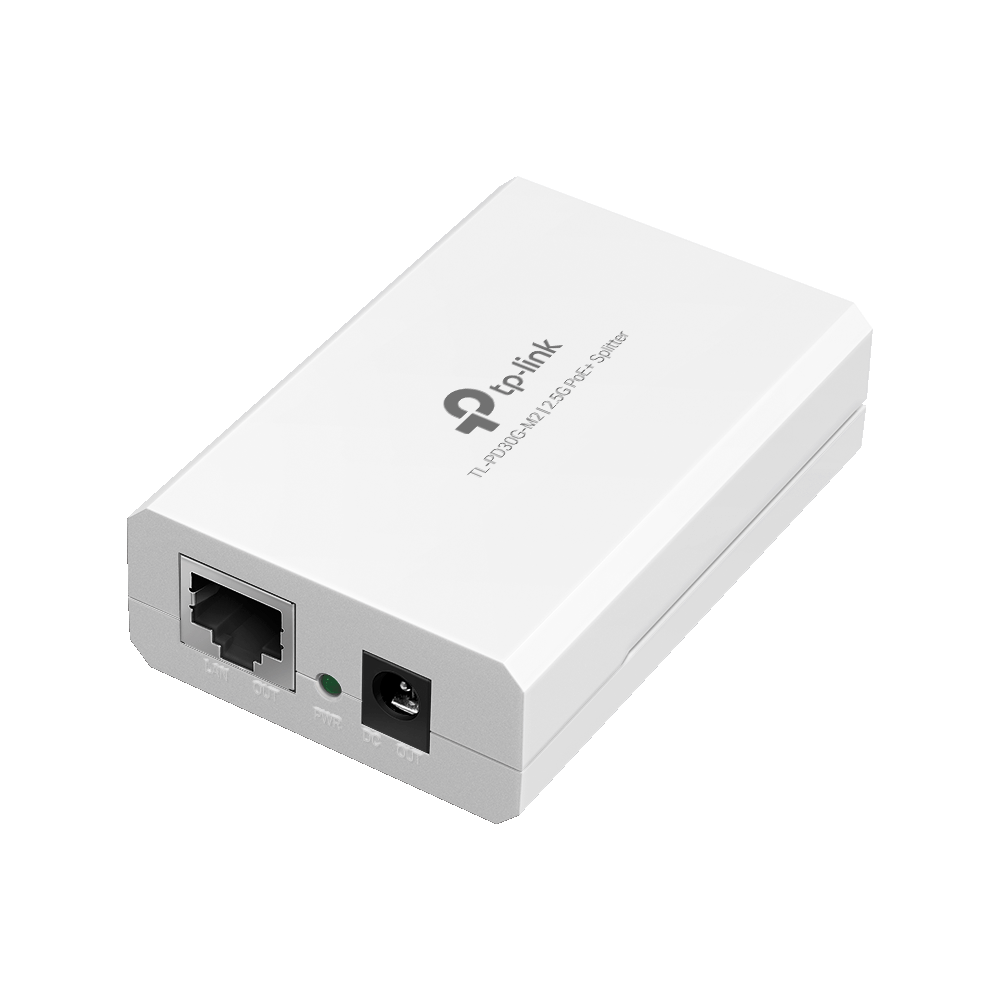

TP-Link TL-PD30G-M2 2.5G PoE+ Splitter

https://arcip.com.au/web/image/product.template/11391/image_1920?unique=d95db27

The TP-Link TL-PD30G-M2 is a 2.5G PoE+ splitter that takes power and data from an IEEE 802.3af/at compliant PoE+ switch or injector and outputs DC power to a non-PoE device. It has a 2.5Gbps RJ45 power+data in port, a 2.5Gbps RJ45 LAN out port and a selectable 12V, 9V or 5V DC output at up to 2A. Power is delivered up to 100 m, and the 2.5G speeds work over existing Cat5e, Cat6 and Cat6a cabling. It suits devices such as access points and routers, and is plug and play with no configuration required. Supplied by ARC IP Networks from Australian stock with the full manufacturer's warranty.

$ 30.34 30.34 AUD $ 30.34 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
TL-PD30G-M2
Barcode
8885021370118

The TP-Link TL-PD30G-M2 is a 2.5G PoE+ splitter that takes power from an IEEE 802.3af/at PoE switch or injector and delivers a selectable 5, 9 or 12 VDC output to an Ethernet-enabled device, up to 24 W at 12 V, while passing 10M/100M/1000M/2.5 Gbps data. It is plug and play, with short-circuit protection and auto disconnection for voltage and current faults.

TL-PD30G-M2 overview

The TL-PD30G-M2 is a 2.5G PoE+ splitter. It works with IEEE 802.3af/at compliant PoE+ switches or injectors and splits the incoming PoE into separate data and DC power, delivering an optional 12 V, 9 V or 5 V DC output to a variety of Ethernet-enabled devices. TP-Link highlights the cost saving of needing no power cabling for the Ethernet network device, with power delivered up to 100 m over the network cable. An advanced auto-sensing algorithm lets the splitter take power from an 802.3af/at PSE, and it supports power detection and classification.

The data path runs at up to 2.5 Gbps. Both the RJ45 POWER+DATA IN port and the RJ45 LAN OUT port auto-negotiate 10M/100M/1000M/2.5 Gbps, which TP-Link says delivers 2.5 times faster network performance than traditional gigabit switches. TP-Link adds that it works with Cat5e, Cat6, Cat6a and above cables without upgrading your cabling; its network media specification lists 2.5GBASE-T and 1000BASE-T over UTP Cat5e or Cat6 cable up to 100 m. Supported standards are IEEE 802.3i, 802.3u, 802.3ab, 802.3bz, 802.3af and 802.3at.

The DC output is adjustable with a slide switch to 5 VDC, 9 VDC or 12 VDC, each at up to 2 A. TP-Link rates the output at up to 10 W at 5 VDC, 18 W at 9 VDC or 24 W at 12 VDC. Protection features include short-circuit protection and automatic disconnection for over-voltage, under-voltage or over-current conditions, which TP-Link describes as high safety. A single LED shows the power status: on when the splitter is connected to a PSE correctly, off when no PSE is connected. TP-Link describes installation as plug and play, with no configuration required.

The splitter measures 80.8 x 54 x 24 mm. It is rated for operation from -5 °C to 45 °C at 10% to 90% RH non-condensing, and for storage from -40 °C to 70 °C, and carries FCC and CE certification, with RoHS also listed in the datasheet. TP-Link lists the package contents as the TL-PD30G-M2, a power cord and an installation guide. ARC IP Networks supplies the TL-PD30G-M2 from Australian stock with the full manufacturer's warranty.

Key features

2.5G data in and out

RJ45 POWER+DATA IN and LAN OUT ports that auto-negotiate 10M/100M/1000M/2.5 Gbps.

5, 9 or 12 VDC output

Slide switch selects 5 VDC, 9 VDC or 12 VDC, each up to 2 A.

Up to 24 W at 12 V

Supplies up to 10 W at 5 VDC, 18 W at 9 VDC or 24 W at 12 VDC.

Works with 802.3af/at PSEs

Takes power from IEEE 802.3af/at compliant PoE+ switches or injectors.

Uses existing cabling

Works with Cat5e, Cat6, Cat6a and above cables, with power delivered up to 100 m.

Protection built in

Short-circuit protection and auto disconnection for over-voltage, under-voltage or over-current.

Detection and classification

Supports power detection and classification with an auto-sensing algorithm.

Plug and play

Requires no configuration; an LED confirms a correct PSE connection.

TL-PD30G-M2 specifications

At a glance

2.5G PoE+ splitter
802.3af/at input
10M to 2.5 Gbps
5/9/12 VDC output
Up to 24 W (12 V)
Up to 100 m
Short-circuit protection
Plug and play
TL-PD30G-M2 full specifications
Hardware Features
Interface1 10M/100M/1000M/2.5Gbps Auto-Negotiation RJ45 POWER+DATA IN Port 1 10M/100M/1000M/2.5Gbps Auto-Negotiation RJ45 LAN OUT Port 1 12V / 9V / 5V DC OUT Power Output Port
Network Media10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5e, 6 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 2.5GBASE-T: UTP category 5e, 6 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m)
Power Supply12VDC 2A, 9VDC 2A, 5VDC 2A
Basic FunctionCompatible with IEEE 802.3af/at compliant PSEs Delivers power up to 100 meters Optional 12VDC, 9VDC or 5VDC power supply
LEDON: Connected to PSE correctly Off: No PSE is connected
Dimensions ( W x D x H )3.2 2.1 0.9 in (80.8 54 24 mm)
Software Features
Basic FunctionCompatible with IEEE 802.3af/at compliant PSEs Delivers power up to 100 meters Optional 12VDC, 9VDC or 5VDC power supply
Others
CertificationFCC, CE
System RequirementsMicrosoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, MAC OS, NetWare, UNIX or Linux.
EnvironmentOperating Temperature: -5°C~45°C (23°F~113°F) Storage Temperature: -40°C~70°C (-40°F~158°F) Operating Humidity: 10%~90%RH non-condensing Storage Humidity: 5%~90%RH non-condensing

Source: TP-Link's published specifications for this model (TP-Link Australia product page and datasheet). Some features run only in Standalone Mode or only under an Omada Controller; throughput figures are TP-Link's lab results. TP-Link may change specifications without notice.

What's in the box

  • TL-PD30G-M2 Power Cord Installation Guide

Source: TP-Link's published package contents.

Who the TL-PD30G-M2 is for

Powering Ethernet-enabled devices

  • Ethernet-enabled devices with a 5, 9 or 12 V DC input
  • No separate power cabling
  • Power up to 100 m from the switch

2.5G links

  • 2.5 Gbps data in and out
  • Cat5e and above cabling
  • Works with 802.3af/at switches or injectors

Buy the TL-PD30G-M2 from ARC IP Networks

ARC IP Networks supplies genuine TP-Link Omada products from Australian stock at competitive prices, with the full manufacturer's warranty, Australia-wide delivery and trade pricing for installers and MSPs.

  • Genuine TP-Link: new TP-Link Omada product from Australian stock.
  • Manufacturer warranty: the full TP-Link manufacturer's warranty for this model.
  • Australia-wide delivery to every state and territory.
  • Trade and project pricing: call 1300 100 440 or email info@arcip.com.au.

Frequently asked questions

Straight answers about the TL-PD30G-M2 from the ARC IP Networks team.

Last reviewed October 2026.

It takes power from an IEEE 802.3af/at PoE switch or injector and splits it into data plus a 5, 9 or 12 VDC output for an Ethernet-enabled device, passing data at up to 2.5 Gbps.

5 VDC, 9 VDC or 12 VDC, each up to 2 A, selected with a slide switch.

Up to 10 W at 5 VDC, 18 W at 9 VDC or 24 W at 12 VDC.

Yes. Both RJ45 ports auto-negotiate 10M/100M/1000M/2.5 Gbps, and IEEE 802.3bz is among its listed standards.

TP-Link says it works with Cat5e, Cat6, Cat6a and above without upgrading your cabling. 2.5GBASE-T is specified over UTP Cat5e or Cat6 up to 100 m.

An IEEE 802.3af/at compliant PSE, such as a PoE+ switch or injector.

Yes. Short-circuit protection and automatic disconnection for over-voltage, under-voltage or over-current.

No. TP-Link describes it as plug and play, requiring no configuration.

On means the splitter is connected to a PSE correctly; off means no PSE is connected.

TP-Link lists the TL-PD30G-M2, a power cord and an installation guide.

Need more than one TL-PD30G-M2 for a PoE device rollout?

Ask ARC IP Networks for volume and project pricing on genuine TP-Link Omada products.
