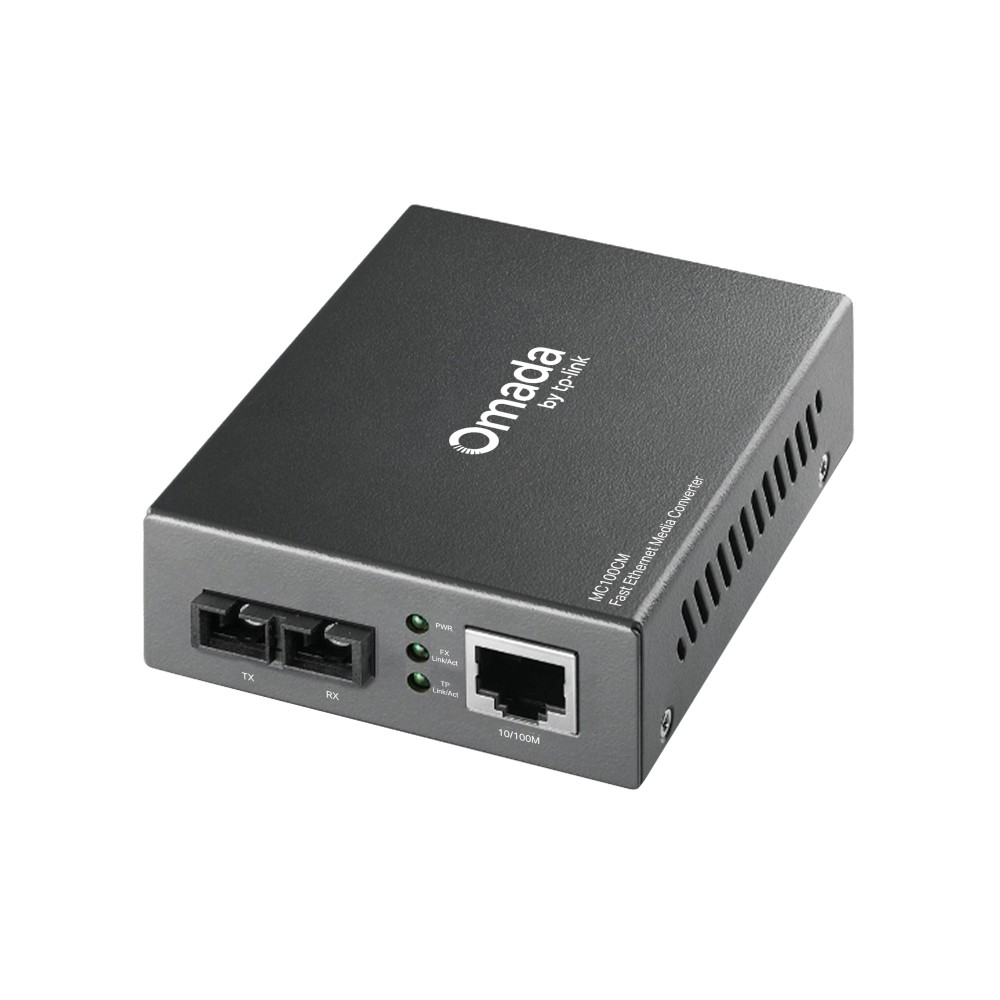

TP-Link MC100CM 10/100Mbps Multi-Mode Media Converter

https://arcip.com.au/web/image/product.template/9311/image_1920?unique=81675d4

The TP-Link MC100CM is an Omada 10/100 Mbps multi-mode media converter that converts 100BASE-FX fibre to 100BASE-TX copper media or vice versa. It complies with IEEE 802.3i and 802.3u, has 2 x 100M SC/UPC fibre ports and 1 x 10/100M RJ45 port with auto-MDI/MDIX, and works at 1310 nm on both transmit and receive. TP-Link lists fibre distance up to 2 km over multi-mode fibre, auto-negotiation of half/full duplex, IEEE 802.3x full-duplex flow control and half-duplex backpressure. Maximum power consumption is 1.19 W from a 9 V / 0.6 A adapter, and it can be used standalone or in the MC1400 chassis.

$ 46.67 46.67 AUD $ 46.67 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
TL-MC100CM
Barcode
1210002611015

The TP-Link MC100CM is an Omada 10/100 Mbps multi-mode media converter. It converts 100BASE-FX fibre to 100BASE-TX copper and back, with SC/UPC fibre connections and one 10/100 Mbps RJ45 port, working at 1310 nm for up to 2 km over multi-mode fibre. It supports full-duplex flow control and half-duplex backpressure, draws 1.19 W from a 9 V / 0.6 A adapter, and works standalone or in TP-Link's MC1400 chassis.

MC100CM overview

The MC100CM is TP-Link's Omada 10/100 Mbps multi-mode media converter. TP-Link describes it as a media converter designed to convert 100BASE-FX fibre to 100BASE-TX copper media or vice versa, built to the IEEE 802.3u 10/100BASE-TX and 100BASE-FX standards (with IEEE 802.3i listed for 10BASE-T). It is designed for multi-mode fibre cable using the SC-type connector, and TP-Link's interface listing is two 100M SC/UPC ports and one 10/100M RJ45 port with auto-MDI/MDIX. The fibre side uses separate transmit and receive connections rather than a single-strand WDM link, and TP-Link says it works at 1310 nm on both transmitting and receiving data, at a full wire-speed forwarding rate.

Distance is the main thing to plan around. TP-Link lists fibre extension of up to 2 km on multi-mode fibre with the MC100CM, which suits links inside a campus, between floors or across a car park, where Ethernet copper would run out at 100 m. On the copper side, 10BASE-T is rated over 2-pair UTP or STP of Category 3 or above up to 100 m, and 100BASE-T over 2-pair UTP or STP of Category 5 or above up to 100 m. The converter auto-negotiates half-duplex or full-duplex transfer mode, and supports full-duplex flow control (IEEE 802.3x) and half-duplex flow control (backpressure). For longer distances TP-Link's single-mode converters are the better fit; the Gigabit MC210CS, for example, is rated to 20 km on single-mode fibre.

TP-Link notes that the MC100CM can be used as a standalone device with no chassis required, or with TP-Link's MC1400 chassis, and that it offers auto-MDI/MDI-X on the TX port and auto-negotiation of duplex mode. Three LEDs, PWR, FX Link/Act and TP Link/Act, show power and activity on the fibre and twisted-pair sides separately, which makes it easy to see which side of a link has dropped. The converter is powered by a 9 V / 0.6 A adapter, supplied in the box, and its maximum power consumption is listed as 1.19 W.

The MC100CM measures 94.5 x 73.0 x 27.0 mm (3.7 x 2.9 x 1.1 in). Its product page lists an operating temperature of 0 to 40 degrees C and storage from -40 to 70 degrees C, with 10 to 90% operating and 5 to 90% storage humidity, non-condensing. Safety and emission approvals are FCC, CE and RoHS. The AU product page shows hardware version 6.30. The box contains the MC100CM, a power adapter and an installation guide. Check that the fibre already installed is multi-mode with SC connectors before choosing this model; single-mode fibre needs a single-mode converter.

Key features

100BASE-FX to 100BASE-TX

Converts multi-mode fibre to copper Ethernet and back.

Multi-mode, up to 2 km

Extends fibre distance up to 2 km on multi-mode fibre.

SC/UPC fibre ports

2 x 100M SC/UPC ports and 1 x 10/100M RJ45 port with auto-MDI/MDIX.

1310 nm

Works at 1310 nm on both transmit and receive, at full wire speed.

Flow control

IEEE 802.3x full-duplex flow control and half-duplex backpressure.

Standalone or chassis

Use on its own or in TP-Link's MC1400 chassis.

Low power

1.19 W maximum consumption from a 9 V / 0.6 A adapter.

MC100CM specifications

At a glance

10/100 Mbps
Multi-mode fibre
SC/UPC
1 x RJ45
1310 nm
Up to 2 km
1.19 W max
MC1400 chassis fit
MC100CM full specifications
Media Converter & Module
Standards and ProtocolsIEEE802.3i, IEEE802.3u
Basic FunctionAuto-negotiation of Half-Duplex / Full-Duplex transfer mode; Full Duplex Flow Control (IEEE 802.3x); Half Duplex Flow Control (Backpressure); Extends fibre distance up to 2km
Interface2× 100M SC/UPC ports; 1× 10/100M RJ45 port (Auto MDI/MDIX)
Wave Length1310nm
Network Media 10BASE-T2-pair UTP/STP of Cat. 3 or above (≤100m)
Network Media 100BASE-T2-pair UTP/STP of Cat. 5 or above (≤100m)
Dimensions ( W x D x H )3.7 2.9 1.1 in. (94.5 73.0 27.0 mm)
Power Supply9V/0.6A
Max. Power Consumption1.19W
LEDPWR, FX Link/Act, TP Link/Act
Safety & EmissionFCC, CE, RoHS
EnvironmentOperating Temperature: 0℃~40℃ (32℉~104℉); Storage Temperature: -40℃~70℃ (-40℉~158℉); Operating Humidity: 10%~90% non-condensing; Storage Humidity: 5%~90% non-condensing

Source: TP-Link's published specifications for this model (TP-Link Australia product page). Some features run only in Standalone Mode or only under an Omada Controller; throughput figures are TP-Link's lab results. TP-Link may change specifications without notice.

What's in the box

  • MC100CM
  • Power Adapter
  • Installation Guide

Source: TP-Link's published package contents.

Who the MC100CM is for

Campus and building links

  • Up to 2 km on multi-mode fibre
  • 100 Mbps full wire speed
  • Separate FX and TP link LEDs

Re-using installed multi-mode fibre

  • SC-type connectors
  • 1310 nm operation
  • Auto duplex negotiation

Comms rooms

  • Fits the MC1400 chassis
  • Or standalone
  • 9 V / 0.6 A adapter included

MC100CM compared

The MC100CM and MC210CS share the same compact housing and MC1400 chassis compatibility but target different fibre. The MC100CM is 10/100 Mbps on multi-mode fibre up to 2 km; the MC210CS is Gigabit on single-mode fibre up to 20 km.

SpecificationMC100CMMC210CS
Speed10/100 Mbps10/100/1000 Mbps RJ45, 1000BASE-LX fibre
Fibre typeMulti-modeSingle-mode
Max fibre distance2 km20 km
Wavelength1310 nm1310 nm
Fibre ports2 x 100M SC/UPC2 x 1000M SC/UPC
Max power consumption1.19 W1.8 W (product page)
Power supply9 V / 0.6 AExternal power adapter
LEDsPWR, FX Link/Act, TP Link/ActPWR, Link/Act

Source: TP-Link Australia product pages for each model.

Buy the MC100CM from ARC IP Networks

ARC IP Networks supplies TP-Link Omada products from Australian stock at competitive prices, with the full manufacturer's warranty, Australia-wide delivery and trade pricing for installers and MSPs.

  • New TP-Link Omada product from Australian stock.
  • Manufacturer warranty: the full TP-Link manufacturer's warranty for this model.
  • Australia-wide delivery to every state and territory.
  • Trade and project pricing: call 1300 100 440 or email info@arcip.com.au.

Frequently asked questions

Straight answers about the MC100CM from the ARC IP Networks team.

Last reviewed October 2026.

100BASE-FX multi-mode fibre to 100BASE-TX copper Ethernet, or the reverse.

Multi-mode fibre with SC-type connectors. TP-Link lists 2 x 100M SC/UPC ports.

TP-Link lists fibre extension up to 2 km on multi-mode fibre.

No. It works at 1310 nm on both transmit and receive, with separate SC/UPC fibre ports, rather than WDM on one strand.

No. It is 10/100 Mbps. For Gigabit over single-mode fibre, TP-Link's MC210CS is the 1000BASE-LX model.

Yes. It can be used standalone or with TP-Link's MC1400 chassis.

By a 9 V / 0.6 A adapter, included. Maximum power consumption is 1.19 W.

The MC100CM, a power adapter and an installation guide.

Need more than one MC100CM for a multi-mode fibre link?

Ask ARC IP Networks for volume and project pricing on TP-Link Omada products.
