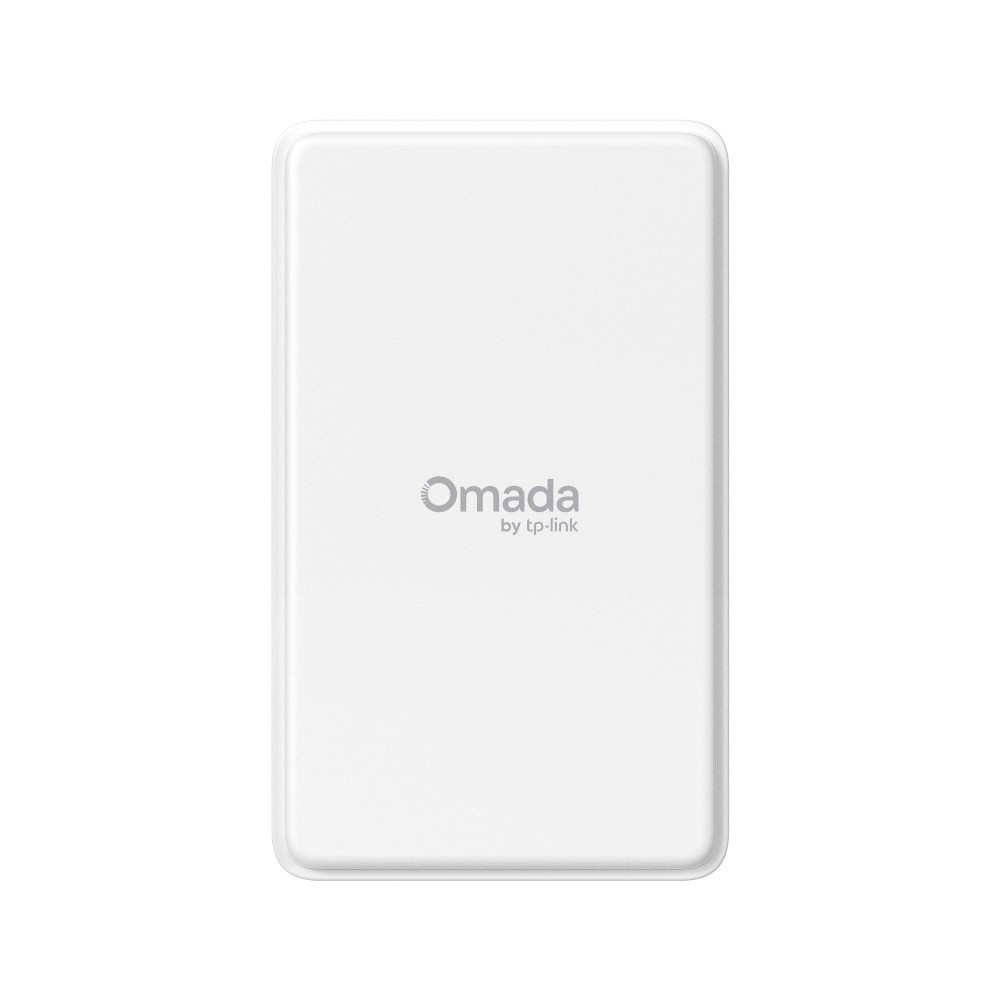

TP-Link ER701-5G-Outdoor Omada 5G Outdoor Gateway with Dual Nano SIM Support

https://arcip.com.au/web/image/product.template/9293/image_1920?unique=874d354

The TP-Link ER701-5G-Outdoor is an Omada 5G outdoor gateway for primary 5G/4G broadband or internet backup. It supports 5G NR SA at up to 7.01 Gbps down and 1.25 Gbps up, NSA at 4.5 Gbps / 730 Mbps and LTE at 1.6 Gbps / 211 Mbps, using Omada Ultra5G (R16, sub-6 GHz, 4x4 MIMO) and nine internal directional cellular antennas. A dual Nano SIM slot provides SIM failover, and one 2.5G RJ45 port carries data and 802.3at or 48 V passive PoE power. IP66 rated, -30 to 60 degrees C, with app-guided alignment and Omada management.

$ 1,264.60 1264.6 AUD $ 1,264.60 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
TL-ER701-5G-OUTDOOR
Barcode
1210002601405

The TP-Link ER701-5G-Outdoor is an Omada 5G outdoor gateway that brings 5G or 4G broadband to sites where wired internet is not practical, or adds a cellular backup to an indoor gateway. It reaches up to 7.01 Gbps down and 1.25 Gbps up on 5G SA, uses nine internal cellular antennas and a dual Nano SIM slot for failover, and connects and draws power over a single 2.5G PoE-in port. The IP66 enclosure mounts on a wall, pole or window, and the Omada app guides antenna alignment.

ER701-5G-Outdoor overview

The ER701-5G-Outdoor is TP-Link's Omada 5G Outdoor Gateway. TP-Link says it brings instant connectivity to areas where wired broadband is not practical, serving either as primary 5G/4G broadband access or as an internet backup for an indoor gateway, and names remote deployments, temporary sites and hard-to-wire facilities as the typical uses. Mounting it outside, on a wall, a pole or a window, places the modem where the cellular signal is strongest, while a single Ethernet cable carries data and power back inside to the network.

Cellular performance is the headline. TP-Link lists 5G NR standalone (SA) speeds of up to 7.01 Gbps downlink and 1.25 Gbps uplink, non-standalone (NSA) speeds of 4.5 Gbps and 730 Mbps, and LTE speeds of 1.6 Gbps and 211 Mbps. It credits Omada Ultra5G technology, which it defines as the R16 standard with sub-6 GHz operation and 4x4 MIMO, and states the 7.01 Gbps figure is 46.7 times faster than 4G LTE. Supported 5G bands are N1/N3/N5/N7/N8/N20/N26/N28/N38/N40/N41/N75/N76/N77/N78; 4G FDD bands are B1/B3/B5/B7/B8/B20/B26/B28/B32; 4G TDD bands are B38/B40/B41/B42/B43; and 3G WCDMA covers B1/B5/B8. N75, N76 and B32 are downlink only. Actual speeds depend on the carrier, plan and signal.

Inside are nine high-gain directional internal cellular antennas and a 2.2 GHz quad-core CPU, which TP-Link says gives high-speed processing with ultra-low latency, plus 4 GB eMMC flash and 2 GB LPDDR4x memory. Installation is guided by the Omada app, which shows real-time signal strength so the gateway can be aligned with the nearest tower. One dual Nano SIM slot holds two SIM cards, and TP-Link describes dual SIM failover as keeping the business up and running during failover, backup WAN and network switching scenarios. SMS send and receive is supported.

The only wired interface is one 2.5G RJ45 port that supports 10BASE-T through 2500BASE-T over category 5, 5e or 6 cable up to 100 m. That same port takes power, from 802.3at PoE (42 to 57 V, 0.6 A) or 48 V / 0.375 A passive PoE, and a passive PoE adapter is supplied. Maximum power consumption is 15.3 W. The enclosure is fully sealed and IP66 rated; TP-Link describes it as dustproof, waterproof and built to endure extreme outdoor conditions. It operates from -30 to 60 degrees C with 5 to 95% non-condensing humidity, has 6 kV surge protection, and measures 183 x 110 x 36 mm. MTBF is listed at 900,444.67 hours at 25 degrees C.

As an Omada gateway it provides DHCP and DHCPv6 PD (standalone), 802.1Q VLAN, bridge VLAN, QoS, IP-based bandwidth control and session limits, virtual server, NAT-DMZ, UPnP and ALGs, static routing and OSPF in standalone mode, and holds 500,000 concurrent sessions with 6,100 new sessions per second. Security includes stateful ACL, deep packet inspection, URL filtering, DNSSEC/DoH/DoT DNS proxy, flood defence and IP-MAC binding, and web authentication supports hotspot portals with local user, voucher, SMS and RADIUS options. A single internal Wi-Fi antenna provides a 150 Mbps 2.4 GHz SSID for setup. Management is through Omada Central (cloud-based), Omada hardware and software controllers and the Omada app, or standalone with web, SNMP and CLI. The AU product page lists CE, NCC and BSMI certification. In the box are the gateway, a passive PoE adapter, mounting kits, a waterproof kit and a quick installation guide; the datasheet also lists an Ethernet cable.

Key features

5G up to 7.01 Gbps

5G SA up to 7.01 Gbps down and 1.25 Gbps up; NSA up to 4.5 Gbps / 730 Mbps.

Omada Ultra5G

R16 standard, sub-6 GHz and 4x4 MIMO, with nine internal directional cellular antennas.

Dual Nano SIM failover

Two SIMs in one dual slot to keep the connection up if one network drops.

Single-cable 2.5G PoE

One 2.5G RJ45 port carries data and 802.3at or 48 V passive PoE power.

IP66 sealed enclosure

Dustproof and waterproof, -30 to 60 degrees C, 6 kV surge protection.

App-guided alignment

Real-time signal strength in the Omada app to aim at the nearest tower.

Primary or backup WAN

Use as the main broadband link or as a cellular backup for an indoor gateway.

Omada SDN management

Omada Central, hardware or software controllers, or standalone.

ER701-5G-Outdoor specifications

At a glance

5G SA 7.01 Gbps
LTE 1.6 Gbps
Dual Nano SIM
9 x cellular antennas
1 x 2.5G PoE-in port
802.3at / 48 V passive
IP66, -30 to 60 C
Wall / pole / window
ER701-5G-Outdoor full specifications
5G/4G/3G
Network Mode5G NR:N1/N3/N5/N7/N8/N20/N26/N28/N38/N40/N41/N75/N76/N77/ N78 (2100/1800/850/2600/900/800/850/700/2600/2300/2500/150 0/1450/3700/3500 MHz); 4G FDD-LTE: B1/B3/B5/B7/B8/B20/B26/B28/B32 (2100/1800/850/26 00/900/800/850/700/1500 MHz) 4G TDD-LTE: B38/B40/B41/B42/B43 (2600/2300/2500/3500/3700 MHz); 3G WCDMA: B1/B5/B8 (2100/850/900 MHz)
Speed5G NR Speed; SA: Downlink: 7.01 Gbps, Uplink: 1.25 Gbps; NSA: Downlink: 4.5 Gbps, Uplink: 730 Mbps LTE Speed; Downlink: 1.6 Gbps, Uplink: 211 Mbps
SIM TypeDual Nano SIM
Security
Access ControlSource/Destination IP Based Access Control
DPIDeep Packet Inspection
FilteringWeb Group Filtering (only in Standalone Mode); URL Filtering; Web Security (only in Standalone Mode)
Attack DefenseTCP/UDP/ICMP Flood Defense; Block TCP Scan (Stealth FIN/Xmas/Null); Block Ping from WAN
ARP InspectionSending GARP Packets; ARP Scanning (only in Standalone Mode); IP-MAC Binding
Hardware Features

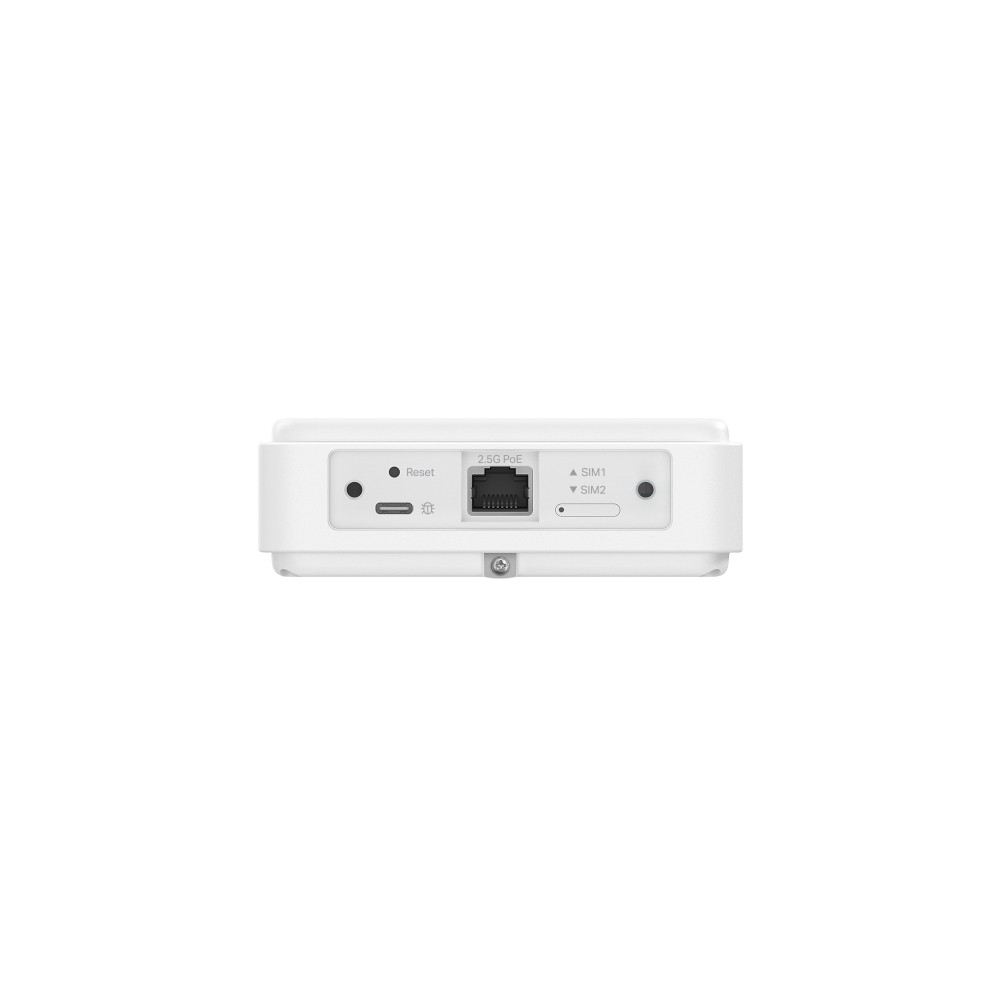

Interface1×2.5G RJ45 Port
Network Media10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m); 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m); 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m); 2500BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)
ButtonReset Button
Power Supply802.3at PoE: 42-57V 0.6A; Passive PoE: 48V 0.375A
Flash4GB eMMC Flash
DRAM2GB LPDDR4x

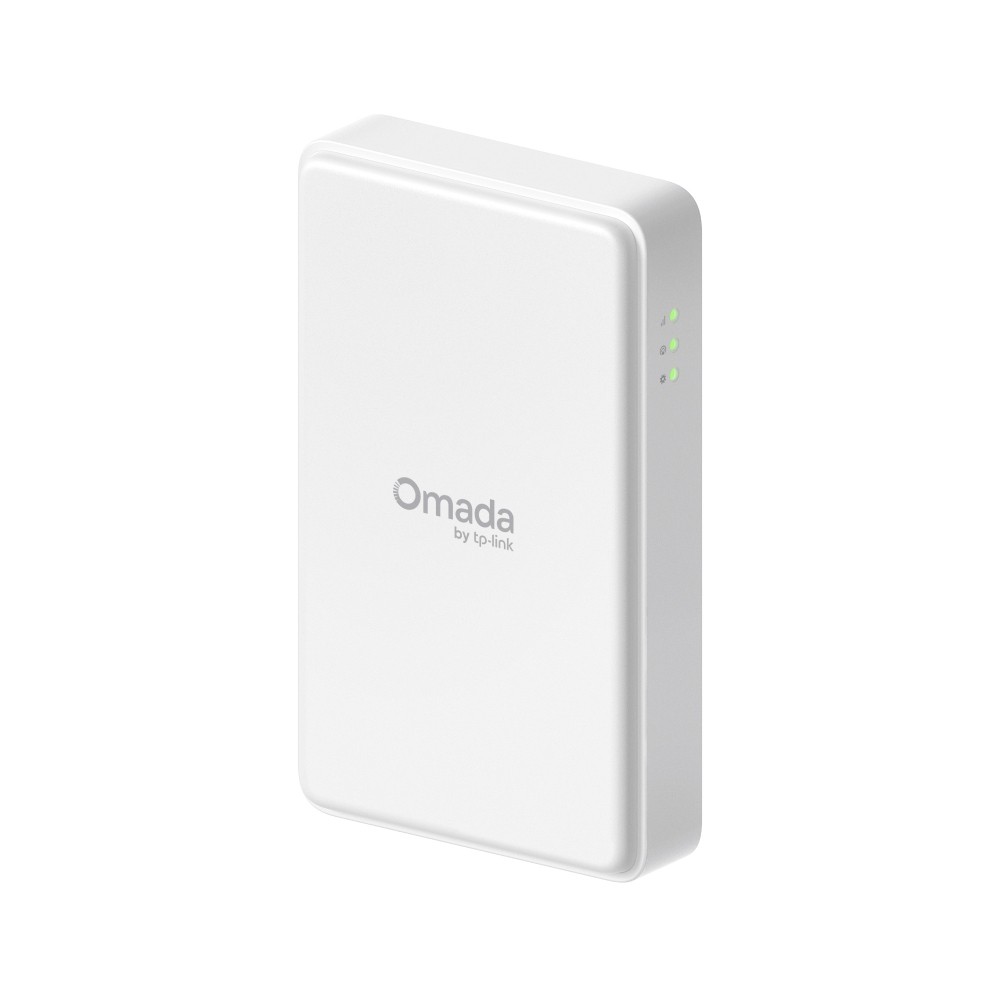

LEDSystem, Network Type, Signal Strength
Dimensions ( W x D x H )7.2 × 4.3 × 1.4 in (183 × 110 × 36 mm)
Antenna9× internal Cellular antennas; 1× internal Wi-Fi antenna
SIM Slot1×Dual Nano SIM slot

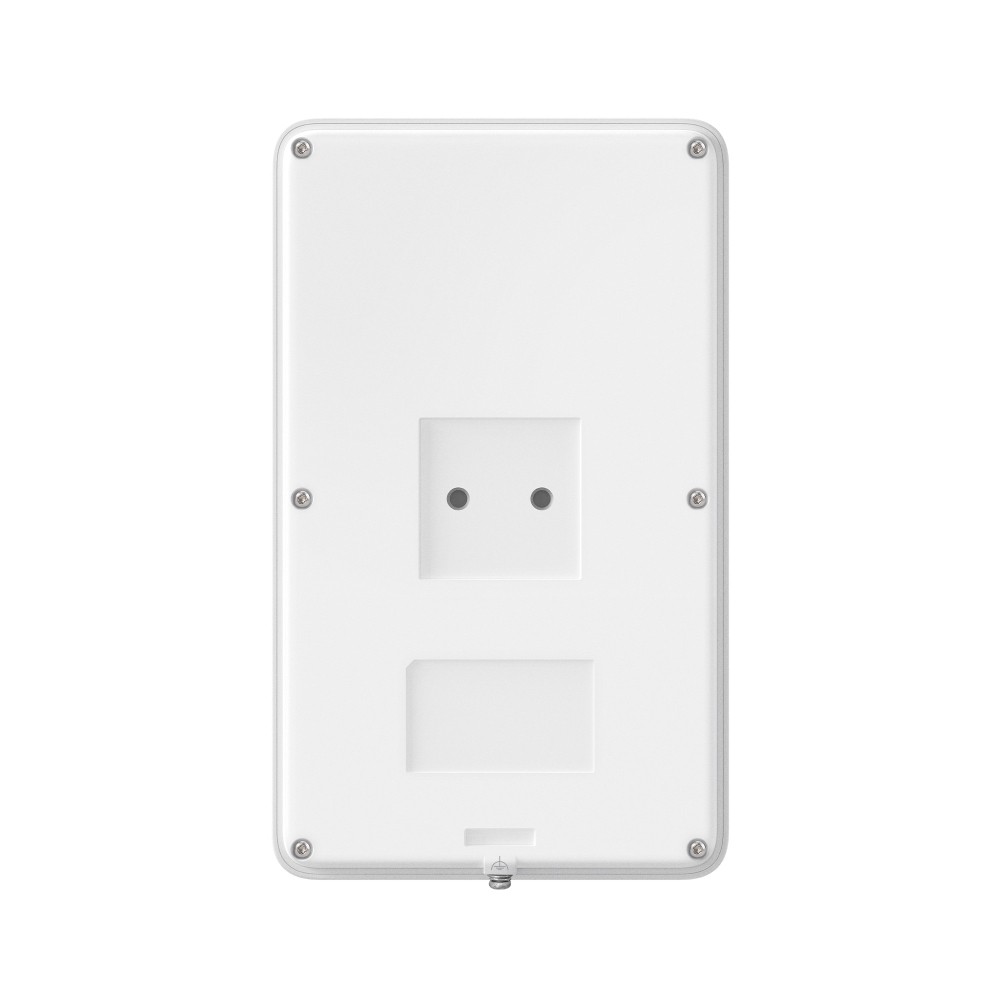

MountingWall/Pole/Window Mounting
Max. Power Consumption15.3W (802.3at PoE or Passive PoE)
Performance
Concurrent Session500, 000
New Sessions /Second6,100
Management Features
Omada AppYes.
Centralised ManagementOmada Central (Cloud-Based); Omada Hardware Controller; Omada Software Controller; Omada App
Cloud AccessYes.
ServiceDynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customisation)
MaintenanceWeb Management Interface; Remote Management; Export & Import Configuration; SNMP v1/v2c/v3; Diagnostics (Ping & Traceroute); NTP Synchronize; Port Mirroring; CLI (only in Standalone Mode); Syslog Support
Management FeaturesAutomatic Device Discovery; Intelligent Network Monitoring; Abnormal Event Warnings; Unified Configuration; Reboot Schedule; Captive Portal Configuration
Wireless Features
Wireless Speeds2.4 GHz: 150 Mbps
Wireless802.11n: 6.5 Mbps to 150 Mbps (MCS0-MCS7, HT20/40); 802.11g: 6, 9, 12, 18, 24, 36, 48 ,54 Mbps; 802.11b: 1, 2, 5.5, 11 Mbps
Advanced FeaturesWireless Encryption: WPA/WPA2 Personal; SSID: 1; Enable/Disable Wireless Radio; Enable/Disable SSID Broadcast; Automatic Channel Selection Algorithm; Transmit Power Control: Adjust transmit Power on dBm
Basic Functions
WAN Connection Type5G/4G/3G
DHCPDHCP Server; DHCPv6 PD Server (only in Standalone Mode); DHCP Options Customisation; DHCP Address Reservation; Multi-IP Interfaces; Multi-Net DHCP
Stateful ACLYes
Quality of ServiceYes
Bridge VLANYes
SMSReceive / Send SMS
VLAN802.1Q VLAN
Advanced Features
Bandwidth ControlIP-based Bandwidth Control
NATMulti-Net NAT; Virtual Server; Port Triggering; NAT-DMZ; FTP/H.323/SIP/IPSec/PPTP ALG; UPnP
RoutingStatic Routing; OSPF
Session LimitIP-based Session Limit
Transmission
NATMulti-Net NAT; Virtual Server; Port Triggering (only in Standalone Mode); NAT-DMZ; FTP/H.323/SIP/IPSec/PPTP ALG; UPnP
RoutingStatic Routing; OSPF (only in Standalone Mode)
Session LimitIP-based Session Limit
Bandwidth ControlIP-based Bandwidth Control
Authentication
Web AuthenticationNo Authentication; Simple Password; Hotspot (Local User / Voucher / SMS / Radius); External Radius Server; External Portal Server; LDAP
Others
Network Services Enabled by DefaultWeb Server Manage and configure device through web (HTTP/HTTPS); Port: 80/443 Protocol: TCP _____________________________________________________ TDP Server Device discovery; Port: 20003 Protocol: UDP _____________________________________________________ DHCP Server Handle DHCP packets; Port: 67 Protocol: UDP _____________________________________________________ DNS Handle DNS packets; Port: 53 Protocol: TCP/UDP
CertificationCE, NCC, BSMI
System RequirementsMicrosoft Windows 98SE, NT, 2000, XP, Vista or Windows 7/8/8.1/10/11; MAC OS, NetWare, UNIX or Linux
EnvironmentOperating Temperature: -30 °C to 60 °C (-22 °F to 140 °F); Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F); Operating Humidity: 5% to 95% non-condensing; Storage Humidity: 5% to 90% non-condensing; Surge Protection: 6 kV surge protection

Source: TP-Link's published specifications for this model (TP-Link Australia product page and datasheet). Some features run only in Standalone Mode or only under an Omada Controller; throughput figures are TP-Link's lab results. TP-Link may change specifications without notice.

What's in the box

  • ER701-5G-Outdoor Gateway
  • Passive PoE Adapter
  • Mounting Kits
  • Waterproof kit
  • Quick Installation Guide

Source: TP-Link's published package contents.

Who the ER701-5G-Outdoor is for

Sites without fixed broadband

  • Primary 5G/4G internet access
  • Temporary and remote sites
  • Hard-to-wire facilities

Internet backup

  • Cellular failover for an indoor gateway
  • Dual SIM for carrier redundancy
  • Outdoor placement for best signal

Omada-managed networks

  • Omada app guided setup
  • Omada Central cloud management
  • Hardware or software controller

Buy the ER701-5G-Outdoor from ARC IP Networks

ARC IP Networks supplies TP-Link Omada products from Australian stock at competitive prices, with the full manufacturer's warranty, Australia-wide delivery and trade pricing for installers and MSPs.

  • New TP-Link Omada product from Australian stock.
  • Manufacturer warranty: the full TP-Link manufacturer's warranty for this model.
  • Australia-wide delivery to every state and territory.
  • Trade and project pricing: call 1300 100 440 or email info@arcip.com.au.

Frequently asked questions

Straight answers about the ER701-5G-Outdoor from the ARC IP Networks team.

Last reviewed October 2026.

An Omada 5G outdoor gateway that provides 5G or 4G broadband where wired internet is not practical, or a cellular backup for an indoor gateway.

TP-Link lists up to 7.01 Gbps download and 1.25 Gbps upload on 5G SA, 4.5 Gbps / 730 Mbps on NSA, and 1.6 Gbps / 211 Mbps on LTE. Real speeds depend on carrier and signal.

Yes. It has one dual Nano SIM slot, and TP-Link lists dual SIM failover for uninterrupted connectivity.

Over its 2.5G RJ45 port, by 802.3at PoE (42 to 57 V, 0.6 A) or 48 V passive PoE. A passive PoE adapter is included. Maximum consumption is 15.3 W.

N1/N3/N5/N7/N8/N20/N26/N28/N38/N40/N41/N75/N76/N77/N78, with N75 and N76 downlink only. Check your carrier's bands before installing.

Yes. It is IP66 rated, fully sealed, operates from -30 to 60 degrees C and has 6 kV surge protection.

One internal Wi-Fi antenna provides a single 2.4 GHz SSID at up to 150 Mbps, mainly for setup. It is not intended as an access point.

The Omada app shows real-time signal strength during installation, so you can align the gateway with the nearest tower.

VPN is not listed in TP-Link's specifications for the ER701-5G-Outdoor. It provides routing, NAT, firewall, DPI and hotspot features.

The gateway, a passive PoE adapter, mounting kits, a waterproof kit and a quick installation guide. The datasheet also lists an Ethernet cable.
