TP-Link EAP650GP-Desktop Omada AX3000 Wi-Fi 6 Desktop GPON Access Point

https://arcip.com.au/web/image/product.template/9280/image_1920?unique=874d354

The TP-Link EAP650GP-Desktop is an Omada AX3000 Wi-Fi 6 desktop GPON access point for fibre-to-the-room and fibre-to-the-home deployments in hotels and MDUs. A single SC/APC GPON port (ITU-T G.984.x, Class B+, 2.488/1.244 Gbps) carries data, voice and video to 2402 Mbps 5 GHz and 574 Mbps 2.4 GHz Wi-Fi 6, four Gigabit RJ45 ports (two with 802.3af PoE-out, 22.4 W total) and one FXS port. It is powered by 53.5 V / 0.81 A DC and supports Omada mesh, 802.11k/v/r roaming and unified Omada OLT management.

$ 315.06 315.06 AUD $ 315.06 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
TL-EAP650GP-DESKTOP
Barcode
1210002605960

The TP-Link EAP650GP-Desktop is an Omada AX3000 Wi-Fi 6 desktop/wall-mount access point with a built-in GPON fibre uplink, designed for FTTR and FTTH deployments. One SC/APC GPON port (2.488 Gbps down, 1.244 Gbps up, up to 20 km) feeds 2402 + 574 Mbps Wi-Fi 6, four Gigabit RJ45 ports (two with 802.3af PoE-out, 22.4 W total) and an FXS voice port. It runs from a 53.5 V DC supply and is managed with Omada OLTs and controllers.

EAP650GP-Desktop overview

The EAP650GP-Desktop is TP-Link's Omada AX3000 Wi-Fi 6 Desktop GPON Access Point. TP-Link designed it for FTTR and FTTH deployments as part of the Omada Optical Networking Solution, which combines Omada GPON access points, switches, gateways, OLTs (optical line terminals) and ONUs (optical network units) into one gigabit passive optical network. TP-Link positions the solution for point-to-multipoint environments such as hotels and MDUs, where one fibre run per room replaces a bundle of copper cables. Within the solution, all devices support unified management, easy adoption and zero-touch provisioning, and the datasheet notes unified management for the OLT and Omada devices.

The uplink is a single SC/APC GPON port built to ITU-T G.984.x and G.988 with a Class B+ optic. It runs at 2.488 Gbps downstream and 1.244 Gbps upstream over 9/125 um single-mode fibre, with a maximum cable length of 20 km. A front GPON LED shows registration: steady green when the AP is registered with the OLT, flashing green while it is registering, flashing red when no optical signal is received or the signal is too weak, and steady red when the OLT has blocked it. Because the access point itself terminates the fibre, TP-Link describes it as one fibre for multiple services: wired and wireless internet, voice and VoIP, data and HD video.

On the wireless side the EAP650GP-Desktop matches the AX3000 class: 2402 Mbps on 5 GHz (HE20/40/80/160) and 574 Mbps on 2.4 GHz (HE20/40), 2x2 uplink/downlink MU-MIMO on both bands, UL/DL OFDMA, 1024-QAM and beamforming. Internal omnidirectional antennas are two 4.5 dBi elements for 2.4 GHz and three 5 dBi elements for 5 GHz. It supports 16 SSIDs (eight per band), band steering, airtime fairness, load balance, Omada mesh and 802.11k/v/r Layer 2 roaming. TP-Link's product page lists 100+ concurrent clients, while the datasheet lists a maximum of 128 associated stations. Signal rates are physical maximums derived from IEEE 802.11 specifications; real throughput depends on environment and clients.

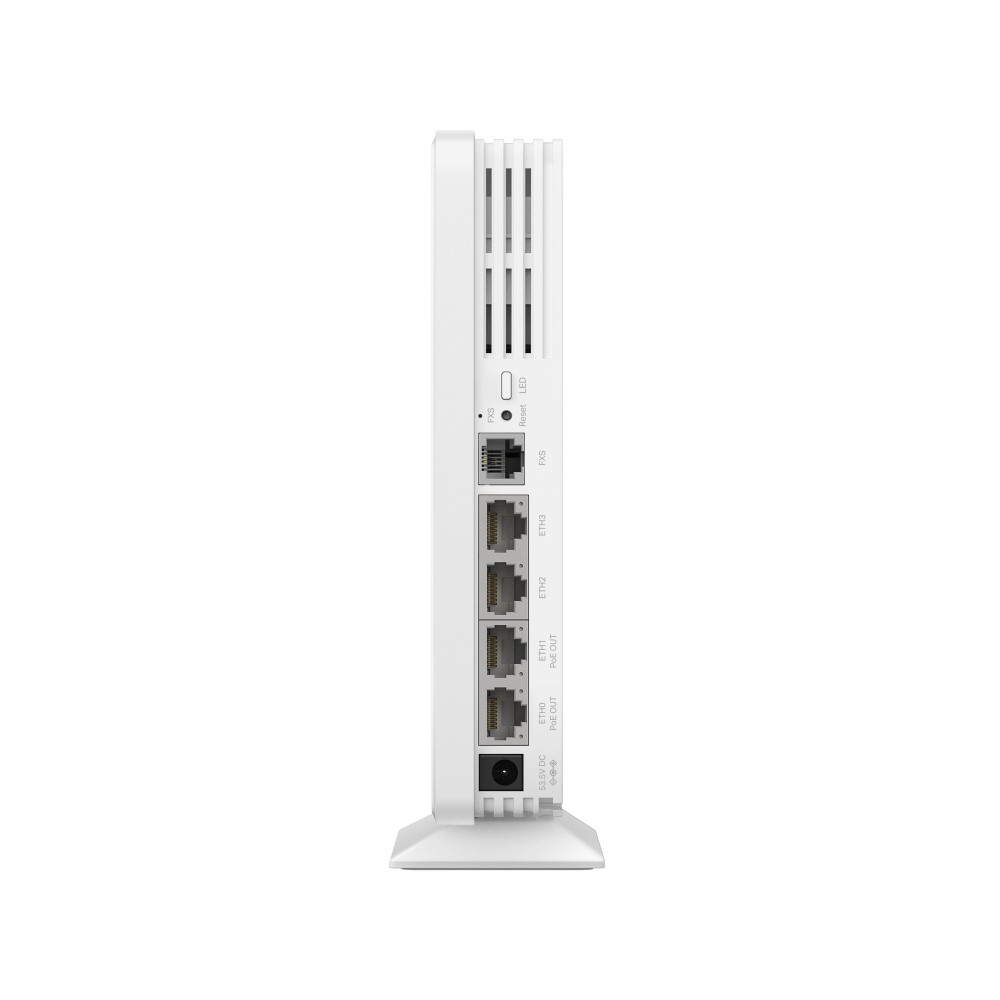

Wired connections are four 10/100/1000 Mbps RJ45 ports and one RJ11 FXS port for an analogue phone or fax. Two of the Ethernet ports (ETH0 and ETH1) supply 802.3af PoE, at 53.5 V and 0.287 A per port with a combined limit of 22.4 W. TP-Link explains the power logic: if total PoE demand exceeds the limit, the lower-priority port shuts down; a port also powers off if its own output exceeds 15.4 W; powered-off ports retry after 10 seconds; and by default ETH0 has priority over ETH1. That is enough for an IP phone or a small camera next to the access point. Unlike the Ethernet-fed EAP650-Desktop, this model does not take PoE in: it is powered by a 53.5 V / 0.81 A DC input, drawing 20 W excluding PoE-out and 5.85 W at idle.

Management works through the Omada Controller V5.15.24 and above and the Omada App V4.25 and above, with standalone web management, SSH, SNMP v1/v2c/v3, NTP, email alerts, restore and backup and LED control also listed. Security covers WPA/WPA2/WPA3 Personal and Enterprise, PPSK with or without RADIUS, 802.1X and MAC authentication, a MAC filter of up to 4000 entries, client isolation, rogue AP detection and captive portal options including voucher, local user, SMS, RADIUS and form authentication. Surge protection on the Ethernet ports is 2.5 kV common mode. The access point measures 175 x 140 x 33 mm, weighs 511 g on the product page, and is rated for 0 to 40 degrees C. Certifications on the AU product page are CE and FCC; the datasheet also lists RCM.

Key features

Built-in GPON uplink

SC/APC GPON port, 2.488 Gbps down / 1.244 Gbps up, up to 20 km over single-mode fibre.

AX3000 Wi-Fi 6

2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz with 2x2 MU-MIMO and OFDMA.

One fibre, many services

Data, voice, VoIP, wired and wireless internet and HD video over a single fibre.

Two PoE-out ports

ETH0 and ETH1 supply 802.3af PoE, 22.4 W total, with port priority.

FXS voice port

RJ11 FXS port for an analogue phone or fax, with SIP status LED.

Omada Optical Networking

Works with Omada OLTs, ONUs, switches and gateways with unified management.

Mesh and roaming

Omada mesh and 802.11k/v/r roaming for continuous connections between rooms.

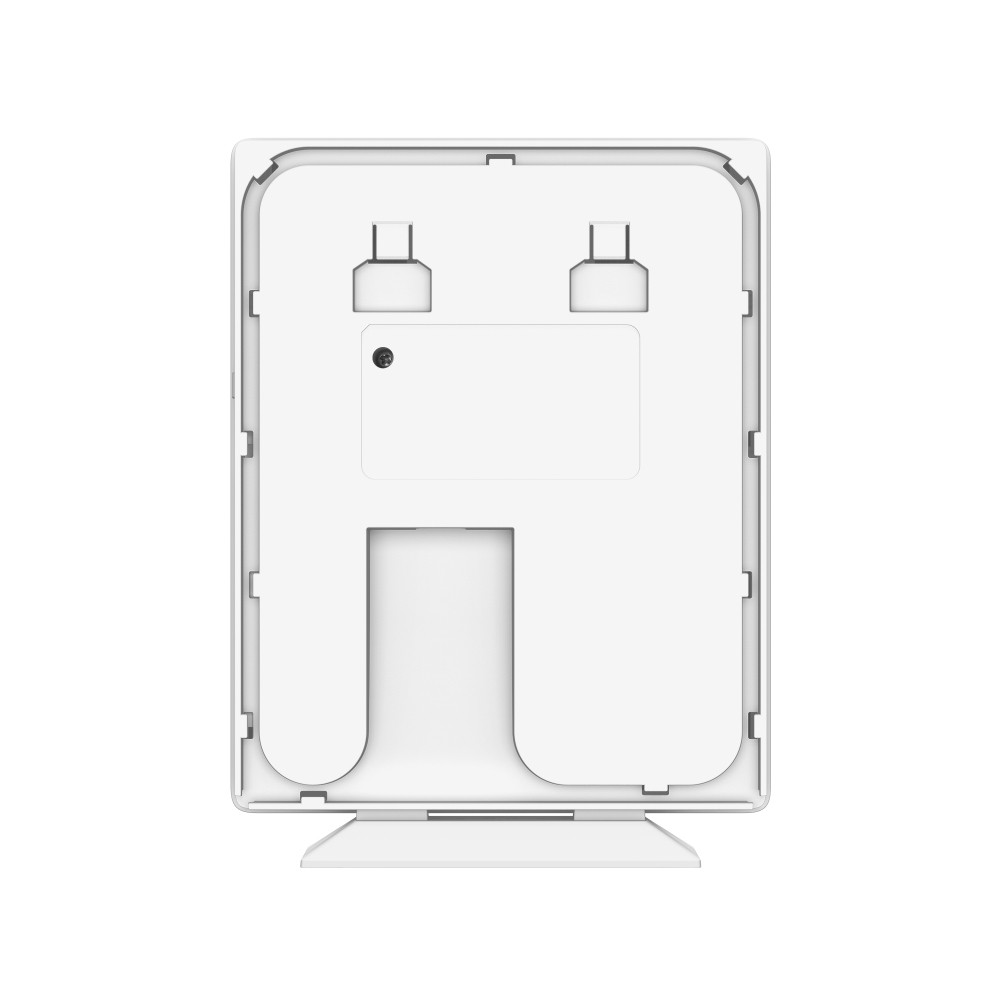

Desktop or wall mount

Kits included for desktop or wall installation without ceiling work.

EAP650GP-Desktop specifications

At a glance

AX3000 Wi-Fi 6
GPON SC/APC uplink
2.488 / 1.244 Gbps
4 x Gigabit RJ45
2 x 802.3af PoE-out
1 x FXS port
53.5 V DC powered
Desktop / wall mount
EAP650GP-Desktop full specifications
Hardware Features
Interface1x GPON Port; 1x FXS Port; 4x Gigabit Ethernet Ports (Two Support 802.3af PoE Out) Note: The two PoE ports support up to 22.4 W total PoE out. If the total PoE power exceeds the upper limit, the lower-priority ports will shut down automatically. A port also automatically powers off if its output exceeds 15.4 W. Powered-off ports will attempt to resume power supply after 10 seconds. By default, ETH0 has a higher port priority than ETH1.
GPON InterfacePort Type: SC-APC; Standards and Protocols: ITU-984.x, G.988, Class B+; Data Rate: 2.488 Gbps (Downstream); 1.244 Gbps (Upstream); Fibre Type: 9/125 um Single mode; Max. Cable Length: 20 km
ButtonReset; LED
Power Supply53.5V/0.81A DC
Max. Power Consumption20W Note: PoE out power not included.
Weight511g
Dimensions ( W x D x H )6.9 × 5.5 × 1.3 in (175 × 140 × 33 mm)
AntennaInternal Omni; 2.4 GHz: 2× 4.5 dBi; 5 GHz: 3× 5 dBi
MountingDesktop / Wall mouting (Kits included)
Management Features
Omada AppYes
Restore & BackupYes
NTPYes
Centralised ManagementOmada Hardware Controller; Omada Software Controller; Omada Central (Cloud-Based); Omada App
Cloud AccessYes. Require the use of an Omada controller.
Email AlertsYes
LED ON/OFF ControlYes
Management MAC Access ControlYes
SNMPv1, v2c, v3
System Logging Local/Remote SyslogSystem Log
SSHYes
Web-based ManagementYes
Zero-Touch ProvisioningYes.
Wireless Features
Concurrent Clients100+
Wireless StandardsIEEE 802.11 a/b/g/n/ac/ax
Frequency2.4 GHz and 5 GHz
Signal Rate5 GHz: 2402 Mbps; 2.4 GHz: 574 Mbps
Wireless FunctionsMultiple SSIDs (16 SSIDs, 8 on each band); Enable/Disable SSID Broadcast; Enable/Disable Wireless Radio; Guest Network; Automatic Channel Assignment; Transmit Power Control (Adjust Transmit Power on dBm); QoS (WMM); Seamless Roaming; Mesh; Beamforming; 2×2 (2.4G & 5G) MU-MIMO; UL/DL OFDMA; Rate Limit (Based on Client); Band Steering; Load Balance; Airtime Fairness; RADIUS Accounting; MAC Authentication; Reboot Schedule; Wireless Schedule and Statistics; Static IP/Dynamic IP
Wireless SecurityCaptive Portal Authentication; Access Control; Maximum number of MAC Filter: 4000; Wireless Isolation Between Clients; VLAN; Rogue AP Detection; 802.1X Support; WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission PowerCE:; FCC:
Others
CertificationCE, FCC
EnvironmentOperating Temperature: 0–40 ℃ (32–104 ℉); Storage Temperature: -40–70 ℃ (-40–158 ℉); Operating Humidity: 10–90% RH non-condensing; Storage Humidity: 5–90% RH non-condensing

Source: TP-Link's published specifications for this model (TP-Link Australia product page and datasheet). Some features run only in Standalone Mode or only under an Omada Controller; throughput figures are TP-Link's lab results. TP-Link may change specifications without notice.

What's in the box

  • EAP650GP-Desktop
  • Desktop/Wall Mounting Kit
  • Installation Guide

Source: TP-Link's published package contents.

Who the EAP650GP-Desktop is for

Hotels and MDUs on fibre

  • FTTR / FTTH room termination
  • One fibre per room or unit
  • Point-to-multipoint GPON design

Rooms needing voice and video

  • FXS port for an analogue phone
  • Two PoE-out ports for IP devices
  • Four Gigabit ports for TV and PCs

Omada optical networks

  • Unified OLT and Omada management
  • Omada Controller V5.15.24 and above
  • Zero-touch provisioning

EAP650GP-Desktop compared

The EAP650GP-Desktop and EAP650-Desktop share the AX3000 Wi-Fi 6 radio, the 175 x 140 x 33 mm housing, four Gigabit ports and an FXS port. The difference is the uplink and power: the GP model connects over GPON fibre and runs on 53.5 V DC with two PoE-out ports, while the EAP650-Desktop connects over Ethernet and is powered by PoE or 12 V DC with one PoE-out port.

SpecificationEAP650GP-DesktopEAP650-Desktop
Uplink1 x GPON SC/APC portEthernet (ETH0, PoE-in)
Wi-FiAX3000: 2402 + 574 MbpsAX3000: 2402 + 574 Mbps
Ethernet ports4 x Gigabit RJ454 x Gigabit RJ45
PoE-out2 ports, 802.3af, 22.4 W total1 port, 802.3at/af at 802.3bt input
Power input53.5 V / 0.81 A DC802.3af/at/bt PoE or 12 V / 1.5 A DC
Max. power consumption20 W (PoE-out not included)17.3 W (PoE-out off)
Concurrent clients (product page)100+250+
Weight (product page)511 g452 g (excluding base)

Source: TP-Link Australia product pages for each model.

Buy the EAP650GP-Desktop from ARC IP Networks

ARC IP Networks supplies TP-Link Omada products from Australian stock at competitive prices, with the full manufacturer's warranty, Australia-wide delivery and trade pricing for installers and MSPs.

  • New TP-Link Omada product from Australian stock.
  • Manufacturer warranty: the full TP-Link manufacturer's warranty for this model.
  • Australia-wide delivery to every state and territory.
  • Trade and project pricing: call 1300 100 440 or email info@arcip.com.au.

Frequently asked questions

Straight answers about the EAP650GP-Desktop from the ARC IP Networks team.

Last reviewed October 2026.

An Omada AX3000 Wi-Fi 6 desktop/wall-mount access point with a built-in GPON fibre port, designed for FTTR and FTTH deployments such as hotels and MDUs.

One SC/APC port to ITU-T G.984.x and G.988, Class B+, at 2.488 Gbps downstream and 1.244 Gbps upstream over 9/125 um single-mode fibre up to 20 km.

Yes. As a GPON device it registers with an OLT; TP-Link positions it within the Omada Optical Networking Solution with Omada OLTs, switches and gateways.

Yes. ETH0 and ETH1 supply 802.3af PoE with a combined limit of 22.4 W; a port powers off if it exceeds 15.4 W, and ETH0 has priority by default.

No. It is powered by a 53.5 V / 0.81 A DC input. The Ethernet-fed EAP650-Desktop is the model that accepts PoE in.

Up to 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz with 2x2 MU-MIMO and 160 MHz channels. These are physical maximum rates; actual throughput varies.

Yes, one RJ11 FXS port for an analogue telephone or fax, used for VoIP services.

The datasheet lists Omada Controller V5.15.24 and above and Omada App V4.25 and above. Standalone web management is also supported.

Yes, Omada mesh with 802.11k/v/r roaming. Standalone mesh is not supported.

TP-Link's AU product page lists the EAP650GP-Desktop, a desktop/wall mounting kit and an installation guide. The datasheet's package list also includes a power adapter and a multi-functional base.

Need more than one EAP650GP-Desktop for a hotel or MDU fibre-to-the-room project?

Ask ARC IP Networks for volume and project pricing on TP-Link Omada products.
