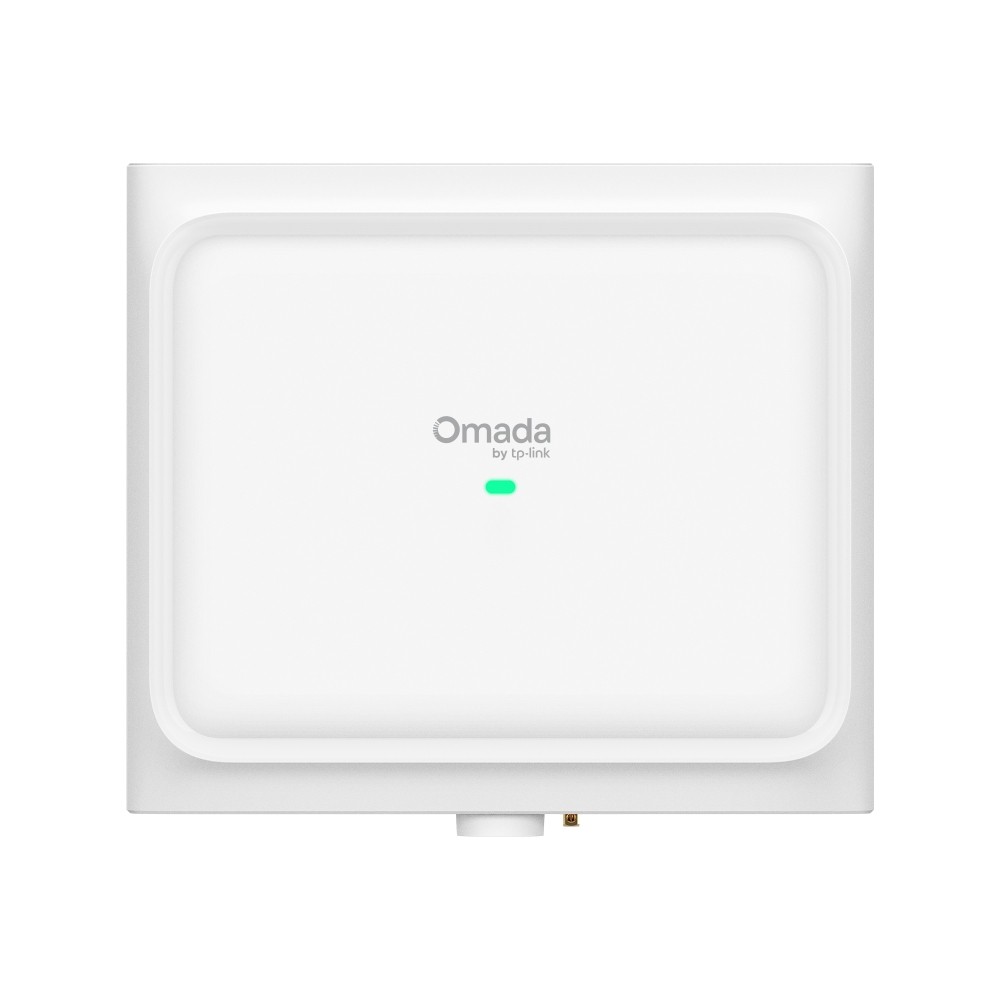

TP-Link EAP650 D30-Outdoor Omada Directional AX3000 Indoor/Outdoor Wi-Fi 6 Access Point

Price:

$ 415.70


TP-Link EAP610GP-Desktop Omada AX1800 Wi-Fi 6 Desktop GPON Access Point
TP-Link EAP610GP-Desktop Omada AX1800 Wi-Fi 6 Desktop GPON Access Point
$ 290.26
$ 290.26
TP-Link EAP650-Desktop Omada AX3000 Desktop Wi-Fi 6 Access Point
TP-Link EAP650-Desktop Omada AX3000 Desktop Wi-Fi 6 Access Point
$ 237.46
$ 237.46

TP-Link EAP650 D30-Outdoor Omada Directional AX3000 Indoor/Outdoor Wi-Fi 6 Access Point

https://arcip.com.au/web/image/product.template/9278/image_1920?unique=3c3b158

TP-Link EAP650 D30-Outdoor: an Omada directional AX3000 Wi-Fi 6 indoor/outdoor access point whose built-in antennas (2x 12 dBi at 2.4 GHz, 2x 15 dBi at 5 GHz) focus the signal into a 30° horizontal and 30° vertical beam. Signal rates are 574 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz. The IP68 housing operates from -30 to 70 °C, and one gigabit Ethernet port accepts 802.3at PoE or 48 V passive PoE. Manage it standalone or through Omada SDN.

$ 415.70 415.7 AUD $ 415.70 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
TL-EAP650-D30-OUTDOOR
Barcode
8885020625042

The TP-Link EAP650 D30-Outdoor is an Omada AX3000 Wi-Fi 6 access point with a narrow 30° by 30° beam from built-in high-gain antennas (2x 12 dBi on 2.4 GHz, 2x 15 dBi on 5 GHz). It lists 574 Mbps plus 2402 Mbps, an IP68 enclosure rated for -30 to 70 °C, and a single gigabit port powered by 802.3at PoE or 48 V passive PoE.

EAP650 D30-Outdoor overview

TP-Link positions the EAP650 D30-Outdoor for warehouses and outdoor spaces such as yards, swimming pools and parks, where Wi-Fi has to be pushed a long way in one direction. The number in the name is the beam: its built-in directional antennas concentrate the signal into a 30° horizontal by 30° vertical pattern. Peak gain is 12 dBi per antenna on 2.4 GHz and 15 dBi per antenna on 5 GHz (single-antenna peak gains, as the datasheet notes). The datasheet calls this precise and extended coverage: the signal is aimed at one target area rather than spread around the mount point.

The radio is AX3000 dual-band, four-stream Wi-Fi 6: 2x2 MU-MIMO on each band, with signal rates of 574 Mbps at 2.4 GHz and 2402 Mbps at 5 GHz. TP-Link states these are maximum physical rates taken from the IEEE 802.11 standard, and that real throughput and coverage vary with network conditions, client limitations and the environment. The datasheet quotes coverage of up to 360 m on 2.4 GHz and 900 m on 5 GHz; that figure comes from laboratory testing and TP-Link says actual coverage is not guaranteed. OFDMA and 1024-QAM only help clients that support those Wi-Fi 6 features, and the datasheet lists MLO as not supported on this model.

For capacity, the AU page lists 250+ concurrent clients, with TP-Link's note that real capacity depends on the wireless environment and client traffic and is usually below the maximum connection count; the datasheet gives 256 associated stations. Sixteen SSIDs are available, eight per band, each of which can be mapped to a VLAN. Airtime fairness, band steering, load balancing by client count or RSSI threshold, beamforming and automatic channel assignment are listed in the wireless functions.

Physically the unit is 207.5 x 58 x 230 mm and 1.4 kg, sealed to IP68 with ±6 kV surge protection on the Ethernet port and an operating range of -30 to 70 °C at 10 to 90% non-condensing humidity. Its one gigabit RJ45 port takes 802.3at PoE or 48 V passive PoE; maximum draw is 12.5 W in the EU version and 14.7 W in the US version, and 6.6 W idle. The AU specification lists wall, pole and ceiling mounting, while the datasheet lists pole and wall kits in the box. A waterproof kit and installation guide are also packed. Bluetooth (BLE 5.2) is built in.

Management runs through Omada SDN: the Omada Cloud-Based Controller, hardware and software controllers, and the Omada app (datasheet minimums are Omada Controller or Omada Essential V5.15 and Omada App V4.25). Omada Mesh, seamless roaming, captive portal and cloud access need an Omada controller; zero-touch provisioning needs the Cloud-Based Controller. Without a controller you can still run it from its web interface, SSH or SNMP v1/v2c/v3, in AP, repeater or mesh mode.

Key features

30° x 30° directional beam

Built-in antennas focus coverage into a narrow sector instead of radiating all around the mount.

12 dBi and 15 dBi antennas

Two 12 dBi antennas on 2.4 GHz and two 15 dBi on 5 GHz (single-antenna peak gain).

AX3000 Wi-Fi 6 radio

574 Mbps on 2.4 GHz plus 2402 Mbps on 5 GHz, 2x2 MU-MIMO on each band.

Lab-tested reach

Datasheet coverage up to 360 m (2.4 GHz) and 900 m (5 GHz); TP-Link does not guarantee it.

IP68 with surge protection

Dust-tight, submersion-rated housing with ±6 kV protection on the Ethernet port.

Runs from -30 to 70 °C

Rated for very hot and very cold locations, 10-90% non-condensing humidity.

One-cable PoE install

Gigabit port powered by 802.3at PoE or 48 V passive PoE; 12.5 W (EU) maximum.

Omada SDN or standalone

Controller, cloud and app management, or local web, SSH and SNMP control.

Mesh and 802.11k/v/r roaming

Available when the AP is managed by an Omada controller.

EAP650 D30-Outdoor specifications

At a glance

30° x 30° beam
2x 15 dBi (5 GHz)
2402 Mbps (5 GHz)
574 Mbps (2.4 GHz)
IP68
-30 to 70 °C
802.3at / 48 V PoE
Omada SDN
EAP650 D30-Outdoor full specifications
Hardware Features
Interface1× Gigabit Ethernet Port (supports 802.3at PoE or 48V Passive PoE)
ButtonReset
Power Supply802.3at PoE; 48V Passive PoE
Max. Power ConsumptionEU: 12.5W (802.3at PoE or Passive PoE); US: 14.7W (802.3at PoE or Passive PoE)
Dimensions ( W x D x H )8.2 × 2.3 × 9.1 in (207.5 × 58 × 230 mm)
AntennaBuilt-in Directional Antennas:; 2.4 GHz: 2× 12 dBi; 5 GHz: 2× 15 dBi Beamwidth: 30° Horizontal; 30° Vertical
BluetoothYes
Weatherproof EnclosureIP68
MountingWall/Pole/Ceiling Mount
Management Features
Omada AppYes
Restore & BackupYes
NTPYes
Centralised ManagementOmada Cloud-Based Controller; Omada Hardware Controller; Omada Software Controller; Omada App
Cloud AccessYes. Require the use of an Omada controller.
Email AlertsYes
LED ON/OFF ControlYes
Management MAC Access ControlYes
SNMPv1, v2c, v3
System Logging Local/Remote SyslogYes
SSHYes
Web-based ManagementYes
Multi-site ManagementYes
Zero-Touch ProvisioningYes. Requiring the use of Omada Cloud-Based Controller
Wireless Features
Concurrent Clients250+
Wireless StandardsIEEE 802.11 a/b/g/n/ac/ax
Frequency2.4 GHz, 5 GHz
Signal Rate574 Mbps (2.4 GHz) + 2402 Mbps (5 GHz)
Wireless Functions1024-QAM; DL/UL OFDMA; Multiple SSIDs (Up to 16 SSIDs, 8 on each band); Enable/Disable Wireless Radio; Enable/Disable SSID Broadcast; Guest Network; Automatic Channel Assignment; Transmit Power Control (Adjust Transmit Power on dBm); QoS (WMM); 2 × 2 (2.4 GHz & 5 GHz) DL/UL MU-MIMO; Omada Mesh; Seamless Roaming(802.11k/v/r); Band Steering; Load Balance; Airtime Fairness; Beamforming; RADIUS Accounting; MAC Authentication; Reboot Schedule; Wireless Schedule; Wireless Statistics; Static IP/Dynamic IP
Wireless SecurityCaptive Portal Authentication; Access Control; Wireless Mac Address Filtering; Wireless Isolation Between Clients; SSID to VLAN Mapping; Rogue AP Detection; 802.1X Support; WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission PowerEU:; US: < 30 dBm (2.4 GHz); < 30 dBm (5 GHz)
Others
CertificationCE, FCC
System RequirementsMicrosoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
EnvironmentOperating Temperature: -30–70 ℃ (-22–158 ℉); Storage Temperature: -40–70 ℃ (-40–158 ℉); Operating Humidity: 10–90% RH non-condensing; Storage Humidity: 5–90% RH non-condensing

Source: TP-Link's published specifications for this model (TP-Link Australia product page and datasheet). Some features run only in Standalone Mode or only under an Omada Controller; throughput figures are TP-Link's lab results. TP-Link may change specifications without notice.

What's in the box

  • Access Point EAP650 D30-Outdoor
  • Mounting Kits
  • Installation Guide
  • Waterproof Kit

Source: TP-Link's published package contents.

Who the EAP650 D30-Outdoor is for

Warehouses

  • Narrow 30° beam aimed at one target area
  • 250+ concurrent clients listed (real capacity lower)
  • Ceiling, wall or pole mounting listed on the AU page

Yards, pools and parks

  • Focused signal toward one open area
  • IP68 housing for outdoor exposure
  • -30 to 70 °C operating range

Omada-managed networks

  • Adopt it alongside Omada switches and gateways
  • Zero-touch provisioning via the Cloud-Based Controller
  • Mesh and roaming under a controller

EAP650 D30-Outdoor compared

TP-Link sells two directional versions of the EAP650 outdoor AP. Both are AX3000 Wi-Fi 6, IP68 and rated for -30 to 70 °C; they differ in antenna gain and beam width. The D30 throws a narrow, higher-gain beam, while the D120 spreads a wider sector.

SpecificationEAP650 D30-OutdoorEAP650 D120-Outdoor
Beamwidth (H x V)30° x 30°120° x 30°
2.4 GHz antennas2x 12 dBi2x 8 dBi
5 GHz antennas2x 15 dBi2x 10 dBi
Signal rate574 + 2402 Mbps574 + 2402 Mbps
EnclosureIP68IP68
Max. power (EU / US)12.5 W / 14.7 W12.5 W / 14.7 W
Size207.5 x 58 x 230 mm207.5 x 58 x 230 mm

Source: TP-Link Australia product pages for each model.

Buy the EAP650 D30-Outdoor from ARC IP Networks

ARC IP Networks supplies TP-Link Omada products from Australian stock at competitive prices, with the full manufacturer's warranty, Australia-wide delivery and trade pricing for installers and MSPs.

  • New TP-Link Omada product from Australian stock.
  • Manufacturer warranty: the full TP-Link manufacturer's warranty for this model.
  • Australia-wide delivery to every state and territory.
  • Trade and project pricing: call 1300 100 440 or email info@arcip.com.au.

Frequently asked questions

Straight answers about the EAP650 D30-Outdoor from the ARC IP Networks team.

Last reviewed October 2026.

It refers to the antenna beam. The EAP650 D30-Outdoor's built-in directional antennas cover 30° horizontally and 30° vertically, so the signal is concentrated toward one target area.

The datasheet quotes up to 360 m on 2.4 GHz and 900 m on 5 GHz. TP-Link calculates this from laboratory testing and states that actual coverage is not guaranteed and varies with clients and surroundings.

AX3000 Wi-Fi 6: up to 574 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz. These are maximum physical signal rates; real throughput is lower and depends on the network, clients and environment.

No. The EAP650 D30-Outdoor has its own built-in 30° directional antennas with 12 dBi and 15 dBi peak gain. Choose it when you need to cover a distant area in one direction.

Over its single gigabit Ethernet port, from an 802.3at PoE source or 48 V passive PoE. Maximum consumption is 12.5 W (EU) or 14.7 W (US). TP-Link's AU package list does not include a PoE injector.

Yes. It has an IP68 enclosure, ±6 kV surge protection on the Ethernet port and an operating range of -30 to 70 °C. A waterproof kit is in the box.

Not for basic operation, as it supports standalone web management. Omada Mesh, seamless roaming, captive portal and cloud access require a controller, and zero-touch provisioning requires the Omada Cloud-Based Controller.

TP-Link's AU page lists 250+ concurrent clients and the datasheet 256 associated stations. TP-Link notes that real capacity is generally lower and depends on client traffic.

The EAP650 D30-Outdoor, mounting kits, a waterproof kit and an installation guide, according to TP-Link's AU package contents.

Need more than one EAP650 D30-Outdoor for a long-range directional Wi-Fi 6 link to a warehouse or yard?

Ask ARC IP Networks for volume and project pricing on TP-Link Omada products.
