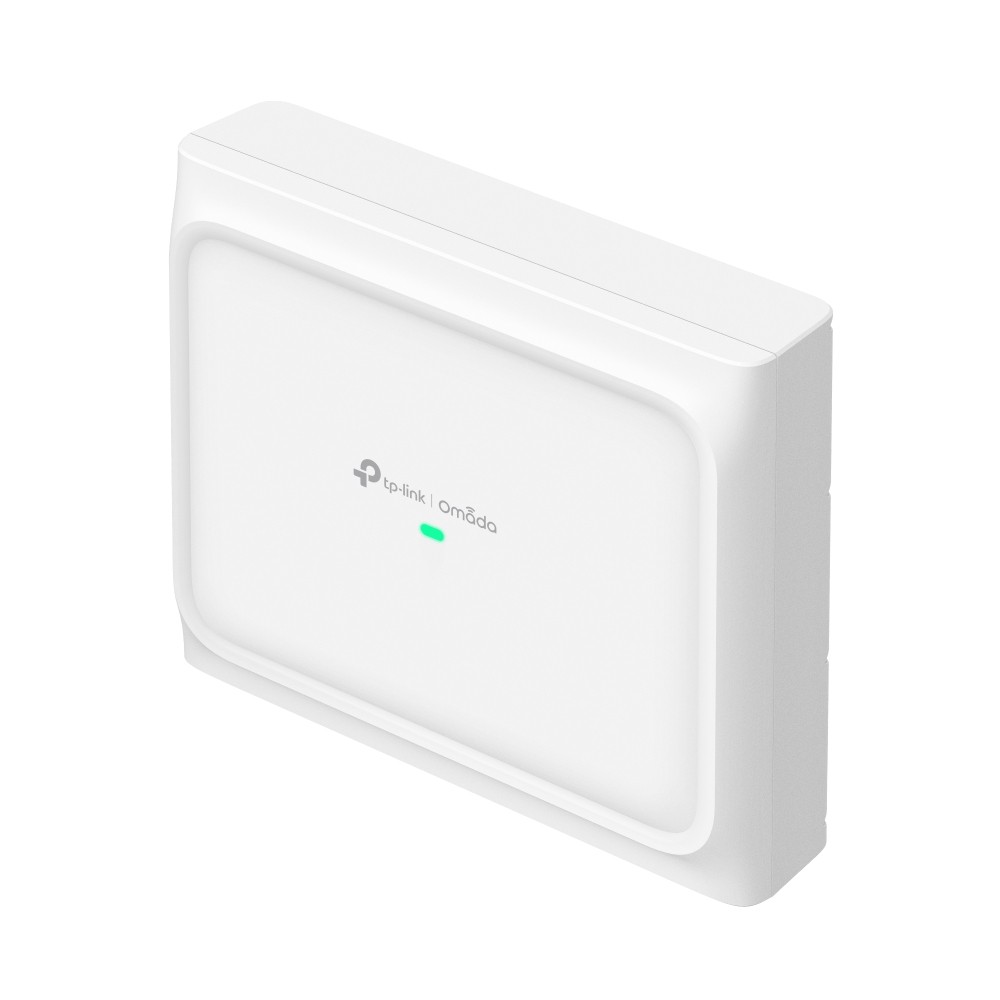

TP-Link EAP650 D120-Outdoor Omada AX3000 Directional Indoor/Outdoor Wi-Fi 6 Access Point

https://arcip.com.au/web/image/product.template/9277/image_1920?unique=f688cdc

The TP-Link EAP650 D120-Outdoor is an Omada directional AX3000 Wi-Fi 6 indoor/outdoor access point, suited to warehouses and outdoor areas such as yards, swimming pools and parks. It lists 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz, built-in 120° high-gain directional antennas, an IP68 weatherproof enclosure and a -30 to 70 °C operating range. One gigabit port takes 802.3at PoE+ or 48 V passive PoE, with Omada SDN management, mesh and seamless roaming. Supplied by ARC IP Networks from Australian stock with the full manufacturer's warranty.

$ 373.55 373.55 AUD $ 373.55 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
TL-EAP650-D120-OUTDOOR
Barcode
8885020625066

The TP-Link EAP650 D120-Outdoor is an Omada directional AX3000 Wi-Fi 6 indoor/outdoor access point for warehouses and outdoor areas such as yards, swimming pools and parks. It lists 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz, built-in 120° high-gain directional antennas, an IP68 weatherproof enclosure with a -30 to 70 °C operating range, and a gigabit port powered by 802.3at PoE+ or 48 V passive PoE, managed through Omada SDN.

EAP650 D120-Outdoor overview

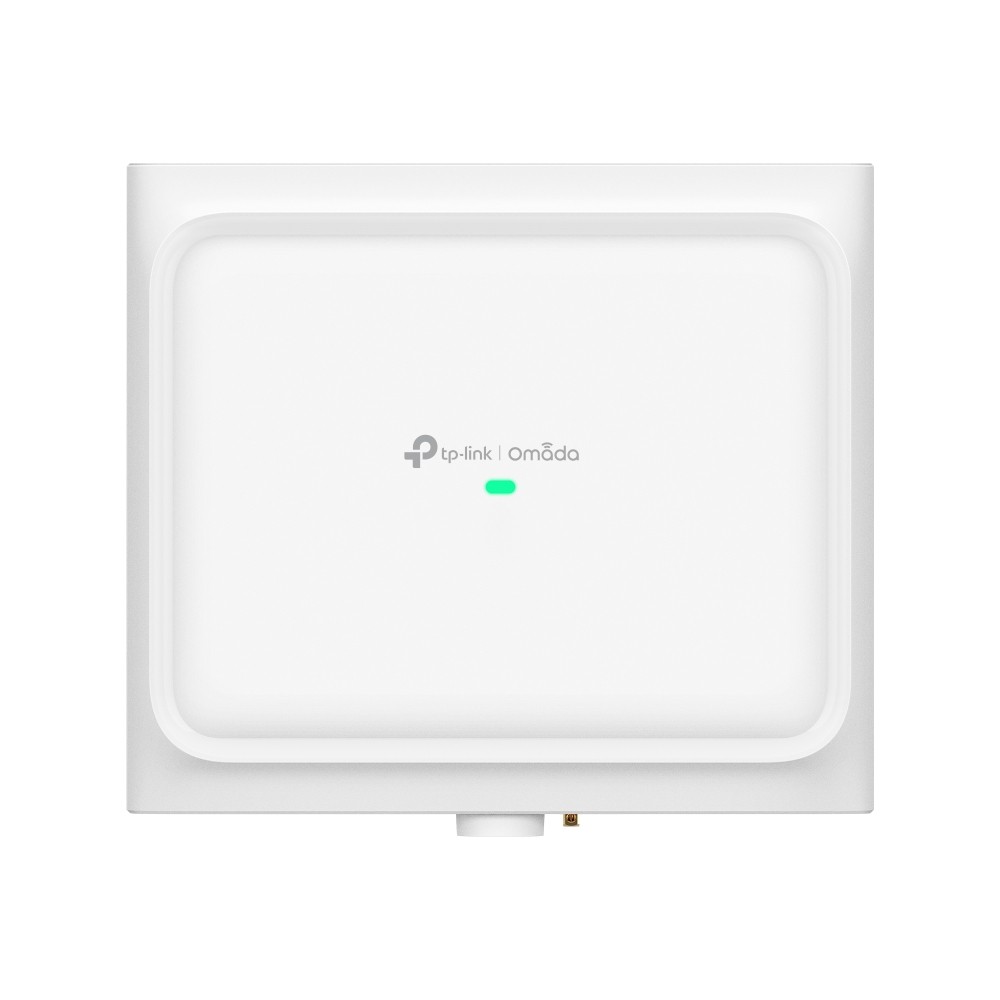

The EAP650 D120-Outdoor is TP-Link's Omada directional AX3000 Wi-Fi 6 indoor/outdoor access point. TP-Link's datasheet describes it as providing wide and extended outdoor network connections, suitable for warehouses and outdoor scenarios such as yards, swimming pools and parks. It is dual-band 4-stream Wi-Fi 6 with signal rates of 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz, up to 3.0 Gbps combined. These are maximum wireless signal rates, the physical rates derived from the IEEE 802.11 standard; TP-Link notes actual throughput and coverage are not guaranteed and vary with network conditions, client limitations and the environment. Each band runs 2x2 uplink/downlink MU-MIMO with two spatial streams, along with uplink/downlink OFDMA and 1024-QAM. Supported channel widths are 20/40 MHz on 2.4 GHz and 20/40/80/160 MHz on 5 GHz, subject to country-specific restrictions. Wi-Fi 6 features such as OFDMA and 1024-QAM need clients that support them, and the datasheet lists MLO as not supported.

What sets this model apart is its antenna. It has built-in high-gain directional antennas, two 8 dBi on 2.4 GHz and two 10 dBi on 5 GHz, with a beamwidth of 120° horizontal and 30° vertical, so the signal is aimed across an area rather than radiated in every direction. TP-Link's AU page lists coverage of 200+ m on 2.4 GHz and 500+ m on 5 GHz; coverage is calculated from laboratory testing and is not guaranteed, varying with client limitations and environmental factors. The page lists 250+ concurrent clients, noting that actual capacity depends on the wireless environment and client traffic and is generally less than the maximum number of client connections; the datasheet lists 256 associated stations and up to 16 SSIDs, eight on each band. Beamforming, band steering, load balance, airtime fairness and automatic channel assignment help share the airtime.

The enclosure is built for harsh sites. TP-Link describes complete dustproof protection and the ability to withstand prolonged submersion in water under its IP68 rating, with 6 kV lightning protection on the Ethernet port and an operating temperature range of -30 to 70 °C. The single gigabit Ethernet port accepts 802.3at PoE+ or 48 V passive PoE, so power and data run over one cable; maximum power consumption is listed as 12.5 W (EU) or 14.7 W (US), and 6.6 W idle in the datasheet. Pole and wall mounting kits are included, and an optional APM-100 bracket, purchased separately, adds vertical and horizontal adjustment of plus or minus 45°. The unit measures 207.5 x 58 x 230 mm and weighs 1.4 kg, and it also has Bluetooth (BLE 5.2).

As part of Omada SDN, the EAP650 D120-Outdoor works with Omada switches, gateways and controllers, with one-click adoption and automatic device discovery. Centralised management is available through the Omada Hardware Controller, Software Controller, Cloud-Based Controller and the Omada app; the datasheet lists Omada Controller and Omada Essential V5.15 and above and Omada App V4.25 and above. Omada Mesh, seamless roaming (802.11k/v/r), captive portal and cloud access require an Omada controller, and zero-touch provisioning requires the Omada Cloud-Based Controller. It can also be managed standalone through the web interface, SSH and SNMP v1/v2c/v3, and operates in AP, repeater and mesh modes. Security covers WPA/WPA2/WPA3 Personal and Enterprise, Enhanced Open, 802.1X, MAC authentication, RADIUS accounting, PPSK, SSID-to-VLAN mapping, client isolation and rogue AP detection.

Key features

AX3000 dual-band Wi-Fi 6

2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz, 2x2 MU-MIMO per band.

120° directional antennas

2x 8 dBi (2.4 GHz) and 2x 10 dBi (5 GHz), 120° horizontal and 30° vertical beamwidth.

Long-reach coverage

200+ m on 2.4 GHz and 500+ m on 5 GHz, based on laboratory testing.

IP68 weatherproof

Dustproof and submersion-rated enclosure with 6 kV lightning protection.

-30 to 70 °C operation

Extended temperature range for very hot and cold sites.

Gigabit PoE+ port

Powered by 802.3at PoE+ or 48 V passive PoE over a single cable.

Omada SDN management

Hardware, software or cloud-based controller and the Omada app; standalone web too.

Mesh and seamless roaming

Omada Mesh and 802.11k/v/r roaming with an Omada controller.

Wall and pole mounting

Mounting kits included; optional APM-100 bracket for ±45° adjustment.

EAP650 D120-Outdoor specifications

At a glance

AX3000 Wi-Fi 6
2402 Mbps (5 GHz)
574 Mbps (2.4 GHz)
120° directional
IP68 enclosure
-30 to 70 °C
802.3at PoE+
Omada SDN managed
EAP650 D120-Outdoor full specifications
Hardware Features

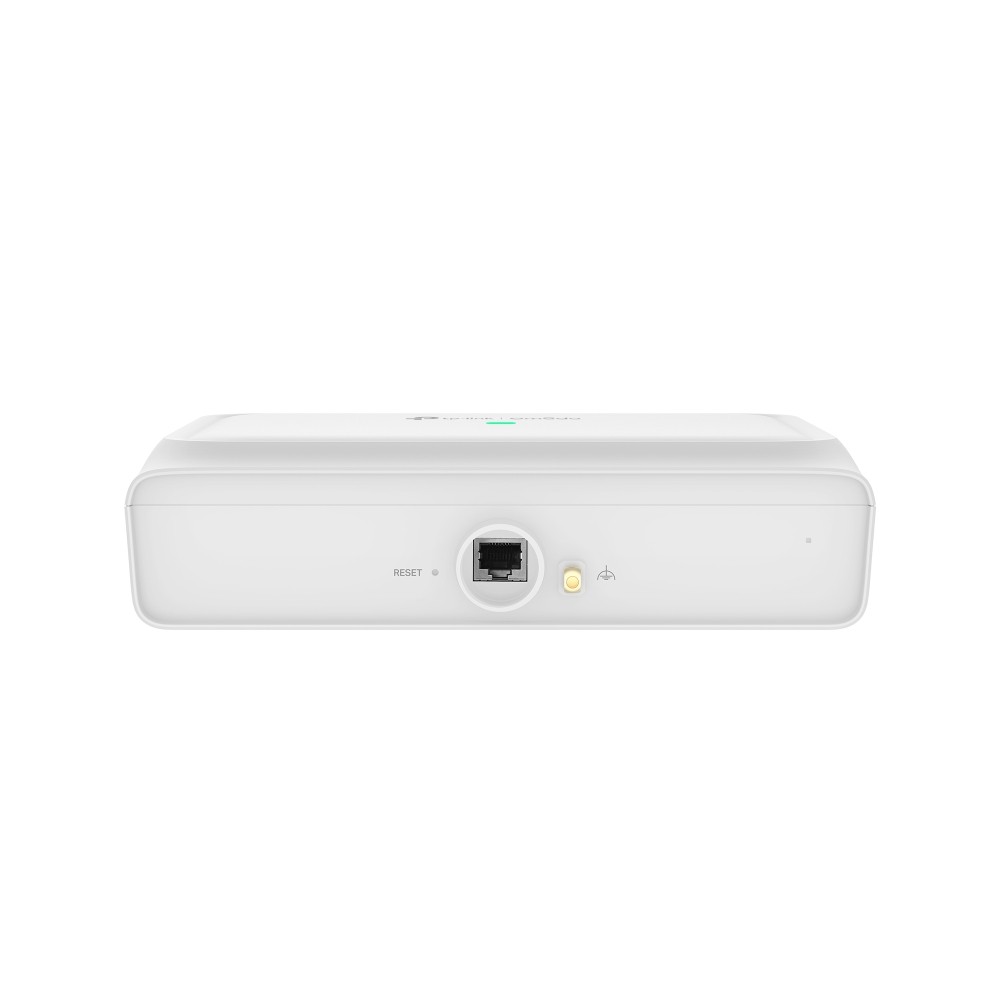

Interface1× Gigabit Ethernet Port (supports 802.3at PoE or 48V Passive PoE)
ButtonReset
Power Supply802.3at PoE; 48V Passive PoE
Max. Power ConsumptionEU: 12.5W (802.3at PoE or Passive PoE); US: 14.7W (802.3at PoE or Passive PoE)

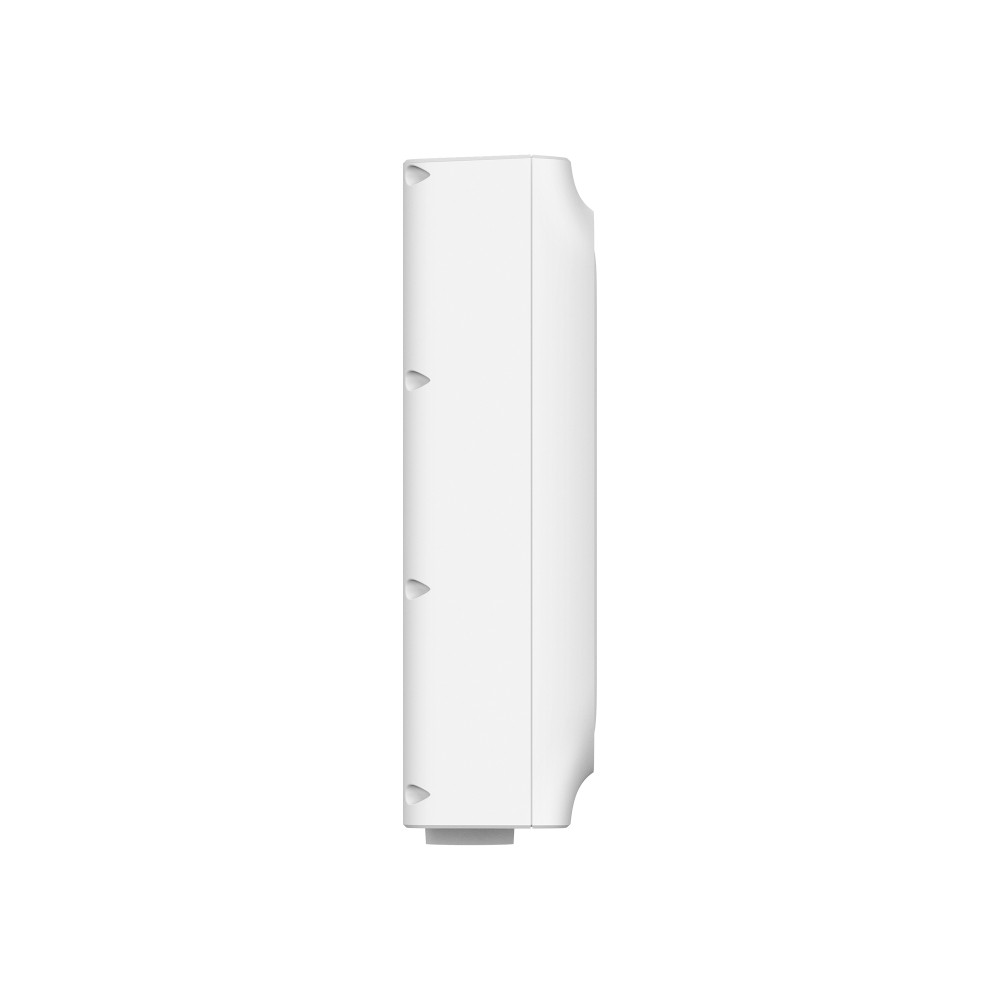

Dimensions ( W x D x H )8.2 × 2.3 × 9.1 in (207.5 × 58 × 230 mm)
AntennaBuilt-in Directional Antennas:; 2.4 GHz: 2× 8 dBi; 5 GHz: 2× 10 dBi Beamwidth: 120° Horizontal; 30° Vertical
BluetoothYes
Weatherproof EnclosureIP68

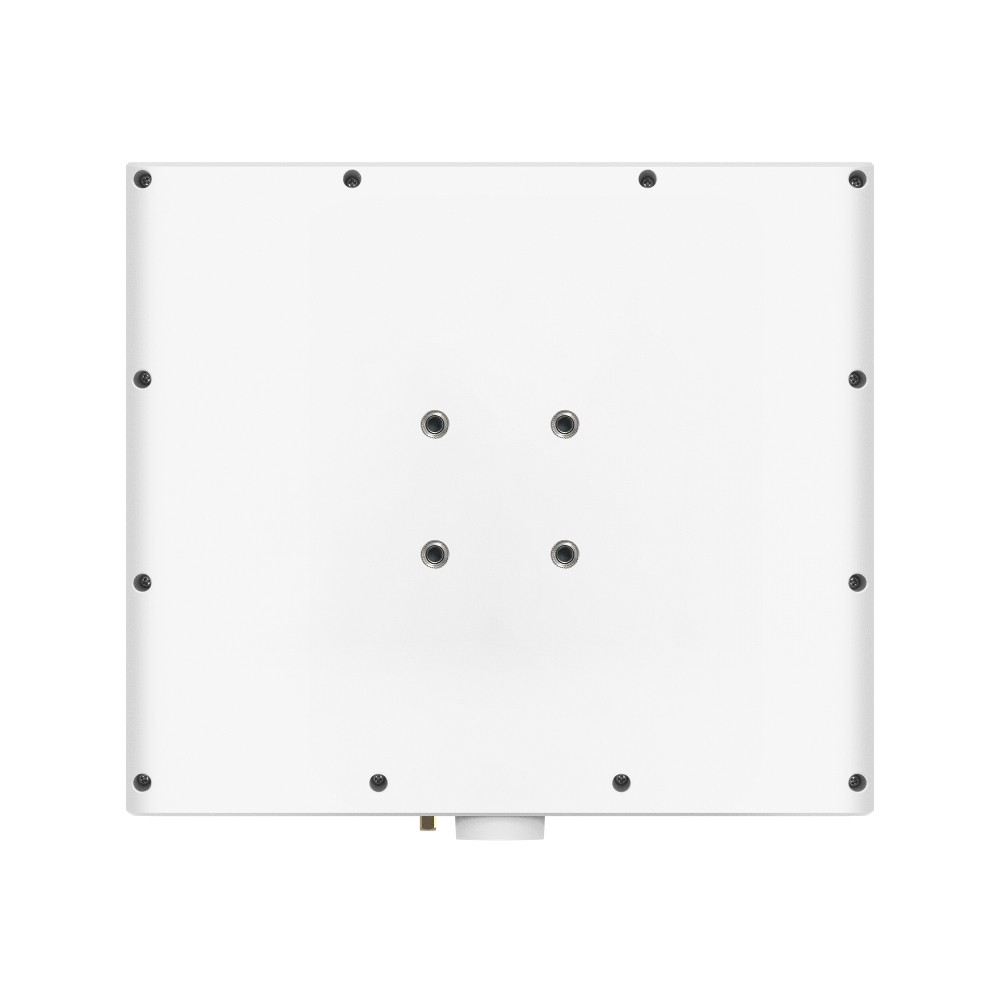

MountingOptional bracket accessory APM-100: Supports vertical ±45° , horizontal ±45° adjustment Note: Optional bracket accessories need to be purchased separately
Management Features
Omada AppYes
Restore & BackupYes
NTPYes
Centralised ManagementOmada Hardware Controller; Omada Software Controller; Omada Cloud-based Controller; Omada APP
Cloud AccessYes. Require the use of an Omada controller.
Email AlertsYes
LED ON/OFF ControlYes
Management MAC Access ControlYes
SNMPv1, v2c, v3
System Logging Local/Remote SyslogYes
SSHYes
Web-based ManagementYes
Multi-site ManagementYes
Zero-Touch ProvisioningYes. Requiring the use of Omada Cloud-Based Controller
Wireless Features
Coverage2.4 GHz: 200+ m; 5 GHz: 500+ m
Concurrent Clients250+
Wireless StandardsIEEE 802.11 a/b/g/n/ac/ax
Frequency2.4 GHz, 5 GHz
Signal Rate574 Mbps (2.4 GHz) + 2402 Mbps (5 GHz)
Wireless Functions1024-QAM; DL/UL OFDMA; Multiple SSIDs (Up to 16 SSIDs, 8 on each band); Enable/Disable Wireless Radio; Enable/Disable SSID Broadcast; Guest Network; Automatic Channel Assignment; Transmit Power Control (Adjust Transmit Power on dBm); QoS (WMM); 2 × 2 (2.4 GHz & 5 GHz) DL/UL MU-MIMO; Omada Mesh; Seamless Roaming(802.11k/v/r); Band Steering; Load Balance; Airtime Fairness; Beamforming; RADIUS Accounting; MAC Authentication; Reboot Schedule; Wireless Schedule; Wireless Statistics; Static IP/Dynamic IP
Wireless SecurityCaptive Portal Authentication; Access Control; Wireless Mac Address Filtering; Wireless Isolation Between Clients; SSID to VLAN Mapping; Rogue AP Detection; 802.1X Support; WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission PowerCE:; FCC: < 30 dBm (2.4 GHz); < 30 dBm (5 GHz)
Others
CertificationCE, FCC
System RequirementsMicrosoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
EnvironmentOperating Temperature: -30–70 ℃ (-22–158 ℉); Storage Temperature: -40–70 ℃ (-40–158 ℉); Operating Humidity: 10–90% RH non-condensing; Storage Humidity: 5–90% RH non-condensing

Source: TP-Link's published specifications for this model (TP-Link Australia product page and datasheet). Some features run only in Standalone Mode or only under an Omada Controller; throughput figures are TP-Link's lab results. TP-Link may change specifications without notice.

What's in the box

  • Access Point EAP650 D120-Outdoor
  • Mounting Kits
  • Installation Guide
  • Waterproof Kit

Source: TP-Link's published package contents.

Who the EAP650 D120-Outdoor is for

Warehouses

  • 120° directional antennas for wide, extended coverage
  • 250+ concurrent clients listed
  • 802.11k/v/r roaming with an Omada controller

Yards, pools and parks

  • IP68 weatherproof enclosure
  • -30 to 70 °C operating range
  • Wall or pole mounting kits included

Omada-managed sites

  • One-click adoption in Omada SDN
  • Cloud access with an Omada controller
  • Zero-touch provisioning with the Cloud-Based Controller

EAP650 D120-Outdoor compared

The EAP650 D120-Outdoor and EAP610-Outdoor are both TP-Link Omada IP68 indoor/outdoor Wi-Fi 6 access points with a gigabit PoE port and a -30 to 70 °C operating range. The D120 has directional 120° antennas and a faster AX3000 radio; the EAP610-Outdoor uses external antennas and is AX1800.

SpecificationEAP650 D120-OutdoorEAP610-Outdoor
Wi-Fi classAX3000 Wi-Fi 6AX1800 Wi-Fi 6
5 GHz2402 Mbps1201 Mbps
2.4 GHz574 Mbps574 Mbps
AntennasBuilt-in directional: 2x 8 dBi (2.4 GHz), 2x 10 dBi (5 GHz)2x 4 dBi (2.4 GHz), 2x 5 dBi (5 GHz)
EnclosureIP68IP68
Power802.3at PoE or 48 V passive PoE802.3at PoE or 48 V passive PoE (adapter included)
Max. power (EU / US)12.5 W / 14.7 W13.2 W / 14.7 W
Concurrent clients250+250+
Operating temperature-30 to 70 °C-30 to 70 °C

Source: TP-Link Australia product pages for each model.

Buy the EAP650 D120-Outdoor from ARC IP Networks

ARC IP Networks supplies genuine TP-Link Omada products from Australian stock at competitive prices, with the full manufacturer's warranty, Australia-wide delivery and trade pricing for installers and MSPs.

  • Genuine TP-Link: new TP-Link Omada product from Australian stock.
  • Manufacturer warranty: the full TP-Link manufacturer's warranty for this model.
  • Australia-wide delivery to every state and territory.
  • Trade and project pricing: call 1300 100 440 or email info@arcip.com.au.

Frequently asked questions

Straight answers about the EAP650 D120-Outdoor from the ARC IP Networks team.

Last reviewed October 2026.

It is an AX3000 dual-band Wi-Fi 6 access point with signal rates of 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz. These are maximum physical rates; real throughput depends on clients and environment.

It has built-in directional antennas with a 120° horizontal and 30° vertical beamwidth: two 8 dBi on 2.4 GHz and two 10 dBi on 5 GHz. The signal is focused across a wide sector rather than all around the AP.

TP-Link's AU page lists 200+ m on 2.4 GHz and 500+ m on 5 GHz. Coverage is calculated from laboratory testing and varies with clients and environment.

IP68. TP-Link describes complete dustproof protection and the ability to withstand prolonged submersion in water, plus 6 kV lightning protection.

-30 to 70 °C, with 10 to 90% non-condensing humidity.

Through its gigabit Ethernet port, using 802.3at PoE+ or 48 V passive PoE. Maximum consumption is 12.5 W (EU) or 14.7 W (US).

No for basic use: it supports standalone management through the web interface. Omada Mesh, seamless roaming, captive portal and cloud access require an Omada controller, and zero-touch provisioning requires the Omada Cloud-Based Controller.

The datasheet lists Omada Controller and Omada Essential V5.15 and above, and Omada App V4.25 and above.

The AU page lists 250+ concurrent clients, which TP-Link notes is generally less in practice, and up to 16 SSIDs, eight per band.

Wall and pole mounting kits are in the box. The optional APM-100 bracket, sold separately, adds ±45° vertical and horizontal adjustment.

The EAP650 D120-Outdoor access point, mounting kits, a waterproof kit and an installation guide.

Need more than one EAP650 D120-Outdoor for a warehouse or outdoor Wi-Fi 6 rollout?

Ask ARC IP Networks for volume and project pricing on genuine TP-Link Omada products.
