QNAP TBS-H574TX-I3-12G 5-Bay All-Flash Thunderbolt 4 NASbook, Core i3-1320PE, 12GB, 10GbE + 2.5GbE

Price:

$ 2,579.48


QNAP RAIL-S01 Short-Depth Rail Kit for 1U, 2U and 3U QNAP Rackmount NAS
QNAP RAIL-S01 Short-Depth Rail Kit for 1U, 2U and 3U QNAP Rackmount NAS
$ 144.74
$ 144.74
QNAP TL-D800C 8-Bay Desktop USB 3.2 Gen 2 Type-C JBOD Expansion Enclosure
QNAP TL-D800C 8-Bay Desktop USB 3.2 Gen 2 Type-C JBOD Expansion Enclosure
$ 1,233.08
$ 1,233.08

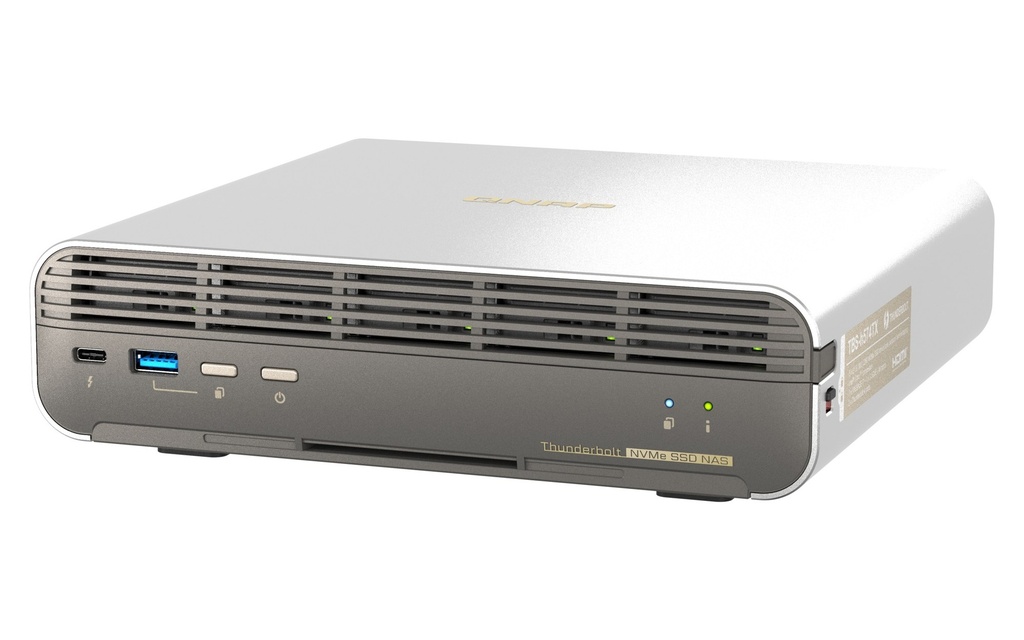

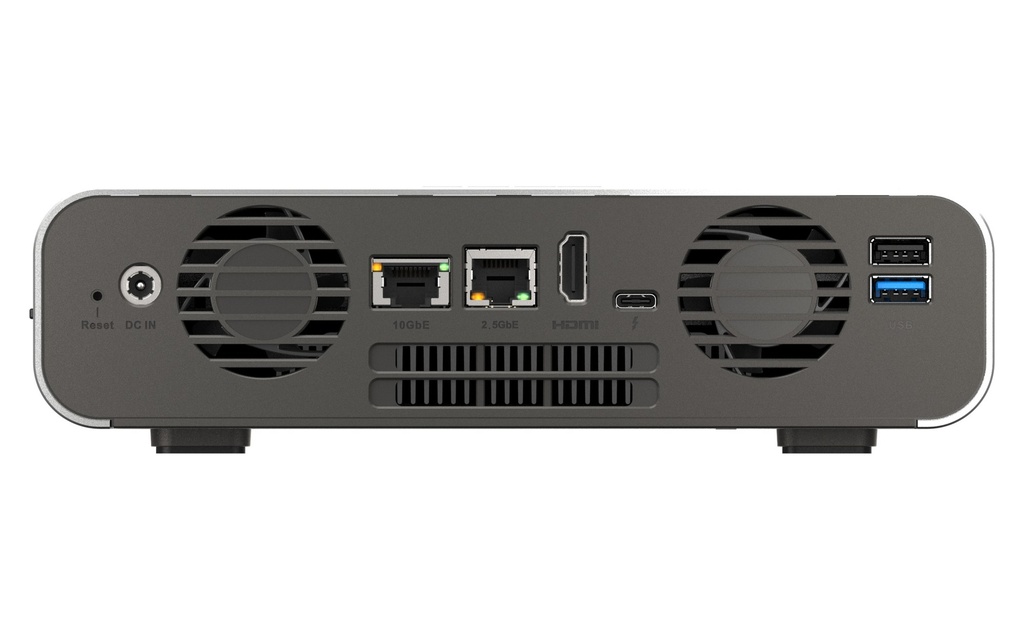

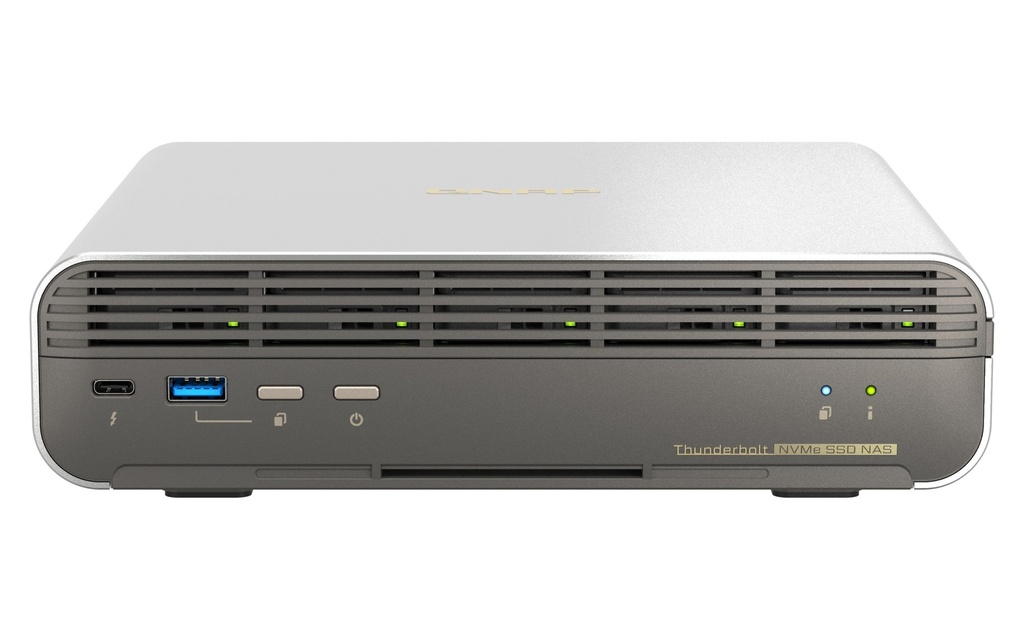

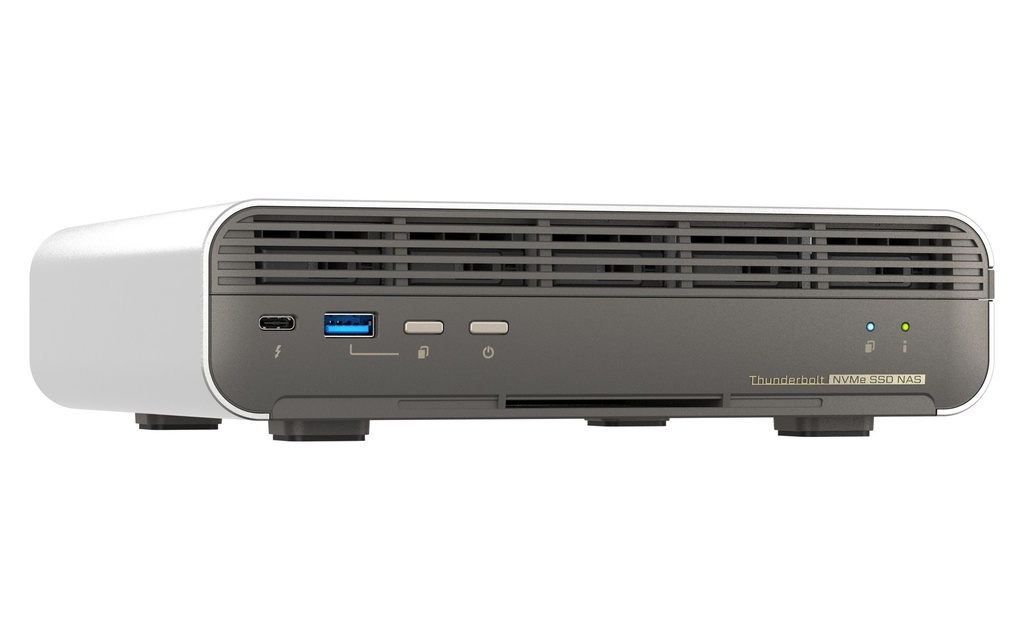

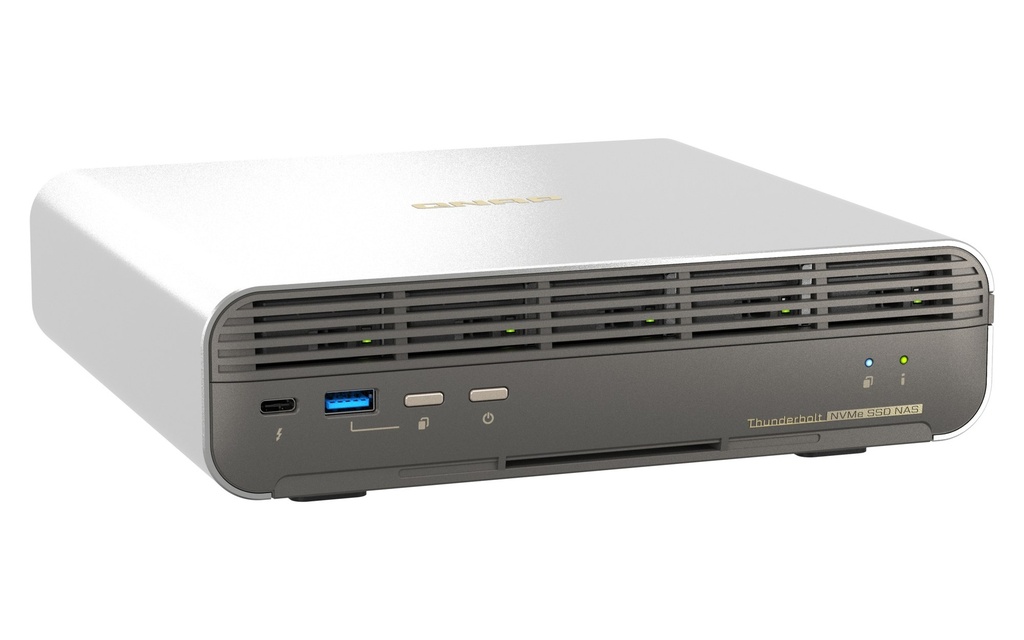

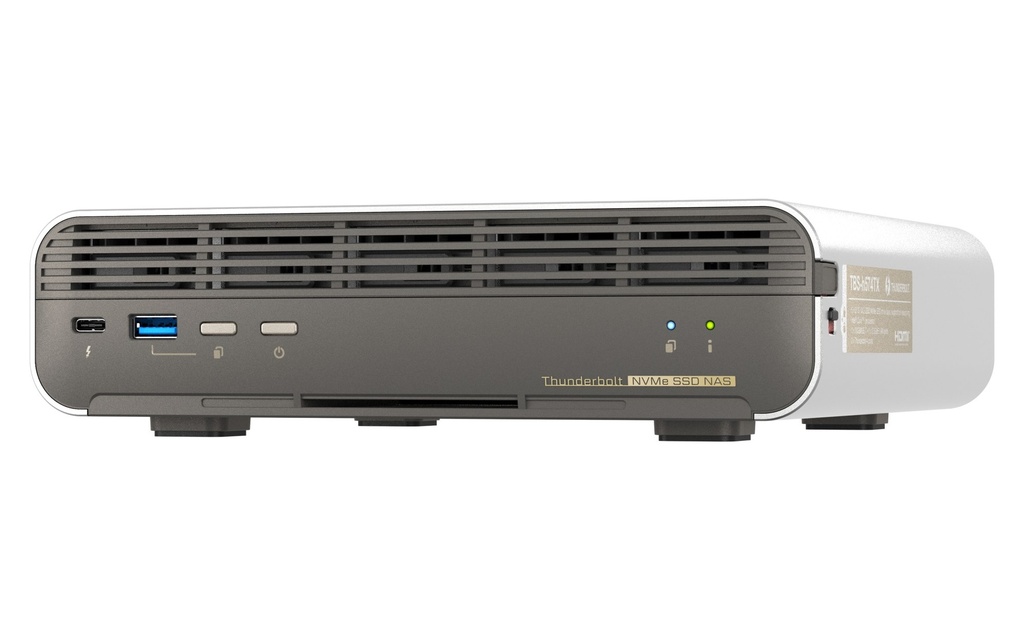

QNAP TBS-H574TX-I3-12G 5-Bay All-Flash Thunderbolt 4 NASbook, Core i3-1320PE, 12GB, 10GbE + 2.5GbE

https://arcip.com.au/web/image/product.template/8295/image_1920?unique=874d354

QNAP TBS-H574TX-I3-12G 5-bay all-flash NASbook in a set-top design. Five E1.S slots (PCIe Gen3 x2) with pre-installed adapters for M.2 2280 NVMe SSDs, shipped without SSDs. Intel Core i3-1320PE 8-core 12-thread processor up to 4.50GHz, 12GB on-board memory (non-expandable). Two Thunderbolt 4 ports, one 10GBASE-T and one 2.5GbE port, two USB 3.2 Gen 2 (10Gbps), one USB 2.0 and an HDMI 1.4b output. 120W power adapter, 60 x 215 x 199 mm. Runs QuTS hero. 3 years standard warranty. Genuine QNAP from ARC IP Networks, authorised QNAP reseller with Australian stock.

$ 2,579.48 2579.48 AUD $ 2,579.48 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

In stock online
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
TBS-H574TX-I3-12G
Barcode
4711103084526

QNAP TBS-H574TX-I3-12G at a glance

The QNAP TBS-H574TX-I3-12G is a compact set-top all-flash NASbook with five E1.S bays, each fitted with a pre-installed adapter for M.2 2280 NVMe SSDs. This variant runs an Intel Core i3-1320PE 8-core processor (up to 4.50GHz) with 12GB of on-board memory, and connects through two Thunderbolt 4 ports, one 10GBASE-T port and one 2.5GbE port.

ARC IP Networks is an authorised QNAP reseller in Australia. We supply the genuine QNAP TBS-H574TX-I3-12G from Australian stock, with a GST tax invoice on every order.

Drive bays5 x E1.S / M.2 2280
CPUCore i3-1320PE 8-core
Memory12GB on board
Connectivity2 x TB4, 10GbE, 2.5GbE

Best for

  • Video editors and VFX teams working directly from flash storage over Thunderbolt 4
  • On-site footage import and rough cuts for digital imaging technicians
  • Small studios needing a portable, space-saving shared NAS

Key features

Five E1.S slots (PCIe Gen3 x2 each) with pre-installed adapters that accept M.2 2280 PCIe NVMe SSDs.

Intel Core i3-1320PE 8-core (4P+4E), 12-thread processor up to 4.50GHz with Intel UHD Graphics.

12GB of on-board memory (non-expandable) and 5GB flash with dual boot OS protection.

Two Thunderbolt 4 ports for direct connection to Mac and Windows workstations, with Thunderbolt networking up to 20Gbps.

One 10GBASE-T port and one 2.5GbE port for sharing with the wider network.

Two USB 3.2 Gen 2 (10Gbps) ports and one USB 2.0 port for importing footage and attaching USB storage such as the TL-D800C JBOD.

HDMI 1.4b output for playing footage on a large screen.

Set-top design measuring 60 x 215 x 199 mm, smaller than A4 paper.

Runs QNAP's QuTS hero operating system and supports backup to myQNAPcloud Storage with Hybrid Backup Sync.

QNAP TBS-H574TX-I3-12G specifications

QNAP TBS-H574TX-I3-12G technical specifications
SpecificationValue
Processor and memory
CPUIntel Core i3-1320PE 8C (4P+4E)/12T, up to 4.50GHz
Architecture64-bit x86
GraphicsIntel UHD Graphics for 13th Gen Intel processors
System memory12GB on board (non-expandable)
Flash memory5GB (dual boot OS protection)
Storage
Drive bays5 x E1.S up to 15mm (5 x PCIe Gen3 x2), pre-installed adapter supports M.2 2280 in each slot
Drive compatibilityE1.S or M.2 2280 PCIe NVMe; M.2 heatsinks must not exceed 4.5mm height
M.2 slots5 x M.2 2280 PCIe Gen 3 (via pre-installed adapter); shipped without SSD
Connectivity
Thunderbolt2 x Thunderbolt 4
10 Gigabit Ethernet1 x 10GBASE-T (10G/5G/2.5G/1G/100M)
2.5 Gigabit Ethernet1 (2.5G/1G/100M)
USB 3.2 Gen 2 (10Gbps)2
USB 2.01
HDMI output1, HDMI 1.4b
Physical
Form factorSet-top
Dimensions (H x W x D)60 x 215 x 199 mm
LED indicatorsStatus, USB copy, SSD 1-5
ButtonsStatus, USB copy, Reset
FansSystem: 2 x 40mm; CPU: 1 x 75mm
Power and environment
Power supply120W adapter (19VDC output, 100-240VAC input)
Power consumption (operating, typical)46 W
Operating temperature0 - 40 °C
Storage temperature-20 - 70 °C
Relative humidity5-95% RH non-condensing
Warranty and limits
Standard warranty3 years
Max. concurrent CIFS connections (max. memory)1500

Figures from QNAP's official product page and hardware specifications.

The QNAP TBS-H574TX-I3-12G in depth

All-flash NASbook for video production

The TBS-h574TX packs five SSD slots into a compact set-top chassis aimed at video editors and VFX professionals. Each E1.S slot ships with an adapter for M.2 2280 NVMe SSDs, and QNAP's QuTS hero operating system manages the storage.

Thunderbolt 4 plus network access

Two Thunderbolt 4 ports let Mac or Windows workstations connect directly for real-time editing, while the 10GbE and 2.5GbE ports share the same storage with the rest of the team through a switch.

Import, display and expand

USB 3.2 Gen 2 ports speed up footage import from external media, the HDMI output shows clips on a large screen, and capacity can be extended with QNAP USB storage such as the TL-D800C JBOD.

Frequently asked questions

Straight answers about the QNAP TBS-H574TX-I3-12G from the ARC IP Networks team. Last reviewed October 2026.

It has five E1.S slots (up to 15mm), each with a pre-installed adapter for M.2 2280 PCIe NVMe SSDs. The system ships without SSDs, and M.2 heatsinks must not exceed 4.5mm in height.

No. This variant has 12GB of on-board memory, which QNAP lists as non-expandable.

Workstations can connect directly through either of the two Thunderbolt 4 ports, or over the network through the 10GBASE-T port and the 2.5GbE port.

The TBS-H574TX-I3-12G uses an Intel Core i3-1320PE 8-core (4P+4E), 12-thread processor up to 4.50GHz with Intel UHD Graphics.

QNAP lists a standard warranty of 3 years.

ARC IP Networks is an authorised QNAP reseller and supplies the TBS-H574TX-I3-12G from Australian stock with a GST tax invoice.
