TP-Link Tapo H500 CentralHub

Price:

$ 377.77


Mercusys MA530 Bluetooth 5.4 Nano USB Adapter
Mercusys MA530 Bluetooth 5.4 Nano USB Adapter
$ 12.54
$ 12.54
TP-Link Deco X50-DSL(3-pack) AX3000 VDSL Whole Home Mesh Wi-Fi 6 Router
TP-Link Deco X50-DSL(3-pack) AX3000 VDSL Whole Home Mesh Wi-Fi 6 Router
$ 669.49
$ 669.49

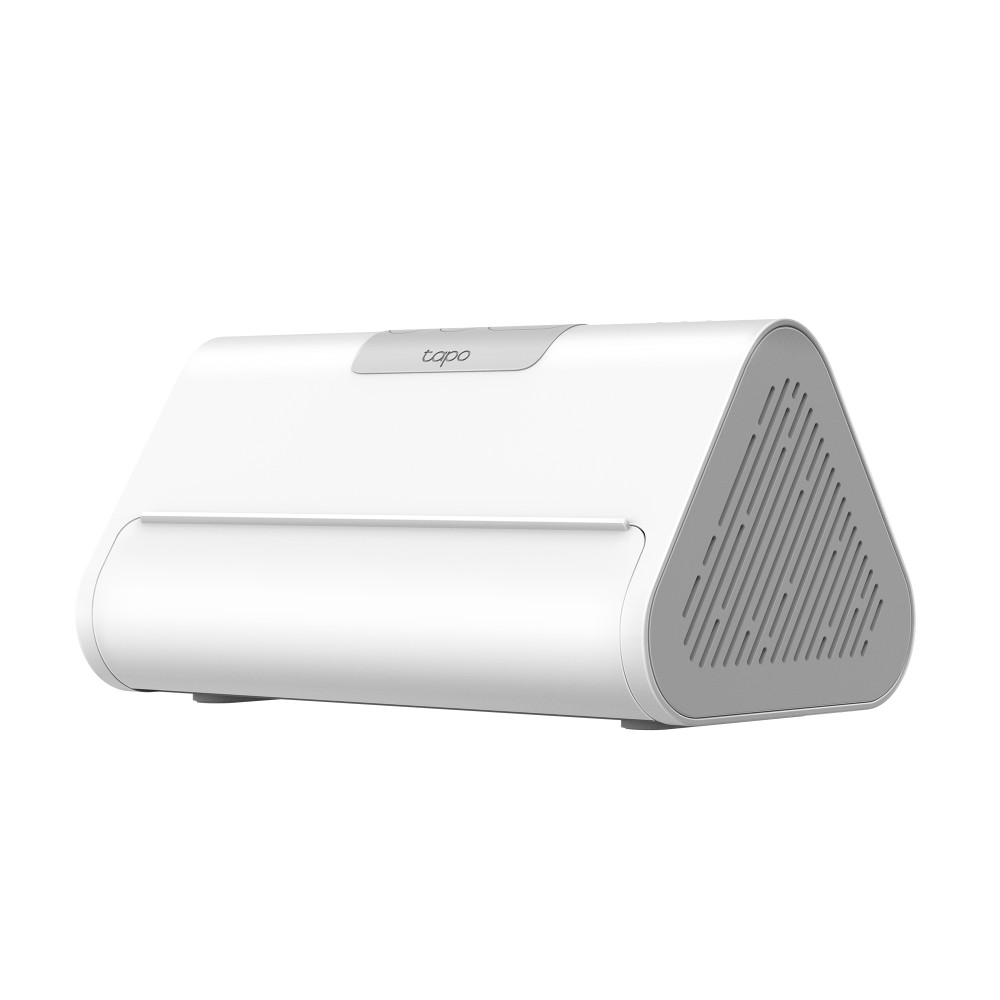

TP-Link Tapo H500 CentralHub

https://arcip.com.au/web/image/product.template/11285/image_1920?unique=3c3b158

The TP-Link Tapo H500 CentralHub brings Tapo cameras and smart devices together: up to 16 Tapo cameras or video doorbells and 64 Tapo sensors, buttons and Sub-1G switches. It records to 16 GB built-in eMMC plus one 2.5-inch SATA HDD/SSD bay up to 16 TB (drive sold separately) without cloud fees, processes AI locally, adds person, vehicle and pet detection to non-AI Tapo cameras and facial recognition to AI-enabled ones, and protects recordings with AES 128-bit and TLS 1.2 encryption. A 110 dB alarm doubles as a doorbell chime, and an HDMI port shows up to four live views on a TV.

$ 377.77 377.77 AUD $ 377.77 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
TAPO-H500
Barcode
4895252504293

The TP-Link Tapo H500 CentralHub connects and manages up to 16 Tapo cameras or video doorbells and 64 Tapo Sub-G sensors, buttons and switches. It records to 16 GB of built-in storage and a 2.5-inch SATA HDD/SSD bay up to 16 TB (drive sold separately) with no monthly fees, adds facial recognition to connected Tapo cameras, and has a 110 dB alarm and chime, two-way audio and HDMI output.

Tapo H500 overview

TP-Link's AU page titles the Tapo H500 the CentralHub; its packaging and some Tapo sensor pages call it the Tapo HomeBase. It centralises the cameras and IoT devices in a Tapo home: up to 16 Tapo cameras or video doorbells and up to 64 Tapo IoT devices (sensors, buttons and Sub-1G switches), with a compatibility list published by TP-Link. It connects to Tapo cameras over 2.4 GHz and 5 GHz Wi-Fi, and to your router either over 5 GHz Wi-Fi or a wired 10/100 Mbps Ethernet connection. Sub-1 GHz devices use 920.9 MHz, 921.7 MHz and 922.3 MHz in Australia. TP-Link says Matter support applies to specific device types based on the H500's compatibility.

Storage is the headline. The H500 has 16 GB of built-in eMMC storage and a single bay for a 2.5-inch SATA HDD or SSD of up to 16 TB, so connected cameras record to the hub instead of individual microSD cards or cloud subscriptions. TP-Link notes the drive is purchased separately, that actual capacity depends on the size and type of drive, and that the available built-in storage may be less than 16 GB because of system resource allocation. Up to 4 connected cameras can use 24/7 modes (continuous recording for wired models or continuous capture for battery models); additional cameras use motion or event-based clip recording. TP-Link's retention table, based on four Tapo C410 cameras at 4MP, shows a 1 TB drive holding about 20 days of 24/7 recording and a 4 TB drive about 81 days, with event recording calculated at 3.5 triggers a day of 30 seconds each; it says actual times vary with compression, frame rate and recording conditions.

The H500 processes AI on the hub, which TP-Link says keeps sensitive data off the cloud. It enables person, vehicle and pet recognition on non-AI Tapo cameras, and with AI-enabled cameras adds facial recognition and Smart Playback, with TP-Link quoting up to 99% detection accuracy; its footnote states the AI enhancement currently supports a maximum of 4 cameras at once. Facial recognition can alert you only when an unrecognised face appears, or focus notifications on specific people. Recordings are protected by AES 128-bit and TLS 1.2 encryption, and optional two-factor authentication blocks unauthorised access. Daily security reports, tags and event retrieval make footage easy to find, with live view, playback and download in the Tapo app.

Around the house, a built-in 110 dB alarm alerts you to intruders and acts as a chime when connected to Tapo smart doorbells, and two-way audio through an integrated microphone and speakers lets you talk to visitors detected by a camera or doorbell. The HDMI port connects the hub to a TV or monitor and supports up to four combined video streams without individual channel control. A 3D dashboard is available in the Tapo app on a tablet, which is purchased separately; TP-Link says the hub works independently and does not need a tablet for core functions. Ports include HDMI, DC power, one 10/100 Mbps Ethernet WAN port, USB-A for data transfer and USB-C for charging, with reset, answer/SYNC, decline/mute and volume buttons. The H500 measures 160.20 x 98.82 x 83.21 mm, runs from a 12 V 2 A adapter, operates from 0 to 40 °C, and is listed with CE and RCM certification. In the box are the Tapo H500, a power adapter, screws, an Ethernet cable and a quick start guide.

Key features

16 cameras, 64 sensors

Manages up to 16 Tapo cameras or doorbells and 64 Tapo sensors, buttons and Sub-1G switches.

Local storage, no monthly fee

16 GB eMMC plus a 2.5-inch SATA HDD/SSD bay up to 16 TB (drive sold separately).

24/7 on up to 4 cameras

Four cameras can record continuously; others use event-based clips.

AI for older cameras

Adds person, vehicle and pet recognition to non-AI Tapo cameras.

Facial recognition

Alerts for unrecognised faces or specific people; AI enhancement on up to 4 cameras at once.

Encryption and 2FA

AES 128-bit and TLS 1.2 encryption, local AI and optional two-factor authentication.

110 dB alarm and chime

Built-in siren that also chimes for Tapo smart doorbells.

Two-way audio

Integrated microphone and speakers to talk to visitors.

HDMI output

Up to four combined live views on a TV or monitor.

Tapo H500 specifications

At a glance

16 cameras + 64 sensors
16 GB eMMC built in
2.5" HDD/SSD to 16 TB
110 dB alarm + chime
Facial recognition
HDMI output
5 GHz Wi-Fi or Ethernet
160.2 x 98.8 x 83.2 mm
Tapo H500 full specifications
Specifications
Storage CapacityEvent-triggered recording
1 TB16,498 days
2 TB33,033 days
3 TB49,530 days
4 TB66,029 days
8 TB132,057 days
16 TB264.114 days
Storage
Local StorageBuilt-in Storage: 16GB eMMC Expanded Storage: 1-Bay, 2.5" SATA HDD/SSD, up to 16TB(needs to purchased seperately)
Network
Frequency5 GHz Wi-Fi (For Router) 2.4 GHz Wi-Fi (For Cameras) Sub-1 GHz:863.35MHz, 864.35MHz, 868.35MHz (for EU/UK) 920.9MHz, 921.7MHz, 922.3MHz (for US/AU).
Security
Security128-bit AES Encryption with SSL/TLS
Hardware
Interface1x HDMl Port, 1x DC Power Port
Adapter Input100-240V, 50/60Hz
Adapter Output12V, 2A
Ethernet Ports1 10/100 Mbp(For WAN)
USB SupportUSB Ports: 1x USB-A for data transfer, 1x USB-C for charging
Buttons1 Reset Button, 1 Answer/SYNC Button, 1 Decline/Mute Button, 1 Volume Up Button, 1 Volume Down Button
Dimensions (W x D x H)6.31 x 3.89 x 3.28 in. (160.20 98.82 83.21)mm
General
Operating Humidity10%~90%RH, Non-condensing
Storage Humidity5%~90%RH, Non-condensing
Environment
Operating Temperature0℃– 40℃ (32°F–104°F )
Storage Temperature-20℃~60℃ (-4°F~140°F)
Others
CertificationCE, RCM

Source: TP-Link's published specifications for this model (TP-Link Australia product page). throughput figures are TP-Link's lab results. TP-Link may change specifications without notice.

What's in the box

  • Tapo H500 Power Adapter Screws Quick Start Guide Ethernet Cable

Source: TP-Link's published package contents.

Who the Tapo H500 is for

Multi-camera Tapo homes

  • Up to 16 cameras or doorbells
  • Hard-drive recording
  • No cloud subscription needed

Fewer, smarter alerts

  • Facial recognition
  • Person, vehicle and pet detection
  • Daily security reports

Watching on a big screen

  • HDMI to a TV or monitor
  • Up to four live views
  • 3D dashboard on a tablet

Tapo H500 compared

The H500 is the top of TP-Link's Tapo hub range. It keeps the sensor role of the H100 and H200, and adds hard-drive storage, support for 16 cameras, on-hub AI and HDMI output. Figures below are as each TP-Link AU page states them.

SpecificationTapo H100Tapo H200Tapo H500
TP-Link AU titleSmart IoT Hub with ChimeSmart HubCentralHub
Tapo IoT devicesUp to 64 (may vary by device type)Up to 64 sensors, buttons or Sub-1G switchesUp to 64 Tapo sensors, buttons and Sub-1G switches
Cameras / video doorbellsNot listedUp to 4 (Tapo C420, C400, D230 currently)Up to 16
Video storageNot listedmicroSD up to 512 GB (card sold separately)16 GB eMMC + one 2.5-inch SATA HDD/SSD bay, up to 16 TB (drive sold separately)
Alarm / chimeSiren up to 90 dB, 19 ringtones19 ringtones up to 90 dB110 dB built-in alarm and chime
Connection2.4 GHz Wi-Fi, 922 MHz2.4 GHz Wi-Fi and Sub-1G, Ethernet cable included5 GHz Wi-Fi (router), 2.4 GHz Wi-Fi (cameras), Sub-1 GHz, 10/100 Mbps Ethernet WAN
OtherPlugs straight into a wall outletDC power adapter, 9 V 0.85 AHDMI output, two-way audio, USB-A and USB-C
Dimensions72 x 62.5 x 51 mm71.45 x 71.45 x 31.25 mm160.20 x 98.82 x 83.21 mm

Source: TP-Link Australia product pages for each model.

Buy the Tapo H500 from ARC IP Networks

ARC IP Networks supplies TP-Link Tapo products from Australian stock at competitive prices, with the full manufacturer's warranty, Australia-wide delivery and trade pricing for installers and MSPs.

  • New TP-Link Tapo product from Australian stock.
  • Manufacturer warranty: the full TP-Link manufacturer's warranty for this model.
  • Australia-wide delivery to every state and territory.
  • Trade and project pricing: call 1300 100 440 or email info@arcip.com.au.

Frequently asked questions

Straight answers about the Tapo H500 from the ARC IP Networks team.

Last reviewed October 2026.

TP-Link Australia titles the H500 the CentralHub. Its packaging and some Tapo sensor pages refer to the Tapo HomeBase.

Up to 16 Tapo cameras or video doorbells and 64 Tapo IoT devices such as sensors, buttons and Sub-1G switches. TP-Link publishes a compatibility list.

No. It has 16 GB built-in storage and a bay for one 2.5-inch SATA HDD or SSD up to 16 TB, purchased separately. Usable built-in storage may be less than 16 GB.

Up to 4 connected cameras can use 24/7 modes. Additional cameras use motion or event-based clip recording.

Yes. It enables person, vehicle and pet recognition on non-AI Tapo cameras, and adds facial recognition and Smart Playback to AI-enabled cameras. The AI enhancement currently supports up to 4 cameras at once.

TP-Link positions the H500 as local storage with no monthly fees, so recordings go to the hub instead of cloud subscriptions.

Yes. The HDMI port connects to a TV or monitor and supports up to four combined video streams without individual channel control.

No. A tablet, purchased separately, is only needed for the 3D dashboard in the Tapo app; core functions work without one.

Over 5 GHz Wi-Fi or a wired 10/100 Mbps Ethernet connection to your router. Cameras connect to it over 2.4 GHz and 5 GHz Wi-Fi.

The Tapo H500, a power adapter, screws, an Ethernet cable and a quick start guide.

Need more than one Tapo H500 for a multi-camera Tapo system?

Ask ARC IP Networks for volume and project pricing on TP-Link Tapo products.
