Teltonika TAP400 specifications
Wireless
| Wireless mode | 802.11b/g/n/ac/ax (Wi-Fi 6) with data transmission rates up to 2402 Mbps on 5GHz and 576 Mbps on 2.4GHz (Dual Band, MU-MIMO), 802.11r fast transition, Access Point (AP) |
|---|
| Wi-Fi security | WPA2-Enterprise: PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, Auto-cipher modes, client separation, EAP-TLS with PKCS#12 certificates, disable auto-reconnect, 802.11w Protected Management Frames (PMF) |
|---|
| SSID/ESSID | SSID stealth mode and access control based on MAC address |
|---|
| Wi-Fi users | Up to 512 simultaneous connections |
|---|
| Wireless Connectivity Features | Wireless mesh (802.11s), fast roaming (802.11r), BSS transition management (802.11v), radio resource measurement (802.11k) |
|---|
| Wireless MAC filter | Allowlist, blocklist |
|---|
| Wireless QR code generator | Once scanned, a user will automatically enter your network without needing to input login information |
|---|
| TravelMate | Forward Wi-Fi hotspot landing page to a subsequent connected device |
|---|
Ethernet
| Ethernet | 1 x RJ45 port 100/1000/2500 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover |
|---|
Network
| Network protocols | TCP, UDP, ICMP, GRE, ESP, RIP, OSPF, BGP, IPsec, IPv4, IPv6, ARP, IPsec, PPP, HTTP, TTPS |
|---|
| Connection monitoring | Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection |
|---|
| DNS over HTTPS | DNS over HTTPS proxy enables secure DNS resolution by routing DNS queries over HTTPS |
|---|
| Hotspot 2.0 | Hotspot 2.0 is a Wi-Fi standard that enables seamless, secure, and automatic connection to trusted wireless networks |
|---|
| Traffic Management | Real-time monitoring, wireless signal charts, traffic usage history |
|---|
Security
| Authentication | SSH key based, HTTPS, CLI, IP & Login attempts block, time-based login blocking, built-in random password generator |
|---|
| VLAN | Tag-based VLAN separation |
|---|
| Access control | Flexible access control of SSH, Web interface, CLI and Telnet |
|---|
| Certificate Manager | Certificate creation tool allows to create CA, server, client, let's encrypt, SCEP certificates |
|---|
| 802.1x | Port-based network access control client |
|---|
Data To Server
| Protocol | HTTP(S), MQTT, Azure MQTT |
|---|
| Data to server | Extract parameters from multiple sources and different protocols, and send them all to a single server; Custom LUA scripting, allowing scripts to utilize the router's Data to server feature |
|---|
Api
| Teltonika Networks Web API (beta) support | Expand your device's possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation: https://developers.teltonika-networks.com |
|---|
Site Manager
| Supported modes | Managed Device |
|---|
| Functionalities | FOTA updates, device status reporting, automatic reboot via ping/wget health checks, centralized wireless SSID configuration |
|---|
Monitoring & Management
| WEB UI | HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update availability notifications, event log, system log, kernel log |
|---|
| FOTA | Firmware update from server, automatic notification |
|---|
| SSH | SSH (v1, v2) |
|---|
| Email | Receive email message status alerts of various services |
|---|
| JSON-RPC | Management API over HTTP/HTTPS |
|---|
| Wi-Fi Scanner | Wi-Fi Scanner scans and collects information about wireless devices in surrounding area |
|---|
| RMS | Teltonika Remote Management System (RMS) |
|---|
System Characteristics
| CPU | Mediatek, Dual-Core, 1.3 Ghz |
|---|
| RAM | 512 MB, DDR3 |
|---|
| FLASH storage | 16MB SPI NOR Flash, 512MB SPI NAND Flash |
|---|
Firmware/Configuration
| WEB UI | Update FW from file, check FW on server, configuration profiles, configuration backup |
|---|
| FOTA | Update FW |
|---|
| RMS | Update FW/configuration for multiple devices at once |
|---|
| Keep settings | Update FW without losing current configuration |
|---|
| Factory settings reset | A full factory reset restores all system settings, including the IP address, PIN, and user data to the default manufacturer's configuration |
|---|
Firmware Customisation
| Operating system | RutOS (OpenWrt based Linux OS) |
|---|
| Supported languages | Busybox shell, Lua, C, C++ |
|---|
| Development tools | SDK package with build environment provided |
|---|
| GPL customization | You can create your own custom, branded firmware and web page application by changing colours, logos, and other elements in our firmware to fit your or your clients’ needs |
|---|
Power
| Connector | RJ45 Socket |
|---|
| Input voltage range | 44.0 – 57.0 V, surge protection >64.4 VDC 10us max |
|---|
| PoE standards | 802.3af PoE Class 3 |
|---|
| Power consumption | Idle: < 7 W / Max: < 11 W |
|---|
Physical Interfaces
| Ethernet | 1 x RJ45 port, 100/1000/2500 Mbps |
|---|
| Status LEDs | 1 x Power LED (can be turned off from web-UI) |
|---|
| Antennas | 3 x Internal for 2.4 GHz Wi-Fi and 5 GHz Wi-Fi antennas |
|---|
| Antennas specifications | 3x 2400 - 2500 MHz, peak gain < 4.33 dBi & 5150 - 5850 MHz, peak gain < 4.9 dBi, omnidirectional |
|---|
| Reset | Reboot/User default reset/Factory reset button |
|---|
Physical Specification
| Casing material | UV stabilized plastic, aluminum |
|---|
| Dimensions (W x H x D) | Ø 158 mm x 31.4 mm |
|---|
| Weight | 285 g |
|---|
| Mounting options | AP mounting bracket (for ceiling mount) |
|---|
Operating Environment
| Operating temperature | 0 °C to 50 °C |
|---|
| Operating humidity | 10% to 90% non-condensing |
|---|
| Ingress Protection Rating | IP30 |
|---|
Specifications from Teltonika's official product data for the TAP400, checked October 2026.

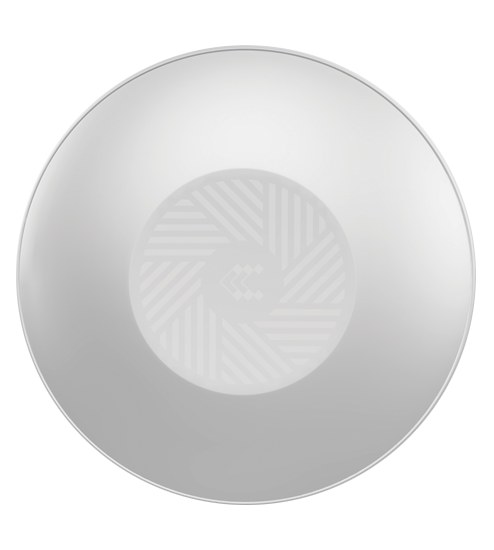

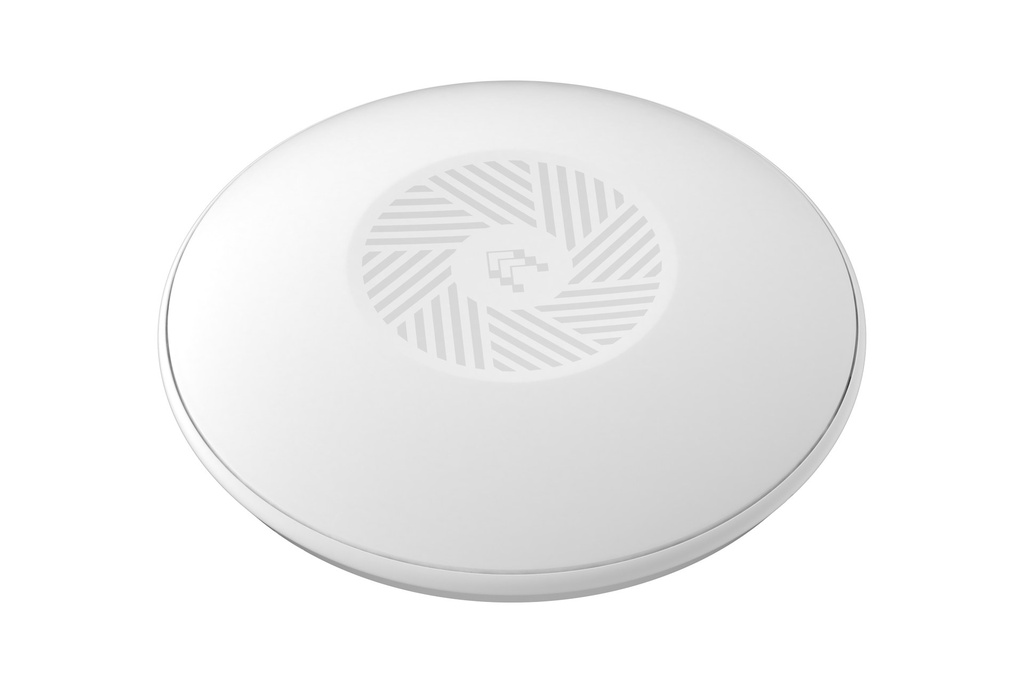

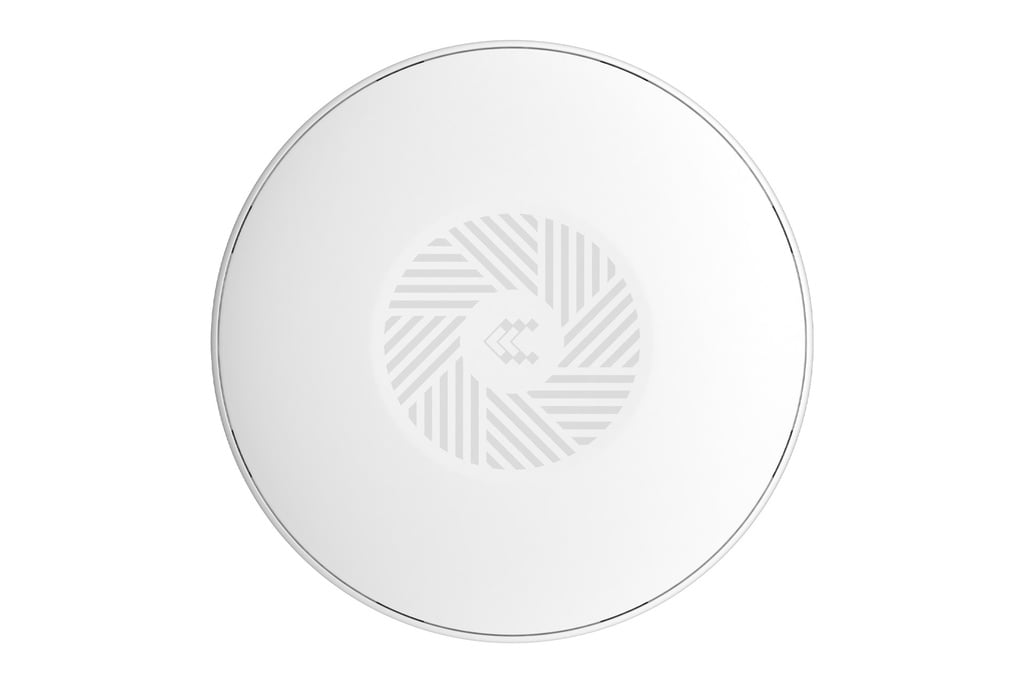

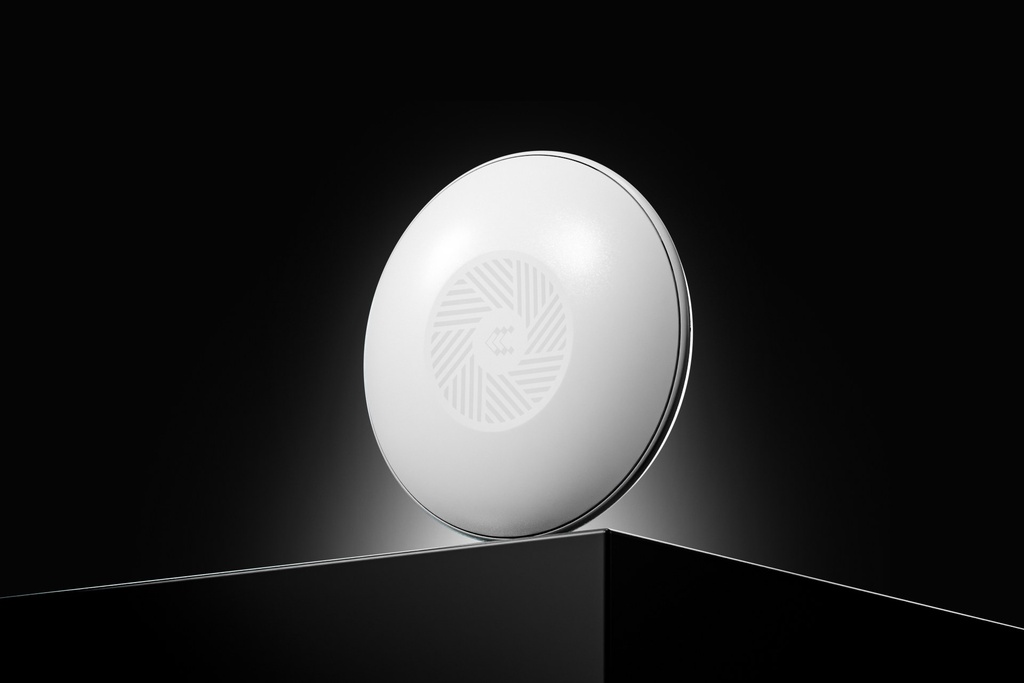

The TAP400 Wi-Fi 6 Access Point in depth
Wi-Fi 6 performance for multi-user networks
The TAP400 supports 802.11b/g/n/ac/ax (Wi-Fi 6) on dual band with MU-MIMO, reaching data rates up to 2402 Mbps on 5GHz and 576 Mbps on 2.4GHz. A dedicated RJ45 port supports 100/1000/2500 Mbps for a 2.5 GbE uplink, and the access point handles up to 512 simultaneous connections. Three internal omnidirectional antennas cover both 2.4 GHz and 5 GHz bands.
Always-on coverage and seamless expansion
Wireless mesh (802.11s), fast roaming (802.11r), BSS transition management (802.11v) and radio resource measurement (802.11k) help maintain network continuity and extend coverage. Security options include WPA3-SAE, WPA3-EAP, OWE, 802.11w Protected Management Frames, MAC-based access control, and tag-based VLAN separation. A wireless QR code generator lets users join the network without entering login details.
Remote management with RMS and RutOS
Configuration, monitoring and troubleshooting can be handled remotely through Teltonika RMS, including firmware and configuration updates for multiple devices at once. The network map helps you visualise your setup. The TAP400 runs RutOS (OpenWrt based Linux OS) and supports FOTA updates, a Web UI, SSH, JSON-RPC and Data to Server using HTTP(S), MQTT and Azure MQTT.

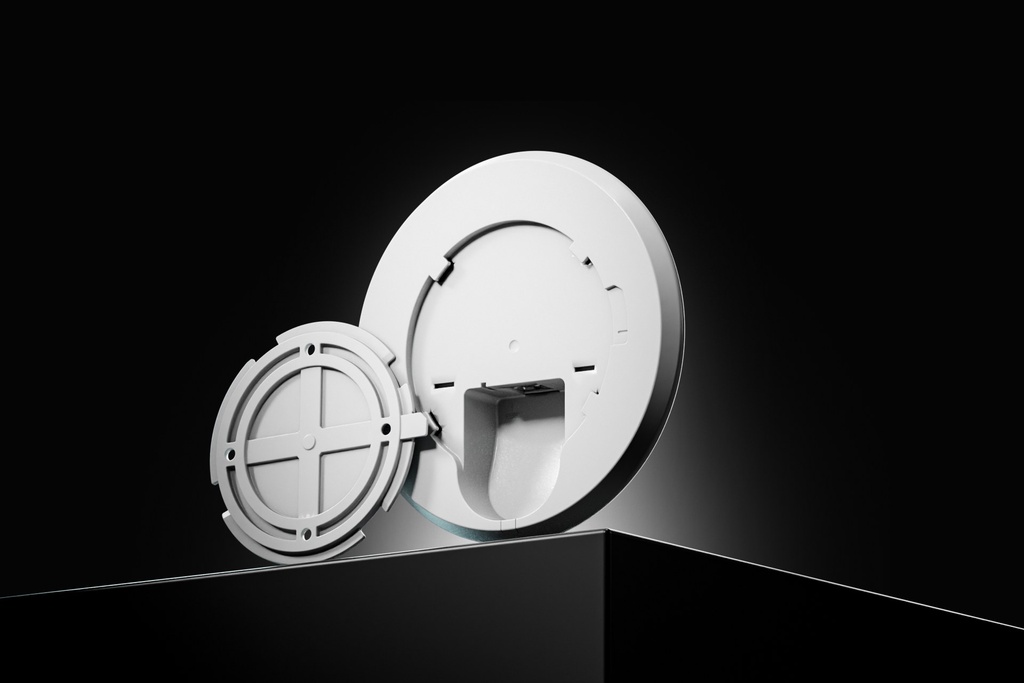

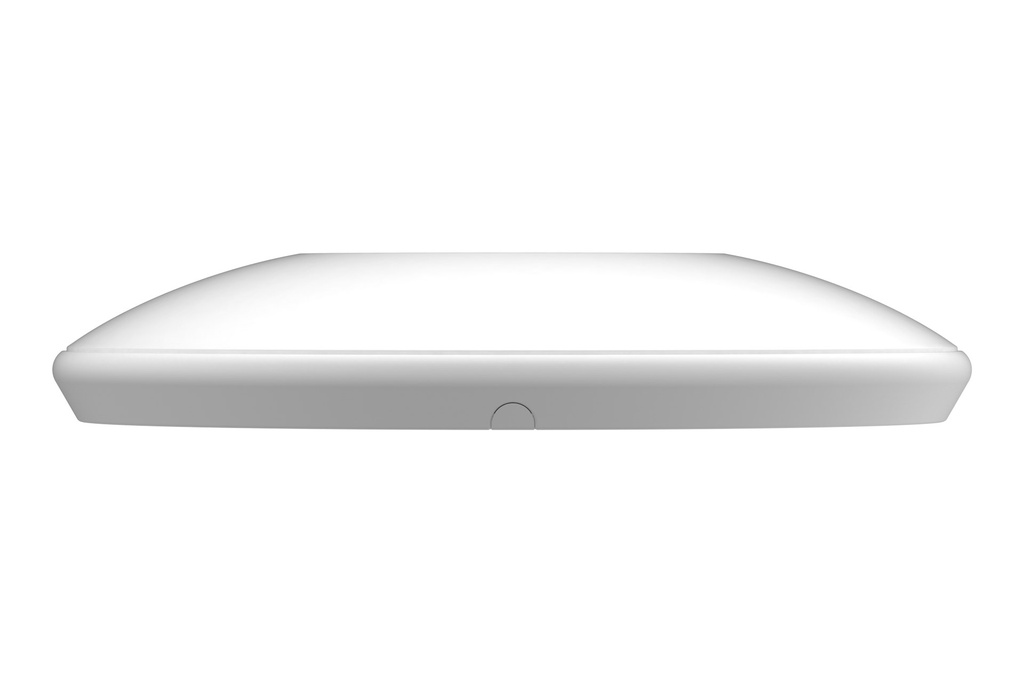

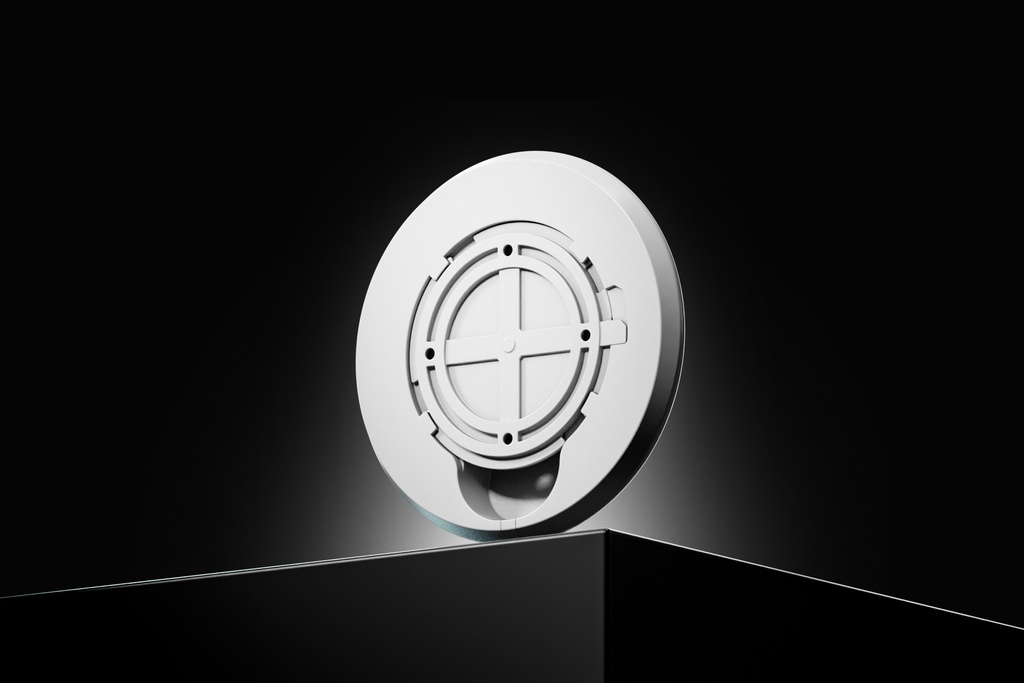

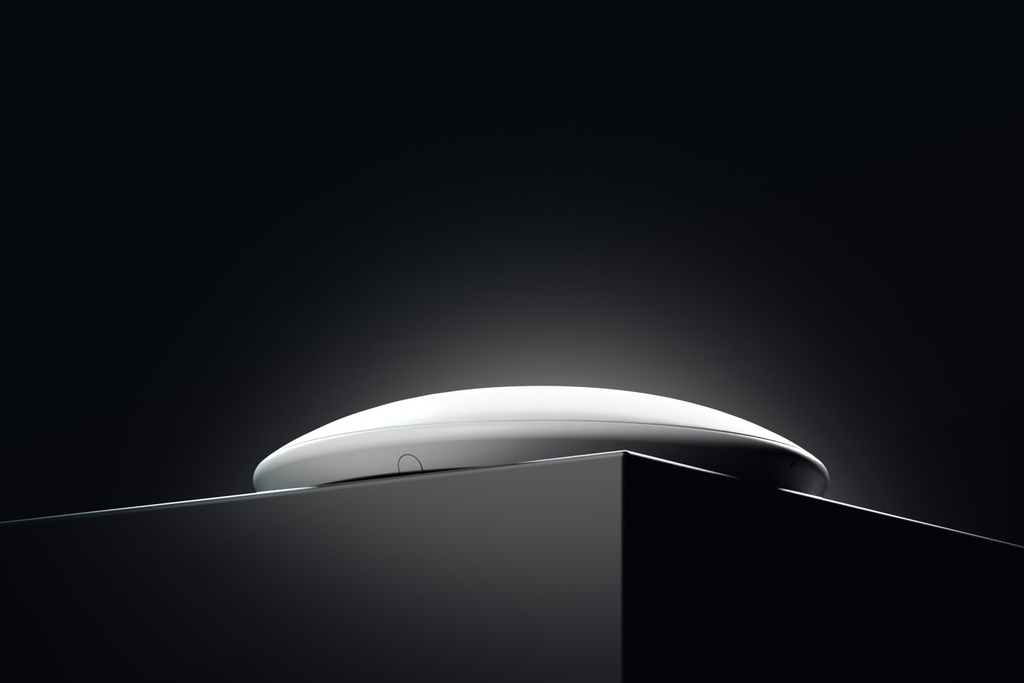

Compact, ceiling-mounted design
The TAP400 measures Ø 158 mm x 31.4 mm and weighs 285 g, with a casing of UV stabilized plastic and aluminium. It mounts to the ceiling using an AP mounting bracket and operates from 0 °C to 50 °C at 10% to 90% non-condensing humidity, with an IP30 rating. Power consumption is under 7 W idle and under 11 W at maximum.
