TP-Link SX3206HPP Omada 6-Port 10GE L2+ Managed Switch with 4-Port PoE++

Price:

$ 1,144.02


TP-Link TL-SG108E 8-Port Gigabit Easy Smart Switch
TP-Link TL-SG108E 8-Port Gigabit Easy Smart Switch
$ 61.14
$ 78.62 (22% OFF)
Ubiquiti UVC-AI-MS-4-B UniFi Protect AI Multi Sensor 4 Camera (Black) — 32MP PoE++ Multi-Sensor, Multi-TOPS AI Engine, 2.33× Optical Zoom, 360° IR, 4 Adjustable Lenses
Ubiquiti UVC-AI-MS-4-B UniFi Protect AI Multi Sensor 4 Camera (Black) — 32MP PoE++ Multi-Sensor, Multi-TOPS AI Engine, 2.33× Optical Zoom, 360° IR, 4 Adjustable Lenses
$ 2,745.05
$ 2,745.05

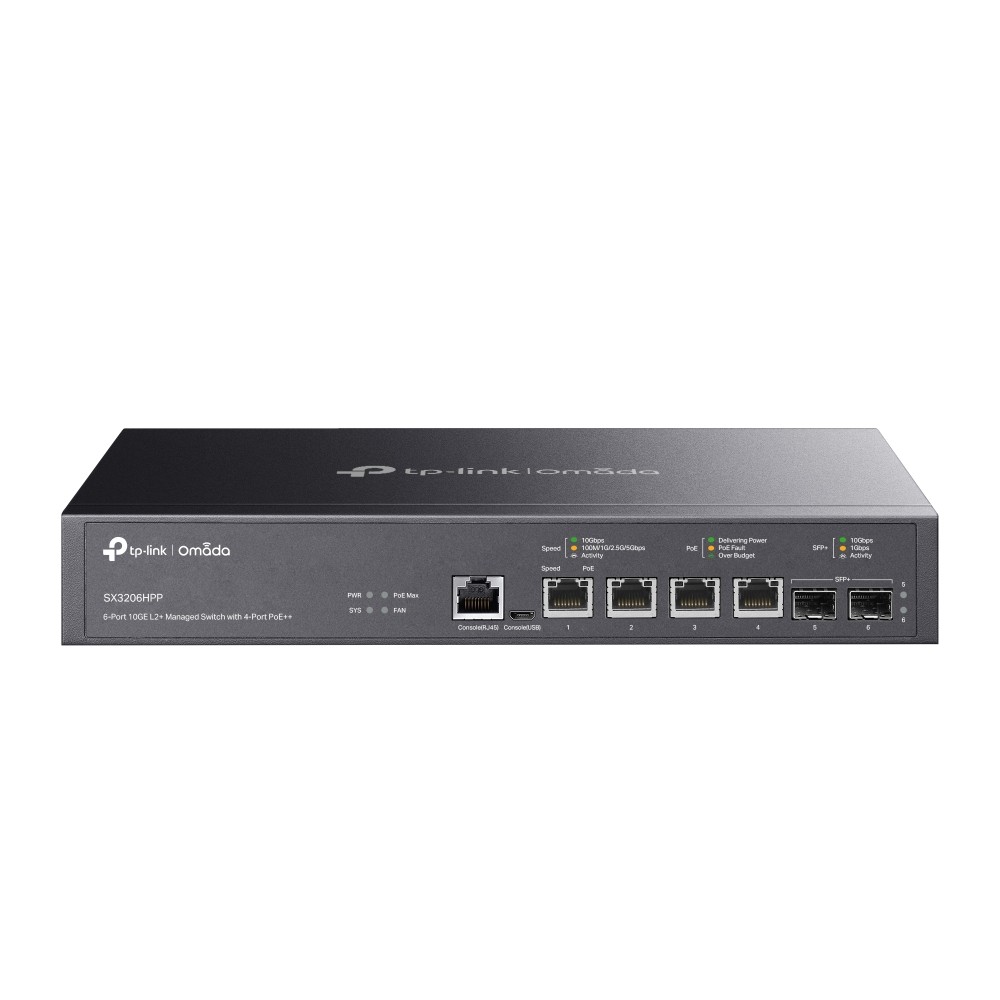

TP-Link SX3206HPP Omada 6-Port 10GE L2+ Managed Switch with 4-Port PoE++

https://arcip.com.au/web/image/product.template/8194/image_1920?unique=59dd948

The TP-Link SX3206HPP is an Omada 6-port 10GE L2+ managed switch with 4-port PoE++. Its four RJ45 ports run at 100 Mbps, 1, 2.5, 5 or 10 Gbps and supply 802.3af/at/bt (Type 3) PoE++ up to 60 W per port, with a 200 W total budget; two 10G SFP+ slots provide uplinks. It offers 120 Gbps switching capacity, 89.28 Mpps forwarding, 128 IP interfaces, 48 static routes, DHCP server and relay, LACP, MSTP, ERPS, QinQ, sFlow, 802.1X and ACL. Desktop or rack mountable (kit included); managed via Omada hardware, software or cloud-based controllers, or standalone via web GUI, CLI and SNMP.

$ 1,144.02 1144.02 AUD $ 1,282.11 incl. GST

Not Available For Sale


  • Brand
  • Switching Capacity
  • RAM

This combination does not exist.

In stock online
Switch PoE Managed Switch TP-Link Omada
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
SX3206HPP
Barcode
6935364006617
Tags

The TP-Link SX3206HPP is an Omada 6-port 10GE L2+ managed switch with four 100 Mbps to 10 Gbps RJ45 ports that supply 802.3bt (Type 3) PoE++ at up to 60 W per port, from a 200 W budget, plus two 10G SFP+ slots. It offers 120 Gbps switching, 48 static routes, ERPS and sFlow, and Omada SDN or standalone management in a compact desktop or rackmount case.

SX3206HPP overview

The SX3206HPP is TP-Link's Omada 6-port 10GE L2+ managed switch with 4-port PoE++, listed in TP-Link's Omada Access Max switch range. It is built for the newest high-bandwidth access points and devices: its four RJ45 ports are multi-gig, negotiating 100 Mbps, 1 Gbps, 2.5 Gbps, 5 Gbps or 10 Gbps, and all four supply PoE to IEEE 802.3af/at/bt (Type 3) with up to 60 W per port. The total PoE budget is 200 W, enough for all four ports at 50 W each or three at the full 60 W; TP-Link notes PoE budget figures are based on laboratory testing and the actual budget is not guaranteed. TP-Link's specification table labels the four ports as PoE+ ports while its highlights and product title call them PoE++; the standard listed is 802.3bt Type 3 with up to 60 W, which is the PoE++ class. 802.3bt Type 4 (90 W) is not listed.

Two 10G SFP+ slots complete the six ports, for fibre uplinks or links to other switches. The datasheet notes that only one 10G RJ45 SFP+ module (SM5310-T) can be inserted at a time. Switching capacity is 120 Gbps with an 89.28 Mpps forwarding rate, a 16 Mbit buffer, a 32K MAC address table and 9 KB jumbo frames. RJ45 and Micro-USB console ports give local CLI access. One overview heading on TP-Link's AU page reads 'Full 10G Fibre Switch'; the switch's own specification table lists four 10G RJ45 PoE++ ports and two SFP+ slots, and this page follows that table.

Power comes from an internal 100-240 V AC, 50/60 Hz supply; maximum power consumption is 244.90 W and heat dissipation 835.67 BTU/h at 110 V/60 Hz with 200 W of powered devices connected. It has two fans, and the datasheet lists noise of 41.8 dBA minimum and 42.7 dBA maximum at 1 m and 25 degrees C, so it is better suited to a comms cabinet than an open desk in a quiet office. The case measures 294 x 180 x 44 mm (11.6 x 7.1 x 1.7 in) and weighs 1.79 kg per the datasheet; it supports desktop or rack mounting, with a rackmount kit and rubber feet in the box, and has a physical security lock slot. Surge protection is plus or minus 6 kV in common mode on service ports, the operating range is 0 to 50 degrees C, and it is certified CE and FCC.

Its L2+ software matches TP-Link's larger Omada L2+ switches: 128 IPv4/IPv6 interfaces, 48 IPv4/IPv6 static routes, 128 static ARP entries (512 ARP entries), proxy and gratuitous ARP, DHCP server, DHCP interface and VLAN relay, and DHCP L2 relay. Layer 2 features include link aggregation, spanning tree, loopback detection, flow control and mirroring, with 4K VLAN groups, 802.1Q, MAC VLAN (30 entries), protocol VLAN, private VLAN, GVRP, voice VLAN and QinQ with VLAN mapping and replace. Multicast supports 1,000 IGMP groups with IGMP snooping and authentication, MVR, MLD snooping and multicast filtering. ISP features include L2PT, DLDP, PPPoE ID insertion, ERPS, 802.3ah link OAM, sFlow and DDM. The datasheet lists PoE Extend Mode and Alternative A pinout.

For Omada SDN, centralised management uses the Omada Cloud-Based Controller, Omada Hardware Controller or Omada Software Controller; cloud access and the Omada app need one of those, and Zero-Touch Provisioning requires the Omada Cloud-Based Controller. TP-Link's SDN features include automatic device discovery, batch configuration and firmware upgrades, network monitoring and abnormal event warnings, and remote management of access points, switches and gateways across multiple sites from one interface. Standalone management is via the web GUI, CLI over the console port or Telnet, SNMP v1/v2c/v3 with RMON, LLDP/LLDP-MED, DHCP AutoInstall, dual image and configuration, cable diagnostics, EEE and password recovery. In the box are the switch, a power cord, a quick installation guide, a rackmount kit and rubber feet. Against TP-Link's 2.5G PoE switches such as the SG3218XP-M2, the SX3206HPP trades port count for speed: four 10G PoE++ ports instead of sixteen 2.5G ports.

Key features

4 x 10G PoE++ ports

Four 100 Mbps to 10 Gbps RJ45 ports with 802.3bt (Type 3) PoE++ up to 60 W per port.

200 W PoE budget

200 W total PoE power across the four ports.

2 x 10G SFP+ uplinks

Two 10 Gbps SFP+ slots with 120 Gbps switching capacity.

Multi-gig RJ45

Ports negotiate 100M, 1G, 2.5G, 5G or 10G to match each device.

L2+ static routing

128 IP interfaces, 48 IPv4/IPv6 static routes, DHCP server and relay.

ISP and resilience features

ERPS, QinQ, L2PT, DLDP, 802.3ah OAM, sFlow and DDM.

Omada SDN cloud management

Centralised management via the web or the Omada app with an Omada controller.

Desktop or rackmount

Compact 294 x 180 x 44 mm case with a rackmount kit included.

SX3206HPP specifications

At a glance

4 x 10G RJ45 PoE++
60 W per port
200 W PoE budget
2 x 10G SFP+
120 Gbps switching
Static routing
Omada SDN
Desktop / rack mount
SX3206HPP full specifications
Hardware Features
Interface4× 100/1000/2500/5000/10000 Mbps RJ45 Ports; 2× 10G SFP+ Slots; 1× RJ45 Console Port; 1× Micro-USB Console Port
Fan Quantity2
Physical Security Lock√
Power Supply100-240 V AC~50/60 Hz
PoE Ports (RJ45)Standard: 802.3af/at/bt (type 3) compliant; PoE+ Ports: 4 Ports, up to 60 W per port; Power Budget: 200 W
Dimensions ( W x D x H )11.6×7.1×1.7 in (294×180×44 mm)
MountingRack Mountable; Desktop
Max. Power Consumption244.90 W (110V/60Hz) (with 200 W PD connected)
Max. Heat Dissipation835.67 BTU/h (110 V/60 Hz) (with 200 W PD connected)
Performance
Packet Buffer Memory16 Mbit
Jumbo Frame9 KB
Switching Capacity120 Gbps
Packet Forwarding Rate89.28 Mpps
MAC Address Table32 K
Software Features
Quality of Service8 priority queues; 802.1p CoS/DSCP priority; Queue scheduling: SP (Strict Priority), WRR (Weighted Round Robin), SP+WRR; Bandwidth Control: Port/Flow-based Rating Limiting; Smoother Performance; Action for Flows: QoS remark (802.1P Remark, DSCP Remark)
L2 and L2+ Features128 IP Interfaces: Support IPv4/IPv6 Interface; Static Routing: 48 IPv4/IPv6 Static Routes; Static ARP: 128 static entries; 512 ARP Entries; Proxy ARP; Gratuitous ARP; DHCP Server; DHCP Relay: DHCP Interface Relay, DHCP VLAN Relay; DHCP L2 Relay; Link Aggregation; Spanning Tree Protocol; Loopback Detection; 802.3x Flow Control; Mirroring
L2 MulticastSupports 1000 (IPv4, IPv6) IGMP groups; IGMP Snooping; IGMP Authentication; Multicast VLAN Registration (MVR); MLD Snooping; Multicast Filtering: 256 profiles and 16 entries per profile
Advanced FeaturesAutomatic Device Discovery; Batch Configuration; Batch Firmware Upgrading; Intelligent Network Monitoring; Abnormal Event Warnings; Unified Configuration; Reboot Schedule ISP Features :; L2PT (Layer 2 Protocol Tunneling); Device Link Detect Protocol (DLDP); PPPoE ID Insertion; ERPS; 802.3ah Ethernet Link OAM; sFlow; DDM
VLANVLAN Group: Max 4K VLAN Groups; 802.1q Tagged VLAN; MAC VLAN: 30 Entries; Protocol VLAN: Protocol Template 16, Protocol VLAN 16; Private VLAN; GVRP; VLAN VPN: VLAN Mapping, VLAN Replace; Voice VLAN
Access Control ListTime-based ACL; MAC ACL: Source MAC, Destination MAC, VLAN ID, User Priority, Ether Type; IP ACL: Source IP, Destination IP, Fragment, IP Protocol, TCP Flag, TCP/UDP Port, DSCP/IP TOS; Combined ACL; Packet Content ACL; IPv6 ACL; Policy: Mirroring, Redirect, Rate Limit, QoS Remark; ACL applies to Port/VLAN
SecurityIP-MAC-Port Binding; 512 Entries; DHCP Snooping; ARP Inspection; IPv4 Source Guard: 100 Entries; IPv6-MAC-Port Binding; 512 Entries; DHCPv6 Snooping; ND Detection; ND Snooping; IPv6 Source Guard: 100 Entries; DoS Defend; DHCP Filter; Static/Dynamic Port Security: Up to 64 MAC addresses per port; Broadcast/Multicast/Unicast Storm Control: kbps/ratio/pps control mode; 802.1X; Port-based authentication; Mac-base authentication; VLAN Assignment; MAB; Guest VLAN; Radius authentication and accountability support; AAA (including TACACS+); Port Isolation; Secure web management through HTTPS with SSLv3/TLS 1.2; Secure Command Line Interface (CLI) management with SSHv1/SSHv2; IP/Port/MAC-based access control
IPv6IPv6 Dual IPv4/IPv6; Multicast Listener Discovery (MLD) Snooping; IPv6 ACL; IPv6 Interface; Static IPv6 Routing; IPv6 neighbor discovery (ND); Path maximum transmission unit (MTU) discovery; Internet Control Message Protocol (ICMP) version 6; TCPv6/UDPv6; IPv6 applications: DHCPv6 Client, Ping6, Tracert6, Telnet (v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, Http/Https, IPv6 TFTP
MIBsMIB II (RFC1213); Interface MIB (RFC2233); Ethernet Interface MIB (RFC1643); Bridge MIB (RFC1493); P/Q-Bridge MIB (RFC2674); RMON MIB (RFC2819); RMON2 MIB (RFC2021); Radius Accounting Client MIB (RFC2620); Radius Authentication Client MIB (RFC2618); Remote Ping, Traceroute MIB (RFC2925); Support TP-Link private MIB
Management Features
Omada AppYes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralised ManagementOmada Cloud-Based Controller; Omada Hardware Controller; Omada Software Controller
Cloud AccessYes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch ProvisioningYes. Requiring the use of Omada Cloud-Based Controller.
Management FeaturesWeb-based GUI; Command Line Interface (CLI) through the console port, telnet; SNMP v1/v2c/v3: Trap/Inform, RMON (1,2,3,9 groups); SDM Template; DHCP/BOOTP Client; 802.1ab LLDP/LLDP-MED; DHCP AutoInstall; Dual Image, Dual Configuration; CPU Monitoring; Cable Diagnostics; EEE; Password Recovery; SNTP; System Log
Others
CertificationCE, FCC
System RequirementsMicrosoft Windows 98SE, NT, 2000, XP, Vista or Windows 7/8/10/11, MAC OS, NetWare, UNIX or Linux.
EnvironmentOperating Temperature: 0–50 ℃ (32–122 ℉);; Storage Temperature: -40–70 ℃ (-40–158 ℉); Operating Humidity: 10–90% RH non-condensing; Storage Humidity: 5–90% RH non-condensing

Source: TP-Link's published specifications for this model (TP-Link Australia product page and datasheet). Some features run only in Standalone Mode or only under an Omada Controller; throughput figures are TP-Link's lab results. TP-Link may change specifications without notice.

What's in the box

  • SX3206HPP Switch
  • Power Cord
  • Quick Installation Guide
  • Rackmount Kit
  • Rubber Feet

Source: TP-Link's published package contents.

Who the SX3206HPP is for

10G Wi-Fi 7 access points

  • 10 Gbps PoE++ ports
  • Up to 60 W per port
  • 10G SFP+ uplinks

High-bandwidth edge devices

  • Multi-gig 100M to 10G RJ45
  • 120 Gbps switching
  • 32K MAC table

Omada SDN sites

  • Omada app and cloud access
  • Zero-Touch Provisioning (cloud controller)
  • Multi-site management

Buy the SX3206HPP from ARC IP Networks

ARC IP Networks supplies TP-Link Omada products from Australian stock at competitive prices, with the full manufacturer's warranty, Australia-wide delivery and trade pricing for installers and MSPs.

  • New TP-Link Omada product from Australian stock.
  • Manufacturer warranty: the full TP-Link manufacturer's warranty for this model.
  • Australia-wide delivery to every state and territory.
  • Trade and project pricing: call 1300 100 440 or email info@arcip.com.au.

Frequently asked questions

Straight answers about the SX3206HPP from the ARC IP Networks team.

Last reviewed October 2026.

IEEE 802.3af/at/bt (Type 3), with up to 60 W per port on all four RJ45 ports.

200 W total. TP-Link notes the figure is based on laboratory testing.

No. TP-Link lists 802.3bt Type 3 with up to 60 W per port; 90 W (Type 4) is not listed.

100 Mbps, 1 Gbps, 2.5 Gbps, 5 Gbps and 10 Gbps.

Yes, but the datasheet states only one SM5310-T 10G RJ45 SFP+ module can be inserted at a time.

It has two fans; the datasheet lists 41.8 to 42.7 dBA at 1 m at 25 degrees C.

Both. It supports desktop and rack mounting, and the rackmount kit is included.

The Omada Cloud-Based, Hardware and Software Controllers. Zero-Touch Provisioning requires the Omada Cloud-Based Controller.

The datasheet lists 1.79 kg (3.95 lbs).

The switch, a power cord, a quick installation guide, a rackmount kit and rubber feet.
