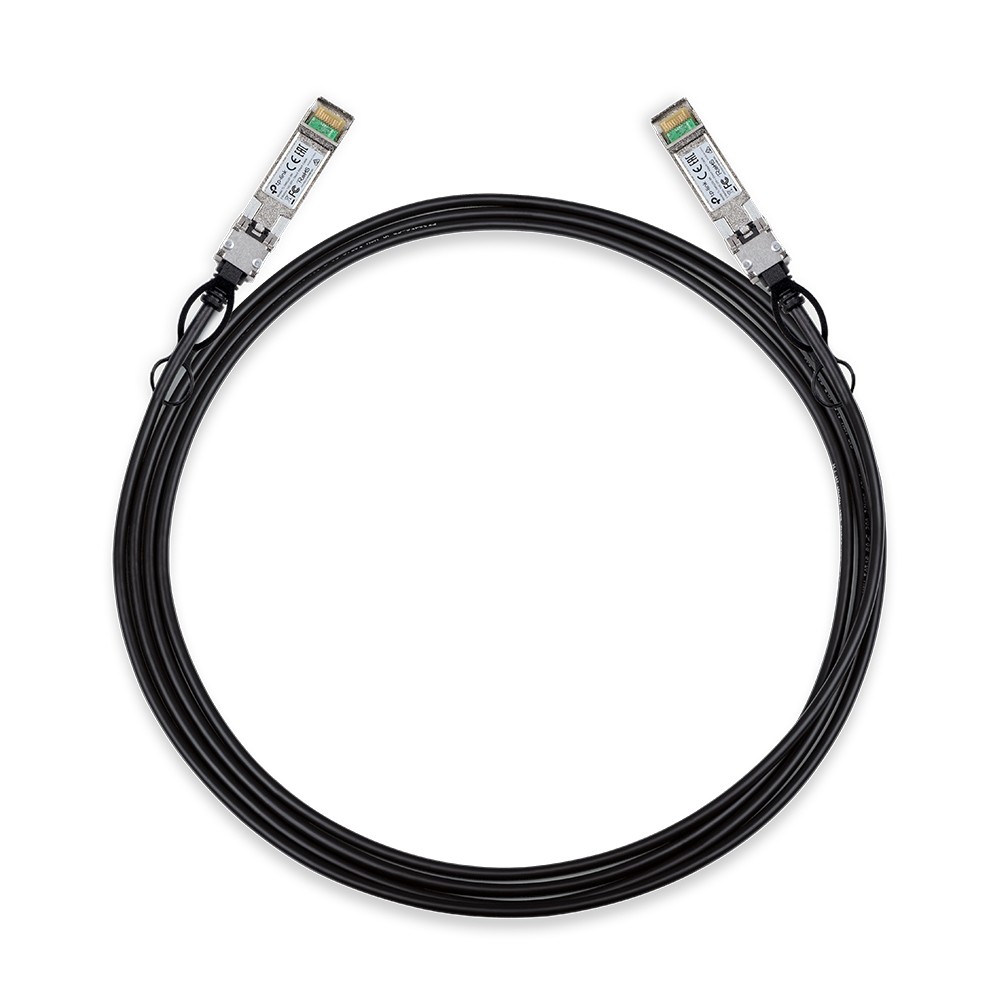

TP-Link SM5220-3M 3 Meters 10G SFP+ Direct Attach Cable

https://arcip.com.au/web/image/product.template/8188/image_1920?unique=f0e3b4e

The TP-Link SM5220-3M is a 3 metre 10G SFP+ direct attach cable (DAC), also listed as TL-SM5220-3M. It has a 10G SFP+ connector on both sides, a 10 Gbps data rate and silver-plated copper conductors, and drives 10 Gigabit Ethernet over 3 m. Each plug measures 57.5 x 13.55 x 8.55 mm and the overall length is 3,000 mm. Operating temperature is 0 to 70 degrees C. TP-Link lists the SM5220-3M as a direct attach cable for Omada SFP+ switches including the SG3428X-M2, SG3428XMP, SG3452XMPP, SG3428XF, SG5452X and SX3206HPP. TP-Link notes that the ER7212PC gateway's SFP port does not support direct attach cables.

$ 44.00 44.0 AUD $ 54.70 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

In stock online
SFP TP-Link Omada
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
SM5220-3M
Barcode
4897098682821
Tags

The TP-Link SM5220-3M (also listed as TL-SM5220-3M) is a 3 metre 10G SFP+ direct attach cable. It has an SFP+ connector permanently fitted at each end, carries 10 Gbps over silver-plated copper conductors, and drives 10 Gigabit Ethernet over a 3 m distance. TP-Link lists it as a direct attach cable option for its Omada SFP+ switches, which makes it a simple way to link two switches, or a switch and a server, in the same rack.

SM5220-3M overview

The SM5220-3M is TP-Link's 3 metre 10G SFP+ direct attach cable; TP-Link's Australian page lists it as SM5220-3M (TL-SM5220-3M), hardware version V1. A direct attach cable combines two SFP+ connectors and the cable between them in one assembly: on the SM5220-3M there is a 10G SFP+ connector on both sides, and TP-Link states that it drives 10 Gigabit Ethernet over a 3 m distance. Because the connectors are part of the cable, there are no separate SFP+ transceivers or patch leads to buy, match and fit for a short link. The conductors are silver-plated copper and the data rate is 10 Gbps.

Physically, each plug measures 57.5 x 13.55 x 8.55 mm (2.26 x 0.53 x 0.34 in), and the overall length is 3,000 mm (118.11 in). The maximum cable length is 3 m, which suits connections within one rack or between neighbouring racks: for example, a 10G uplink from an access switch to an aggregation switch mounted a few units above it, or a link from a switch to a server or NAS with an SFP+ port. TP-Link rates it for operation from 0 to 70 degrees C and storage from -40 to 80 degrees C, with 10% to 90% operating humidity and 5% to 90% storage humidity, both non-condensing. For a shorter run, TP-Link also lists the SM5220-1M, a 1 metre 10G SFP+ direct attach cable.

TP-Link lists the SM5220-3M in the Direct Attach Cable accessory tables of the datasheets for many of its Omada switches with 10G SFP+ slots. These include the Access Pro 2.5G switches SG2210XMP-M2, SG3210XHP-M2, SG3218XP-M2, SG3428X-M2 and SG3428XPP-M2; the Access Plus Gigabit switches SG3428X, SG3428XMP, SG3428XMPP, SG3452X, SG3452XP and SG3452XMPP; the SG3428XF aggregation switch; the SX3206HPP 10GE switch; and the Stackable Lite L3 switches SG5452X, SG5428XF, SG5428XMPP and SG5452XMPP. Pairing any two of these switches over their SFP+ slots with an SM5220-3M gives a 10 Gbps link with no extra optics.

There is one documented exception worth knowing before you order. TP-Link's datasheet for the ER7212PC Omada gateway states that its SFP port does not support direct attach cable connections, including the SM5220-1M (TL-SM5220-1M) and SM5220-3M (TL-SM5220-3M). If the far end of your link is a device whose SFP or SFP+ port does not accept DACs, or the run is longer than 3 m, use SFP+ transceivers and fibre instead. TP-Link does not list package contents beyond the cable on the AU product page.

Key features

SFP+ on both ends

A 10G SFP+ connector is fitted at each end of the cable.

10 Gbps data rate

Drives 10 Gigabit Ethernet over a 3 m distance.

3 metre length

Overall length 3,000 mm for links within or between adjacent racks.

No separate optics

The connectors are part of the cable, so no transceivers are needed for the link.

Silver-plated copper

Copper conductors with silver plating.

Omada switch accessory

Listed by TP-Link for Omada switches with 10G SFP+ slots.

0 to 70 degrees C

Operating temperature range listed by TP-Link.

SM5220-3M specifications

At a glance

10G SFP+ DAC
3 m length
10 Gbps
SFP+ both ends
Silver-plated copper
0 to 70 degrees C
Omada SFP+ switches
Also TL-SM5220-3M
SM5220-3M full specifications
General
Product DimensionsPlug: 2.26 0.53 0.34 in (57.5 13.55 8.55 mm);; Overall length: 118.11 in (3,000 mm)
SFP+ Cable
Max. Cable Length3 m
Data Rate10 Gbps
EnvironmentOperating Temperature: 0–70 ℃ (32–158 ℉) Storage Temperature: -40–80 ℃ (-40–176 ℉) Operating Humidity: 10–90% RH non-condensing Storage Humidity: 5–90% RH non-condensing
ConductorSilver Plated Copper

Source: TP-Link's published specifications for this model (TP-Link Australia product page). Some features run only in Standalone Mode or only under an Omada Controller; throughput figures are TP-Link's lab results. TP-Link may change specifications without notice.

Who the SM5220-3M is for

Switch-to-switch uplinks

  • 10 Gbps between SFP+ slots
  • Same rack or adjacent racks
  • No transceivers to buy

Switch-to-server links

  • 10G links to servers or NAS with SFP+
  • 3 m reach
  • SFP+ connector at each end

Omada networks

  • Listed for Omada Access Pro and Access Plus switches
  • Listed for SG5400 Stackable Lite L3 switches
  • Not for the ER7212PC SFP port

SM5220-3M compared

These are some of the TP-Link Omada switches whose official datasheets list the SM5220-3M as a direct attach cable option, with their SFP+ slot counts from TP-Link's product pages.

SwitchType10G SFP+ slots
SG2210XMP-M28-port 2.5G PoE+ smart switch2
SG3210XHP-M28-port 2.5G PoE+ Access Pro2
SG3218XP-M216-port 2.5G PoE+/PoE++ Access Pro2
SG3428X-M224-port 2.5G Access Pro4
SG3428XPP-M224-port 2.5G PoE++ Access Pro4
SG3428XMP24-port Gigabit PoE+ Access Plus4
SG3452XMPP48-port Gigabit PoE+/PoE++ Access Plus4
SG3428XF24-port SFP aggregation4
SX3206HPP6-port 10GE PoE++2
SG5452X48-port Stackable Lite L34

Source: TP-Link Australia product pages for each model.

Buy the SM5220-3M from ARC IP Networks

ARC IP Networks supplies TP-Link Omada products from Australian stock at competitive prices, with the full manufacturer's warranty, Australia-wide delivery and trade pricing for installers and MSPs.

  • New TP-Link Omada product from Australian stock.
  • Manufacturer warranty: the full TP-Link manufacturer's warranty for this model.
  • Australia-wide delivery to every state and territory.
  • Trade and project pricing: call 1300 100 440 or email info@arcip.com.au.

Frequently asked questions

Straight answers about the SM5220-3M from the ARC IP Networks team.

Last reviewed October 2026.

A 3 metre 10G SFP+ direct attach cable from TP-Link, also listed as TL-SM5220-3M. It has an SFP+ connector on both sides and drives 10 Gigabit Ethernet over 3 m.

No. The SFP+ connectors are built into each end of the cable, so it plugs straight into two SFP+ slots.

TP-Link lists a 10 Gbps data rate.

The maximum cable length is 3 m; TP-Link lists the overall length as 3,000 mm (118.11 in). For a shorter run there is the 1 metre SM5220-1M.

TP-Link lists it in the datasheets of Omada SFP+ switches including the SG3428X-M2, SG3428XPP-M2, SG2210XMP-M2, SG3210XHP-M2, SG3218XP-M2, SG3428X, SG3428XMP, SG3428XMPP, SG3452X, SG3452XP, SG3452XMPP, SG3428XF, SX3206HPP, SG5452X, SG5428XF, SG5428XMPP and SG5452XMPP.

No. TP-Link's ER7212PC datasheet states that its SFP port does not support direct attach cables, including the SM5220-3M.

TP-Link lists silver-plated copper conductors.

Operating 0 to 70 degrees C and storage -40 to 80 degrees C, with non-condensing humidity of 10% to 90% operating and 5% to 90% storage.

Each plug measures 57.5 x 13.55 x 8.55 mm (2.26 x 0.53 x 0.34 in).
