TP-Link SM321B Omada 1000Base-BX WDM Bi-Directional SFP Module

Price:

$ 29.47


TP-Link SM321A-2 Omada 1000BASE-BX Wdm Bi-Directional SFP Module
TP-Link SM321A-2 Omada 1000BASE-BX Wdm Bi-Directional SFP Module
$ 30.03
$ 30.03
TP-Link SM321B-2 Omada 1000BASE-BX Wdm Bi-Directional SFP Module
TP-Link SM321B-2 Omada 1000BASE-BX Wdm Bi-Directional SFP Module
$ 30.03
$ 30.03

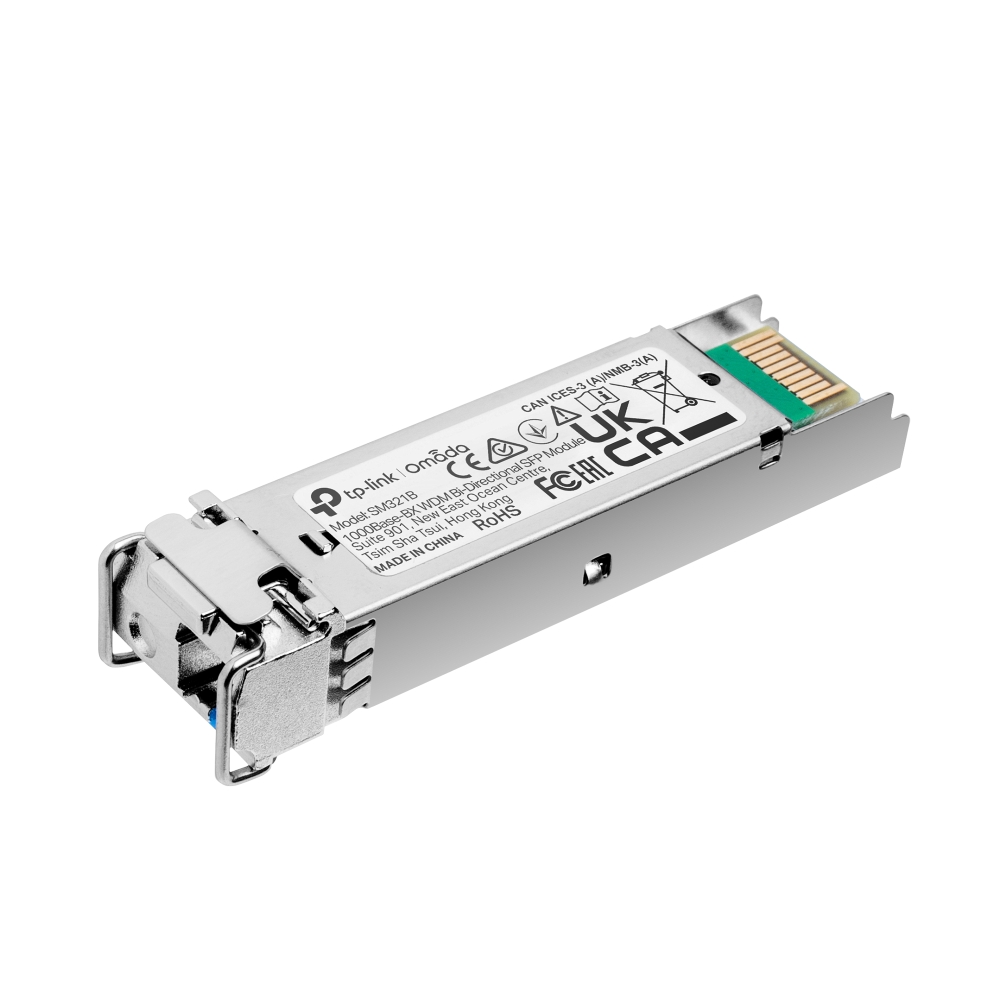

TP-Link SM321B Omada 1000Base-BX WDM Bi-Directional SFP Module

https://arcip.com.au/web/image/product.template/8181/image_1920?unique=73ac110

The TP-Link SM321B (TL-SM321B) is an Omada 1000Base-BX WDM bi-directional SFP module that carries traffic over a single strand of fibre. It connects via an LC simplex port on 9/125 μm single-mode fibre, with a maximum cable length of 20 km at a 1.25 Gbps data rate. It transmits at 1310 nm and receives at 1550 nm, and complies with IEEE 802.3z. The module follows the SFP-MSA, is hot swappable and supports DDM, running from 3.3 V with an operating temperature range of 0 to 70 °C. Supplied by ARC IP Networks from Australian stock with the full manufacturer's warranty.

$ 29.47 29.47 AUD $ 29.47 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

In stock online
SFP TP-Link
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
SM321B
Barcode
6935364030520
Tags

The TP-Link SM321B (TL-SM321B) is an Omada 1000Base-BX WDM bi-directional SFP module for 9/125 µm single-mode fibre: TX 1310 nm and RX 1550 nm, 1.25 Gbps, up to 20 km through an LC simplex port, with DDM, SFP-MSA compatibility and hot swapping. Its wavelengths are the reverse of TP-Link's SM321A.

SM321B overview

The SM321B, also listed by TP-Link as the TL-SM321B, is an Omada 1000Base-BX WDM bi-directional SFP module. As a WDM bi-directional module it uses a different wavelength for transmitting and for receiving: TP-Link specifies the SM321B to transmit at 1310 nm and receive at 1550 nm. It complies with IEEE 802.3z and TCP/IP, runs at a data rate of 1.25 Gbps, and is designed for single-mode fibre, specifically 9/125 µm single-mode, with a maximum cable length of 20 km. Its fibre interface is an LC simplex port.

The wavelength pairing is what matters most when you plan a link. TP-Link's SM321A is specified the opposite way, transmitting at 1550 nm and receiving at 1310 nm, with the same 1.25 Gbps data rate, 9/125 µm single-mode fibre, 20 km maximum cable length and LC simplex port. Fitted at opposite ends of a link, an SM321B and an SM321A have complementary wavelengths, and the comparison below sets out their published specifications side by side so you can check every figure.

The SM321B's hardware features are DDM (Digital Diagnostic Monitoring), SFP-MSA compatibility and hot-swap support. It takes a 3.3 V power supply and carries FCC and CE certification. The module measures 55.4 x 14.6 x 12.9 mm. TP-Link rates it for operation from 0 °C to 70 °C and storage from -40 °C to 85 °C, with operating humidity of 10% to 90% RH and storage humidity of 5% to 90% RH, non-condensing. The key figures to check when specifying it are 1000Base-BX, 9/125 µm single-mode fibre, up to 20 km, TX 1310 nm / RX 1550 nm and LC simplex.

In the box are the SM321B module and an installation guide. When ordering for a new link, plan one SM321B for one end and a module with the reverse wavelengths, such as the SM321A, for the other, and confirm the run is 9/125 µm single-mode fibre within 20 km. The SM321B's published specification covers its standards (IEEE 802.3z and TCP/IP), wavelengths (TX 1310 nm, RX 1550 nm), dimensions, 3.3 V power supply, FCC and CE safety and emission compliance, single-mode cable, 9/125 µm fibre type, 20 km maximum cable length, 1.25 Gbps data rate, LC simplex port type, hardware features and environment ratings, all of which appear in the specification table on this page. ARC IP Networks supplies the SM321B from Australian stock with the full manufacturer's warranty.

Key features

1000Base-BX bi-directional

An Omada WDM bi-directional SFP module following IEEE 802.3z.

TX 1310 nm / RX 1550 nm

The reverse of the SM321A, which transmits at 1550 nm and receives at 1310 nm.

Up to 20 km

Maximum cable length of 20 km over 9/125 µm single-mode fibre.

1.25 Gbps

A 1.25 Gbps data rate through an LC simplex port.

DDM

Supports Digital Diagnostic Monitoring.

SFP-MSA compatible

Compatible with the Small Form Pluggable Multi-Source Agreement.

Hot-swappable

TP-Link lists the module as hot swappable.

0 to 70 °C operation

Rated for 0 °C to 70 °C operation and -40 °C to 85 °C storage, powered at 3.3 V.

SM321B specifications

At a glance

1000Base-BX
WDM bi-directional
Up to 20 km
TX 1310 / RX 1550 nm
9/125 µm single-mode
LC simplex
1.25 Gbps
DDM, hot-swappable
SM321B full specifications
Media Converter & Module
Standards and ProtocolsIEEE 802.3z, TCP/IP
Wave LengthTX: 1310 nm; RX: 1550 nm
Dimensions ( W x D x H )2.2 0.6 0.5 in (55.4 14.6 12.9 mm)
Power Supply3.3 V
Safety & EmissionFCC, CE
CableSingle-Mode Fibre
Fibre Type9/125 μm Single-Mode
Max. Cable Length20 KM
Data Rate1.25 Gbps
Port TypeLC Simplex
Hardware FeaturesDDM; SFP-MSA; Hot Swappable
EnvironmentOperating Temperature: 0–70 °C (32–158 °F); Storage Temperature: -40–85 °C ( -40–185 °F); Operating Humidity: 10–90% RH, Non-Condensing; Storage Humidity: 5–90% RH, Non-Condensing

Source: TP-Link's published specifications for this model (TP-Link Australia product page). Some features run only in Standalone Mode or only under an Omada Controller; throughput figures are TP-Link's lab results. TP-Link may change specifications without notice.

What's in the box

  • SM321B
  • Installation Guide

Source: TP-Link's published package contents.

Who the SM321B is for

Single-mode gigabit links

  • 9/125 µm single-mode fibre
  • Up to 20 km
  • Opposite end uses TX 1550 / RX 1310 nm

SFP-MSA host ports

  • SFP-MSA compatible
  • Hot-swappable
  • DDM support

SM321B compared

The SM321B and SM321A are TP-Link's 1000Base-BX WDM bi-directional SFP modules with reversed wavelengths: each one transmits on the wavelength the other receives.

FeatureSM321BSM321A
Standard1000Base-BX (IEEE 802.3z)1000Base-BX (IEEE 802.3z)
TX wavelength1310 nm1550 nm
RX wavelength1550 nm1310 nm
Fibre type9/125 µm single-mode9/125 µm single-mode
Max. cable length20 km20 km
Data rate1.25 Gbps1.25 Gbps
Port typeLC simplexLC simplex
Hardware featuresDDM, SFP-MSA, hot swappableDDM, SFP-MSA, hot swappable
Operating temperature0 °C to 70 °C0 °C to 70 °C

Source: TP-Link Australia product pages for each model.

Buy the SM321B from ARC IP Networks

ARC IP Networks supplies genuine TP-Link Omada products from Australian stock at competitive prices, with the full manufacturer's warranty, Australia-wide delivery and trade pricing for installers and MSPs.

  • Genuine TP-Link: new TP-Link Omada product from Australian stock.
  • Manufacturer warranty: the full TP-Link manufacturer's warranty for this model.
  • Australia-wide delivery to every state and territory.
  • Trade and project pricing: call 1300 100 440 or email info@arcip.com.au.

Frequently asked questions

Straight answers about the SM321B from the ARC IP Networks team.

Last reviewed October 2026.

An Omada 1000Base-BX WDM bi-directional SFP module for 9/125 µm single-mode fibre, also listed as the TL-SM321B.

It transmits at 1310 nm and receives at 1550 nm.

TP-Link does not name a partner module, but its SM321A is specified with the reverse wavelengths: it transmits at 1550 nm and receives at 1310 nm, with the same 20 km reach and LC simplex port.

Up to 20 km over 9/125 µm single-mode fibre.

An LC simplex port.

It has a 1.25 Gbps data rate and follows IEEE 802.3z.

Yes. Its hardware features are DDM, SFP-MSA compatibility and hot swapping.

Operation from 0 °C to 70 °C and storage from -40 °C to 85 °C, non-condensing.

55.4 x 14.6 x 12.9 mm, powered at 3.3 V.

The SM321B module and an installation guide.

Need more than one SM321B for a single-fibre link project?

Ask ARC IP Networks for volume and project pricing on genuine TP-Link Omada products.
